Installation Procedure

Important:  During installation ensure that the child tether anchors are installed with the anti-rotation tabs firmly seated in the anti-rotation tab holes on the cross car beam.

1. Install the child tether anchor to the cross car beam.
   NOTE: Refer to Fastener Notice   in Cautions and Notices.
2. Install the child tether anchor bolt.

   Tighten

   Tighten the bolt to 30 N.m (22 lb ft).

3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.

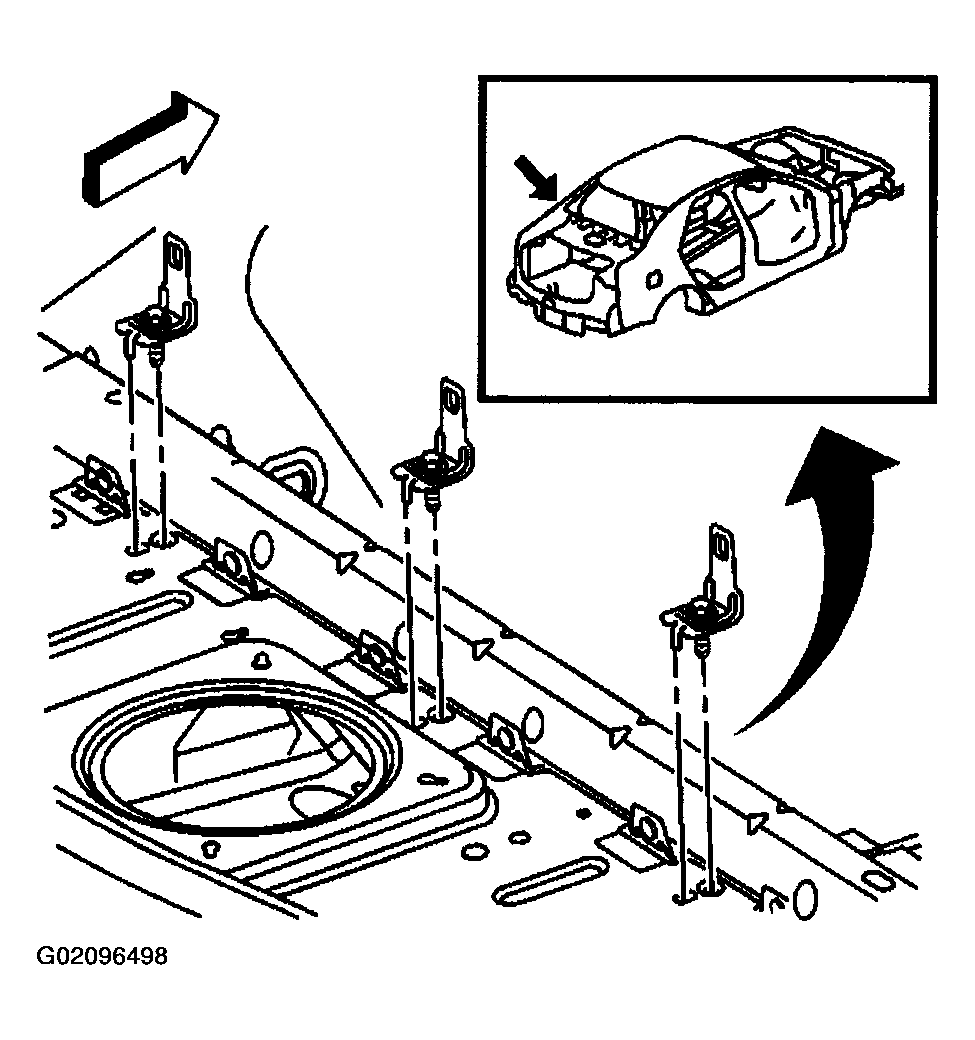

   Fig 1: Child Tether Anchors

   Courtesy of GENERAL MOTORS CORP.
