Removal Procedure

  1. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY in Engine Controls - 2.6L and 3.2L.
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical - 2.6L and 3.2L.
  3. Using J 25034-C  remove the power steering pump pulley from the power steering pump. See Special Tools and Equipment .

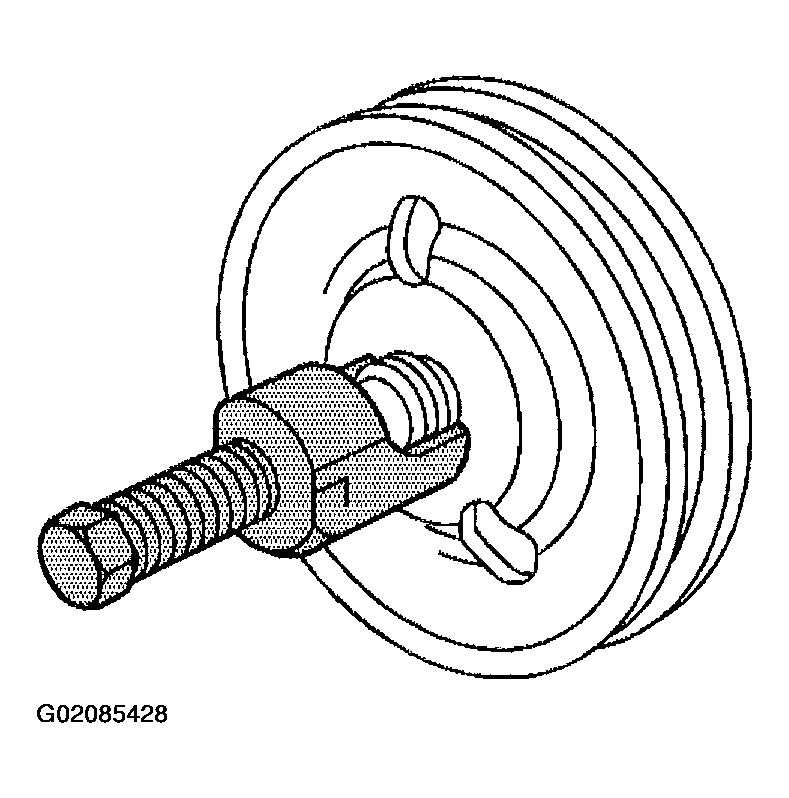

    Fig 1: Removing Power Steering Pump Pulley
    G02085428Courtesy of GENERAL MOTORS CORP.
