Electronic Brake Control Module (EBCM)

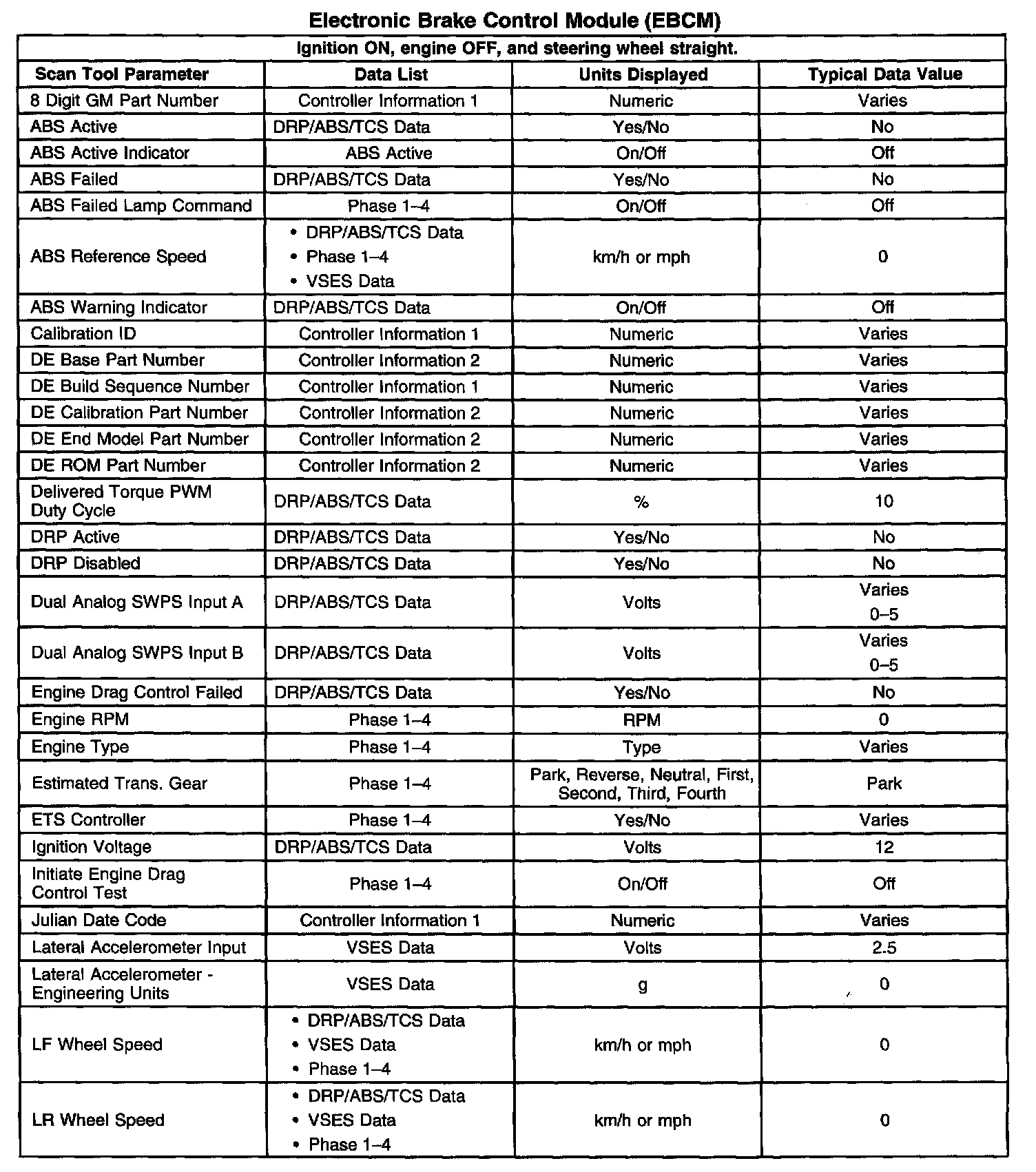

Electronic Brake Control Module (EBCM):

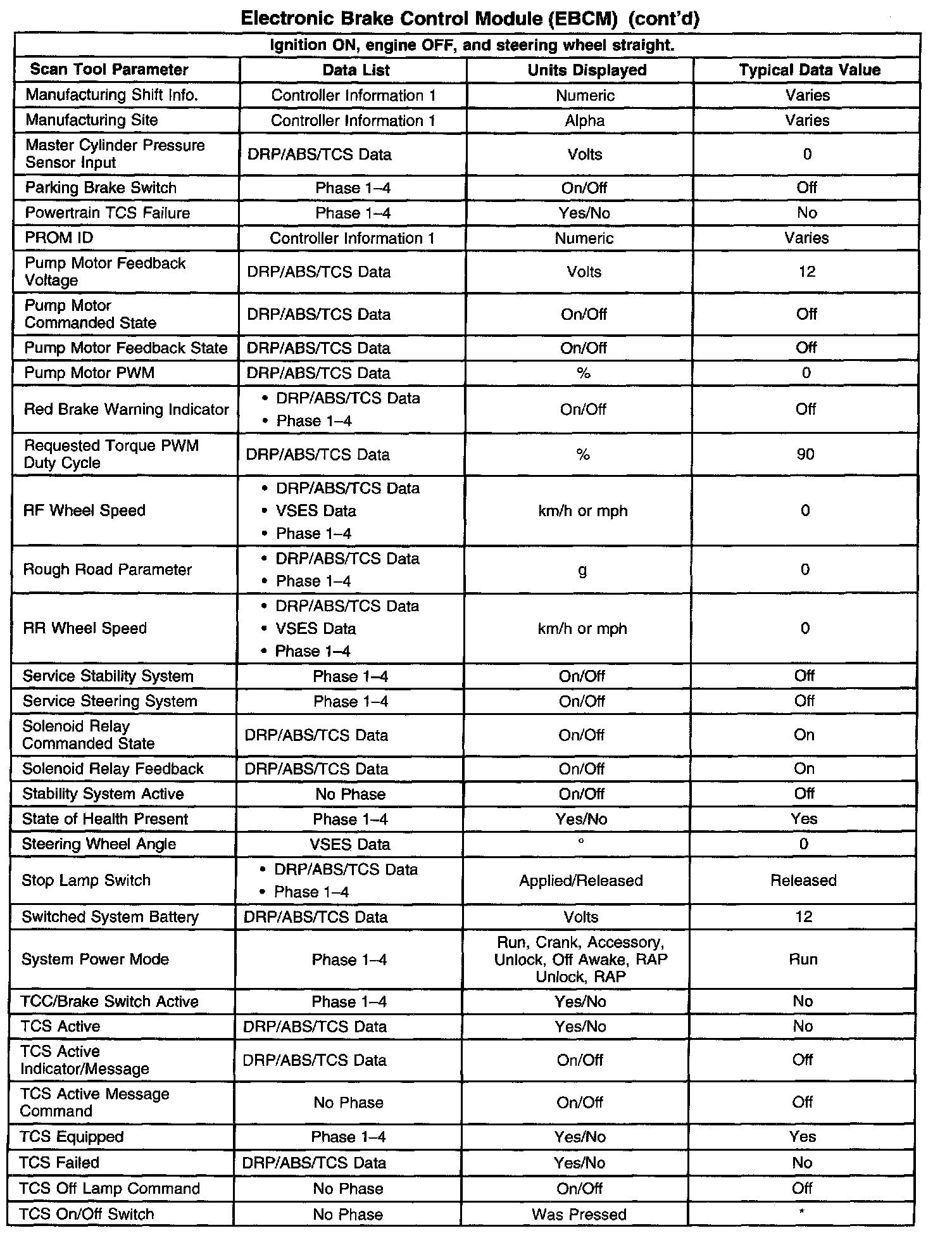

Electronic Brake Control Module (EBCM) (Cont'd):

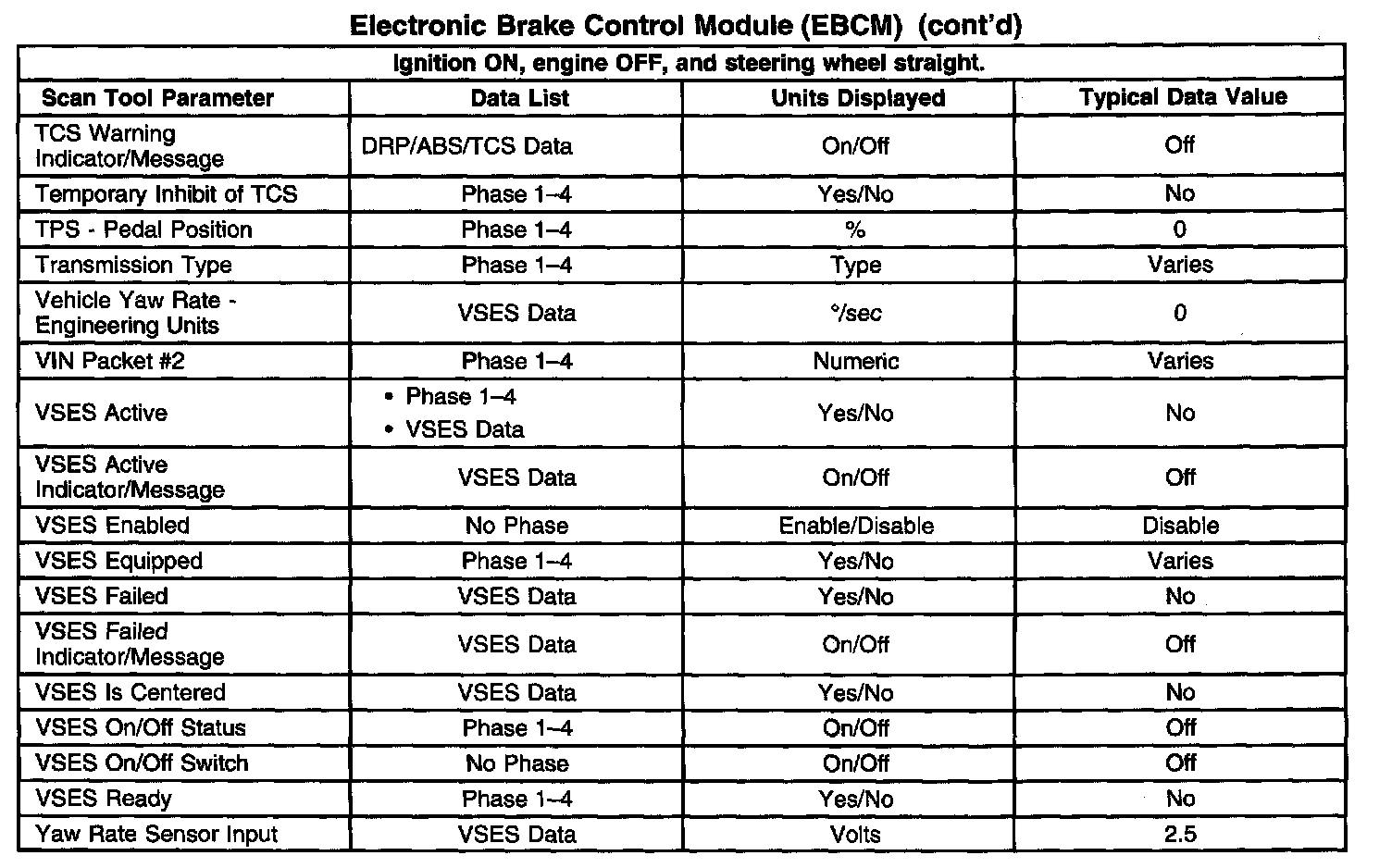

Electronic Brake Control Module (EBCM) (cont'd):
