Scan Tool Data List - HVAC Control Module

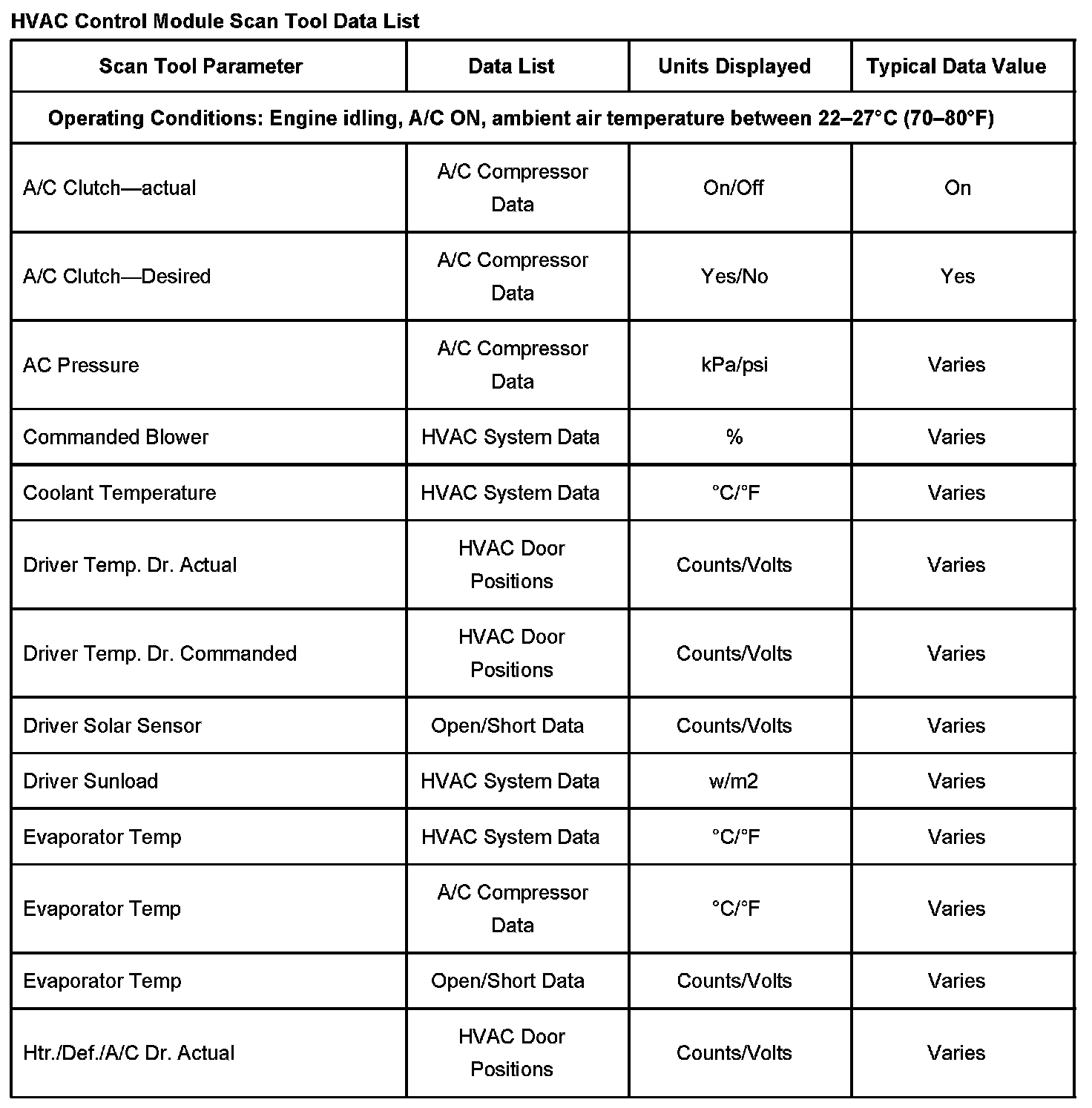

HVAC Control Module Scan Tool Data List Part 1:

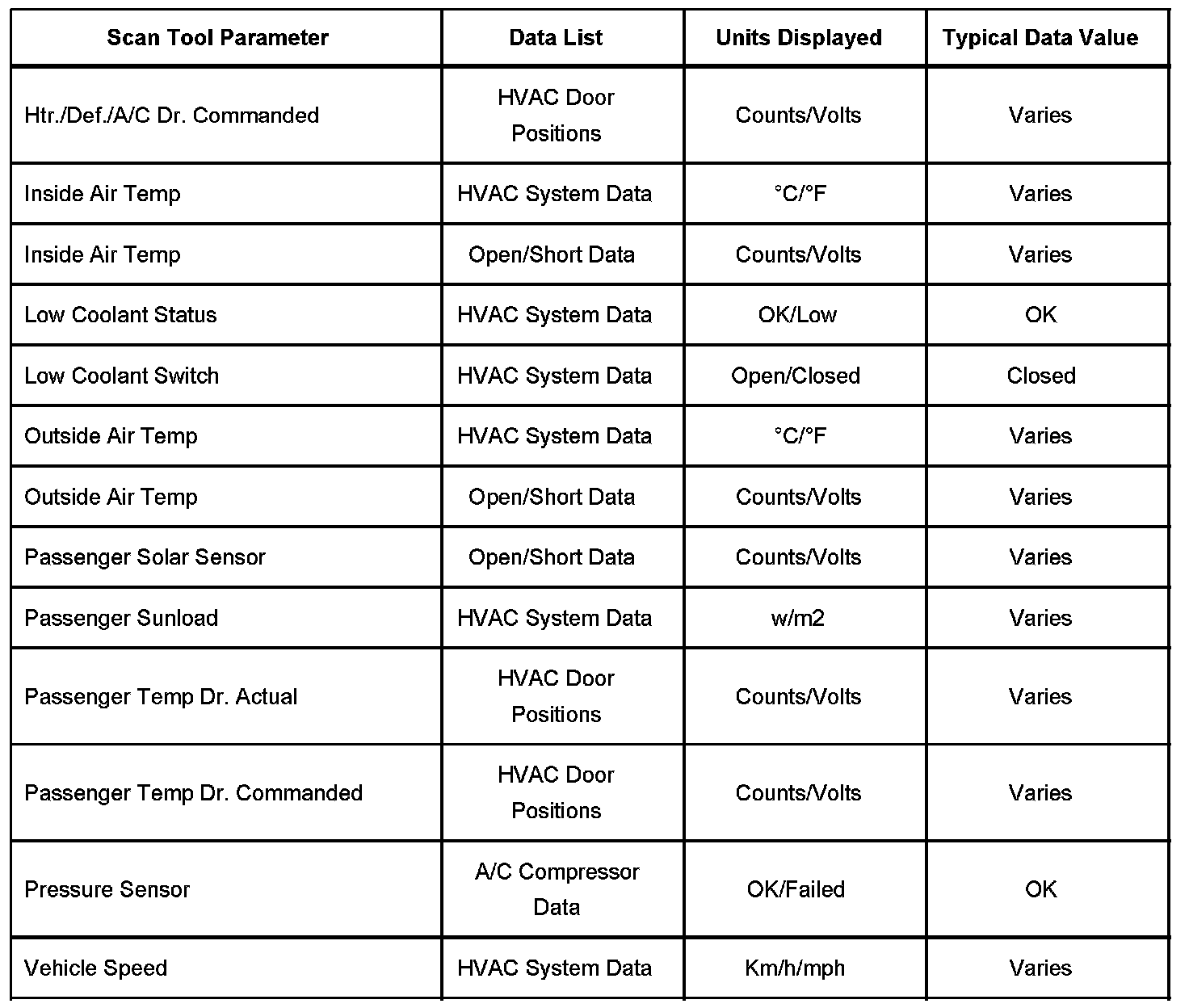

HVAC Control Module Scan Tool Data List Part 2:
