Scan Tool Output Controls - Rear Integration Module (RIM)

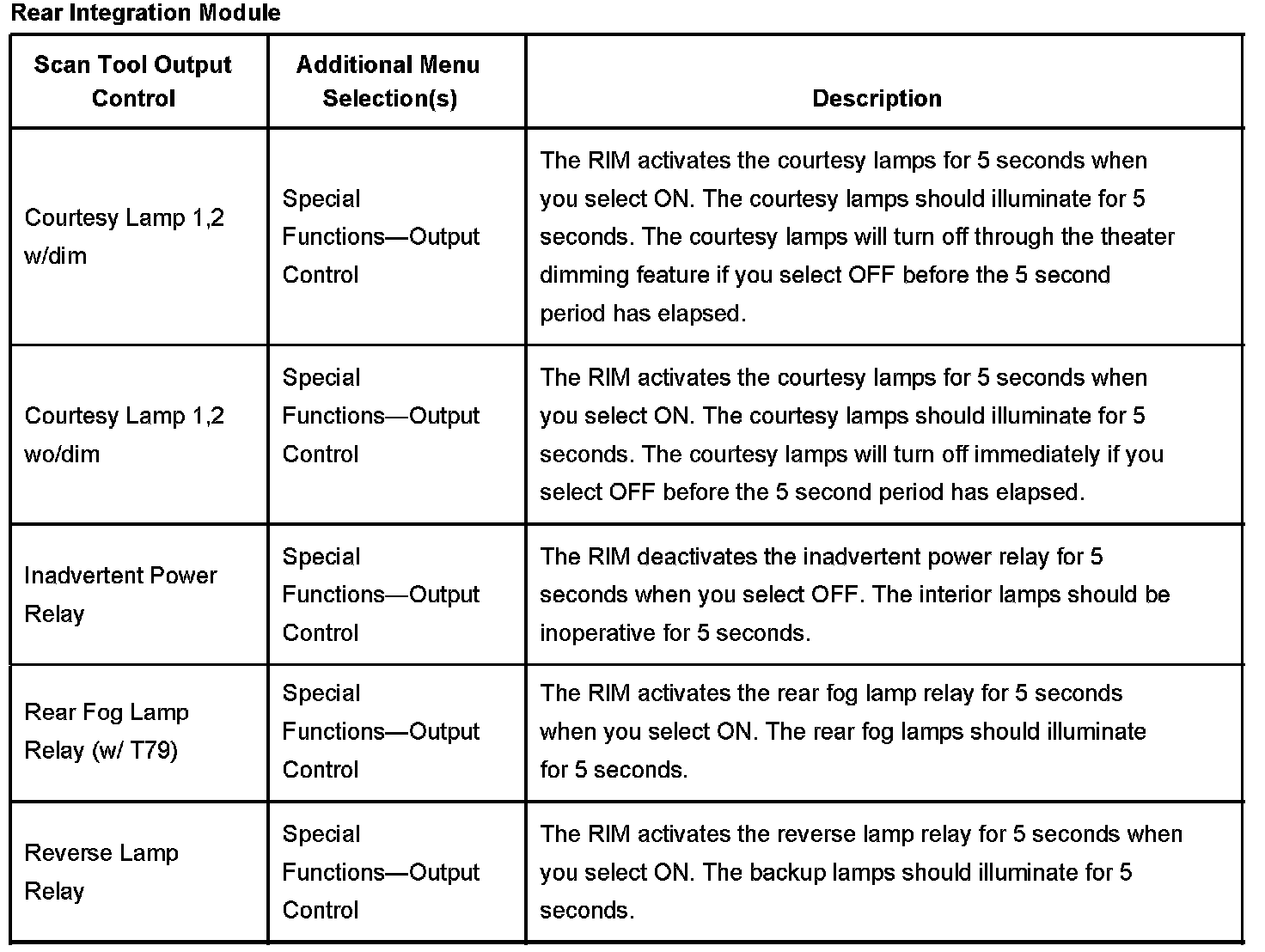

Rear Integration Module Scan Tool Output Controls:
