Dash Integration Module (DIM) C1

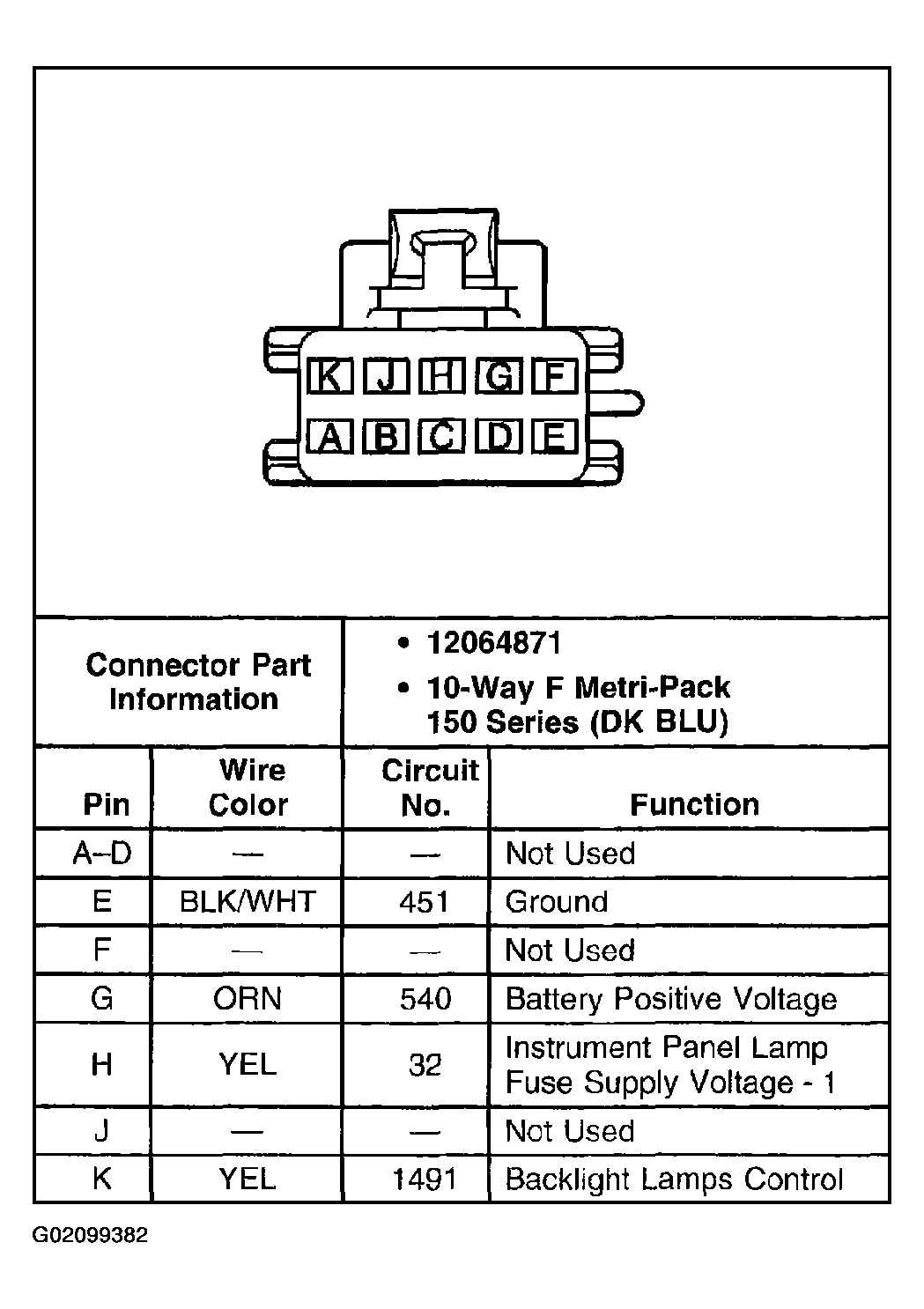

Fig 1: Identifying Dash Integration Module C1 Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
