Dash Integration Module (DIM) C2

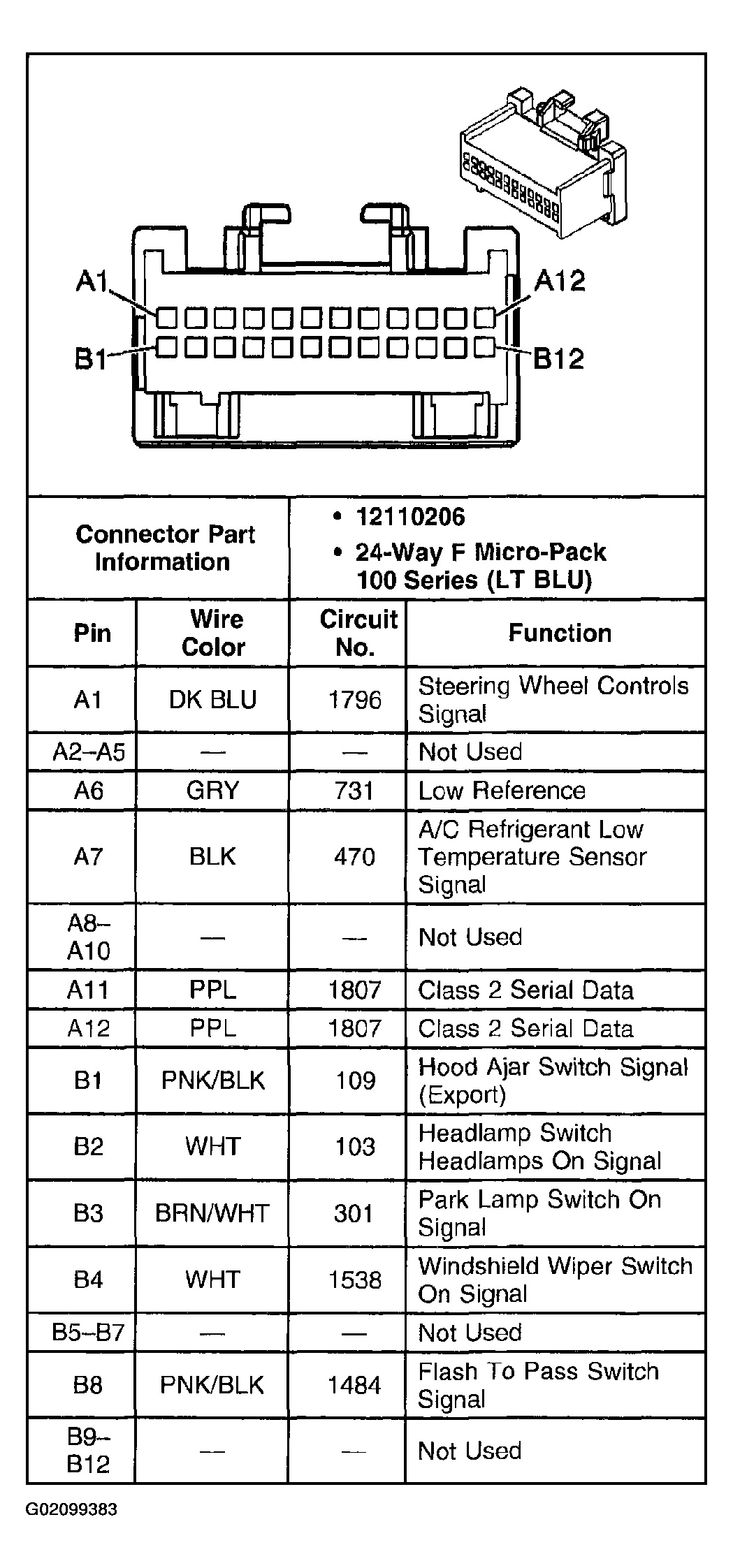

Fig 1: Identifying Dash Integration Module C2 Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
