Instrument Panel Integration Module (IPM) C1

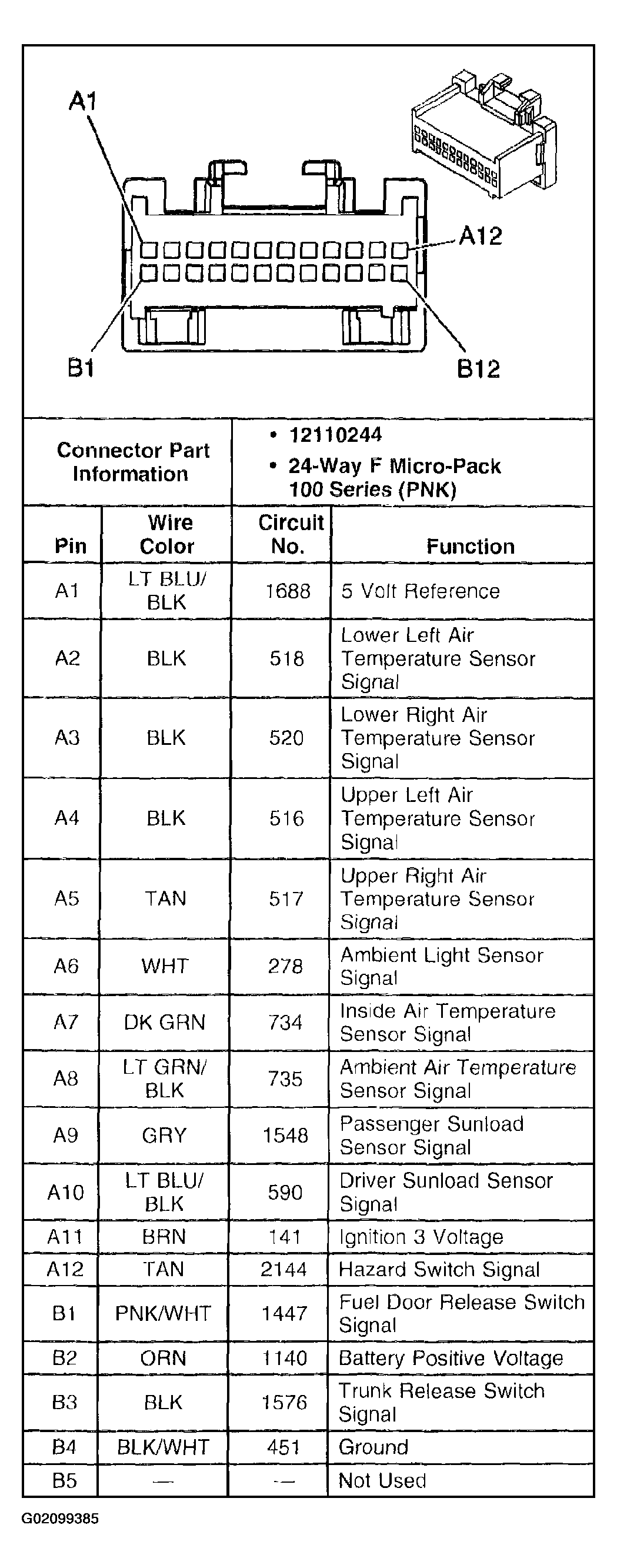

Fig 1: Identifying Instrument Panel Integration Module C1 Connector Terminal (1 Of 2)
G02099385Courtesy of GENERAL MOTORS CORP.

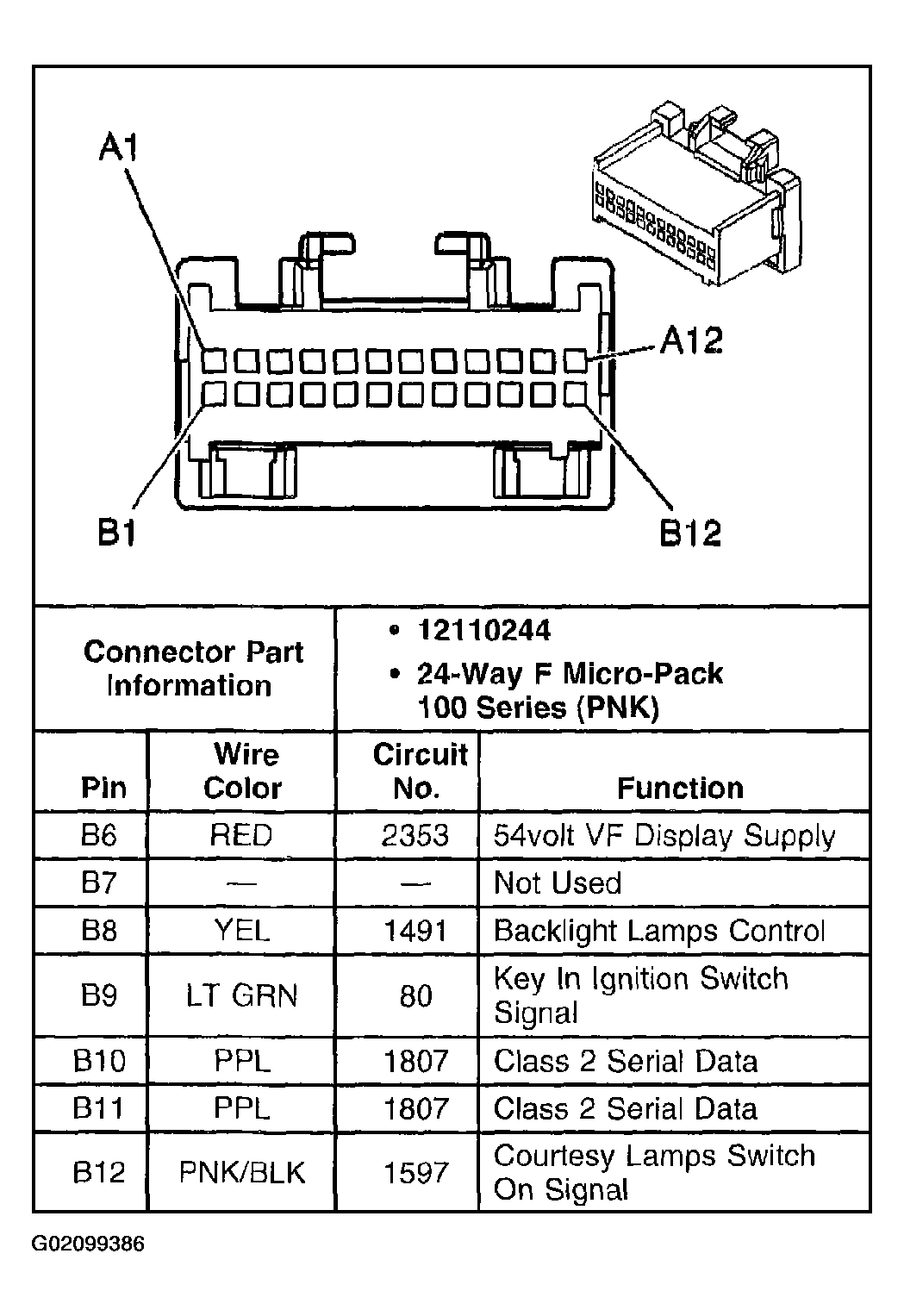

Fig 2: Identifying Instrument Panel Integration Module C1 Connector Terminal (2 Of 2)
G02099386Courtesy of GENERAL MOTORS CORP.
