Instrument Panel Integration Module (IPM) C2

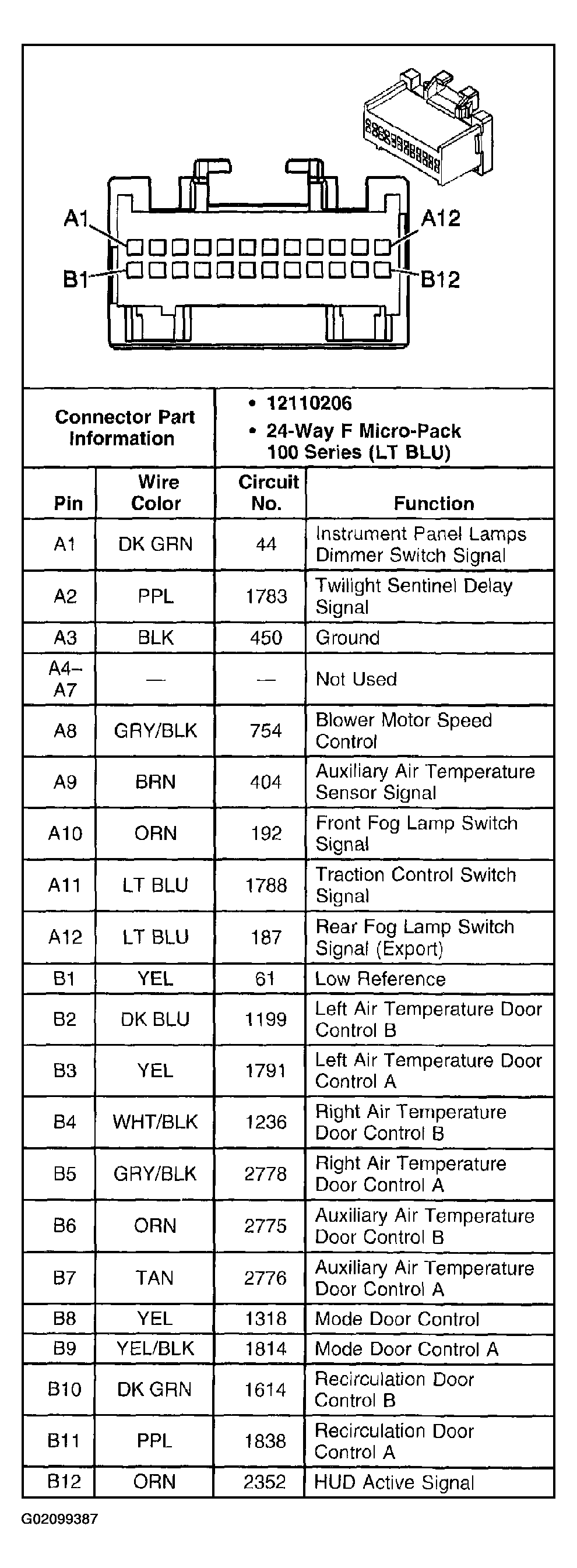

Fig 1: Identifying Instrument Panel Integration Module C2 Connector Terminal
G02099387Courtesy of GENERAL MOTORS CORP.
