Wiper/Washer System Connector End Views

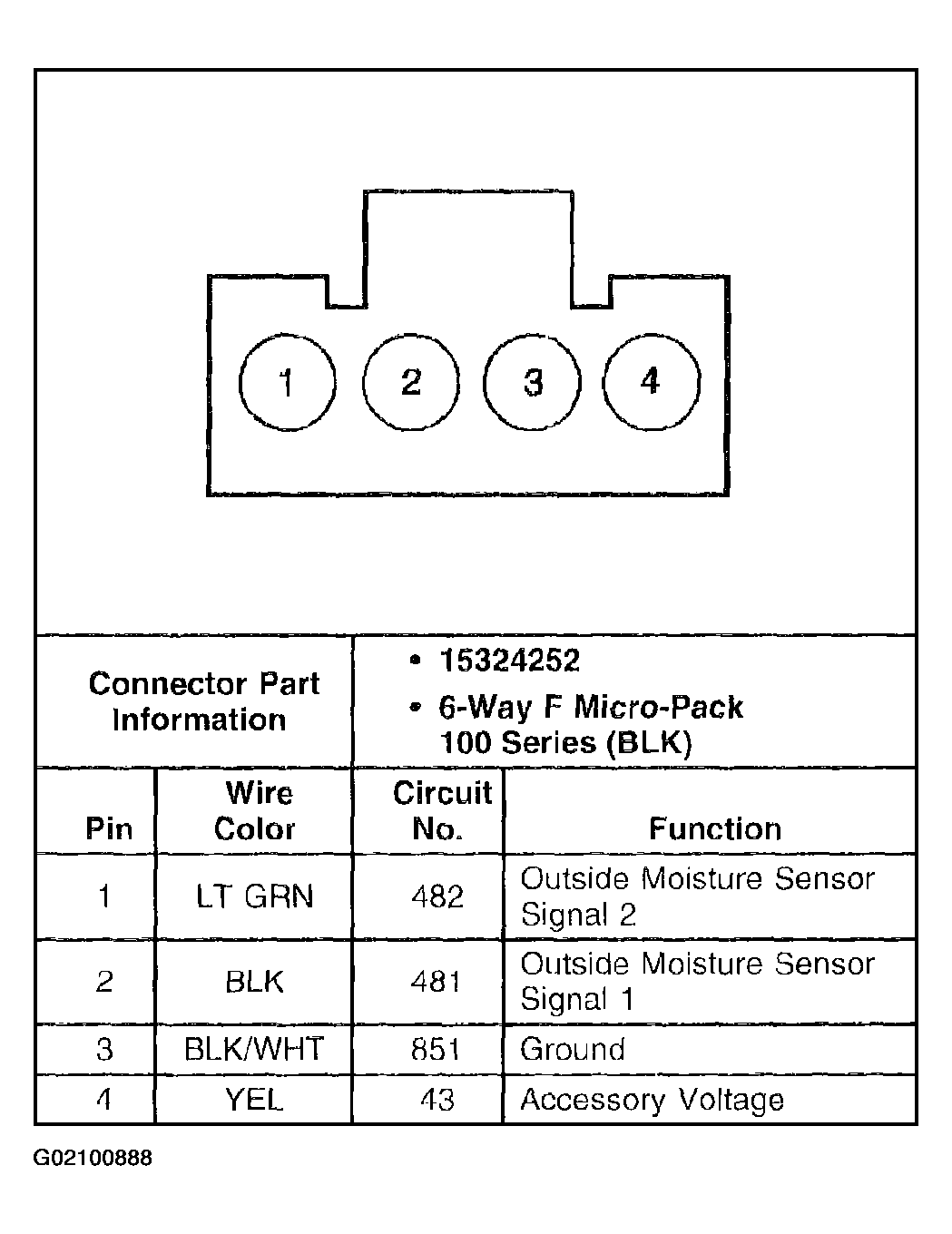

Fig 1: Identifying Outside Moisture Sensor Connector

Courtesy of GENERAL MOTORS CORP.

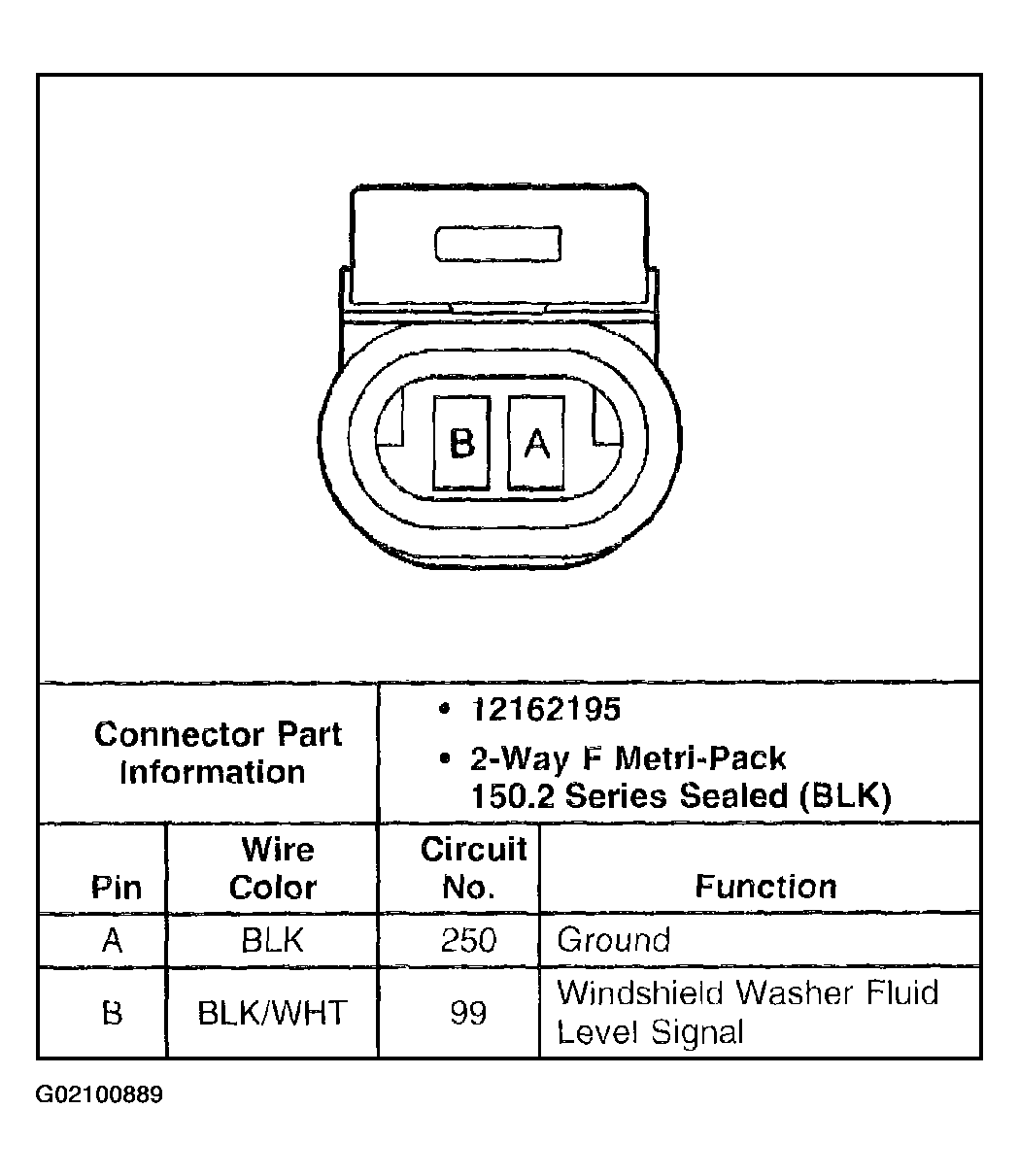

Fig 2: Identifying Windshield Washer Fluid Level Switch Connector

Courtesy of GENERAL MOTORS CORP.

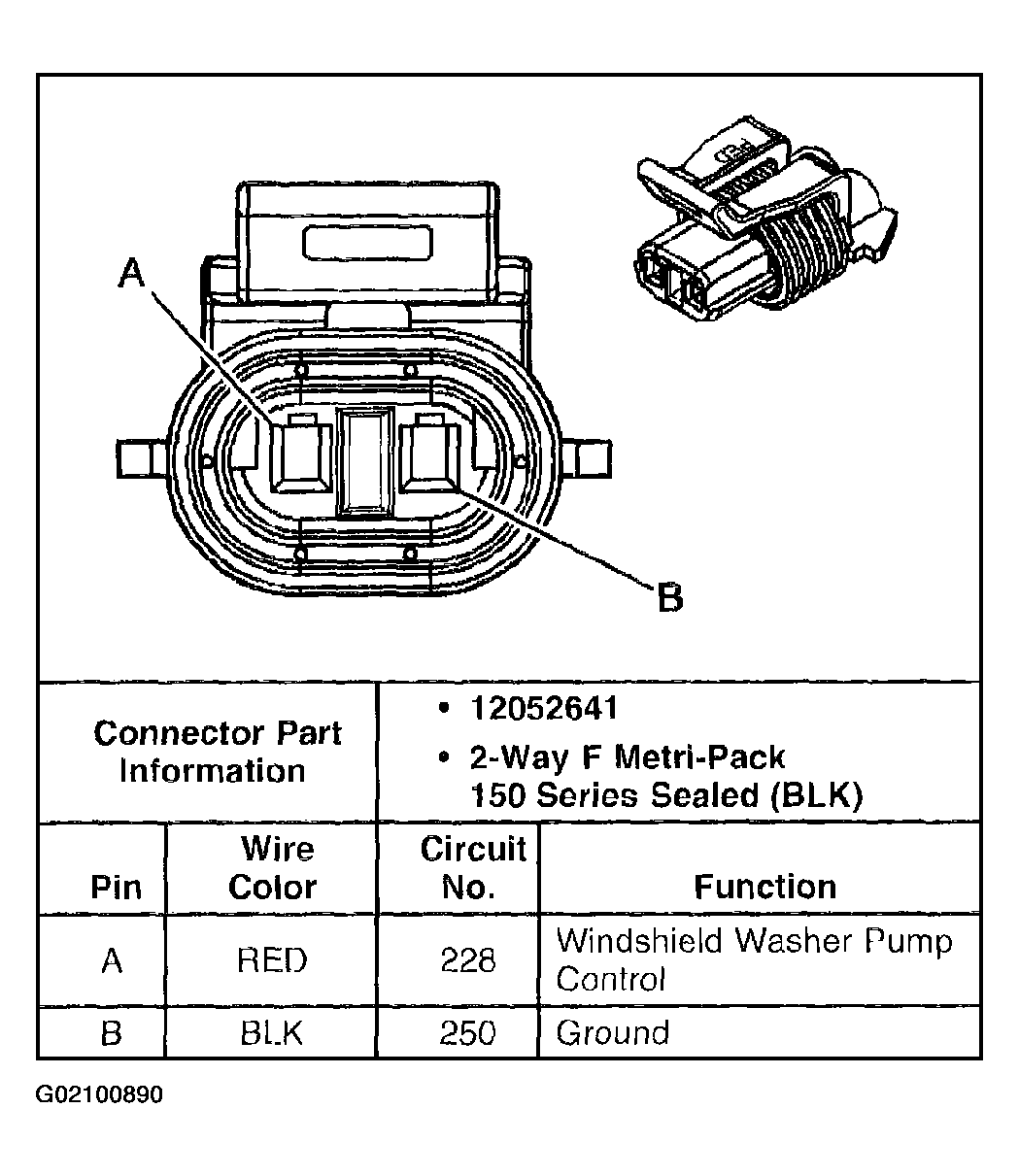

Fig 3: Identifying Windshield Washer Fluid Pump Connector

Courtesy of GENERAL MOTORS CORP.

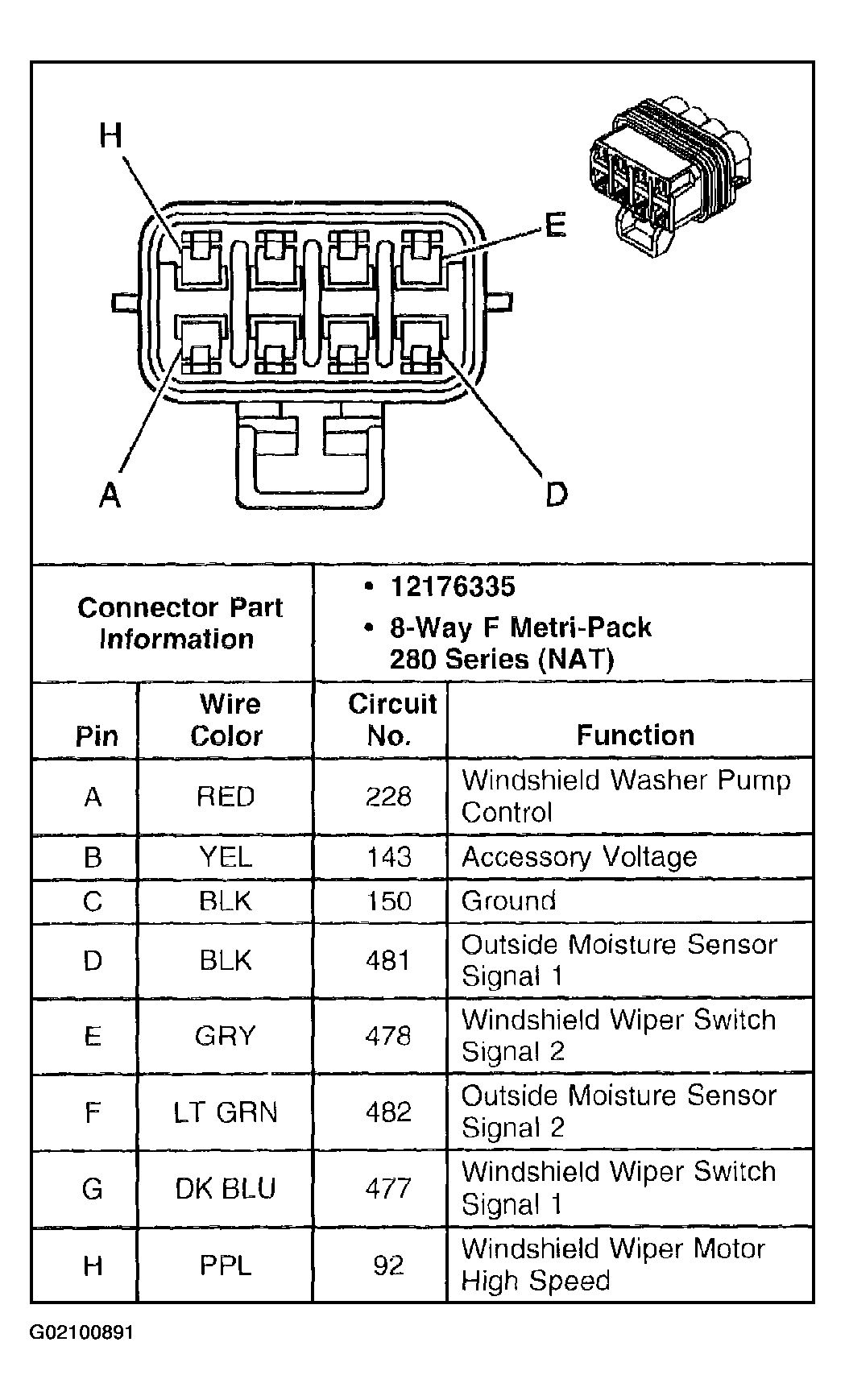

Fig 4: Identifying Windshield Wiper Motor Connector

Courtesy of GENERAL MOTORS CORP.

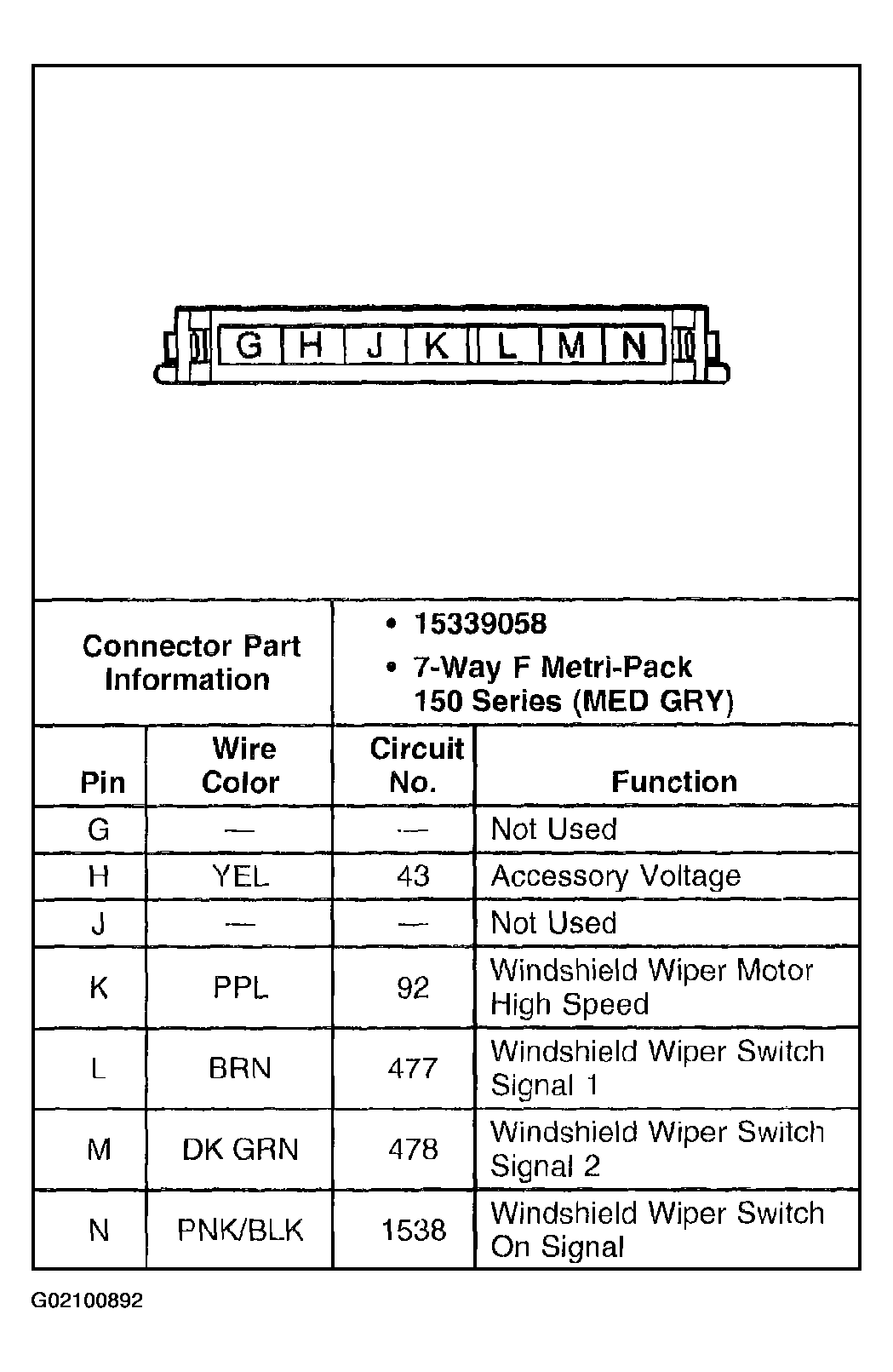

Fig 5: Identifying Windshield Wiper/Washer Switch Connector

Courtesy of GENERAL MOTORS CORP.
