Installation Procedure

  1. Install the memory seat module (1) to the module bracket and install the memory seat module fasteners.

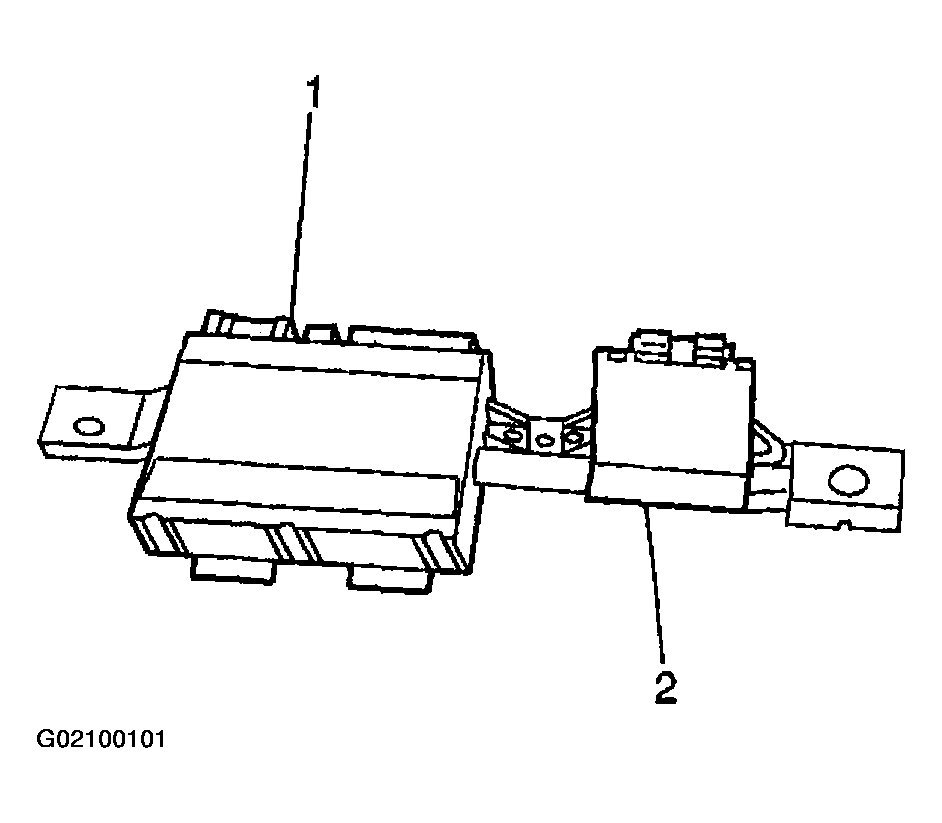

    Fig 1: Installing Memory Seat Module To Bracket
    G02100101Courtesy of GENERAL MOTORS CORP.
  2. Install the module and bracket assembly (3) to the seat riser, with the electrical connections towards the rear of the vehicle.
  3. Reconnect the electrical connections to the module or modules (1, 2).
  4. Align the fastener holes on the seat adjuster with the fastener holes on the seat bracket (3).
  5. Bend the tabs on the seat module bracket (3) in order to hold the bracket and module assembly (3) in place on the seat riser.
  6. Install the front seat bottom assembly. Refer to SEAT CUSHION REPLACEMENT - FRONT  .

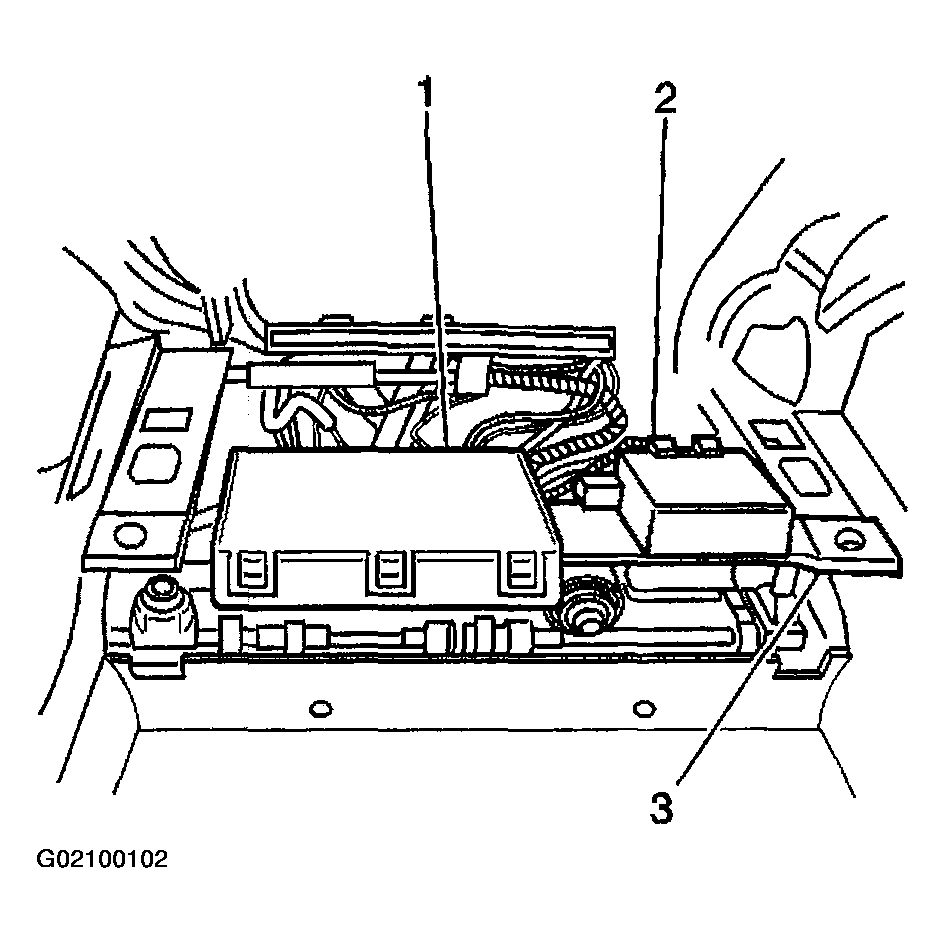

    Fig 2: Connecting Electrical Connections To Module
    G02100102Courtesy of GENERAL MOTORS CORP.
