Power Door Systems Component Views

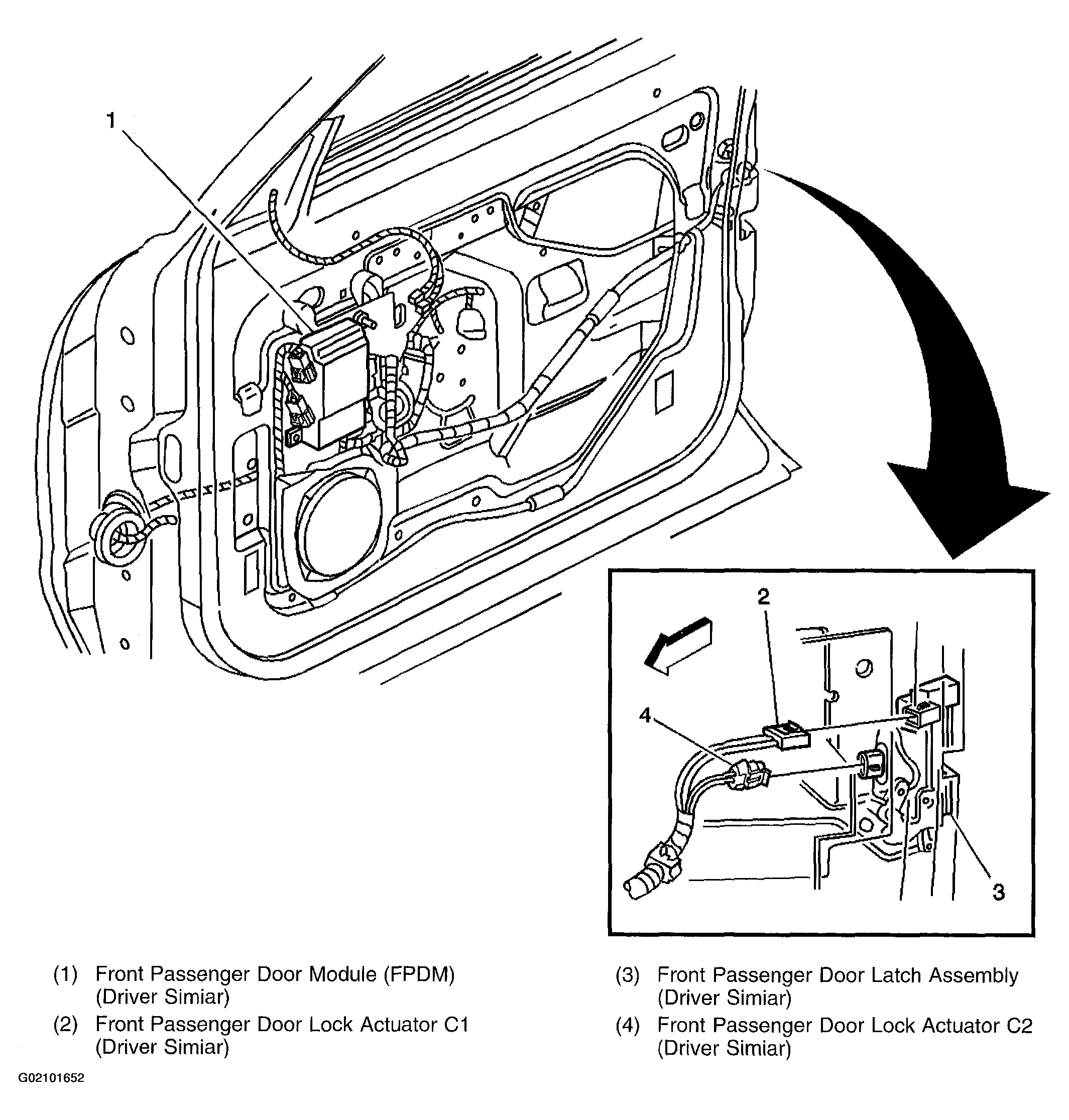

Fig 1: Identifying Front Door Lock Actuator Components
G02101652Courtesy of GENERAL MOTORS CORP.

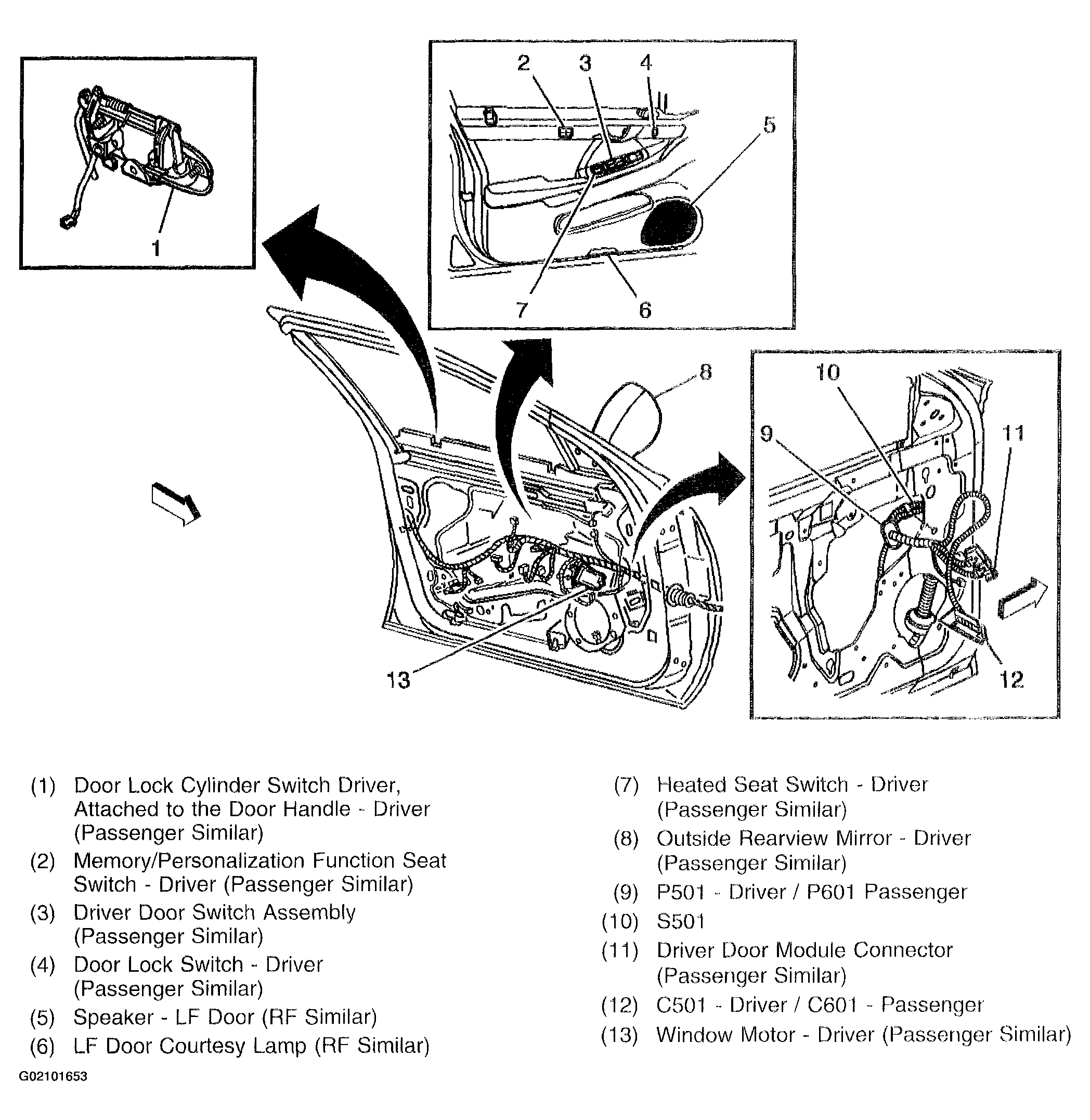

Fig 2: Identifying Front Door Components
G02101653Courtesy of GENERAL MOTORS CORP.

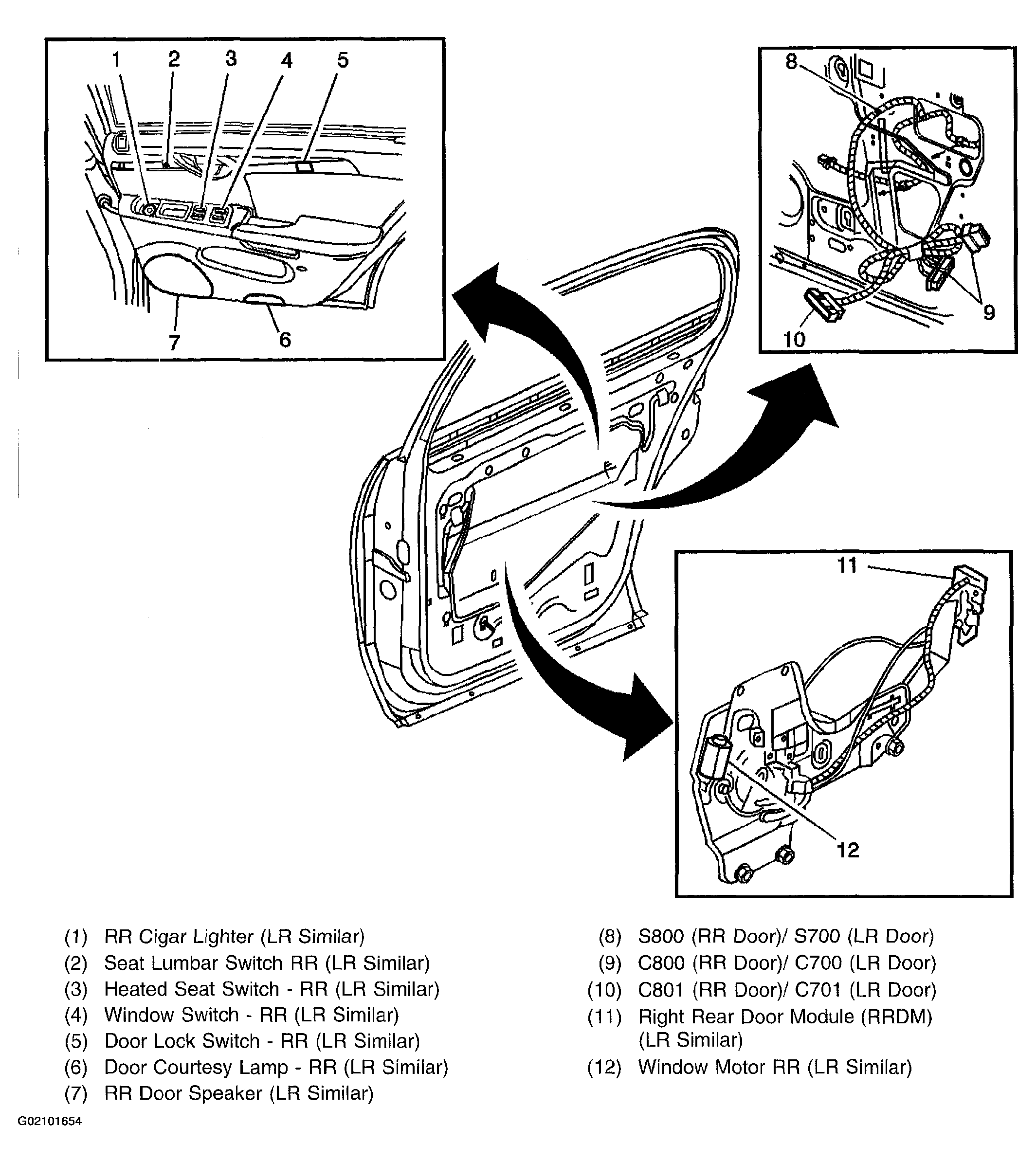

Fig 3: Identifying Rear Door Components
G02101654Courtesy of GENERAL MOTORS CORP.
