Memory Seat Module (MSM) Connector End View C2 (2 Of 2)

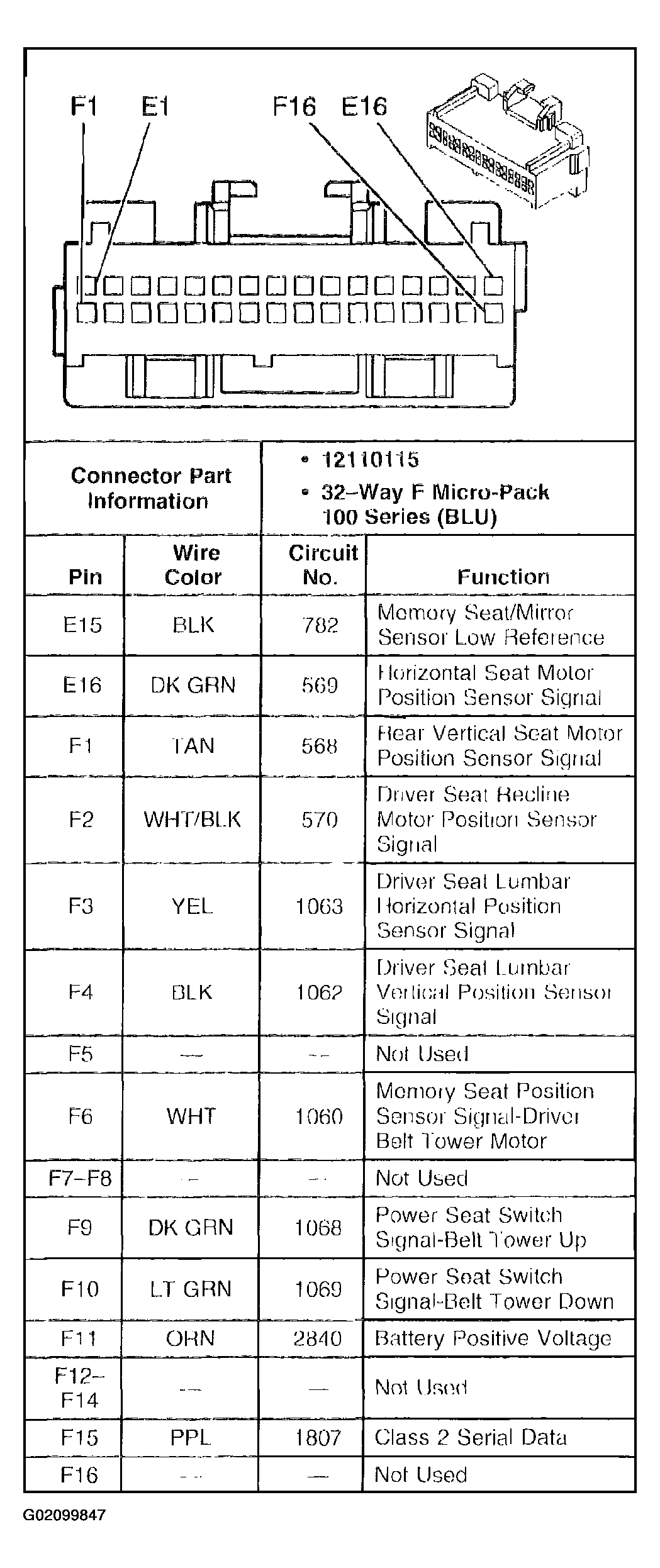

Fig 1: Memory Seat Module (MSM) C2 (w/AC9) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

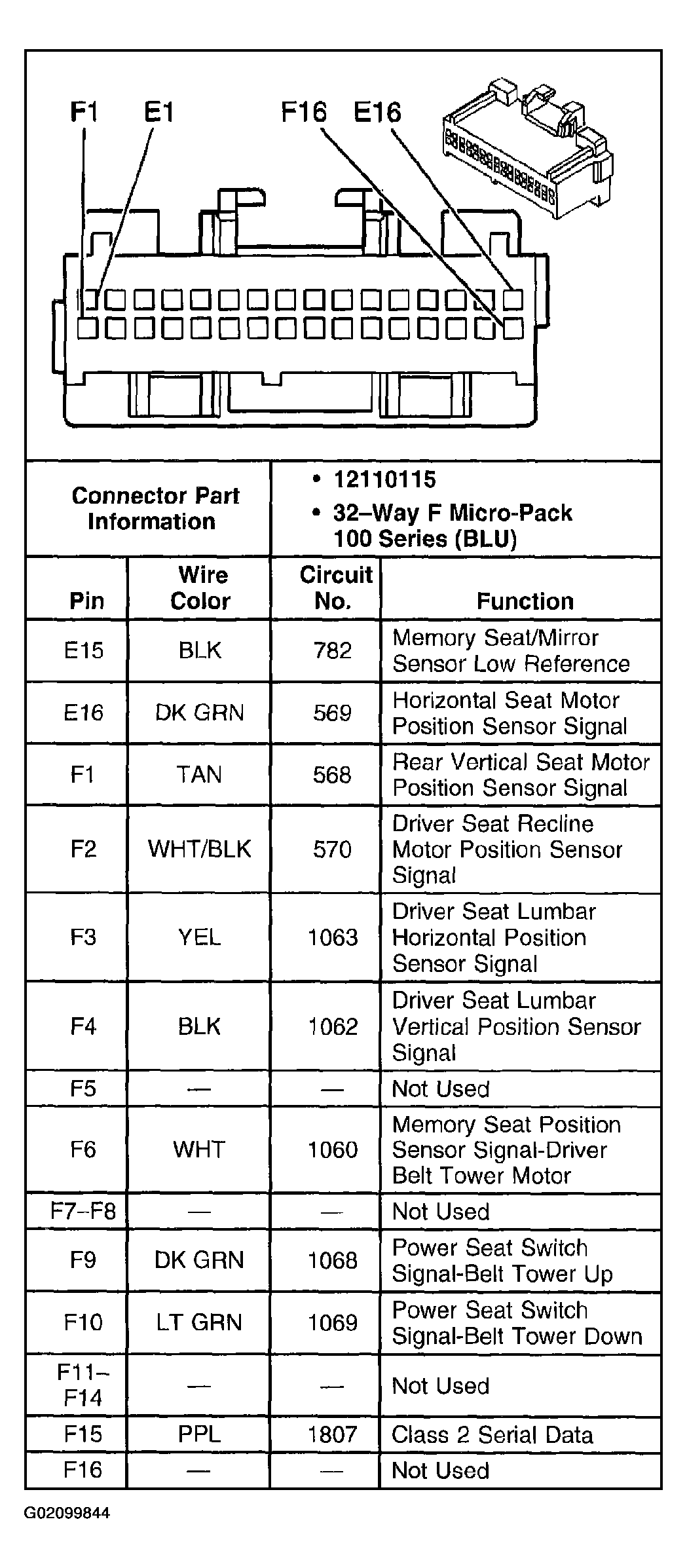

Fig 1: Memory Seat Module (MSM) C2 (AL2) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

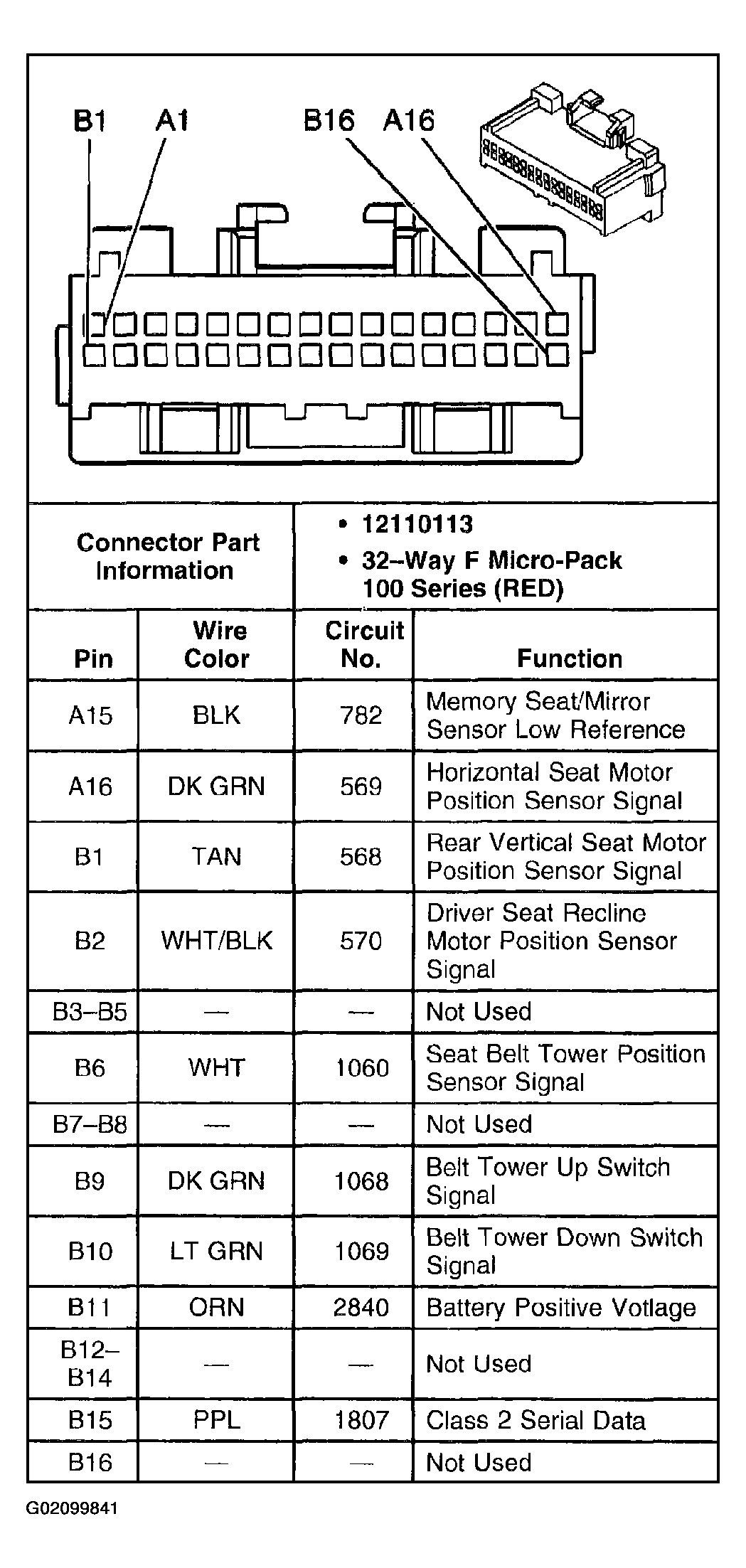

Fig 1: Memory Seat Module (MSM) C2 (AM3) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
