Memory Seat Module (MSM) Connector End View C3

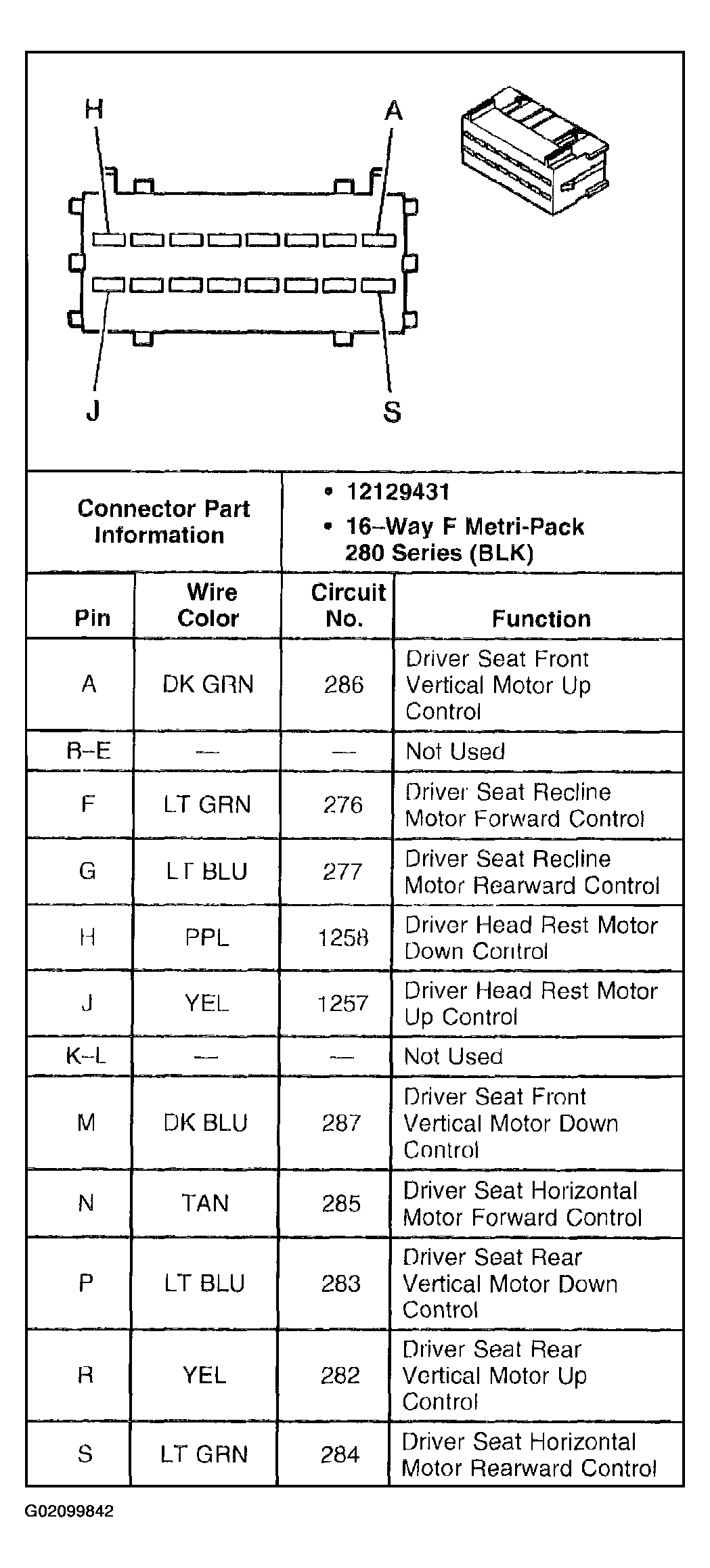

Fig 1: Memory Seat Module (MSM) C3 (w/AC9)
G02099842Courtesy of GENERAL MOTORS CORP.

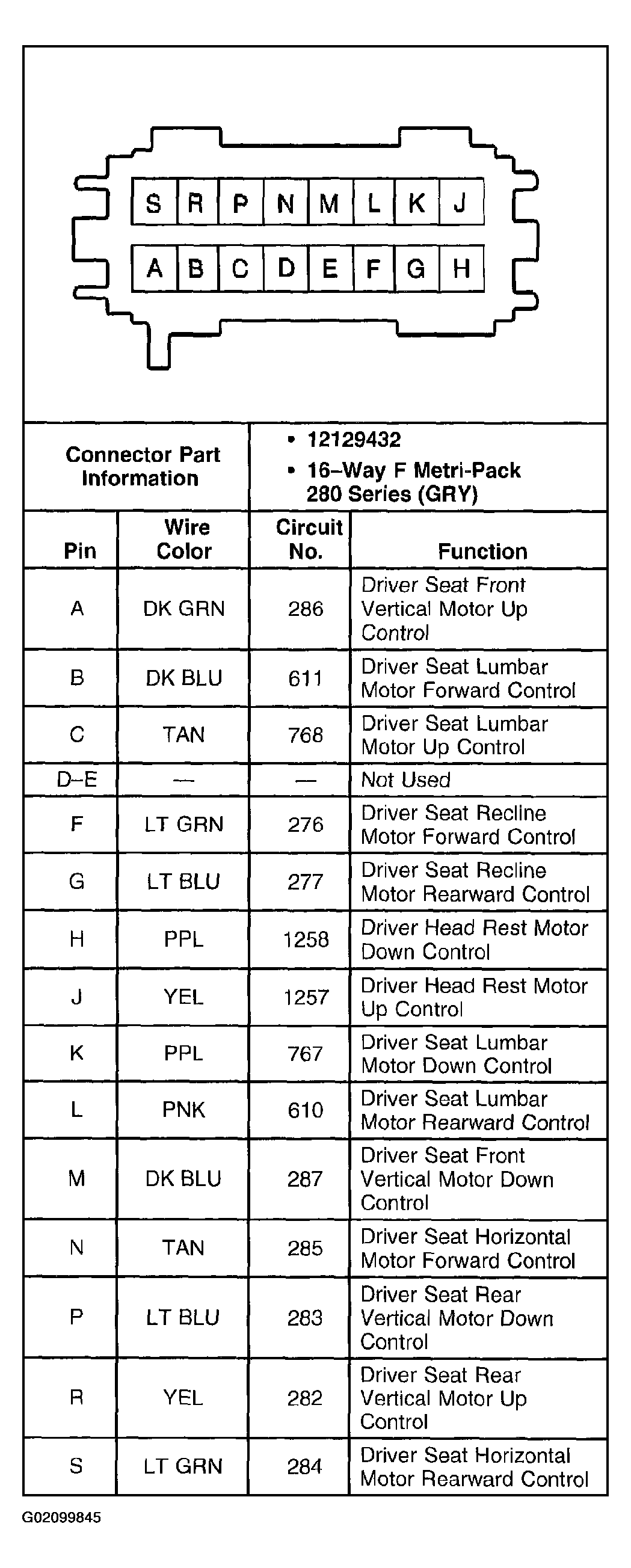

Fig 1: Memory Seat Module (MSM) C3 (AL2)
G02099845Courtesy of GENERAL MOTORS CORP.


Fig 1: Memory Seat Module (MSM) C3 (AM3)
G02099848Courtesy of GENERAL MOTORS CORP.
