Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat System
>>
Component Locator
>>
Power Seat Systems Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Seat Systems Connector End Views

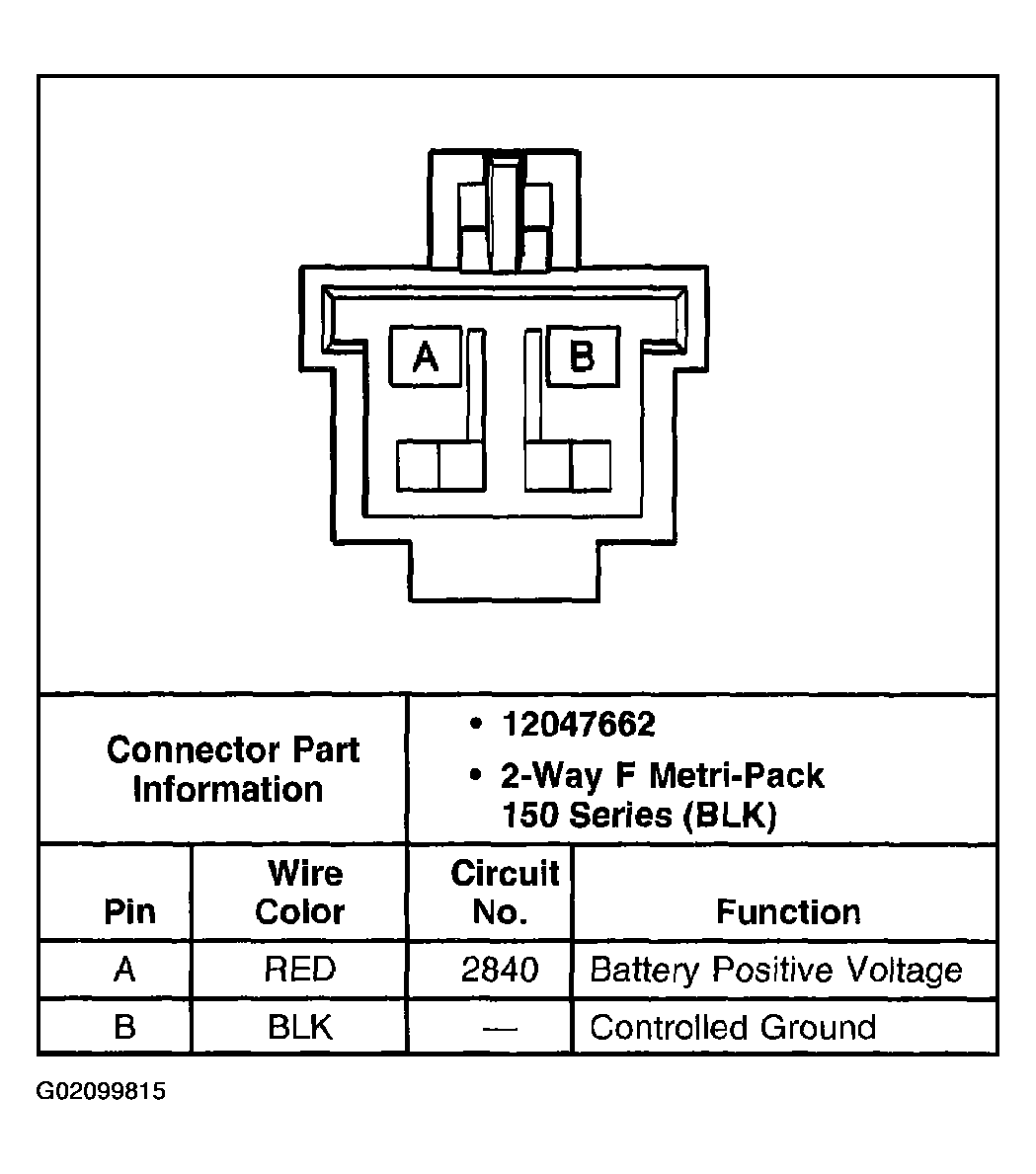

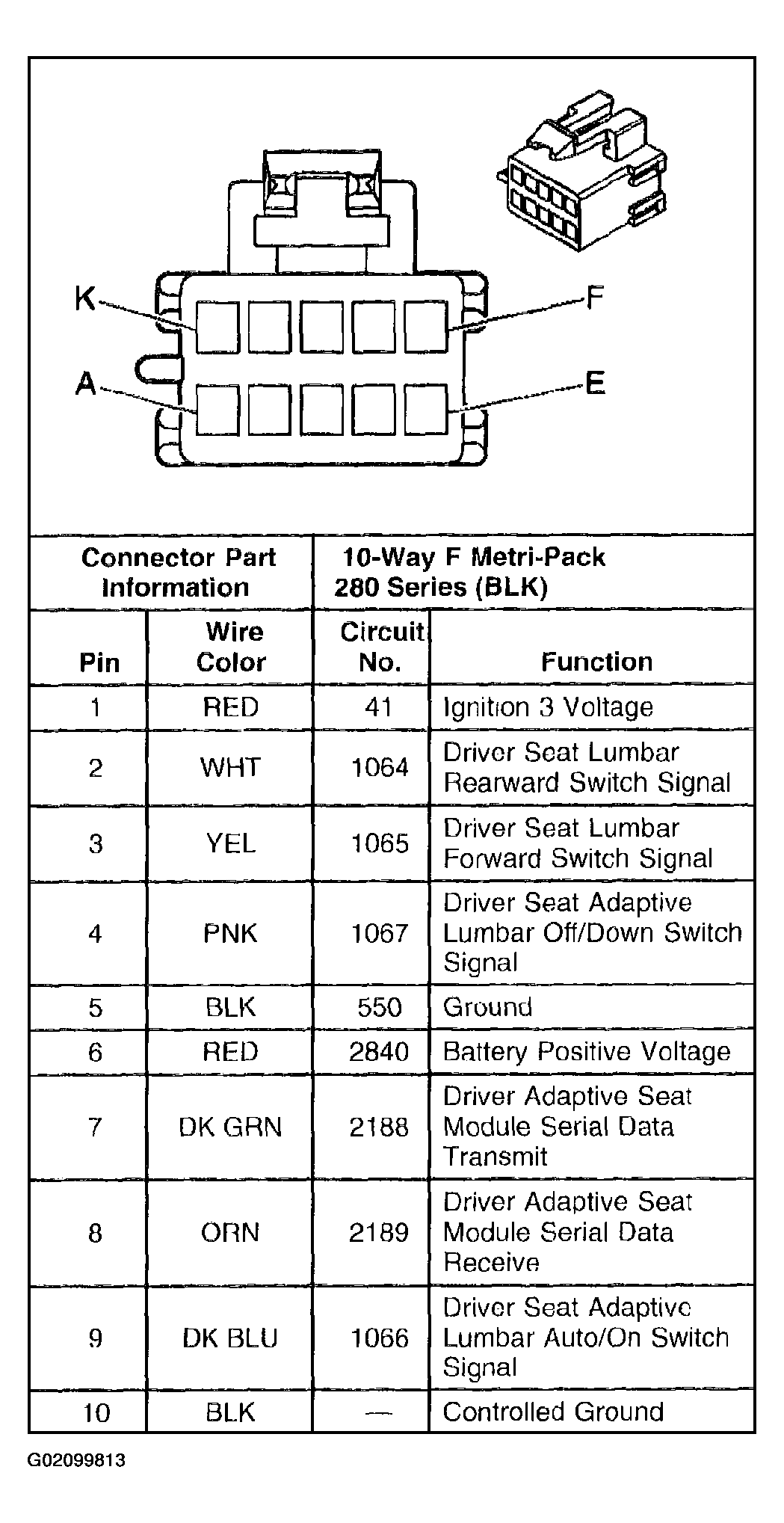

Fig 1: Identifying Adaptive Seat Lumbar Module - Driver Connector (w/AC9)
Courtesy of GENERAL MOTORS CORP.

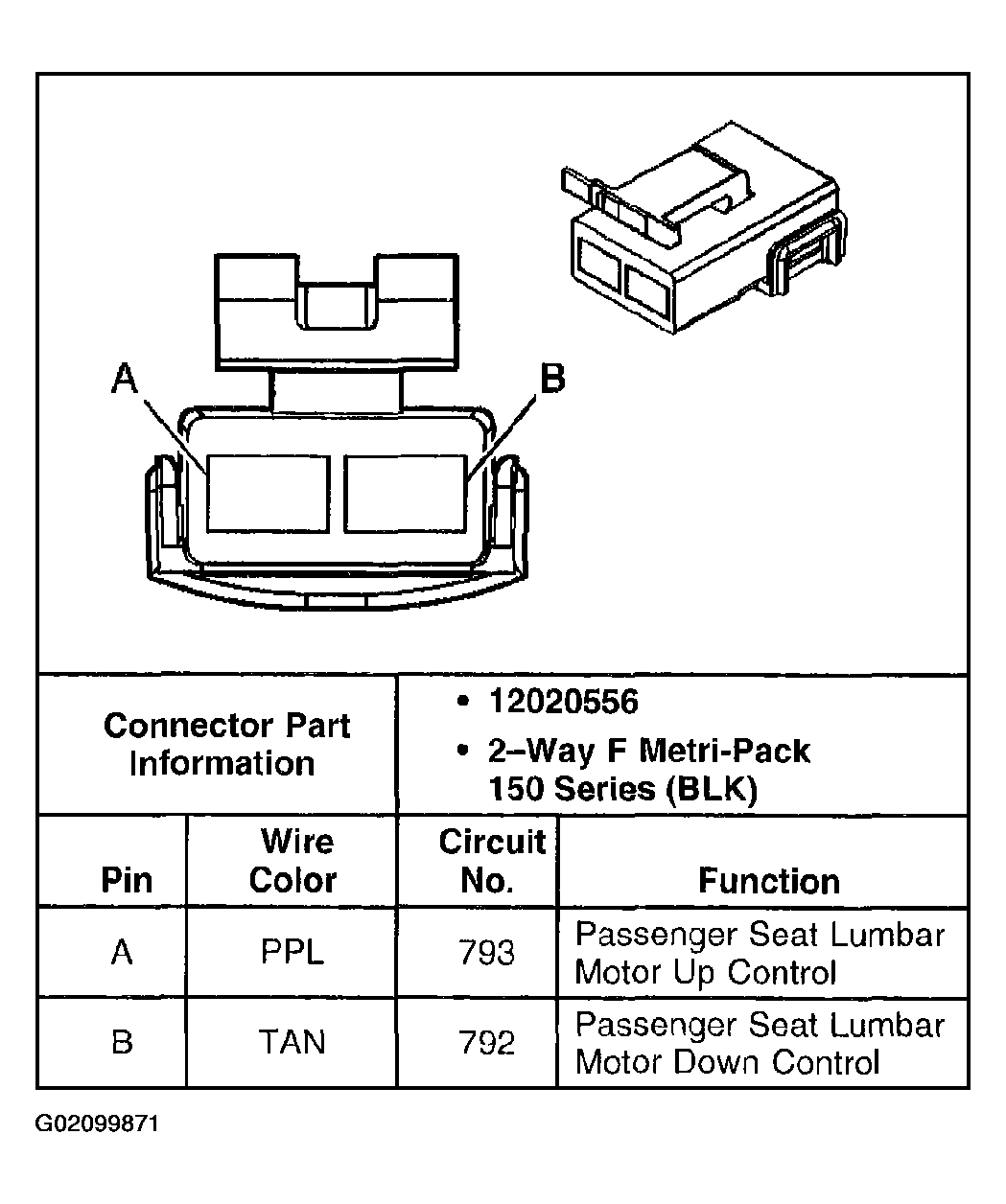

Fig 2: Identifying Adaptive Seat Lumbar Module - Front Passenger Connector (w/AC9)
Courtesy of GENERAL MOTORS CORP.

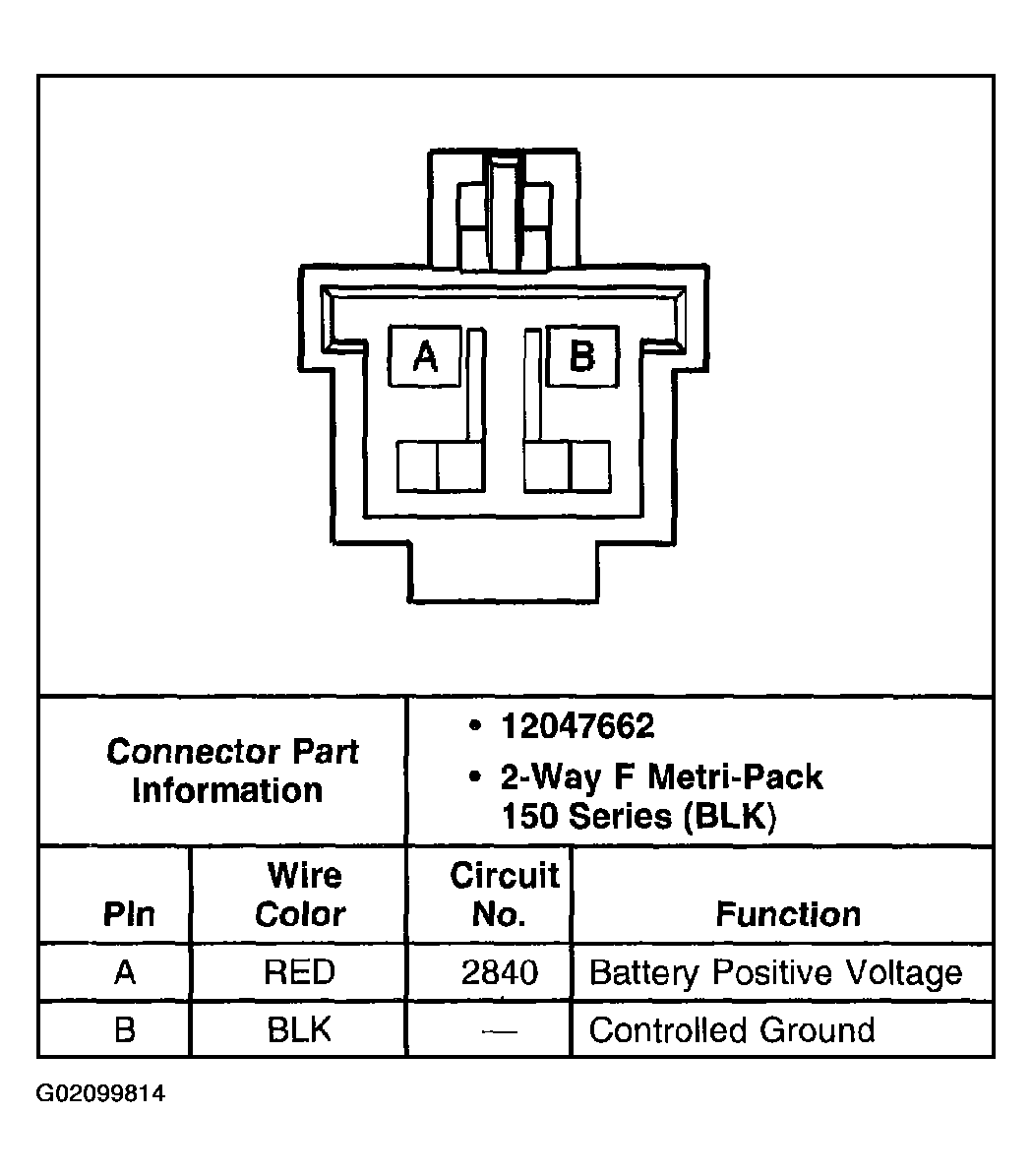

Fig 3: Identifying Adaptive Seat Lumbar Pump Motor - Driver Connector (w/AC9)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Adaptive Seat Lumbar Pump Motor - Front Passenger Connector (w/AC9)
Courtesy of GENERAL MOTORS CORP.

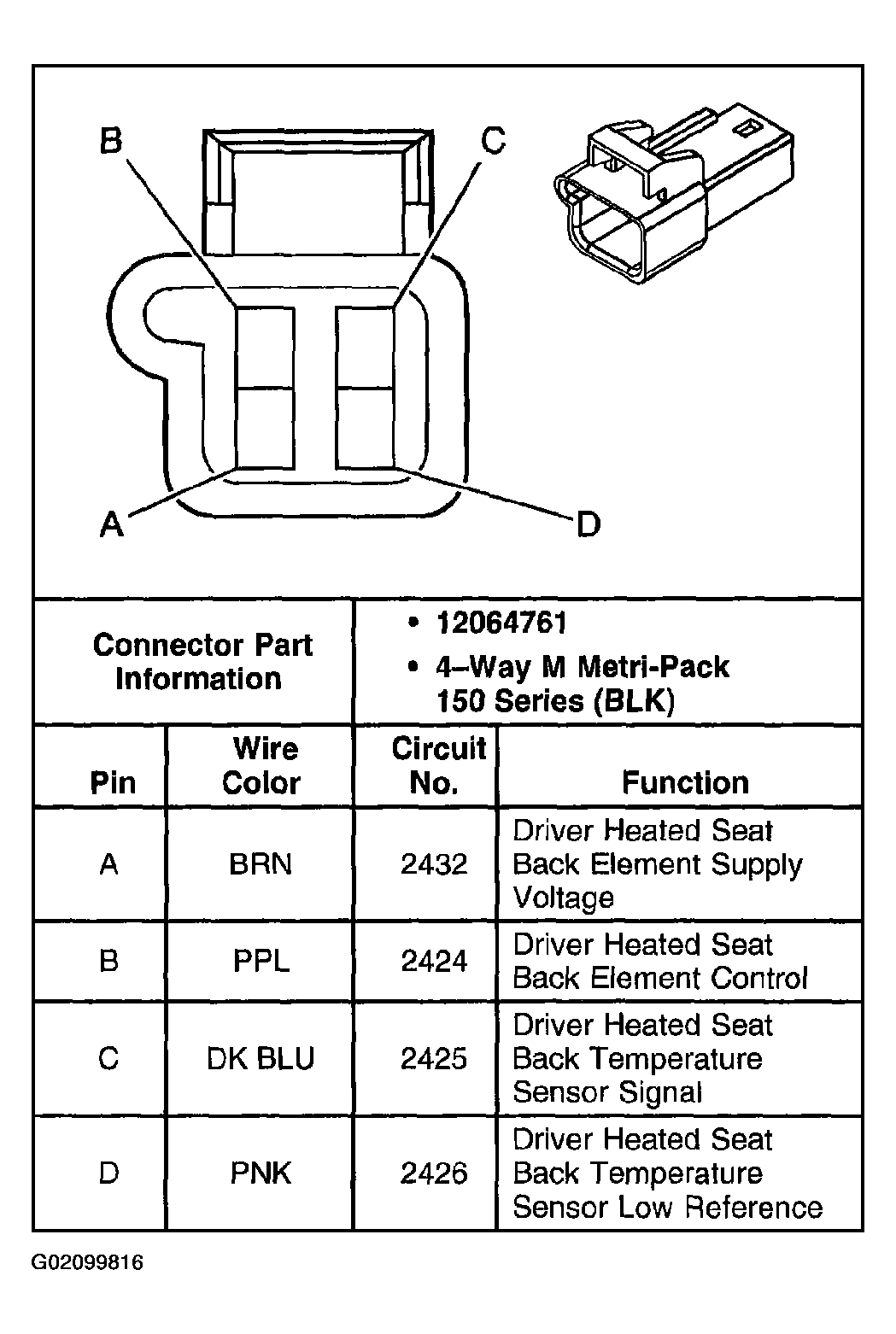

Fig 5: Identifying Heated Seat Back Element - Driver Connector
Courtesy of GENERAL MOTORS CORP.

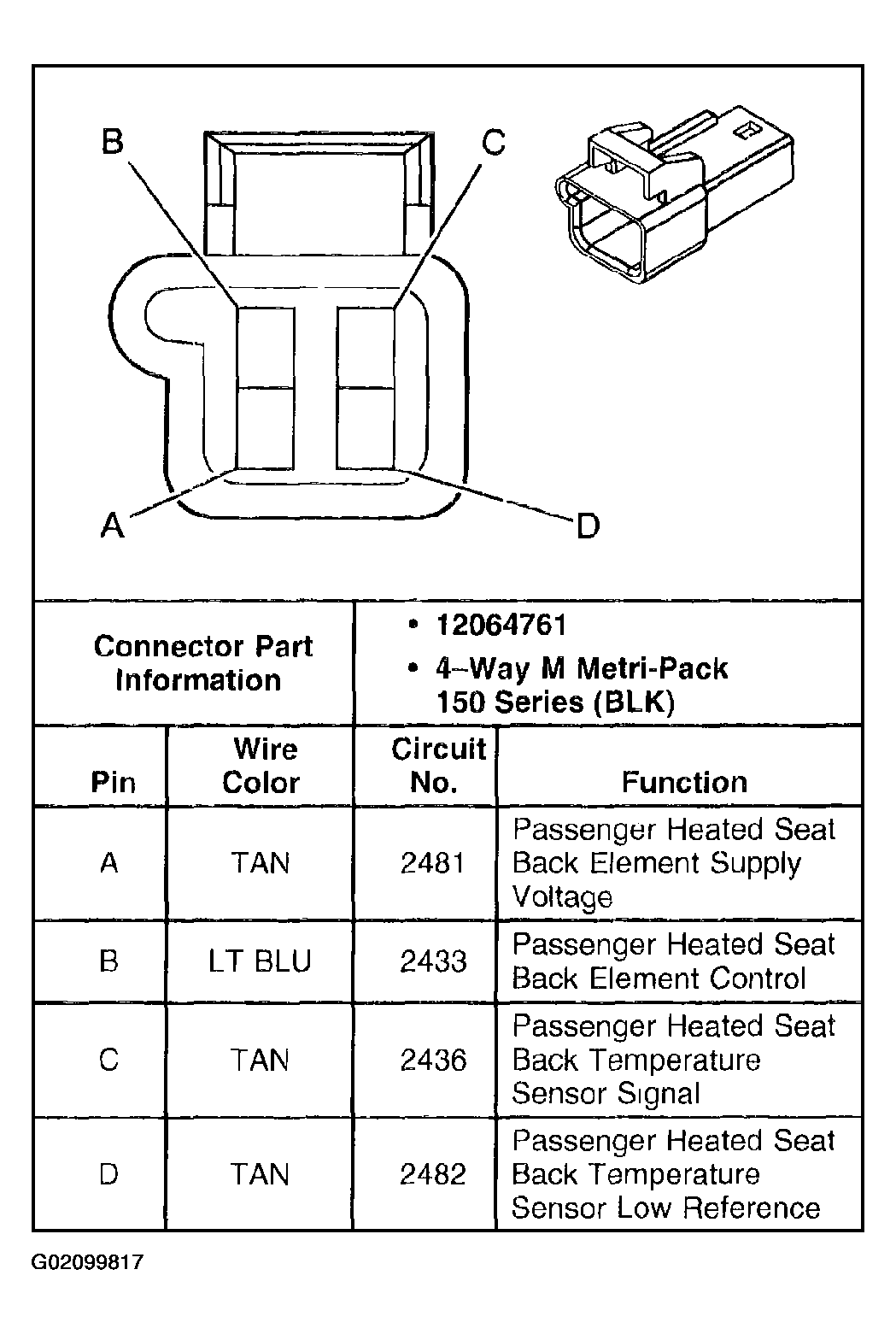

Fig 6: Identifying Heated Seat Back Element - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

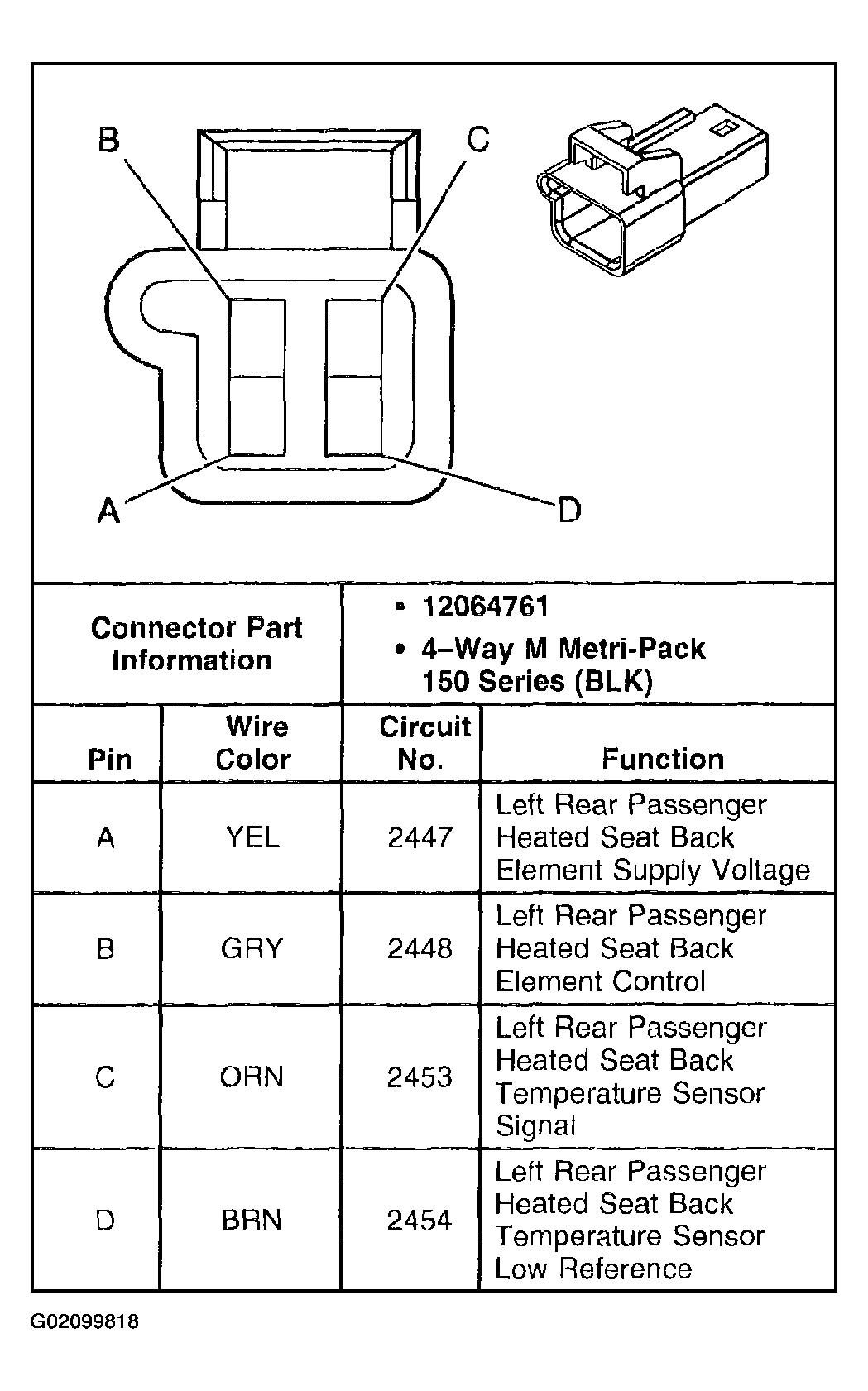

Fig 7: Identifying Heated Seat Back Element - LR Connector
Courtesy of GENERAL MOTORS CORP.

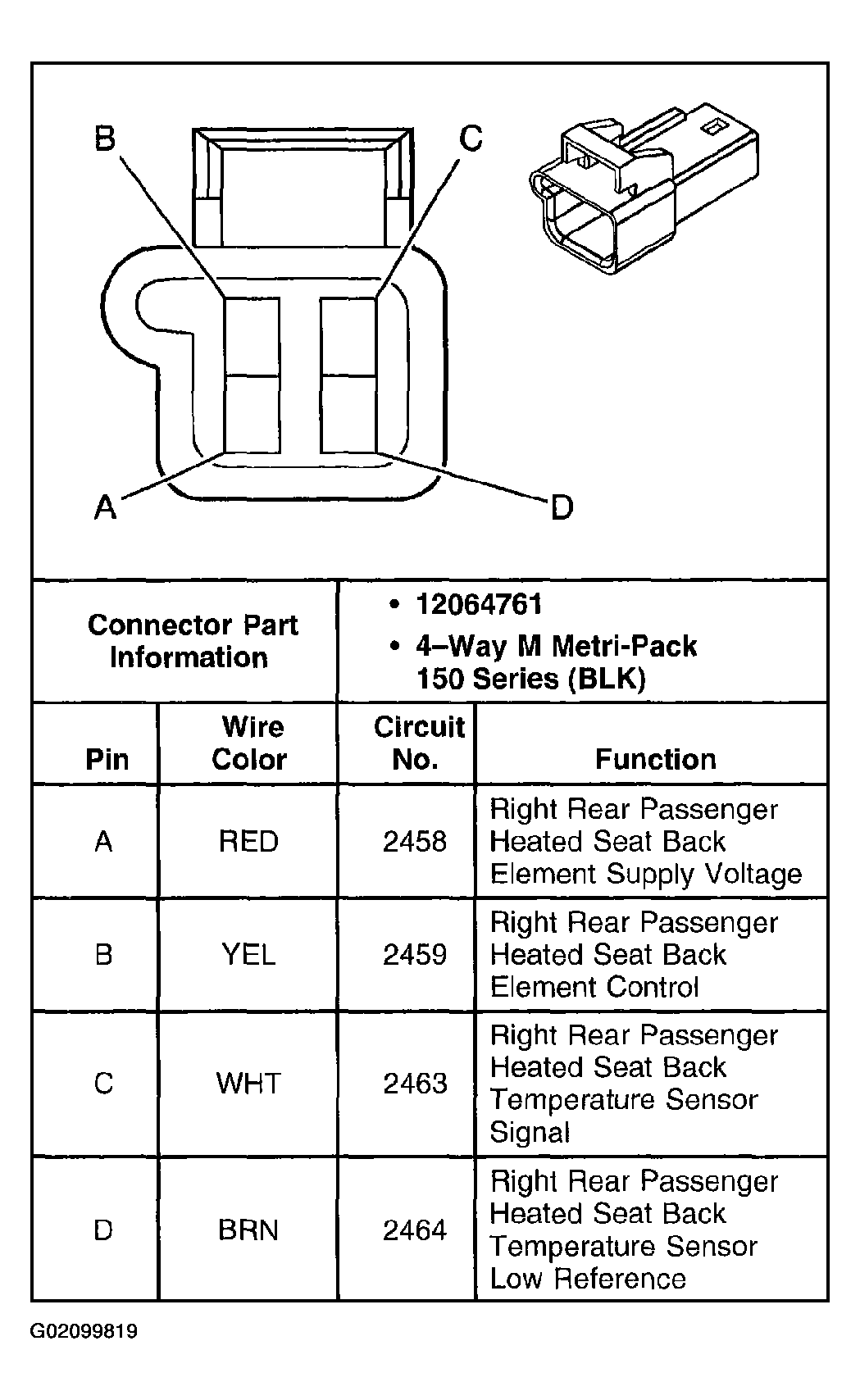

Fig 8: Identifying Heated Seat Back Element - RR Connector
Courtesy of GENERAL MOTORS CORP.

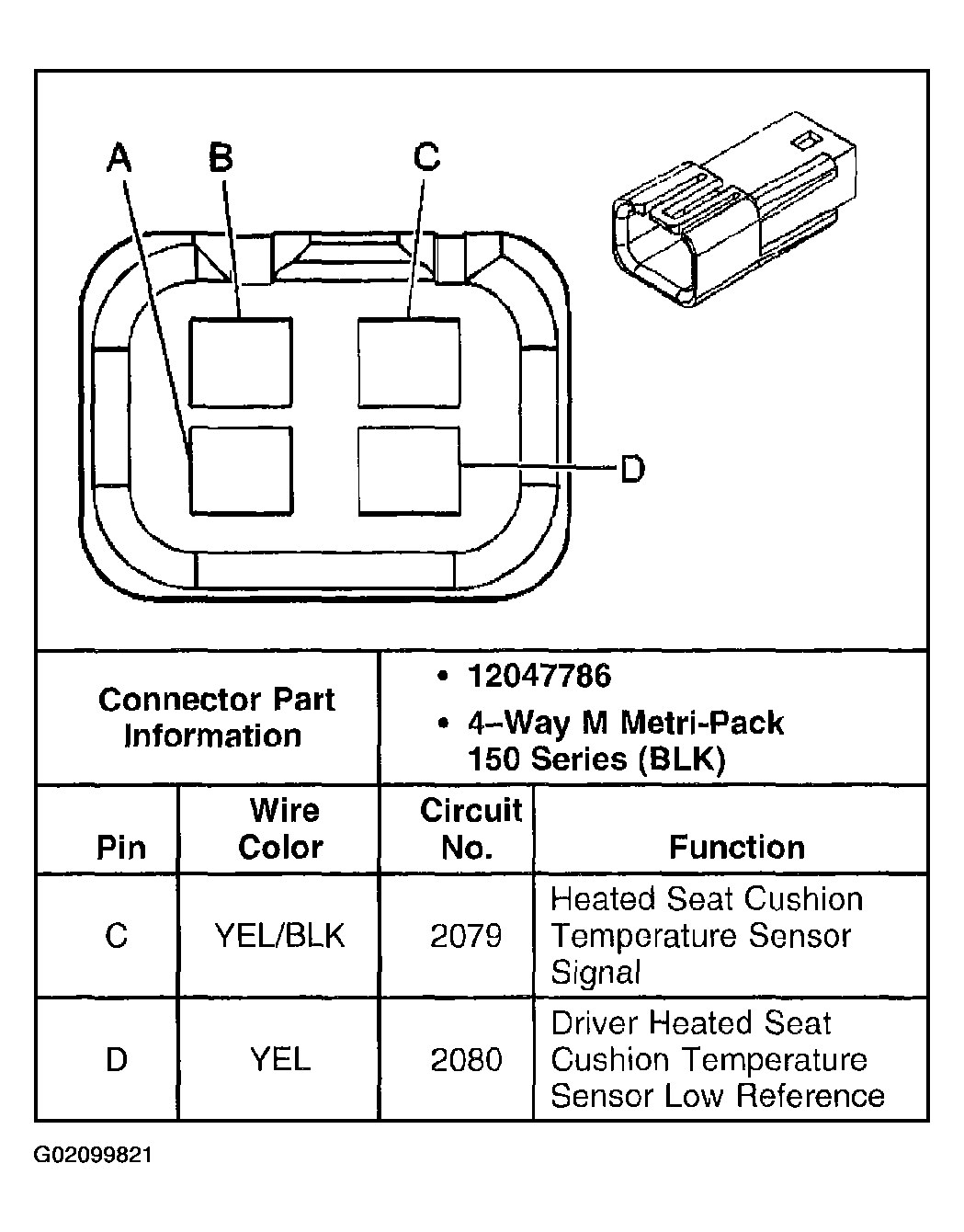

Fig 9: Identifying Heated Seat Cushion Element - Driver Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Heated Seat Cushion Element - Driver Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

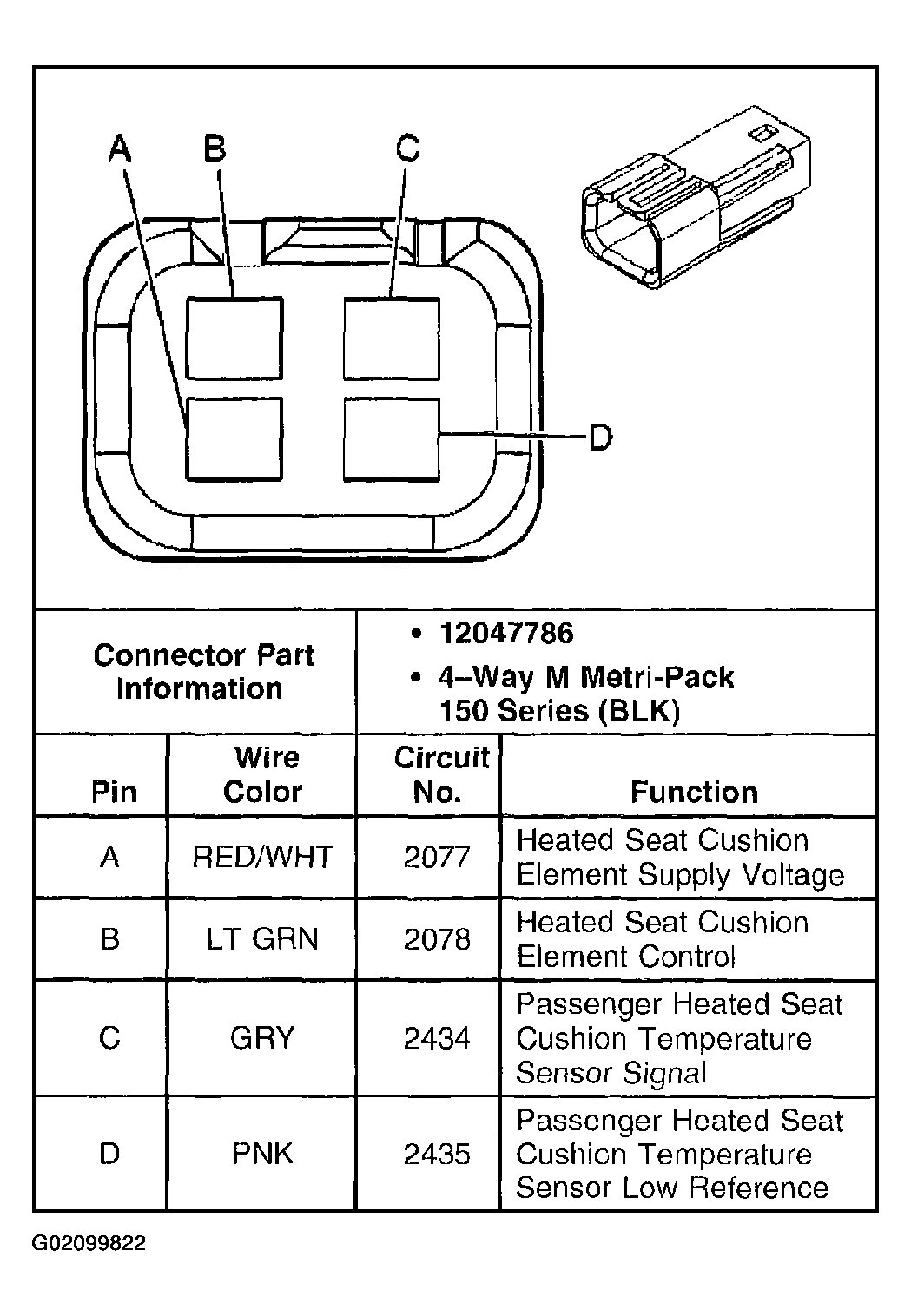

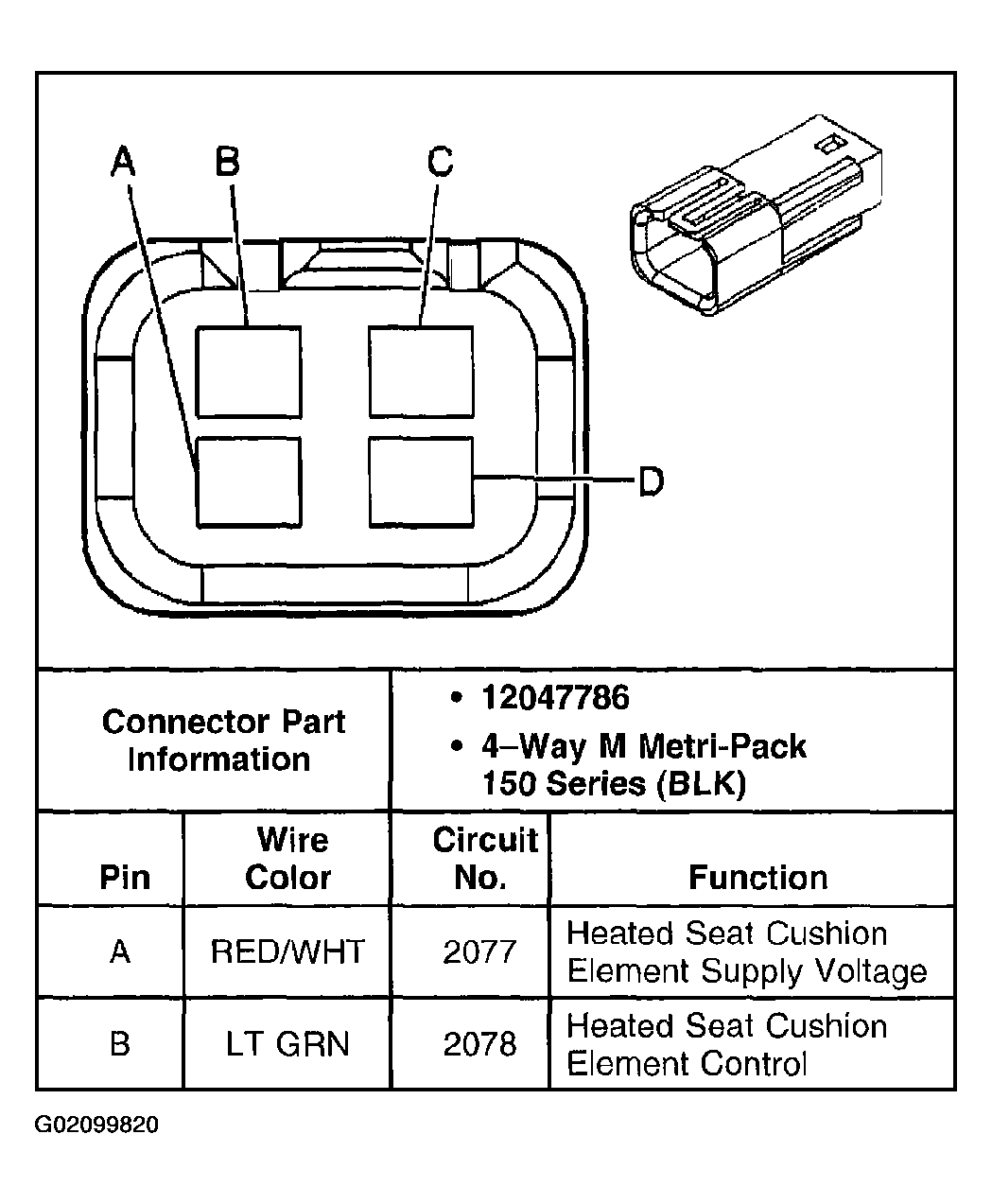

Fig 11: Identifying Heated Seat Cushion Element - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

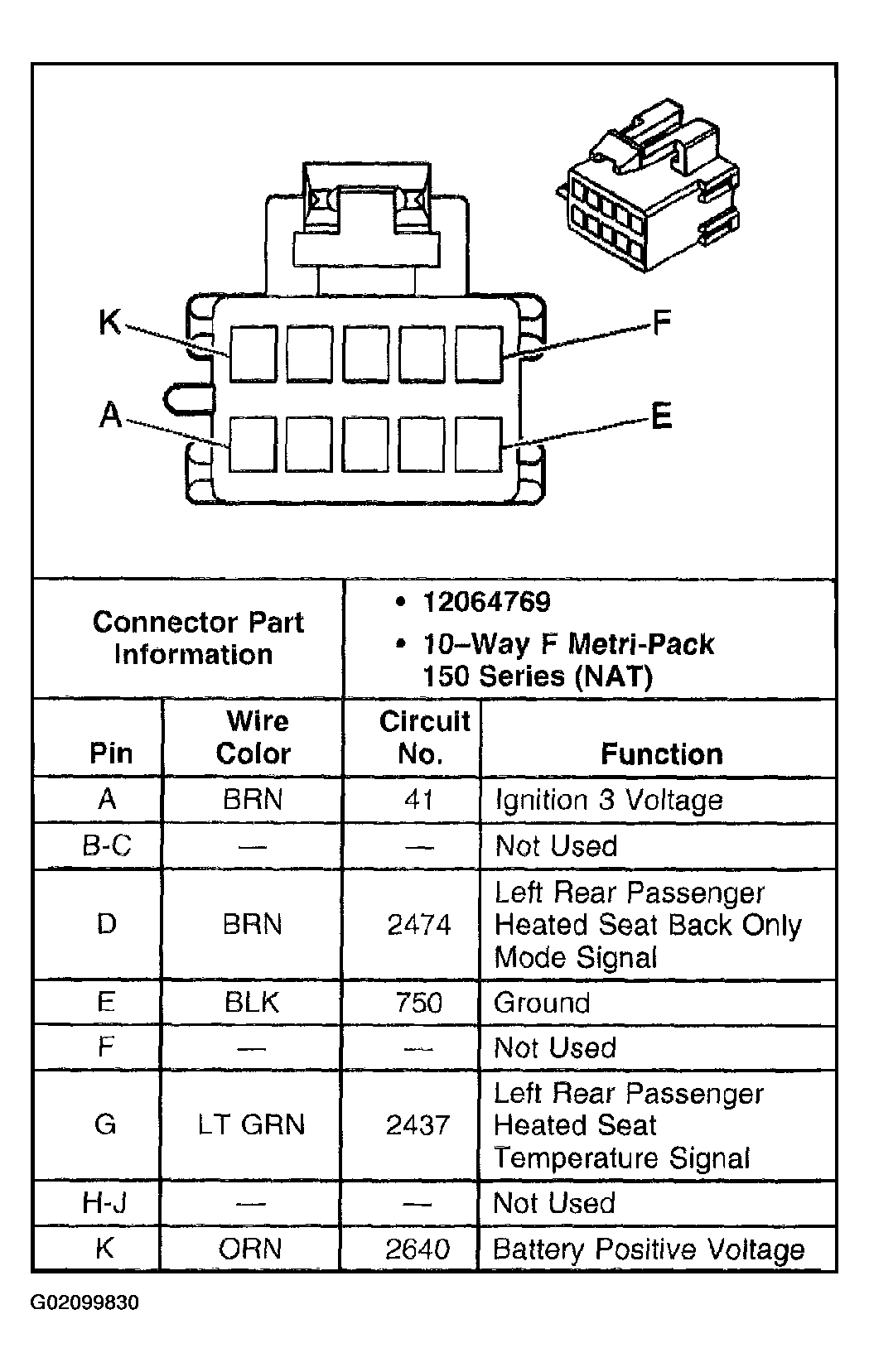

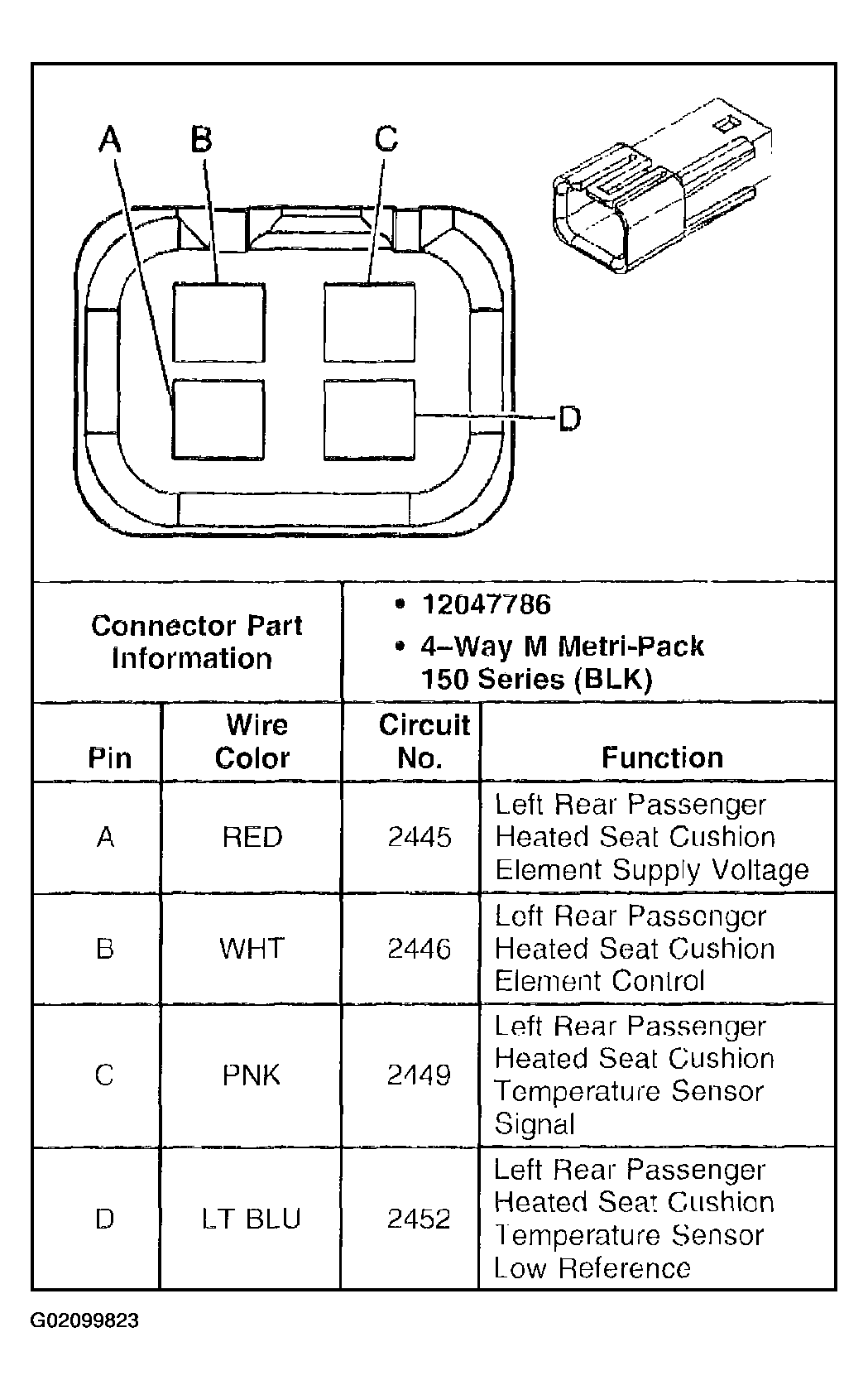

Fig 12: Identifying Heated Seat Cushion Element - LR Connector
Courtesy of GENERAL MOTORS CORP.

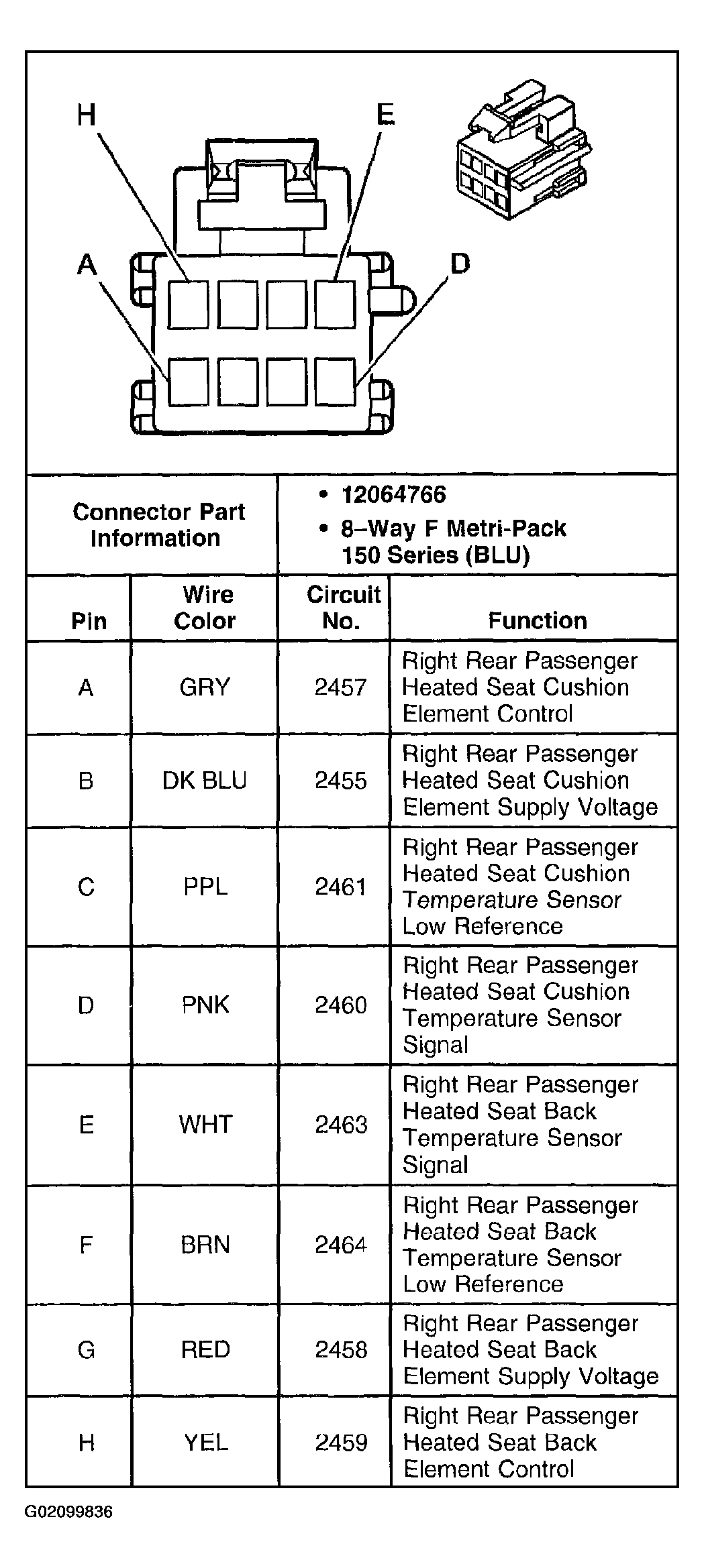

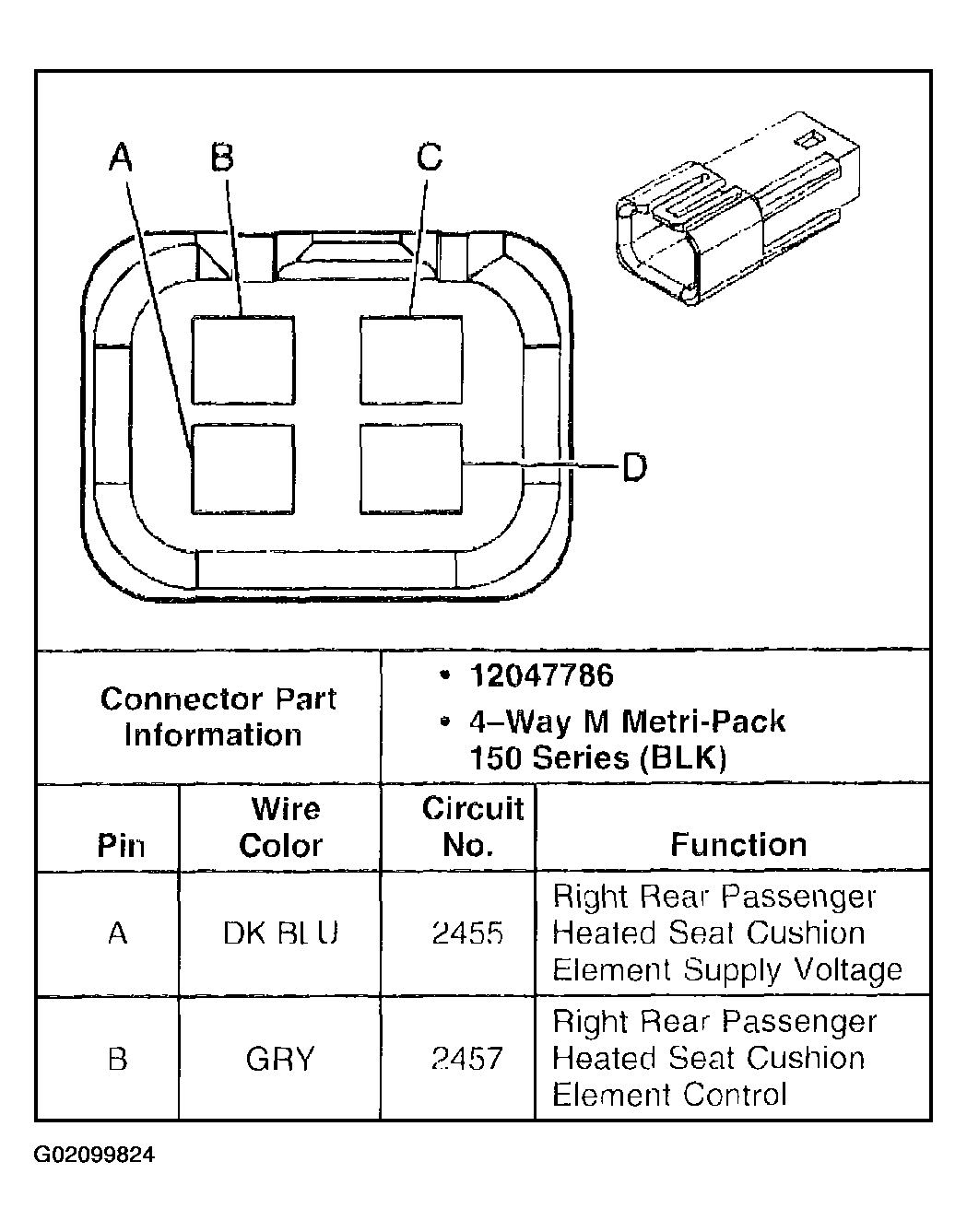

Fig 13: Identifying Heated Seat Cushion Element - RR Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

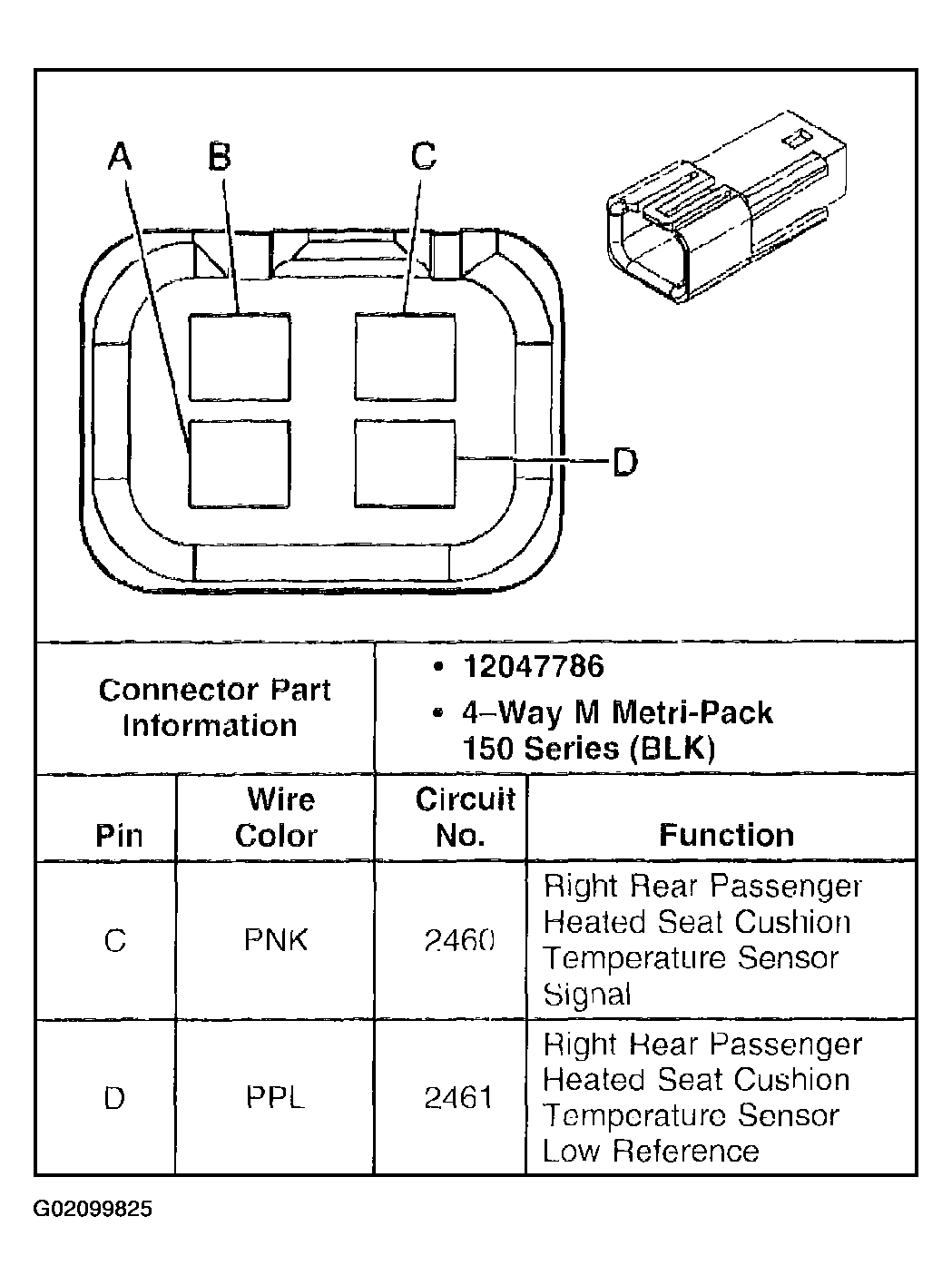

Fig 14: Identifying Heated Seat Cushion Element - RR Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Heated Seat Module - Driver C1 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Heated Seat Module - Driver C2 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Heated Seat Module - Front Passenger C1 Connector
Courtesy of GENERAL MOTORS CORP.

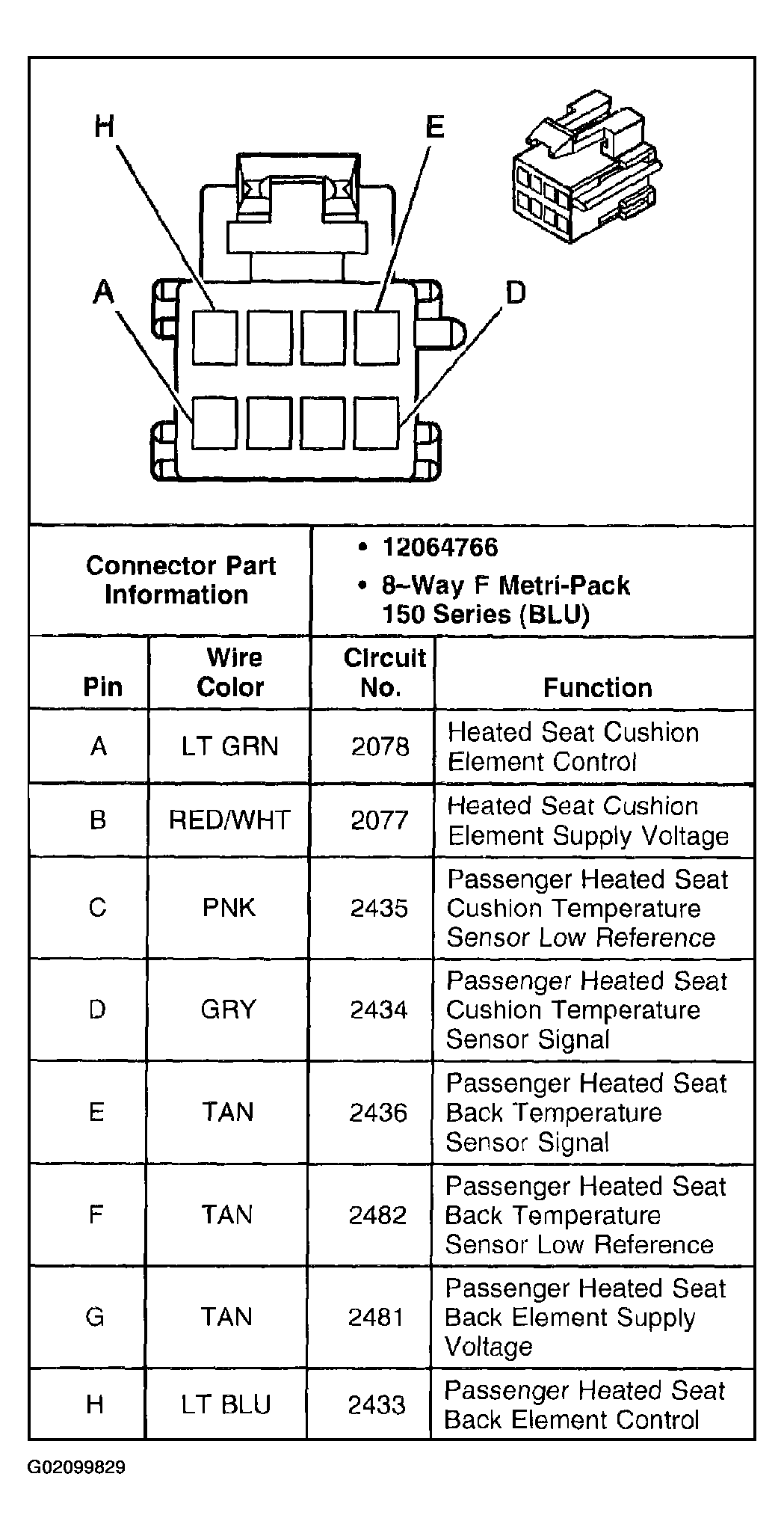

Fig 18: Identifying Heated Seat Module - Front Passenger C2 Connector
Courtesy of GENERAL MOTORS CORP.

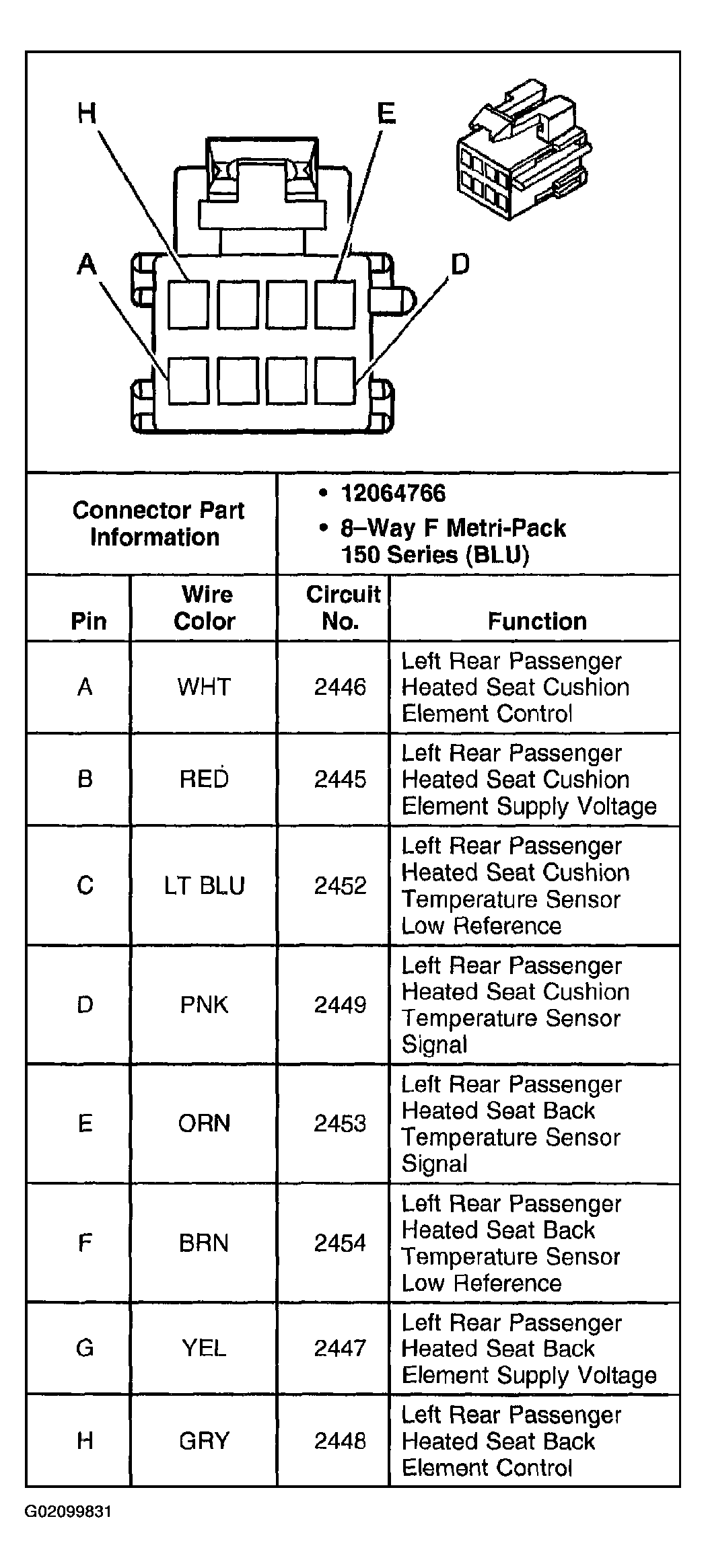

Fig 19: Identifying Heated Seat Module - LR C1 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Heated Seat Module - LR C2 Connector
Courtesy of GENERAL MOTORS CORP.

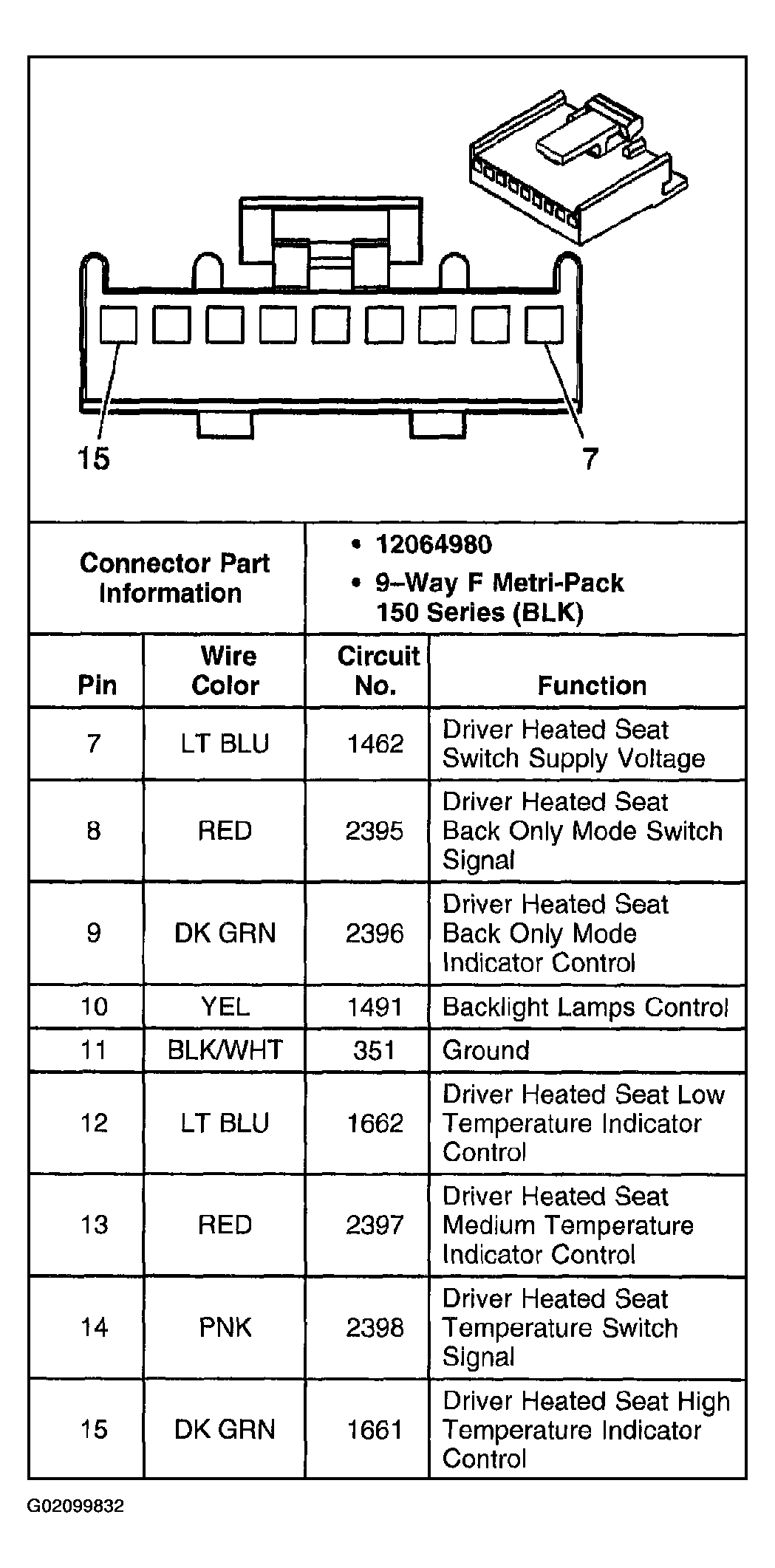

Fig 21: Heated Seat Switch - Driver Connector
Courtesy of GENERAL MOTORS CORP.

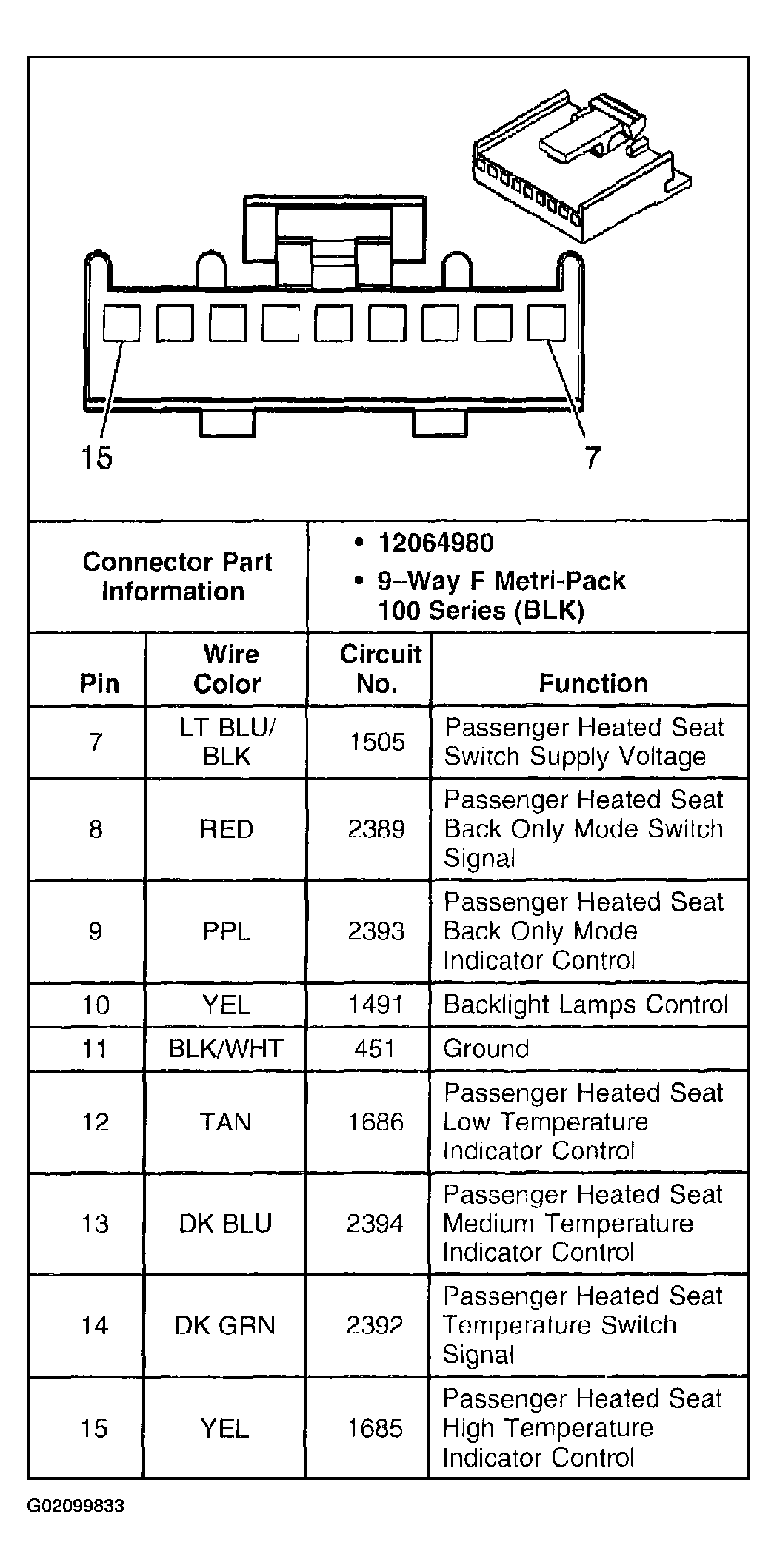

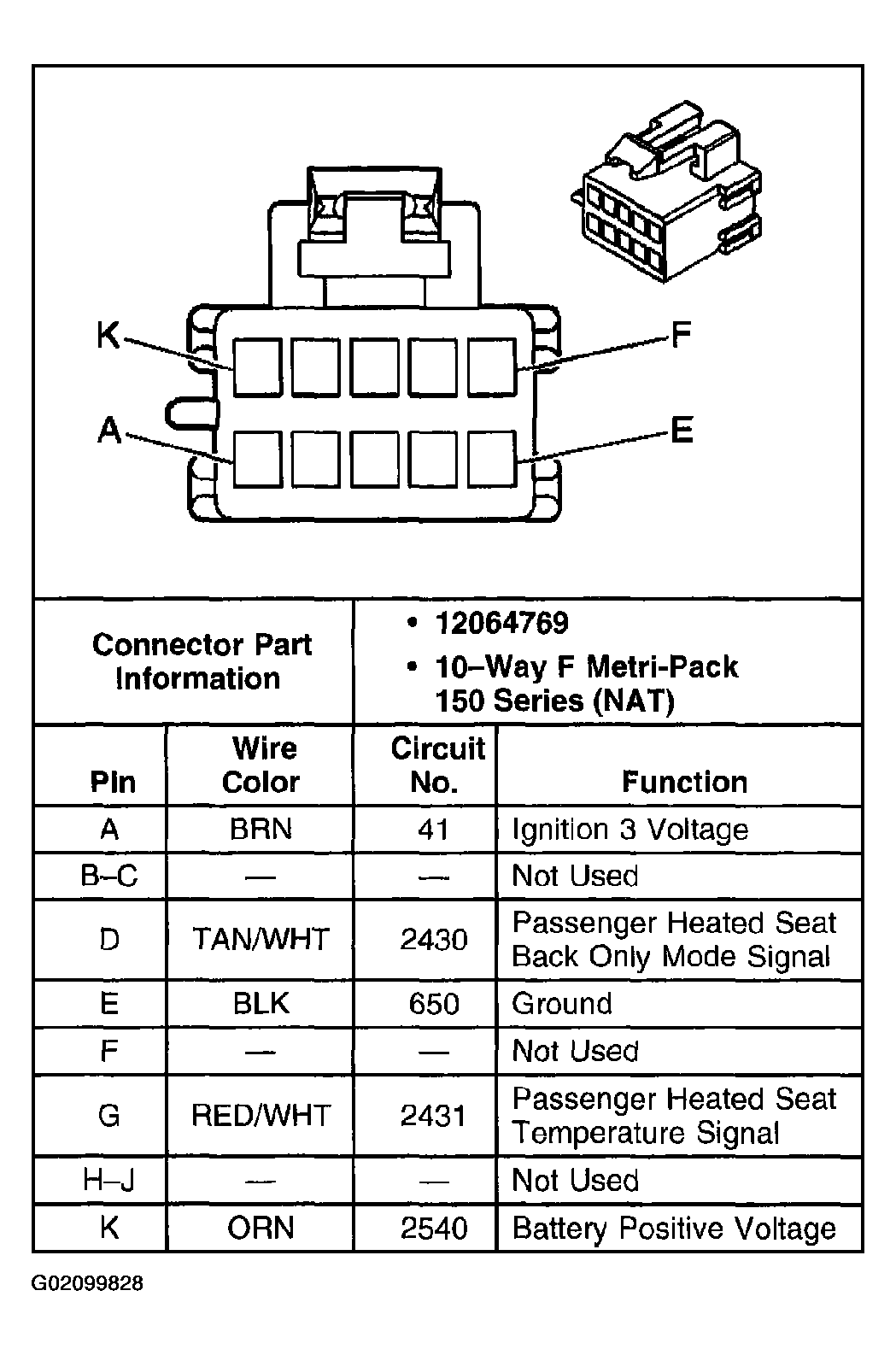

Fig 22: Identifying Heated Seat Switch - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Heated Seat Switch - LR Connector
Courtesy of GENERAL MOTORS CORP.

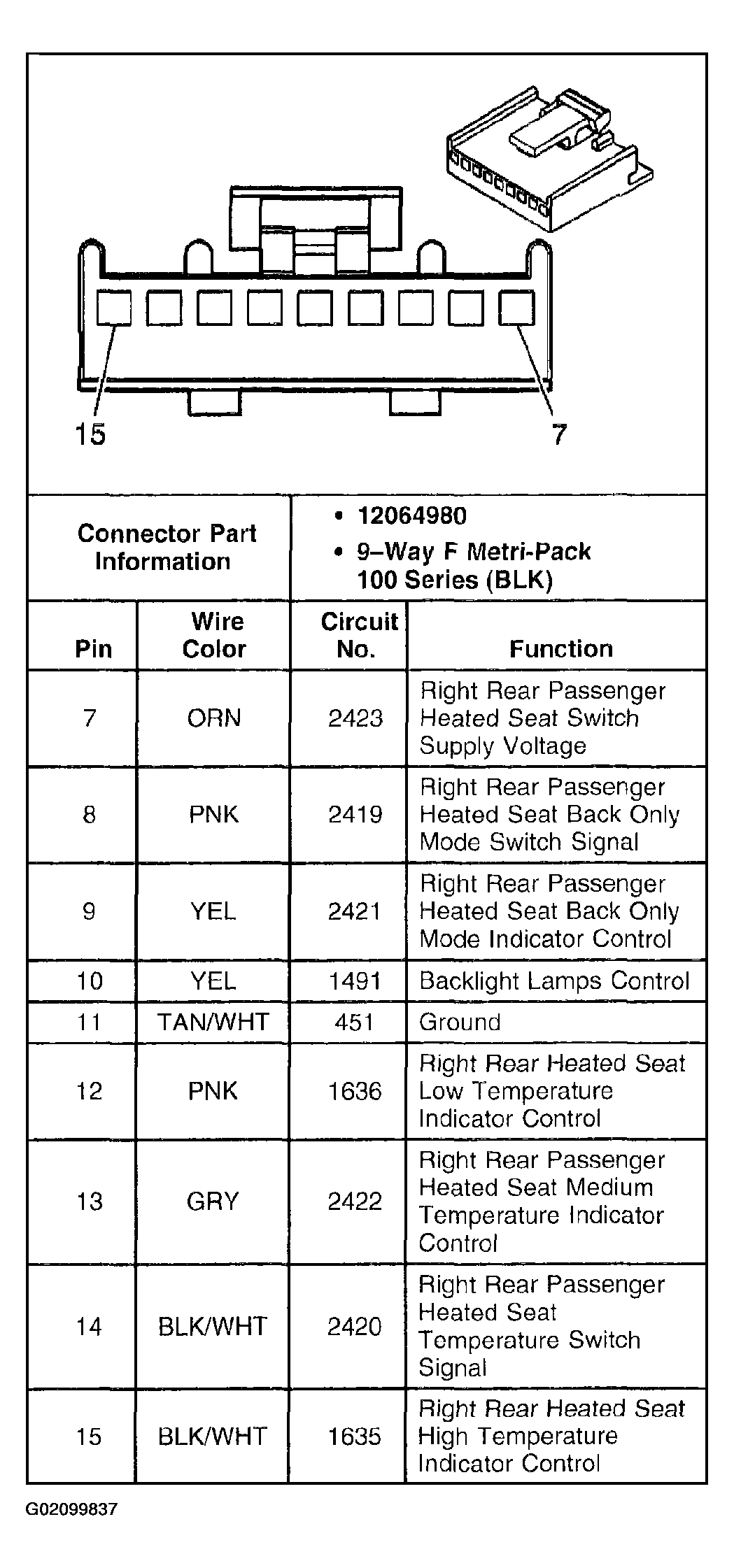

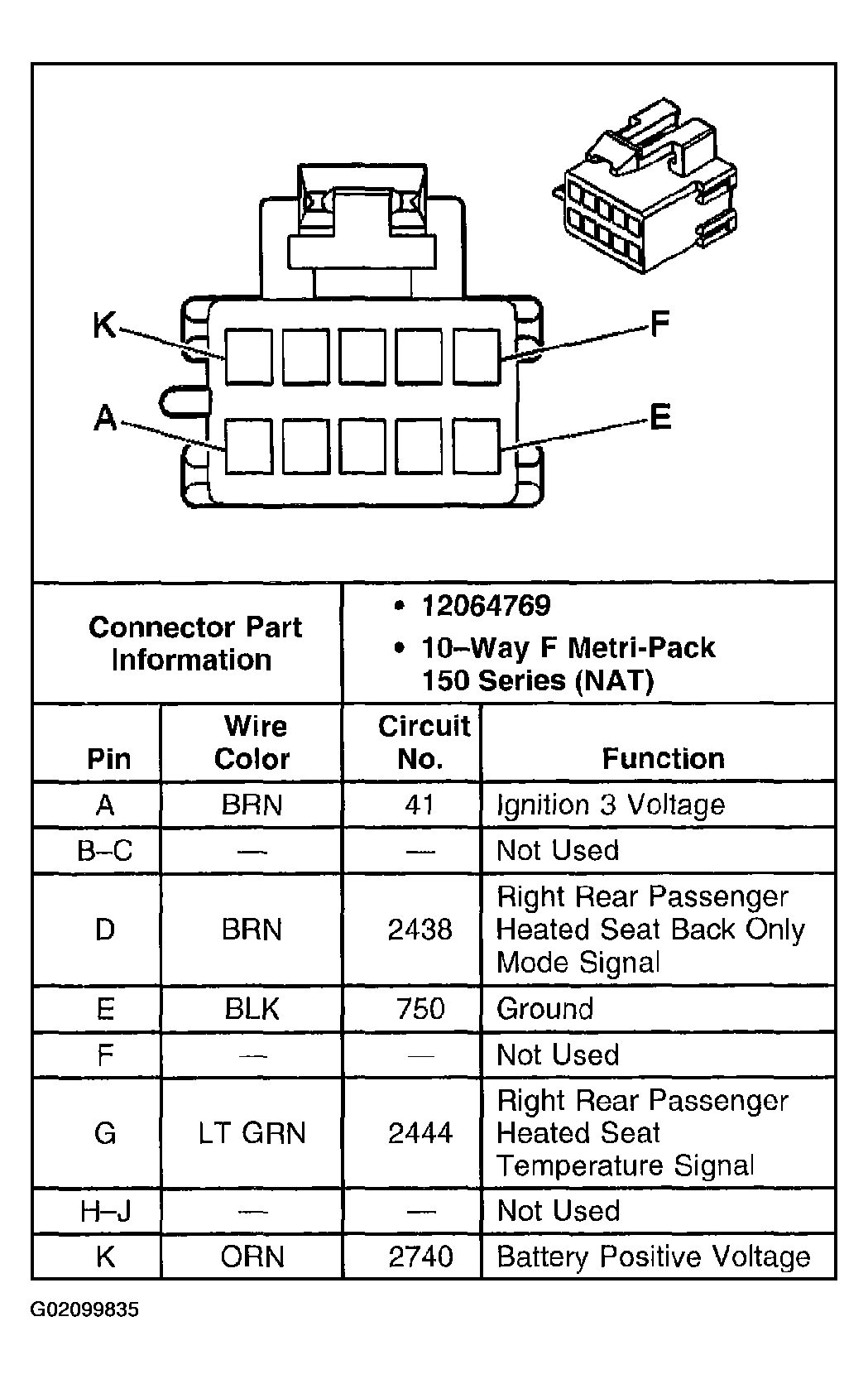

Fig 24: Identifying Heated Seat Module - RR C1 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Heated Seat Module - RR C2 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Heated Seat Switch - RR Connector
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying Memory/Personalization Function Switch Connector
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Memory Seat Module (MSM) C1 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying Memory Seat Module (MSM) C2 Connector (w/AC9)(1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Memory Seat Module (MSM) C2 Connector (w/AC9)(2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Memory Seat Module (MSM) C3 Connector (w/AC9)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Memory Seat Module (MSM) C2 Connector (AL2)(1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Memory Seat Module (MSM) C2 Connector (AL2)(2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying Memory Seat Module (MSM) C3 Connector (AL2)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Memory Seat Module (MSM) C2 Connector (AM3)(1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Identifying Memory Seat Module (MSM) C2 Connector (AM3)(2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying Memory Seat Module (MSM) C3 Connector (AM3)
Courtesy of GENERAL MOTORS CORP.

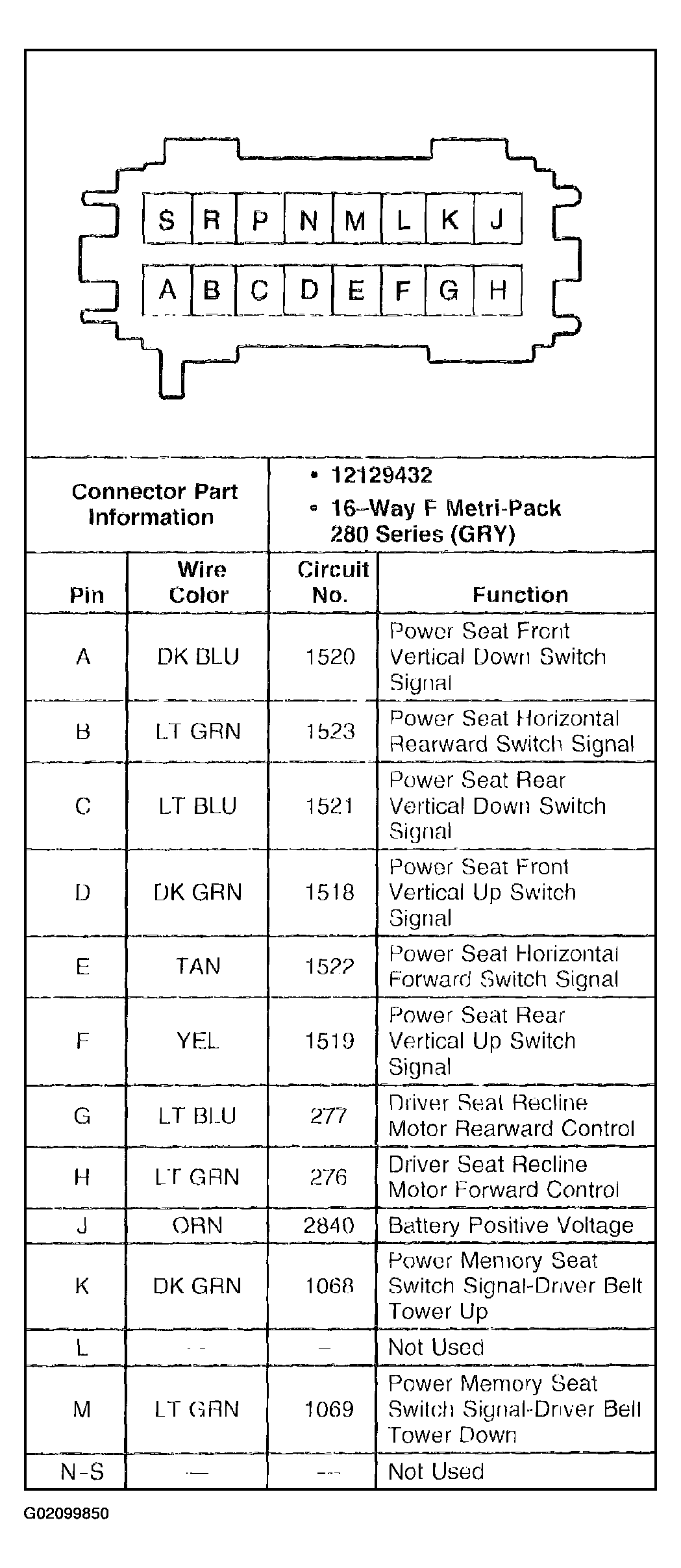

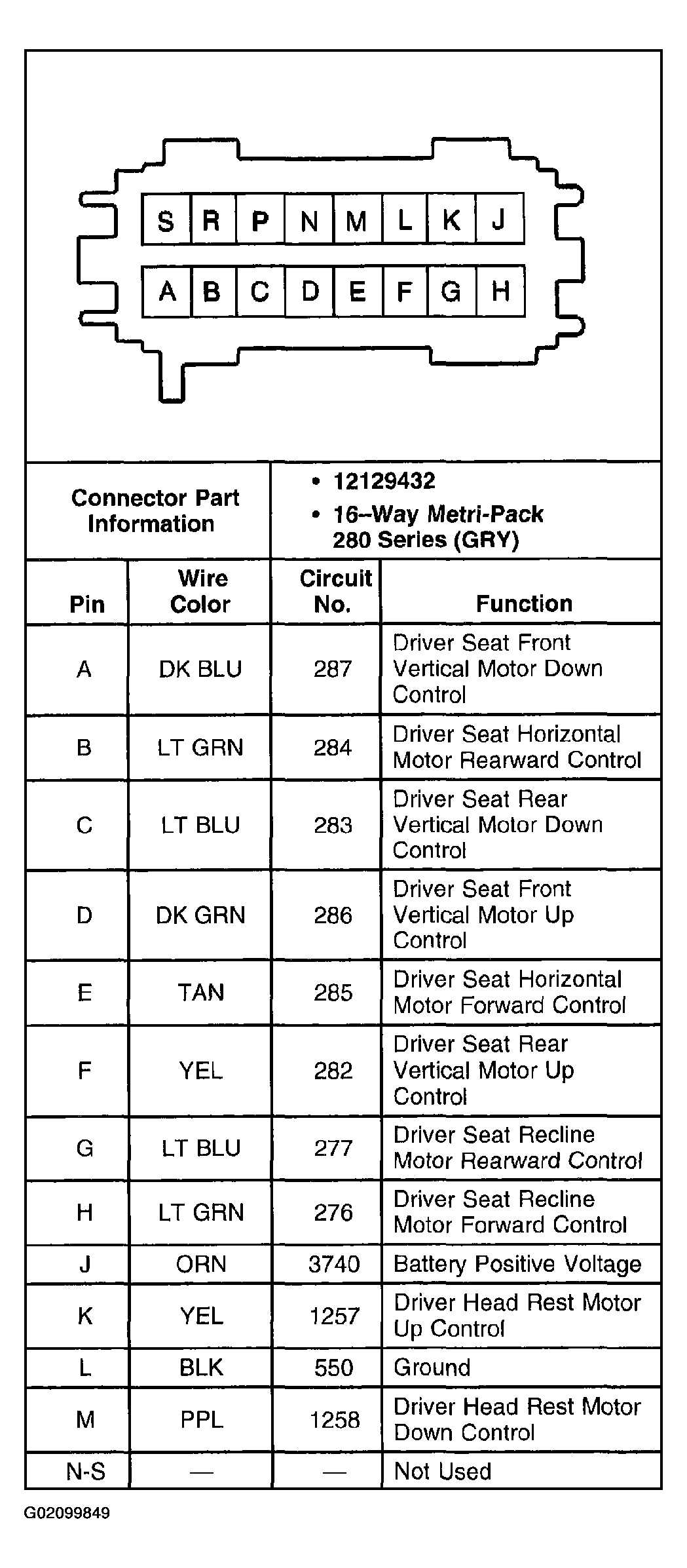

Fig 38: Identifying Seat Adjuster Switch - Driver Connector (w/AM3)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Identifying Seat Adjuster Switch - Driver Connector (A45 with AL2, AC9, or AM3)
Courtesy of GENERAL MOTORS CORP.

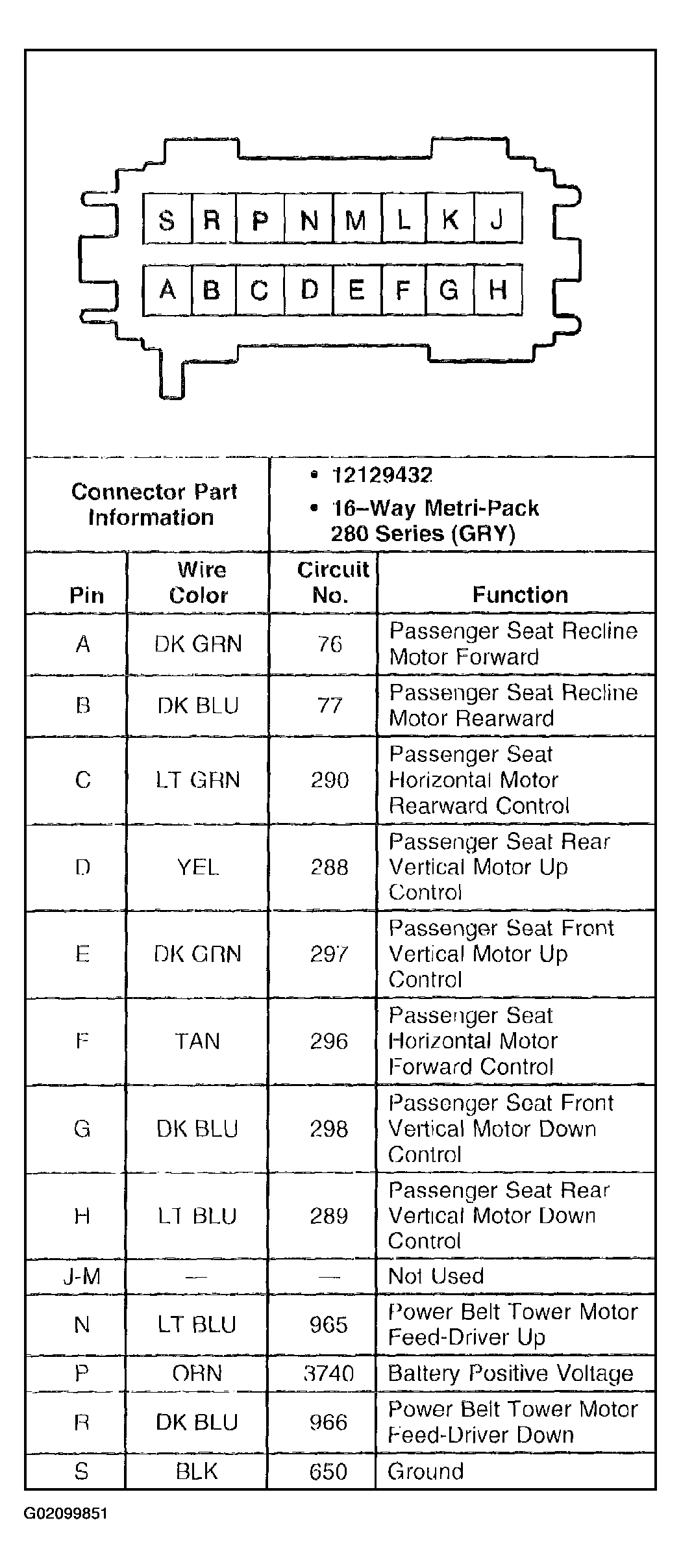

Fig 40: Identifying Seat Adjuster Switch - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

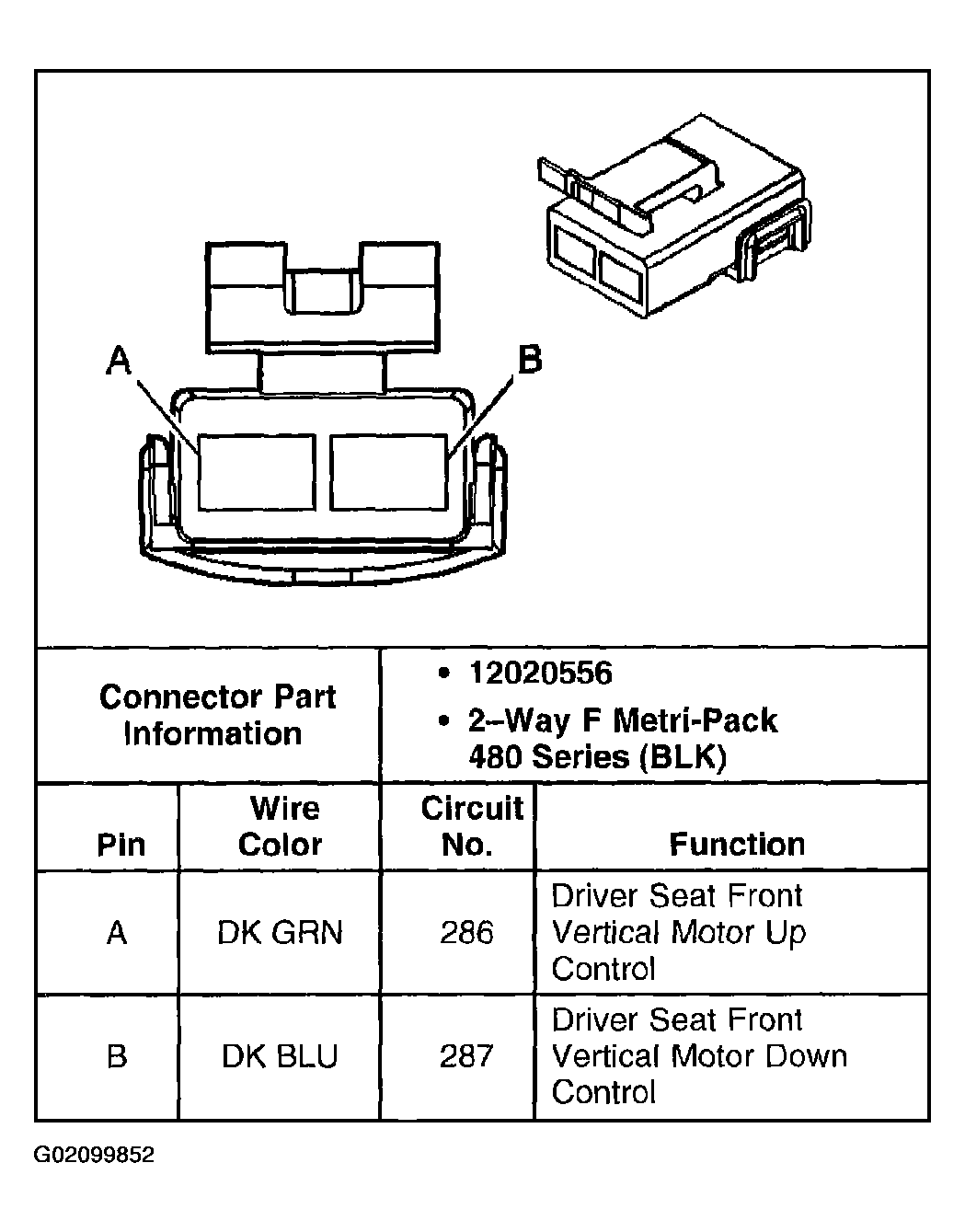

Fig 41: Identifying Seat Front Vertical Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

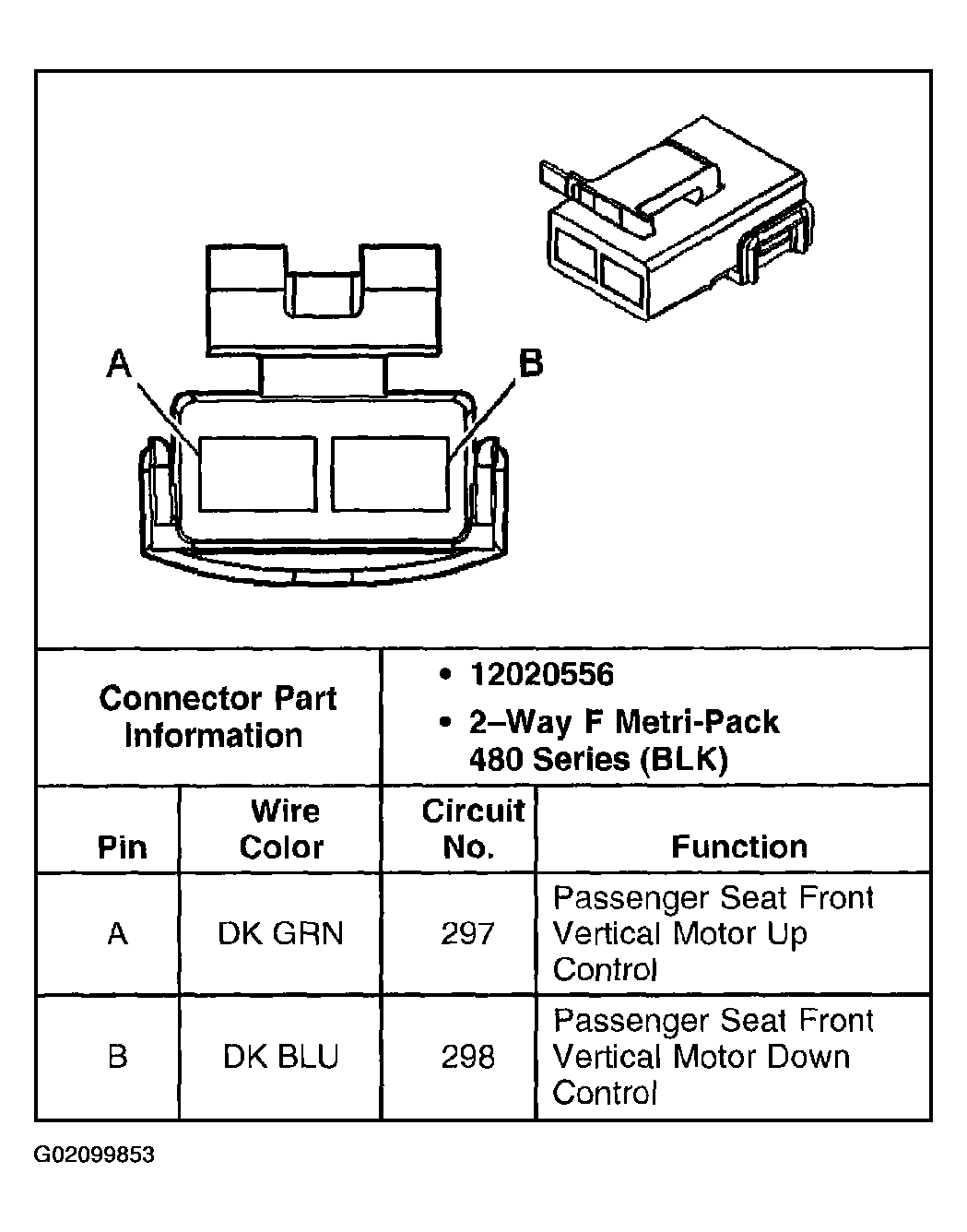

Fig 42: Identifying Seat Front Vertical Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

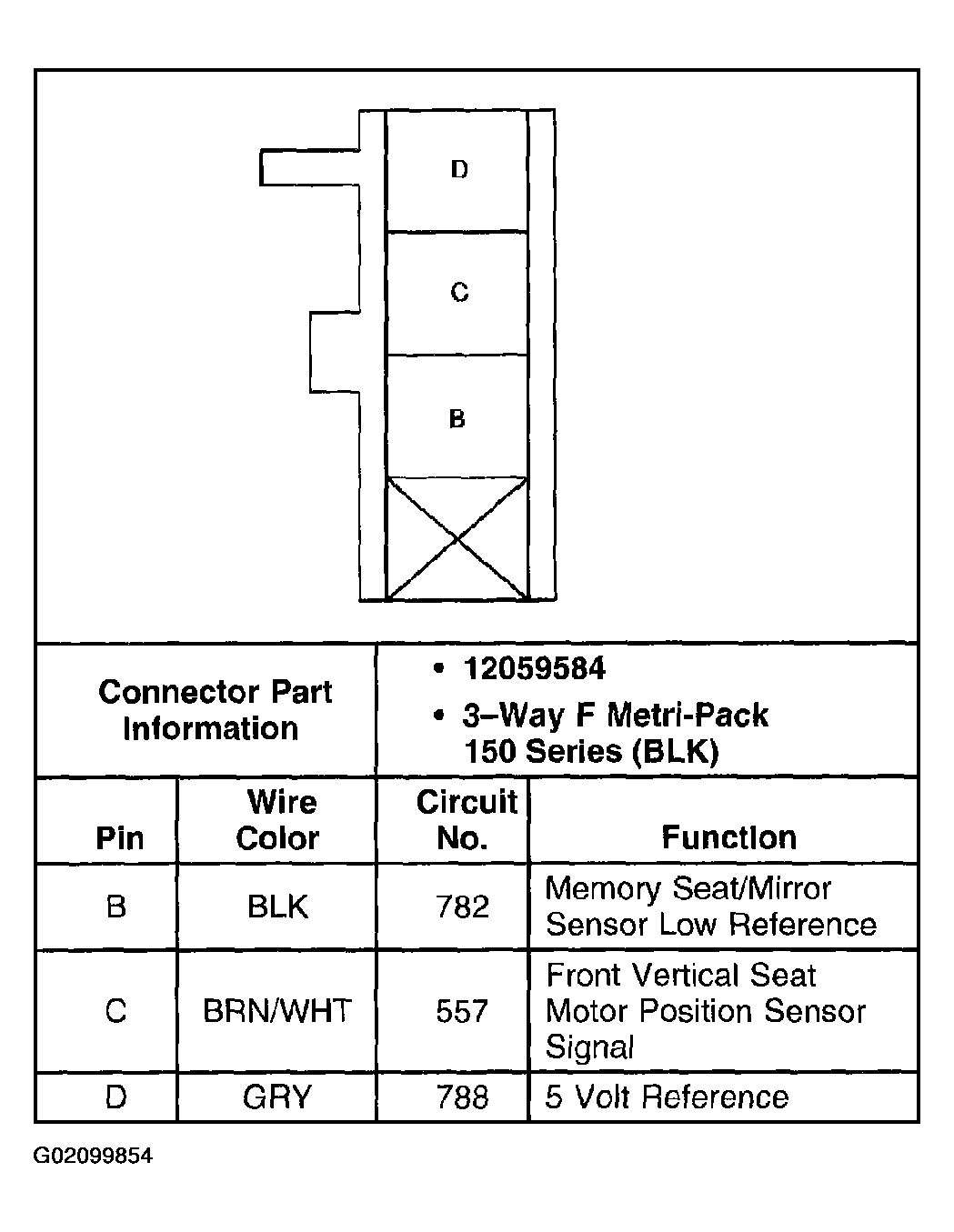

Fig 43: Identifying Seat Front Vertical Position Sensor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

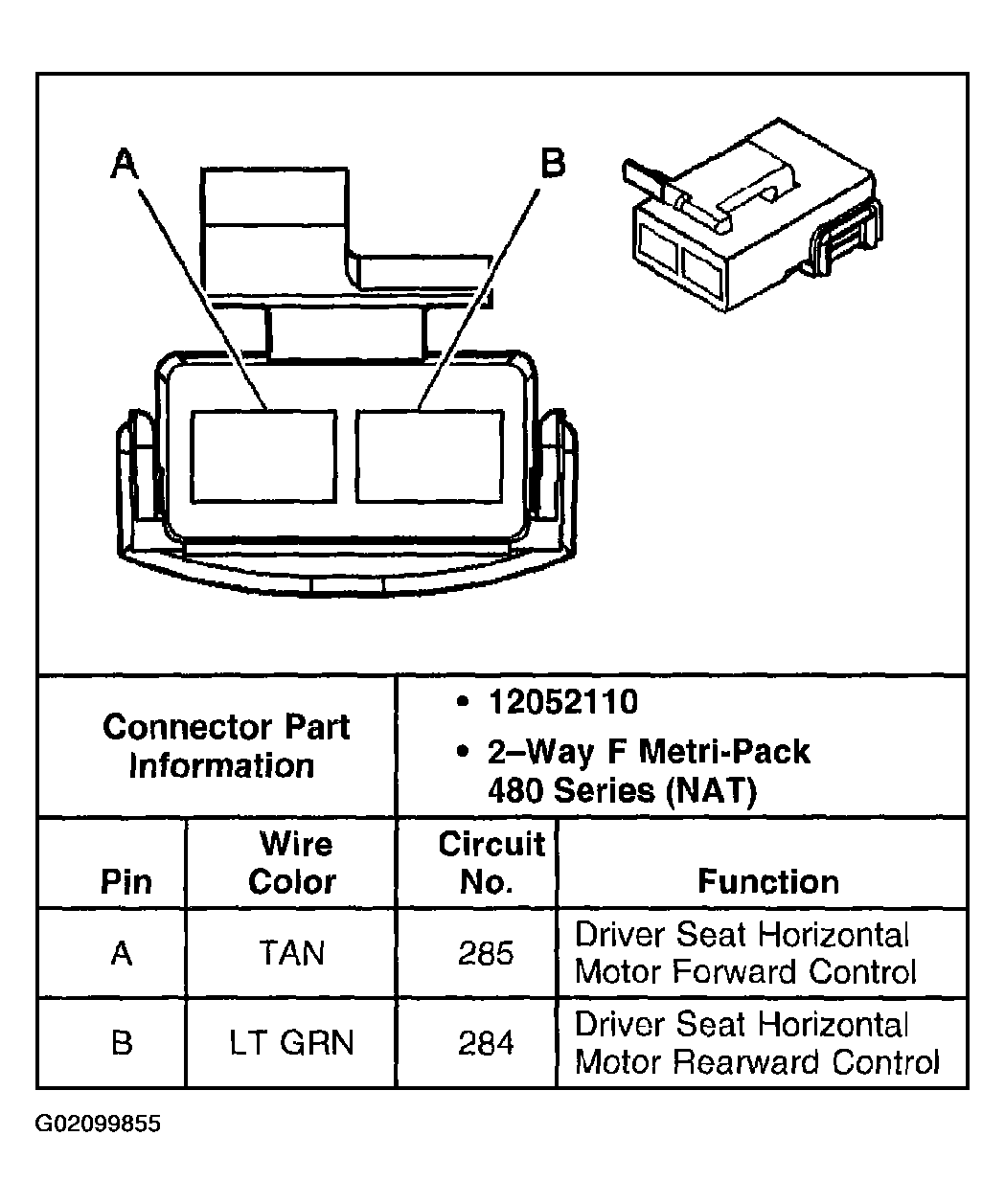

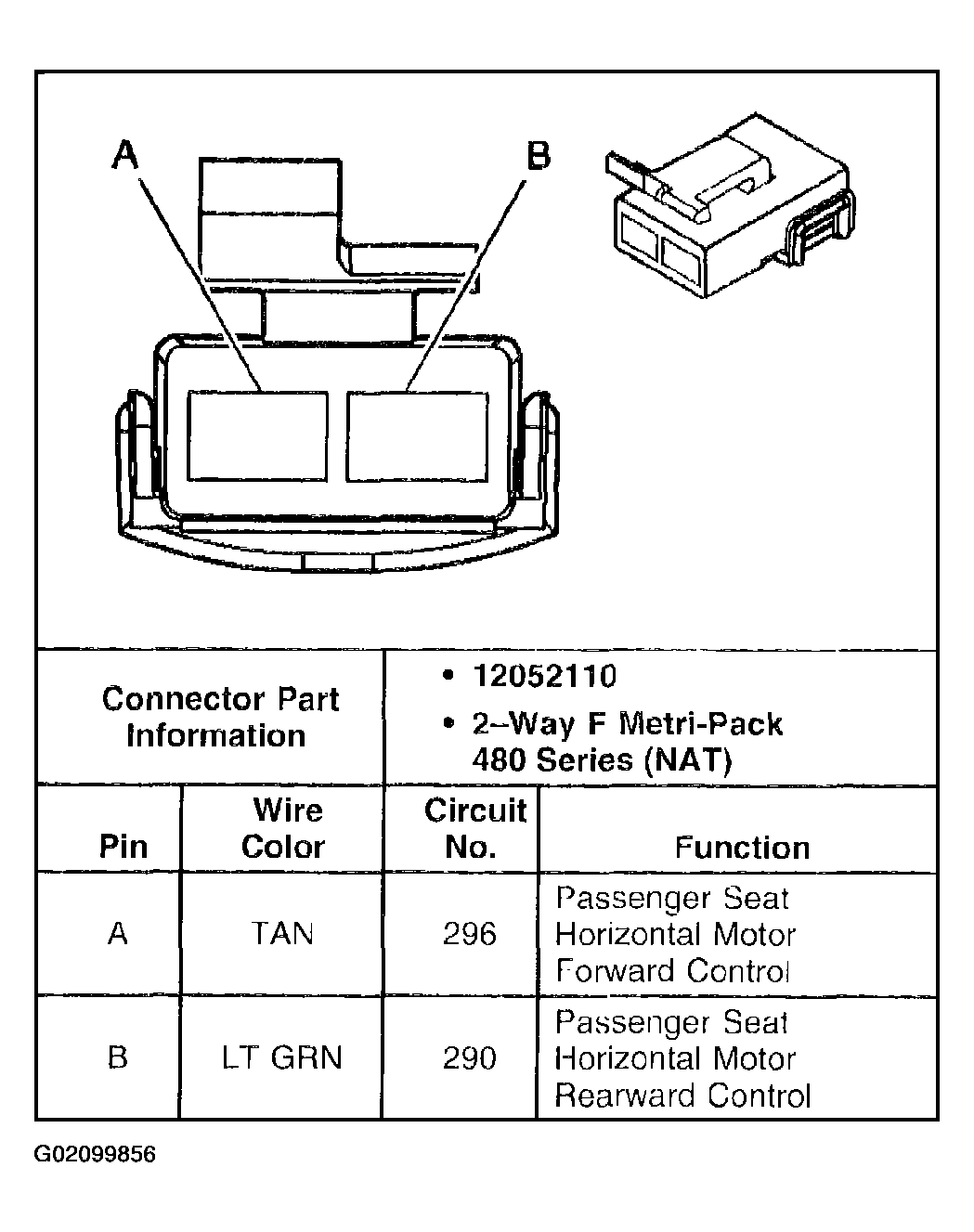

Fig 44: Identifying Seat Horizontal Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.
Fig 45: Identifying Seat Horizontal Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

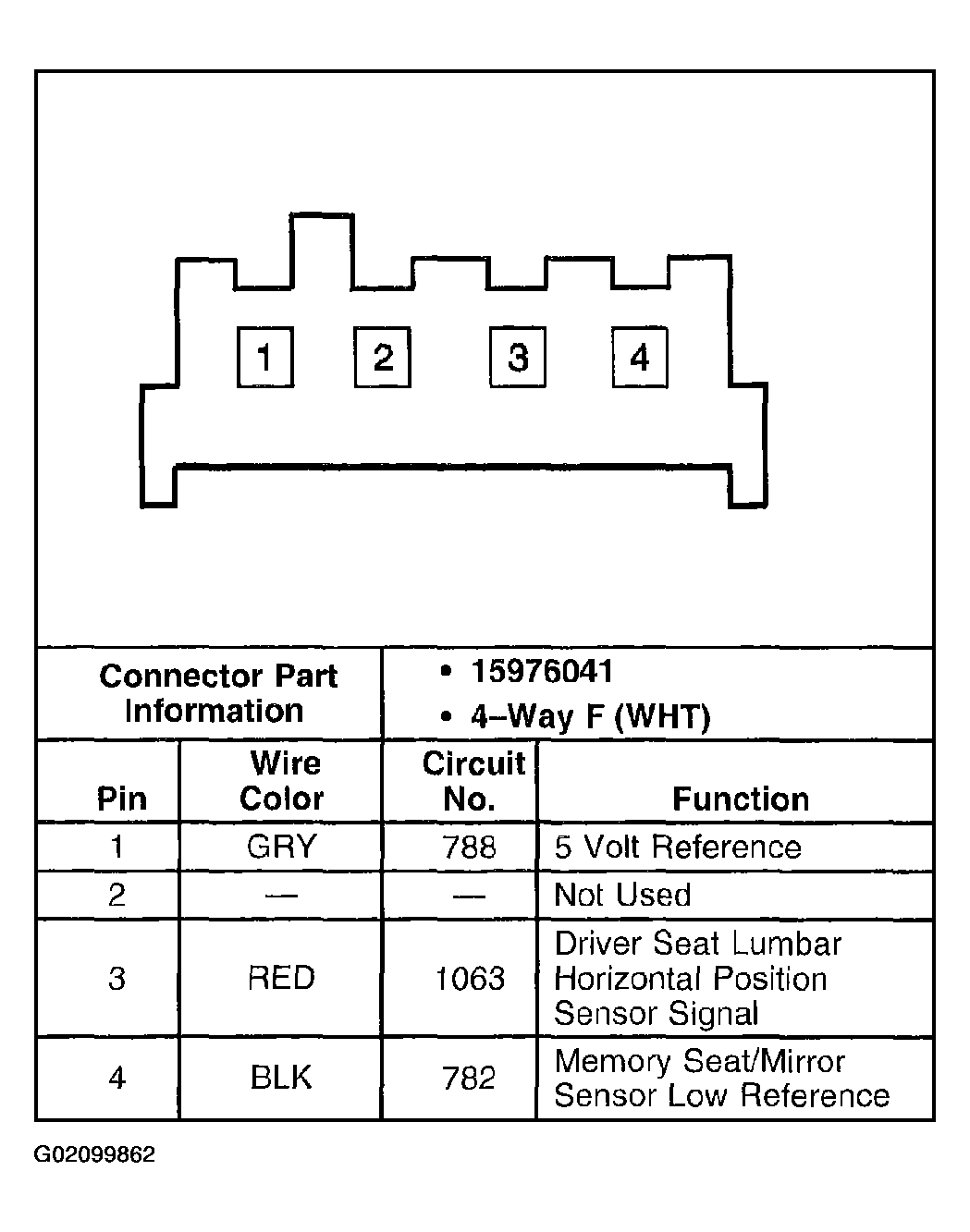

Fig 46: Identifying Seat Horizontal Position Sensor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

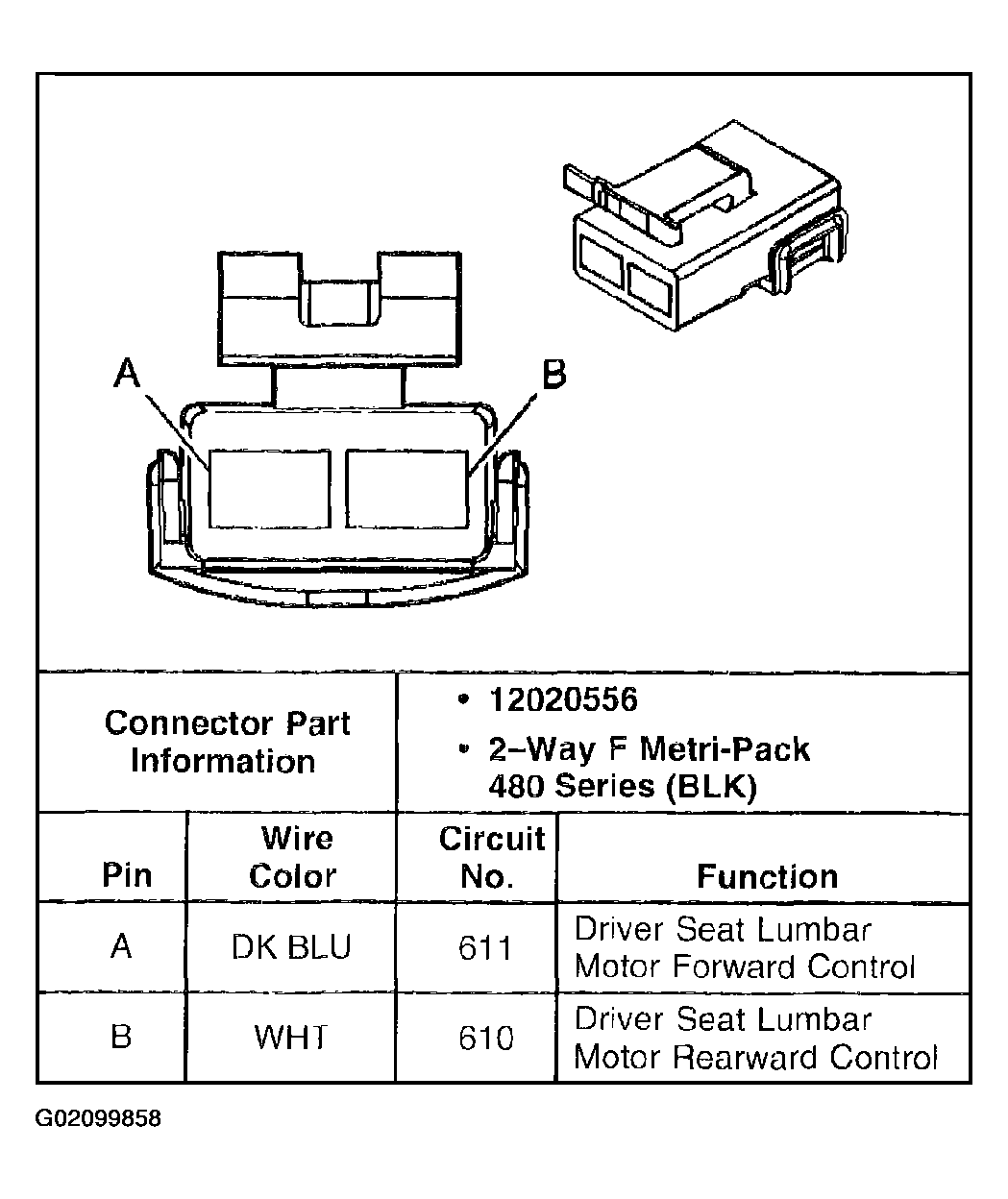

Fig 47: Identifying Seat Lumbar Horizontal Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.
Fig 48: Identifying Seat Lumbar Horizontal Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

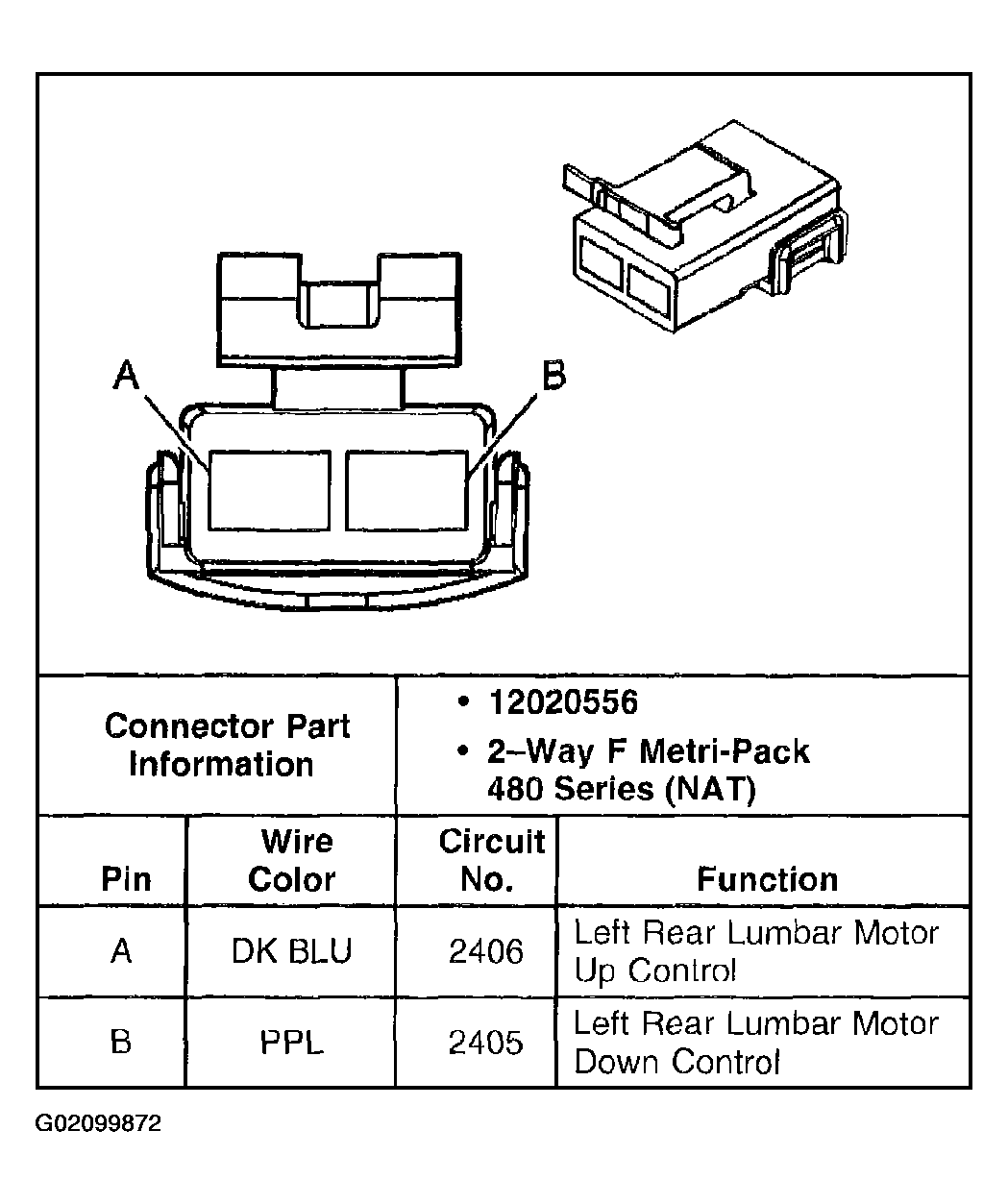

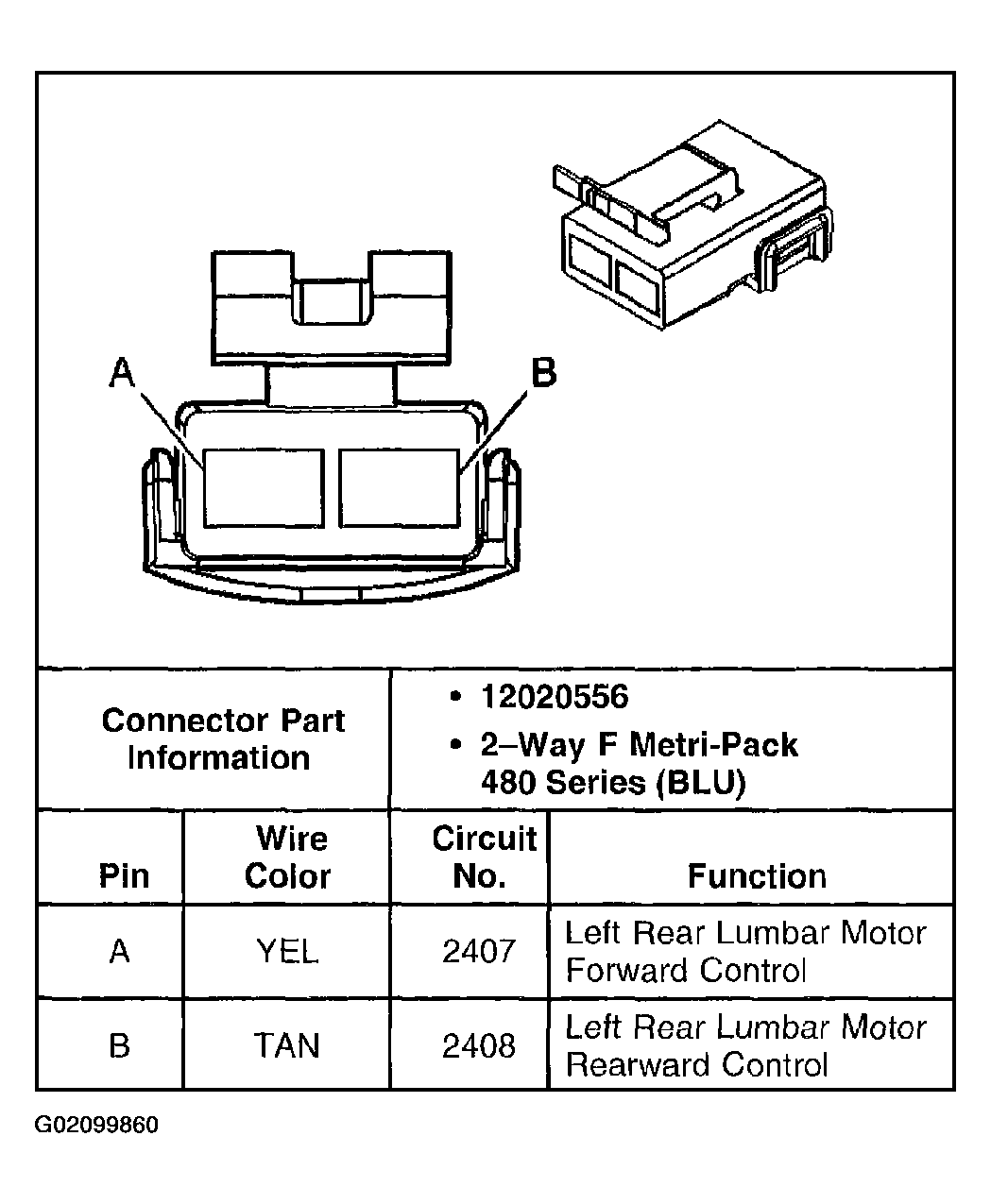

Fig 49: Identifying Seat Lumbar Horizontal Motor - LR Connector
Courtesy of GENERAL MOTORS CORP.

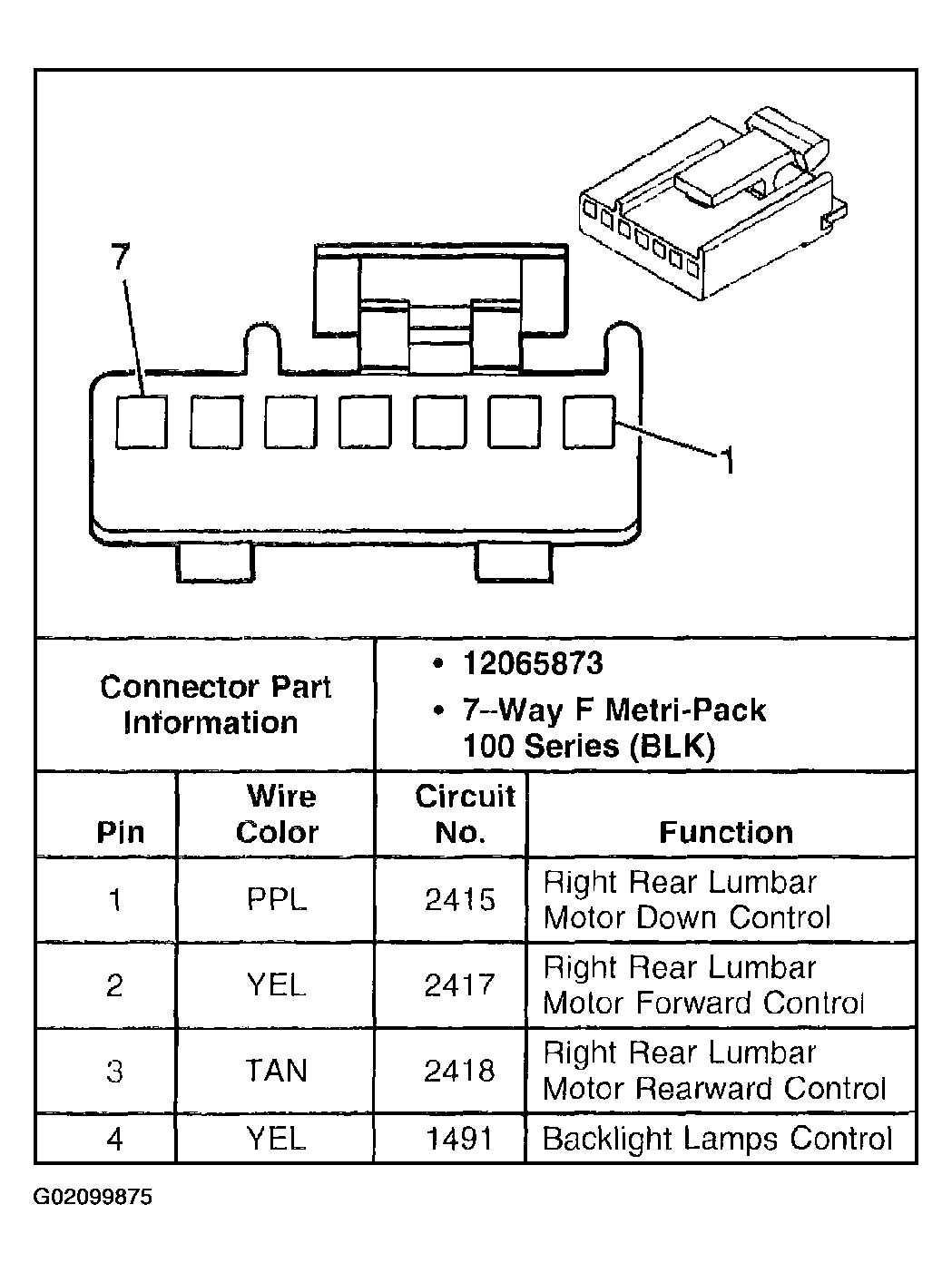

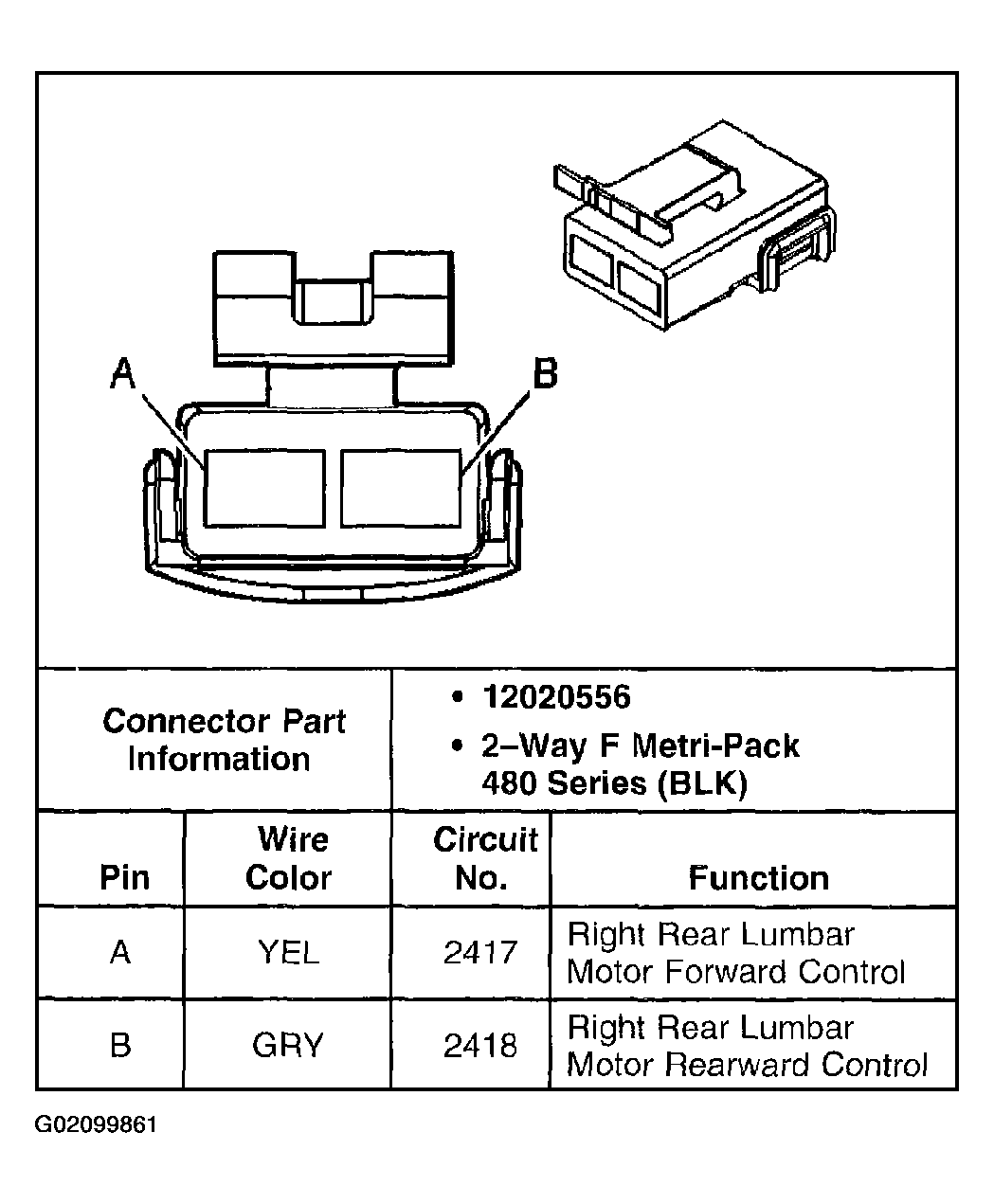

Fig 50: Identifying Seat Lumbar Horizontal Motor - RR Connector
Courtesy of GENERAL MOTORS CORP.
Fig 51: Identifying Seat Lumbar Horizontal Position Sensor - Driver Connector (w/A45)
Courtesy of GENERAL MOTORS CORP.

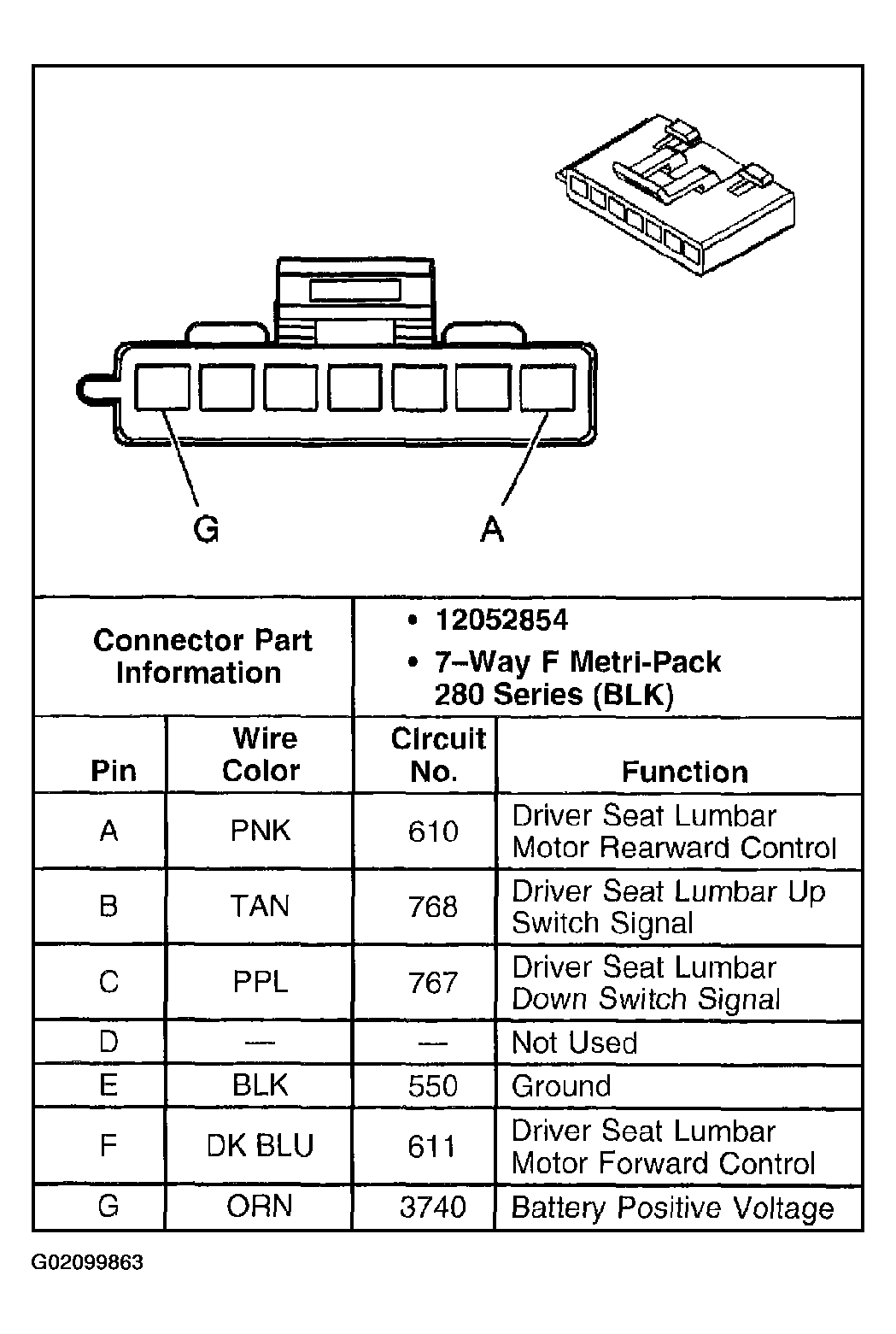

Fig 52: Identifying Seat Lumbar Switch - Driver Connector (AL2 or AM3)
Courtesy of GENERAL MOTORS CORP.

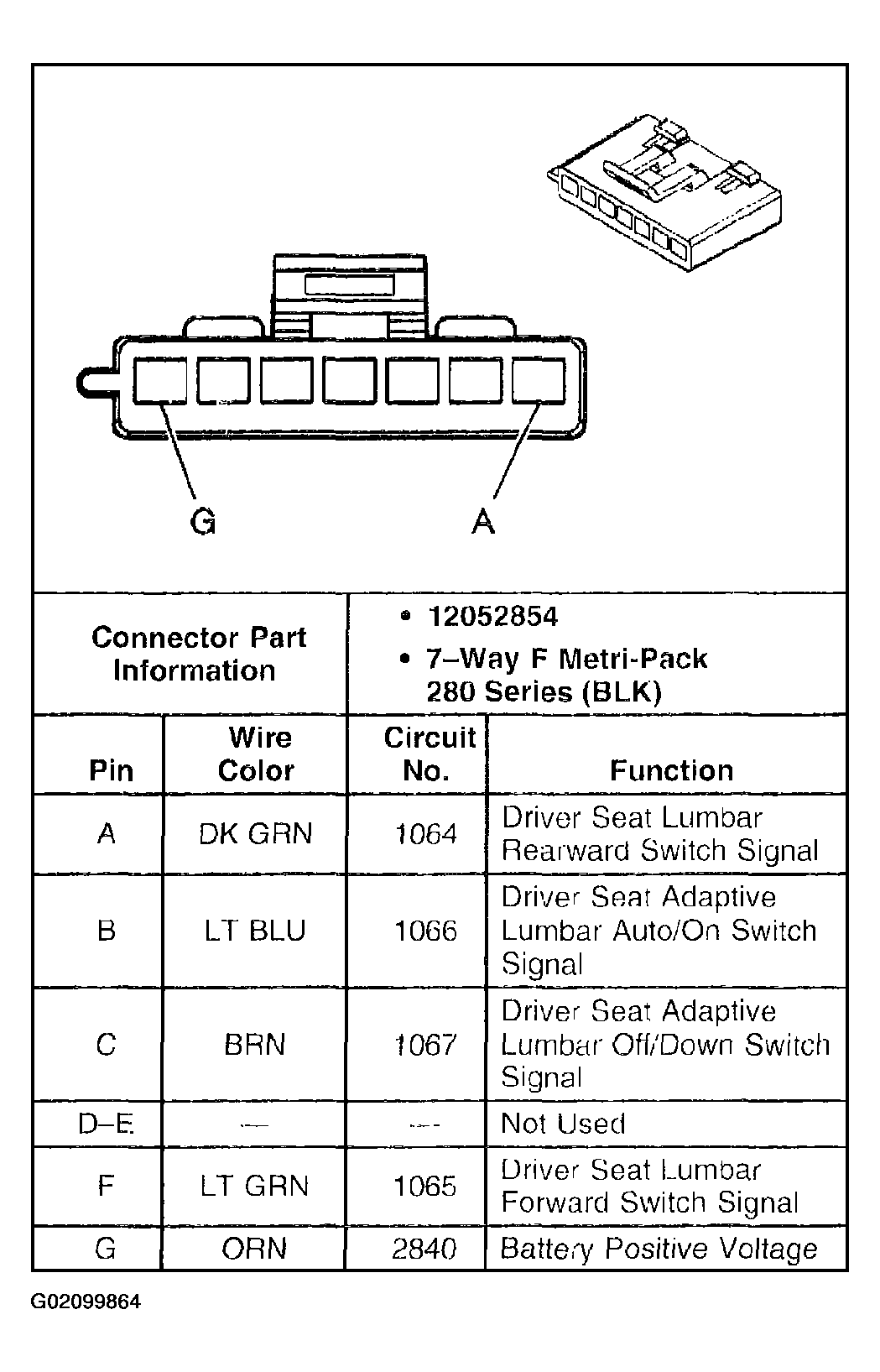

Fig 53: Identifying Seat Lumbar Switch - Driver Connector (A45 With AC9, AL2, Or AM3)
Courtesy of GENERAL MOTORS CORP.

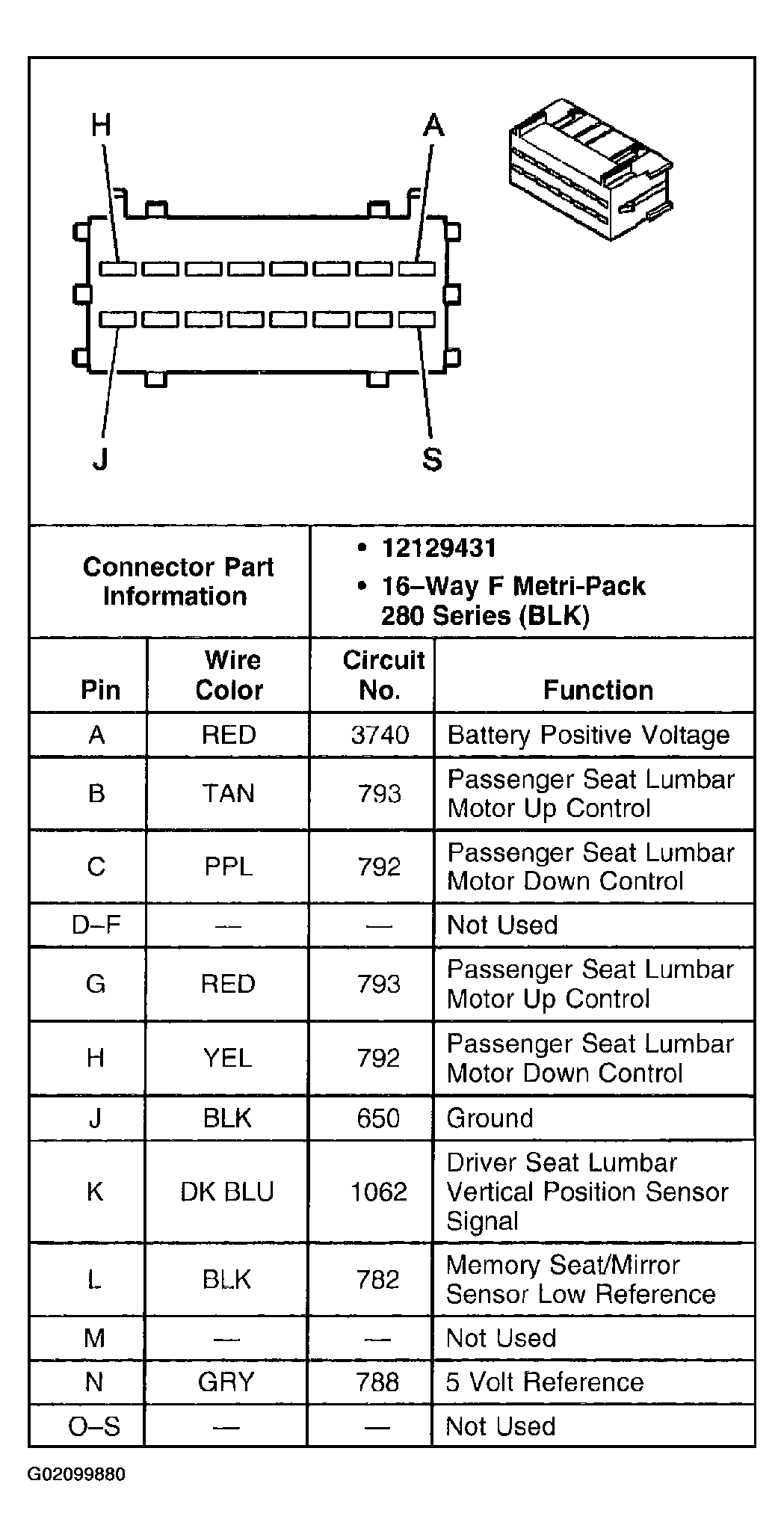

Fig 54: Identifying Seat Lumbar Switch - Front Passenger Connector (AC9)(1 Of 2)
Courtesy of GENERAL MOTORS CORP.

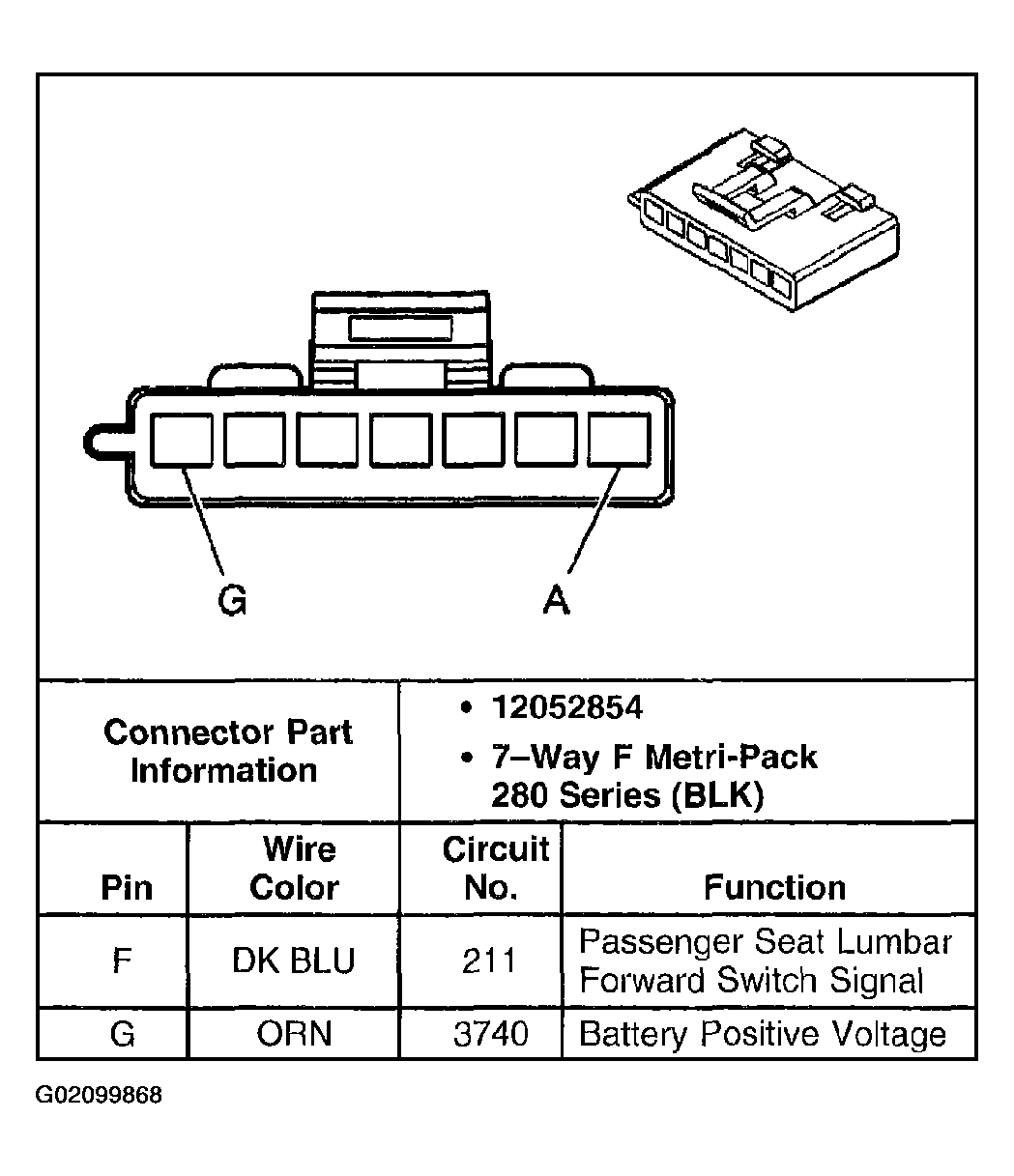

Fig 55: Identifying Seat Lumbar Switch - Front Passenger Connector (AC9)(2 Of 2)
Courtesy of GENERAL MOTORS CORP.

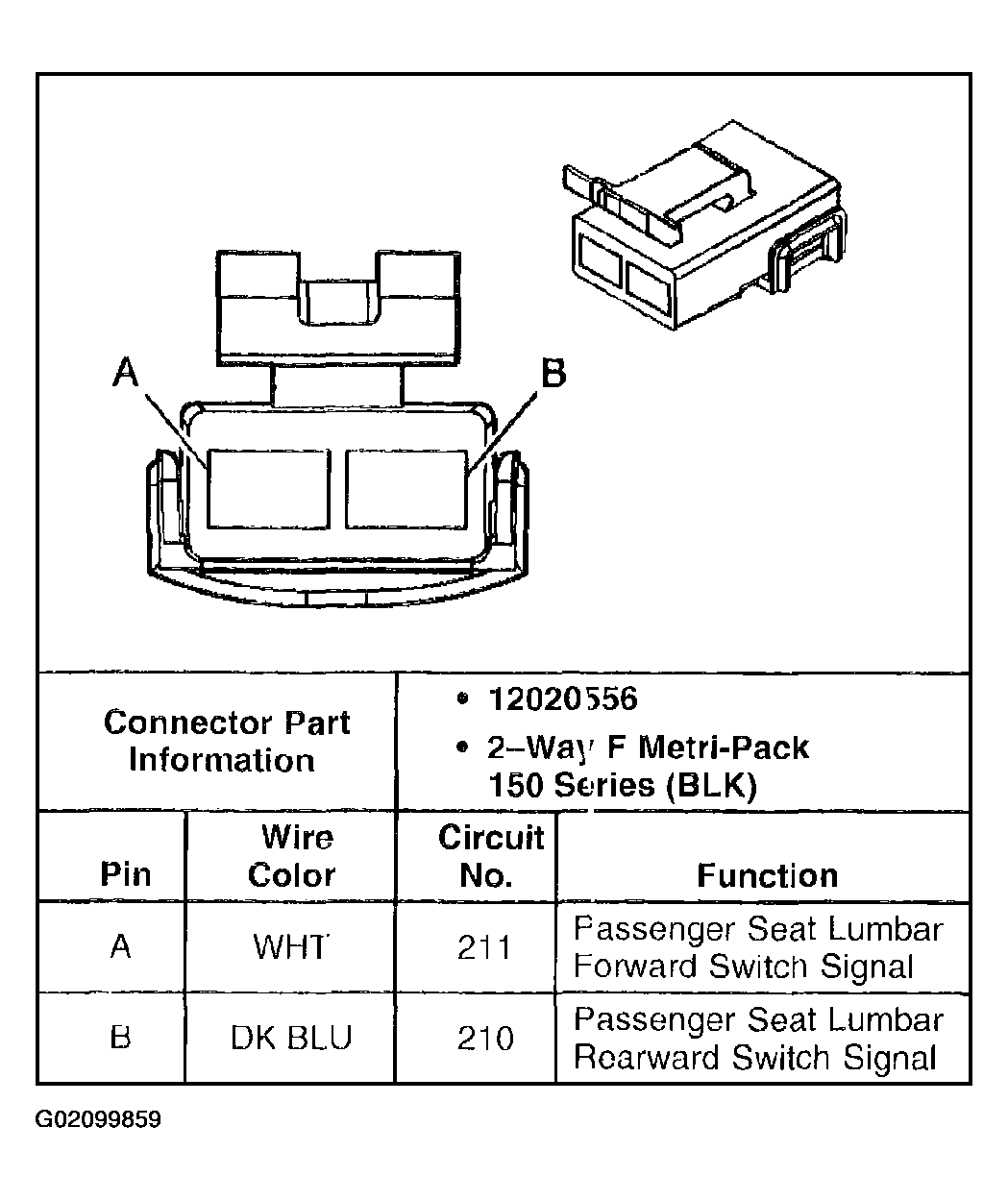

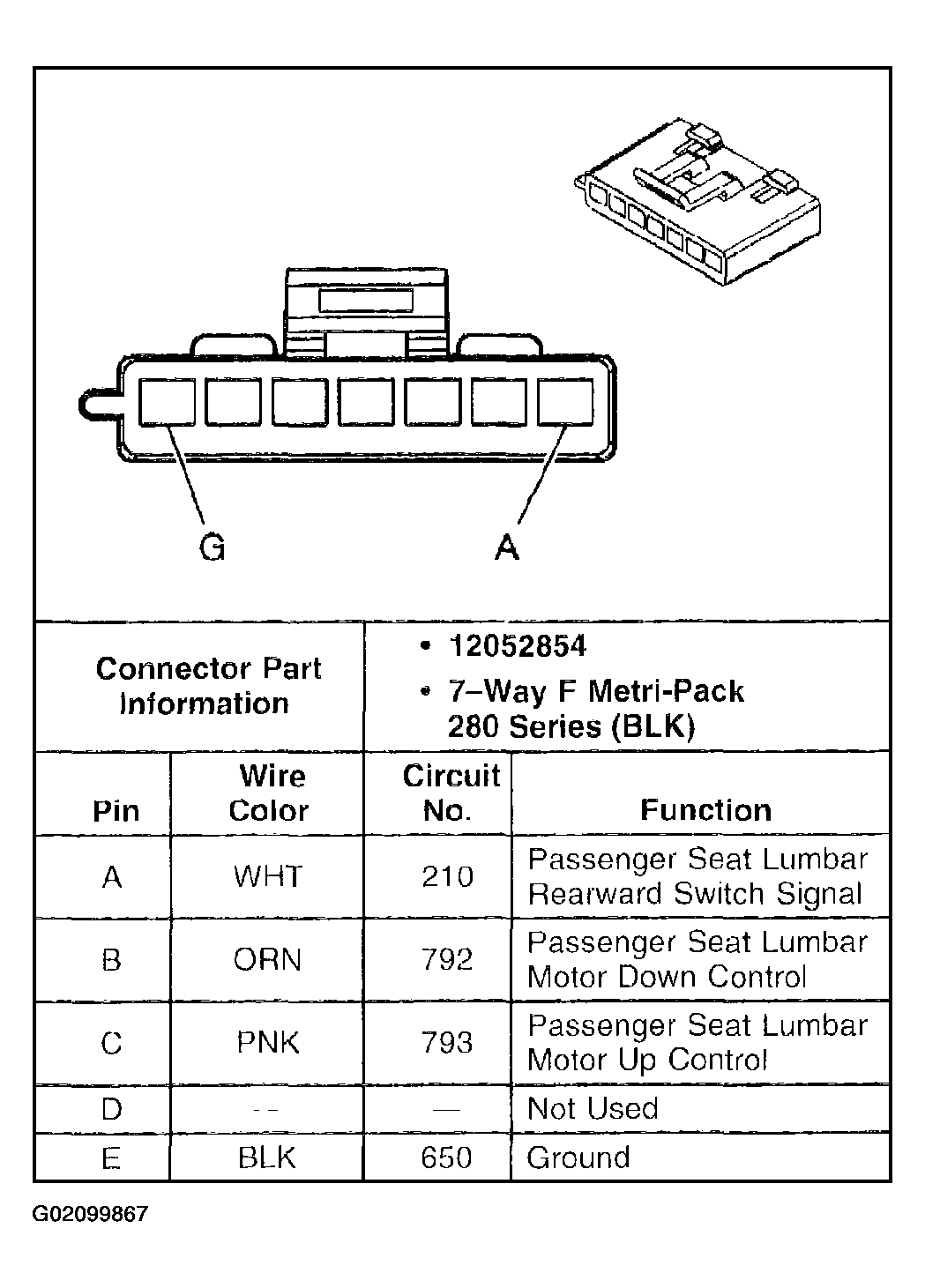

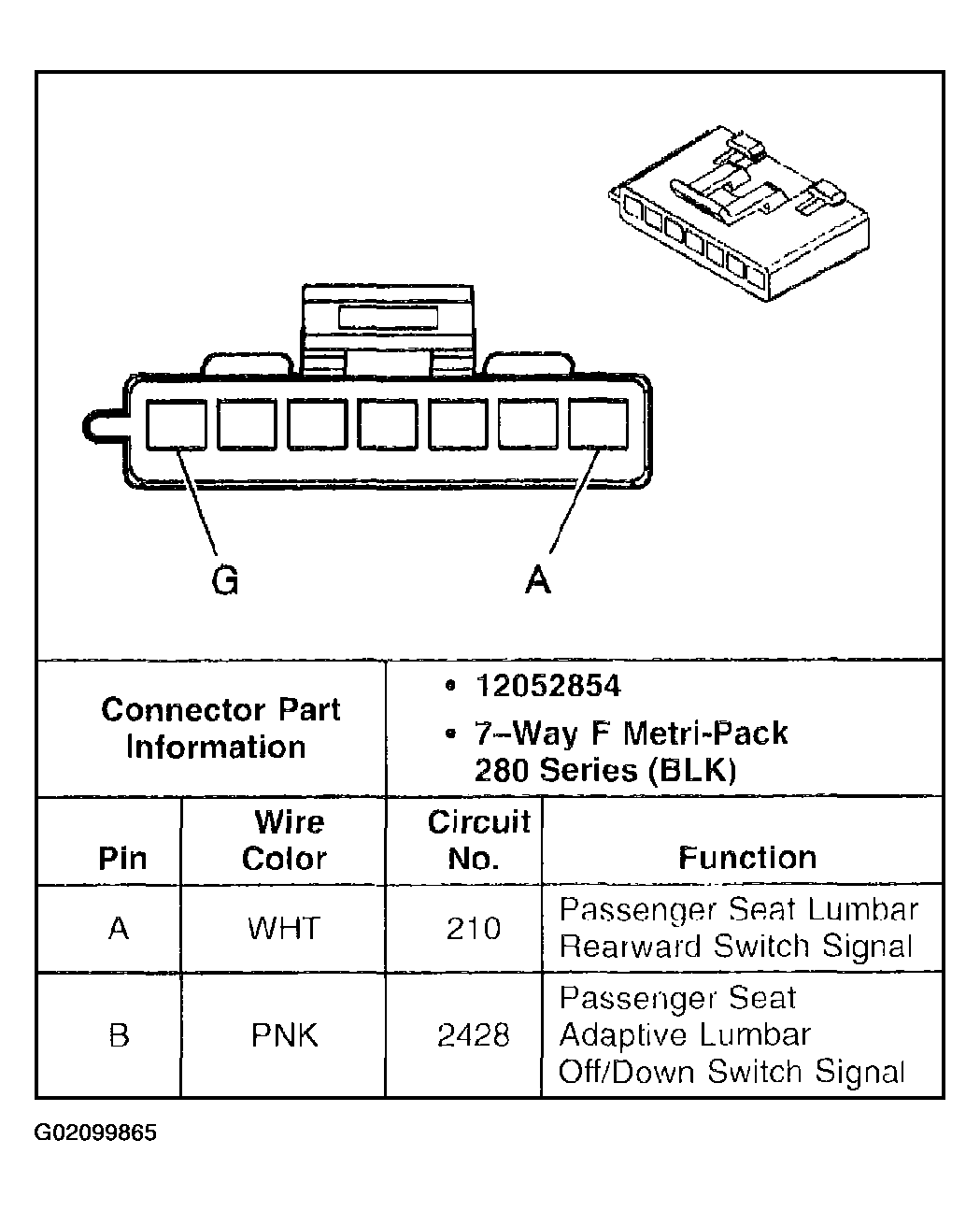

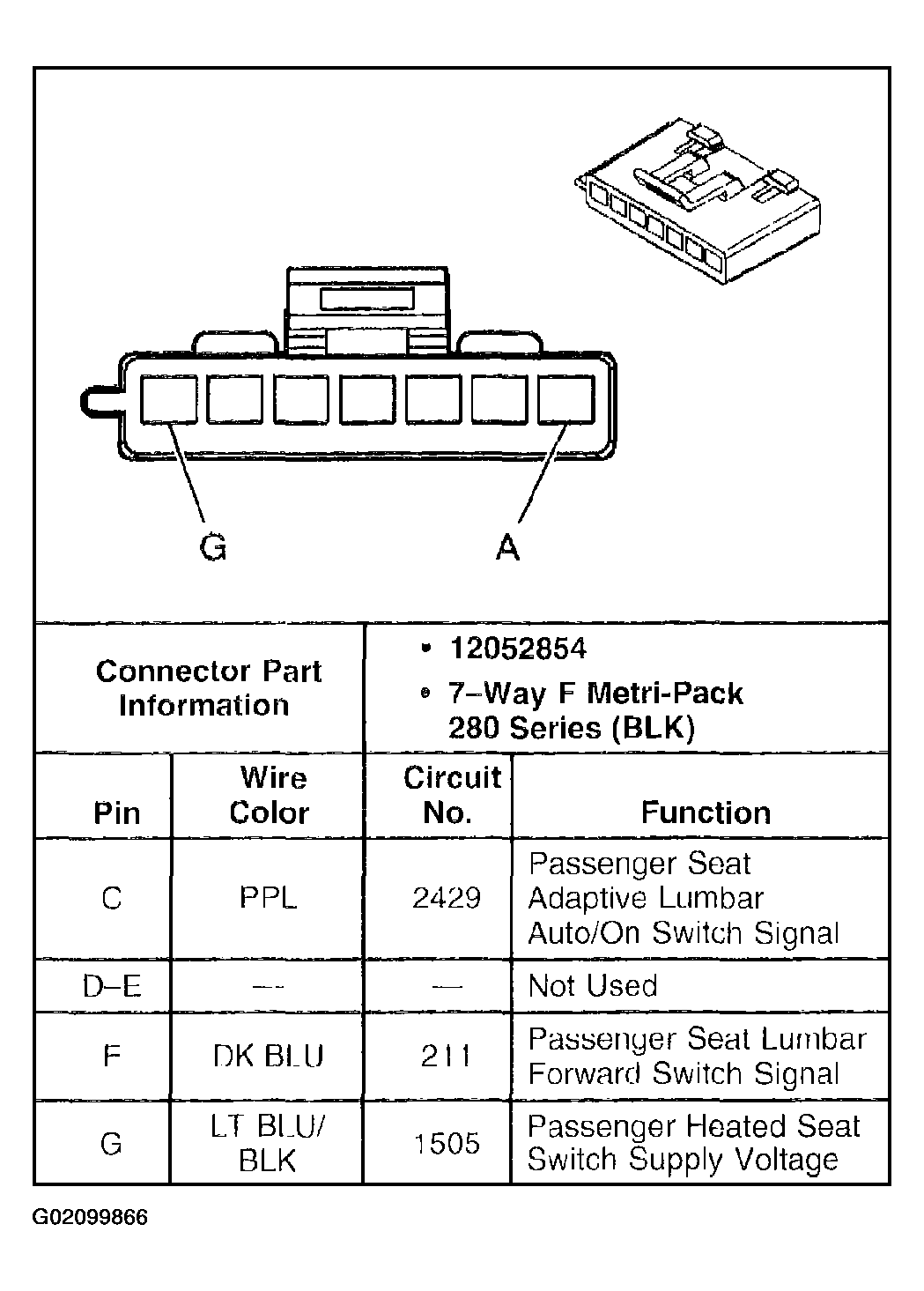

Fig 56: Identifying Seat Lumbar Switch - Front Passenger Connector (AL2)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Identifying Seat Lumbar Switch - Front Passenger Connector (AL2)
Courtesy of GENERAL MOTORS CORP.

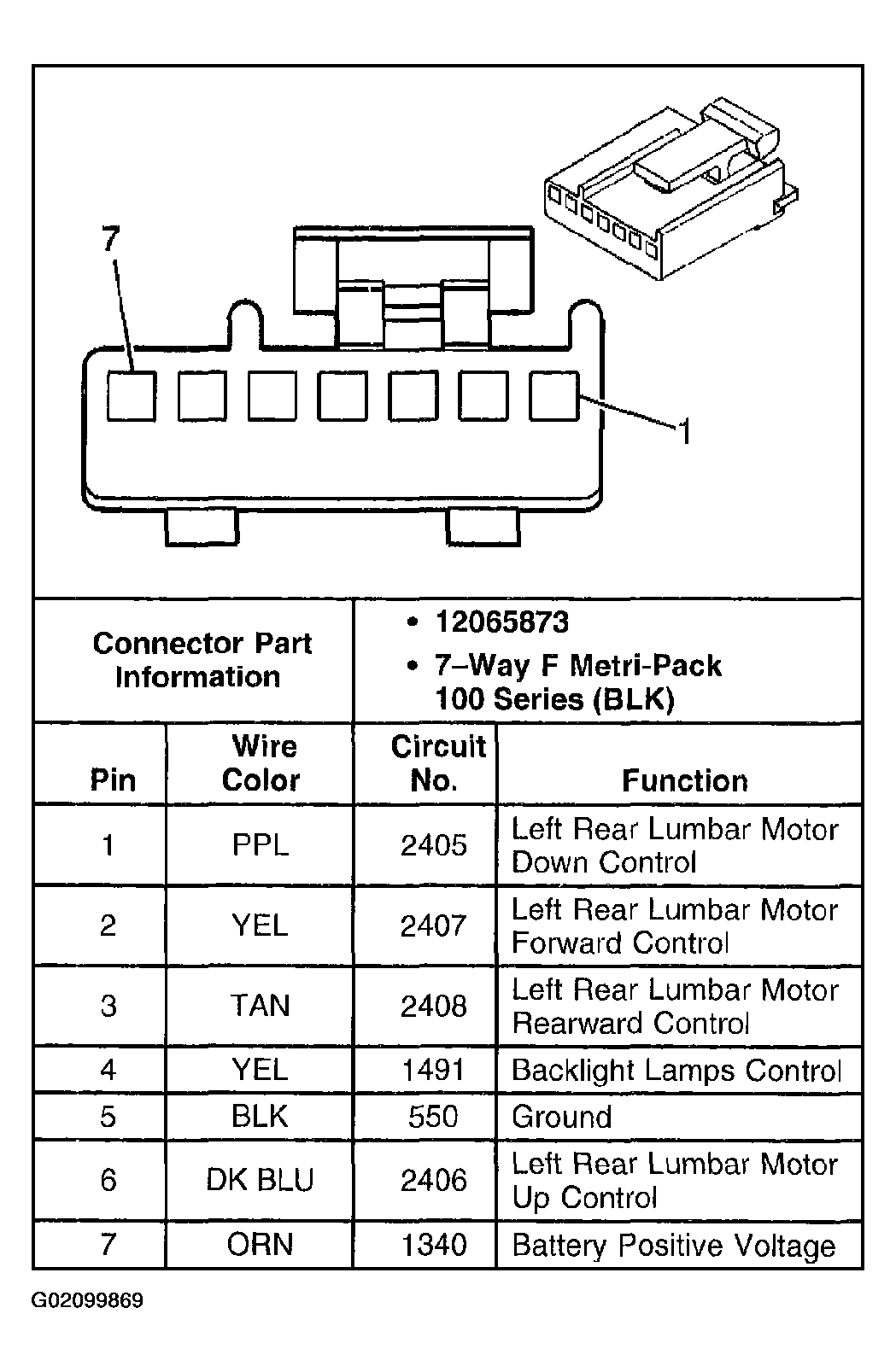

Fig 58: Identifying Seat Lumbar Switch - LR Connector
Courtesy of GENERAL MOTORS CORP.

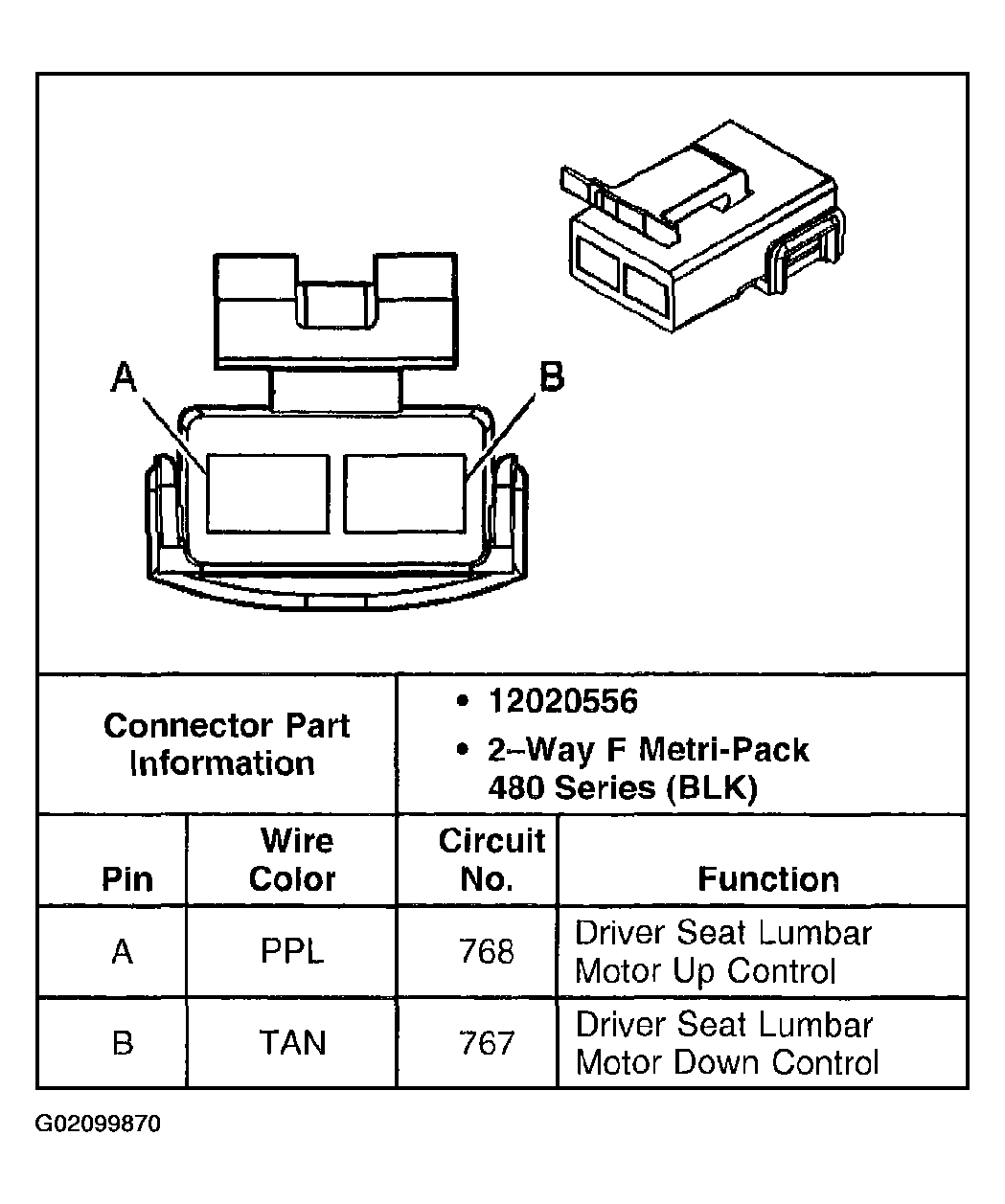

Fig 59: Identifying Seat Lumbar Vertical Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.
Fig 60: Identifying Seat Lumbar Vertical Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.
Fig 61: Identifying Seat Lumbar Vertical Motor - LR Connector
Courtesy of GENERAL MOTORS CORP.

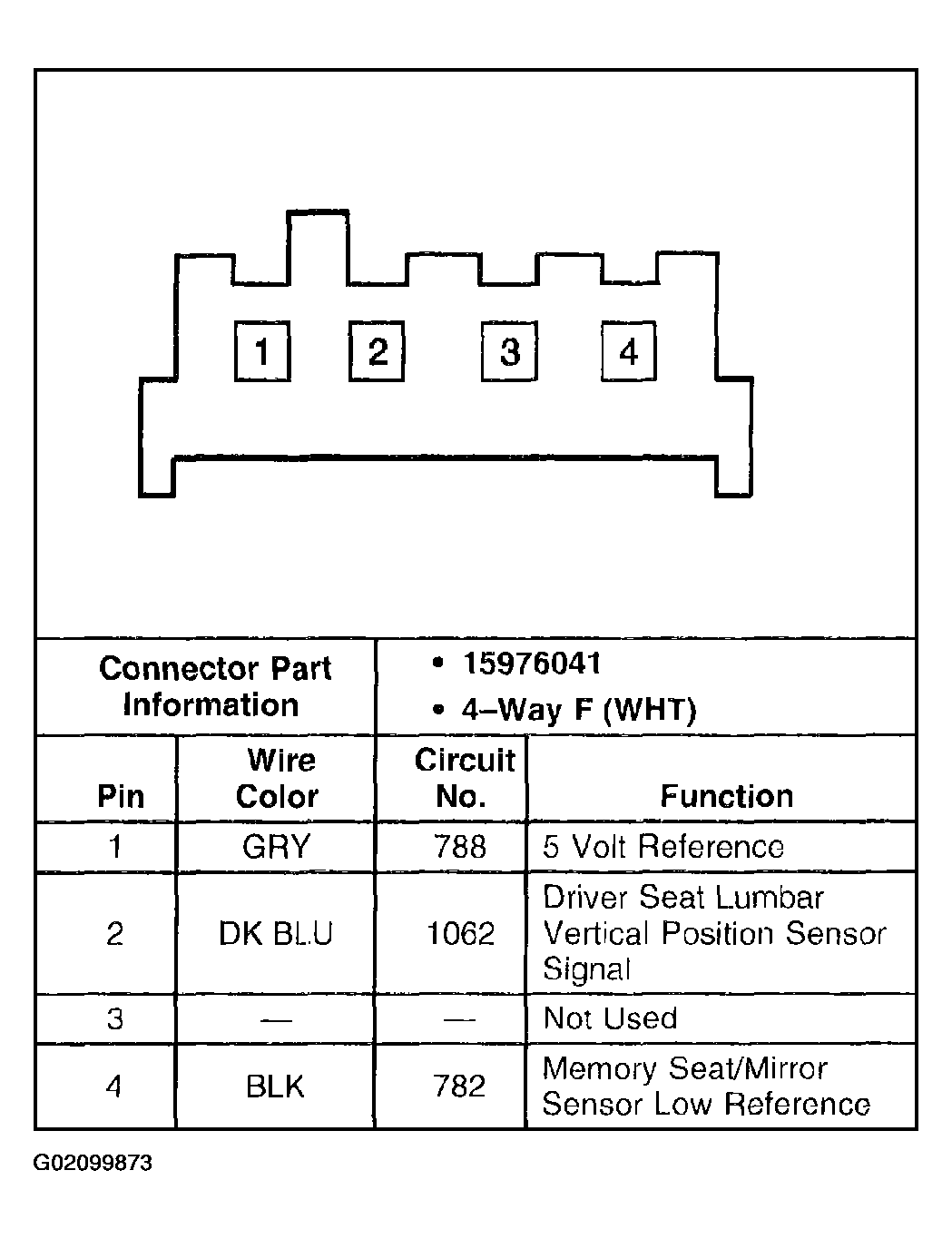

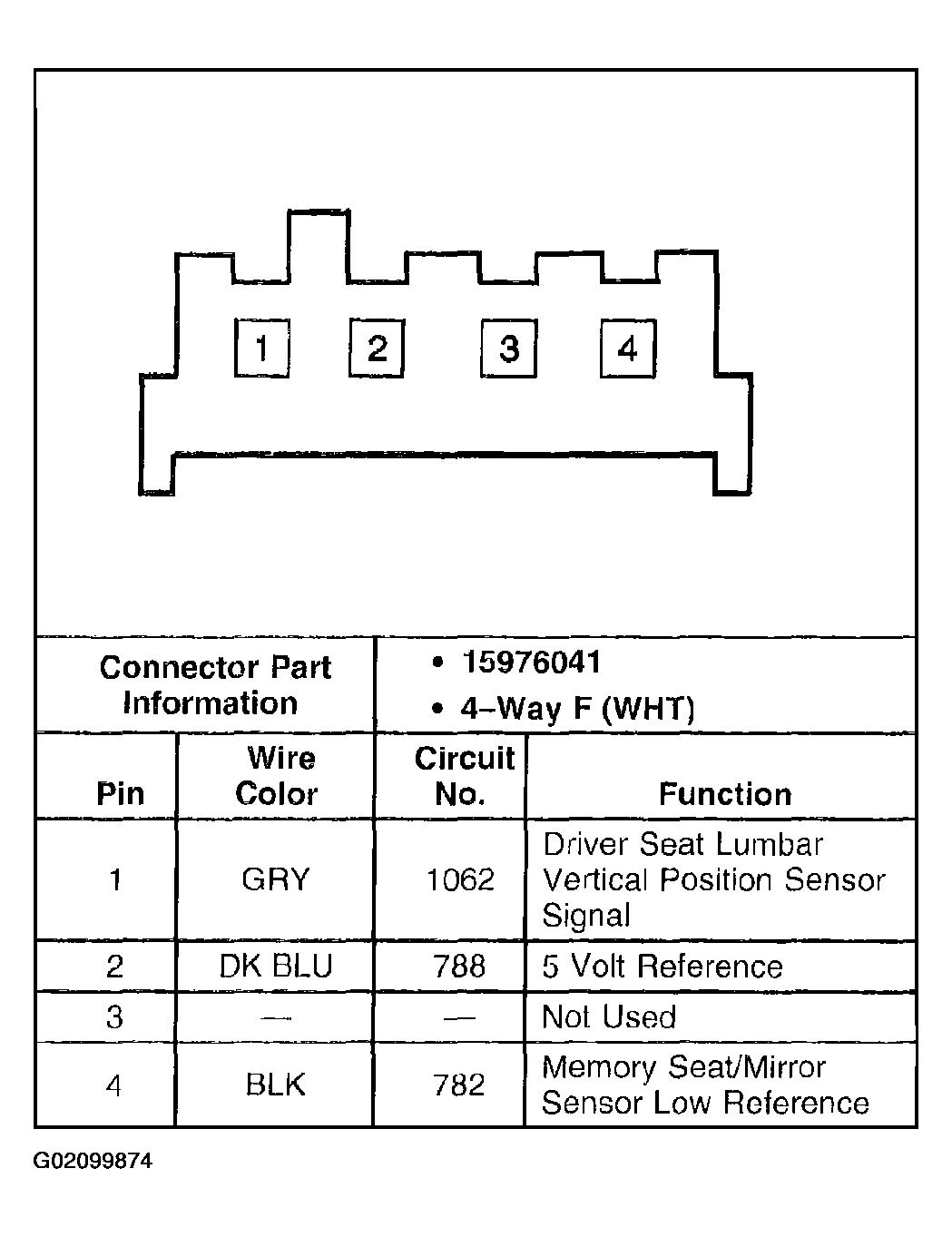

Fig 62: Identifying Seat Lumbar Vertical Position Sensor - Driver Connector (w/A45 Or AM3)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Identifying Seat Lumbar Vertical Position Sensor - Front Passenger Connector (w/ AM3)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Identifying Seat Lumbar Switch - RR Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

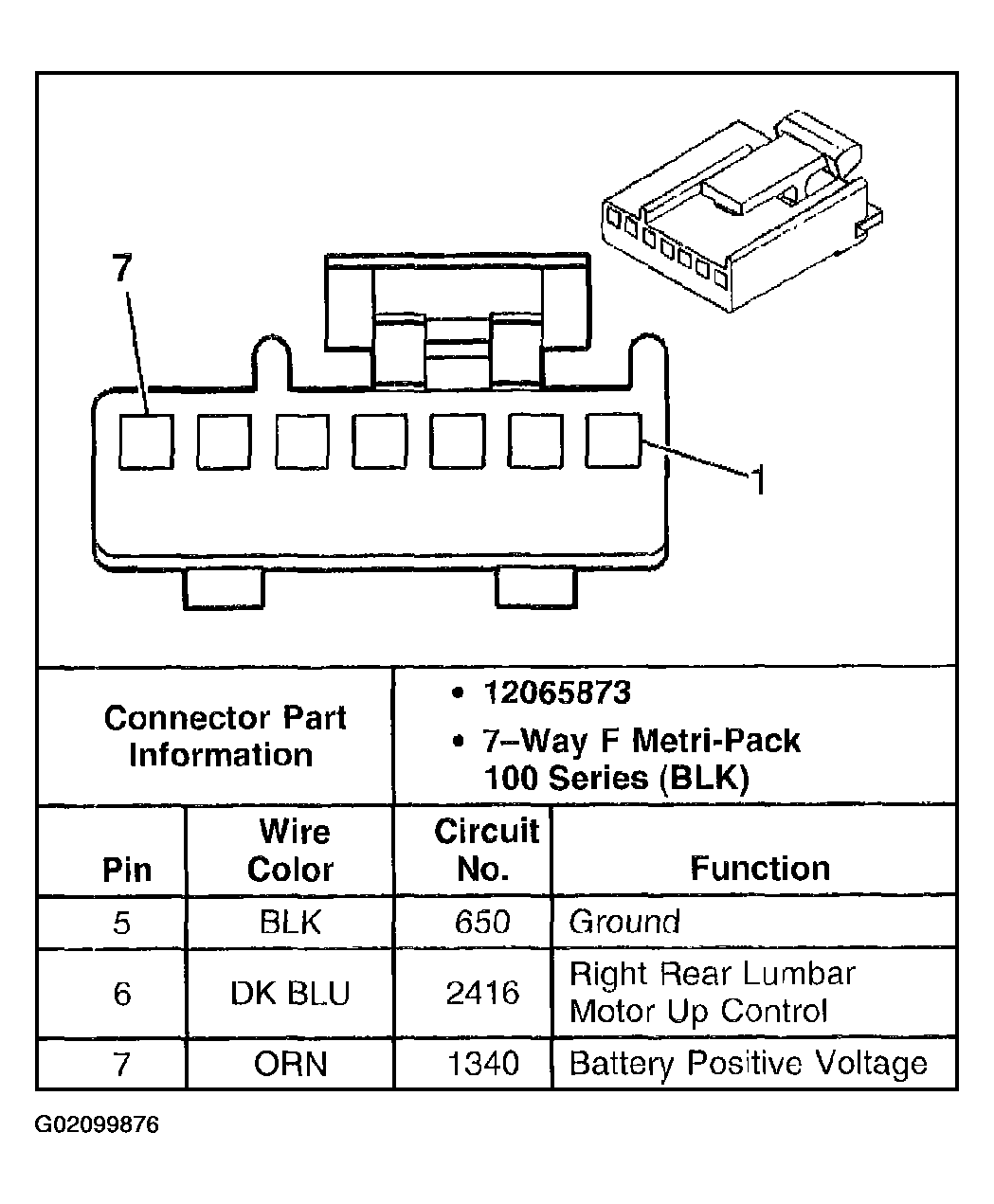

Fig 65: Identifying Seat Lumbar Switch - RR Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Identifying Seat Lumbar Vertical Motor - RR Connector
Courtesy of GENERAL MOTORS CORP.
Fig 67: Identifying Seat Massage Module - Driver Connector (w/o A45)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Identifying Seat Massage Module - Driver Connector (w/A45)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Identifying Seat Massage Module - Front Passenger Connector (AM3)
Courtesy of GENERAL MOTORS CORP.

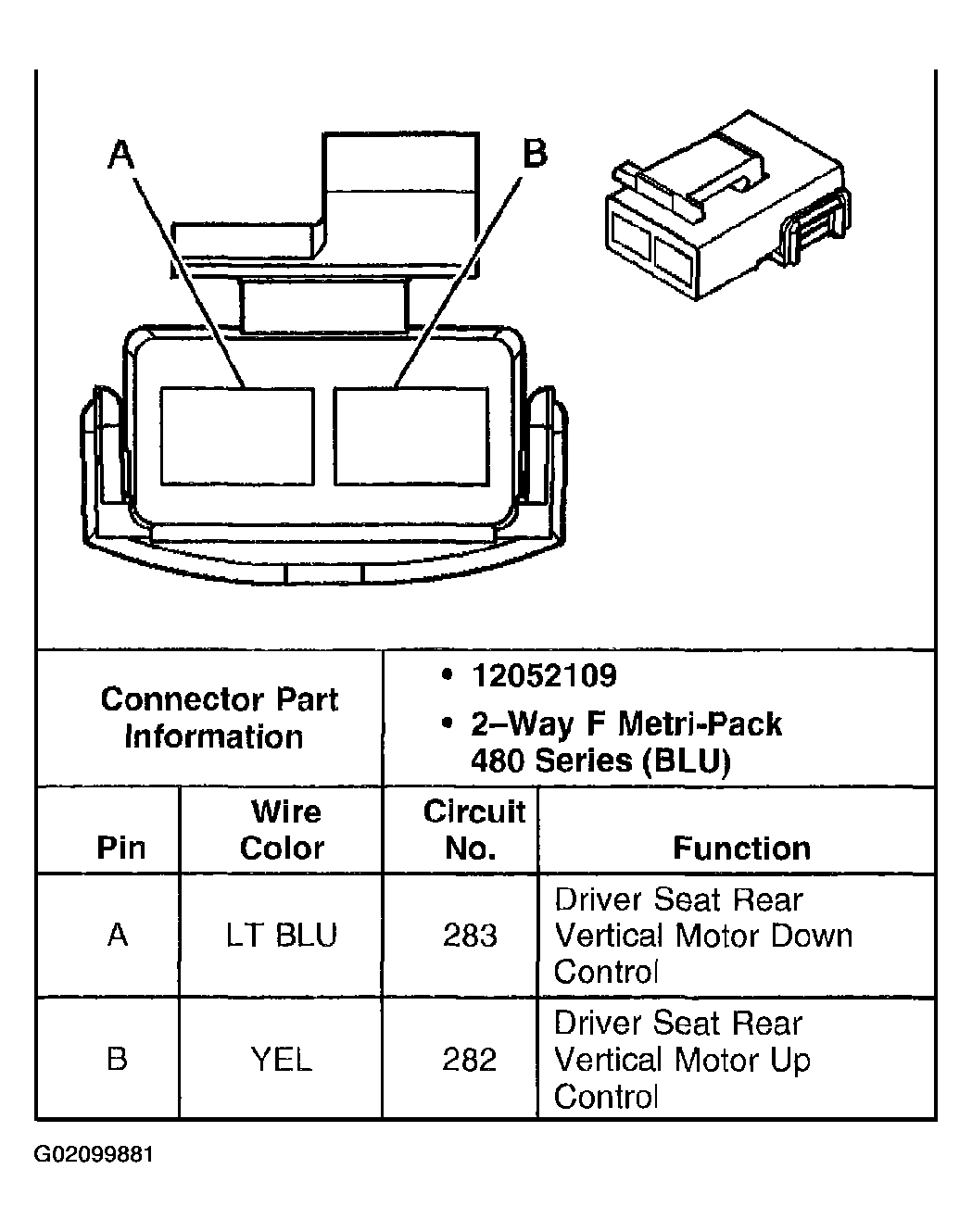

Fig 70: Identifying Seat Rear Vertical Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

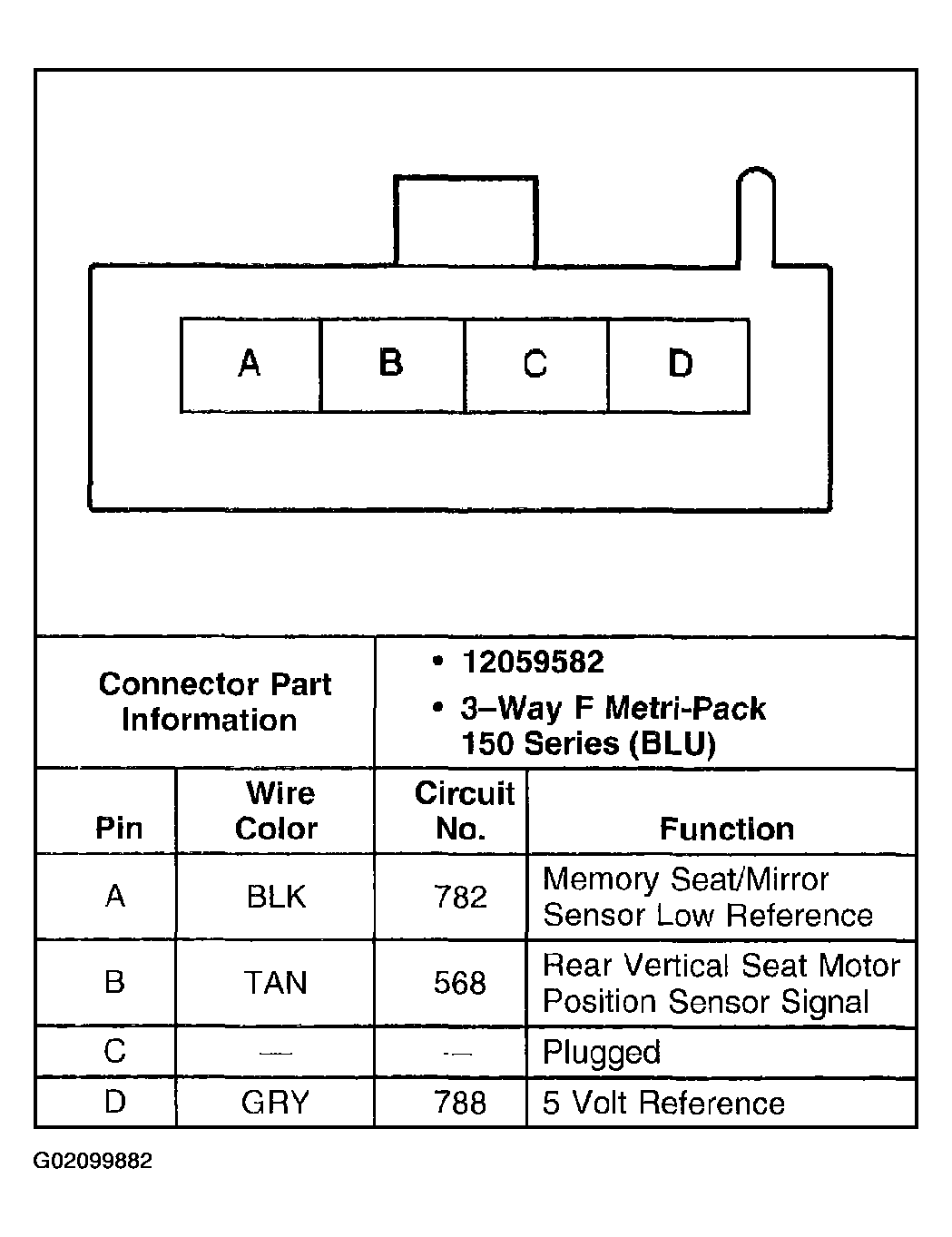

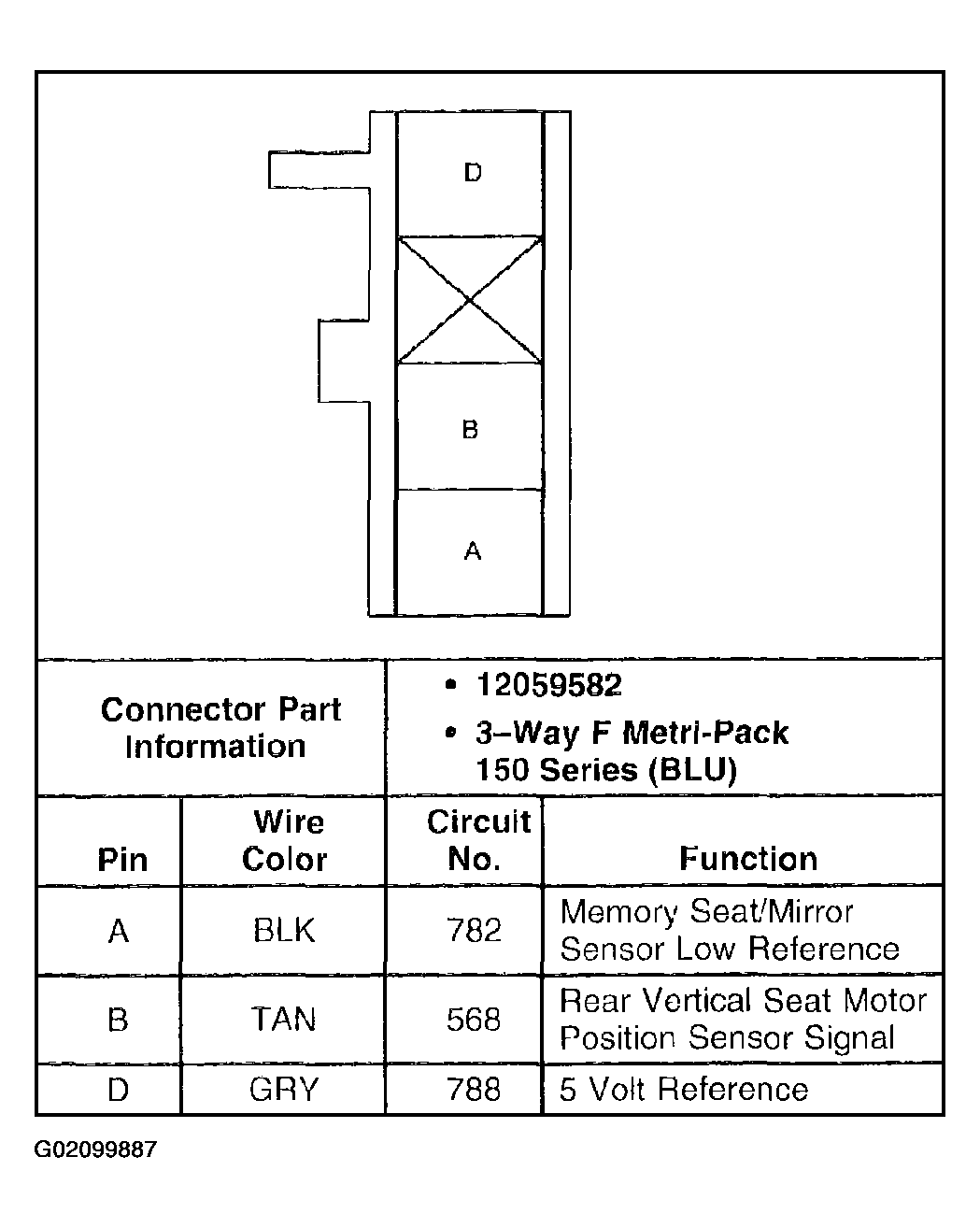

Fig 71: Identifying Seat Rear Vertical Position Sensor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

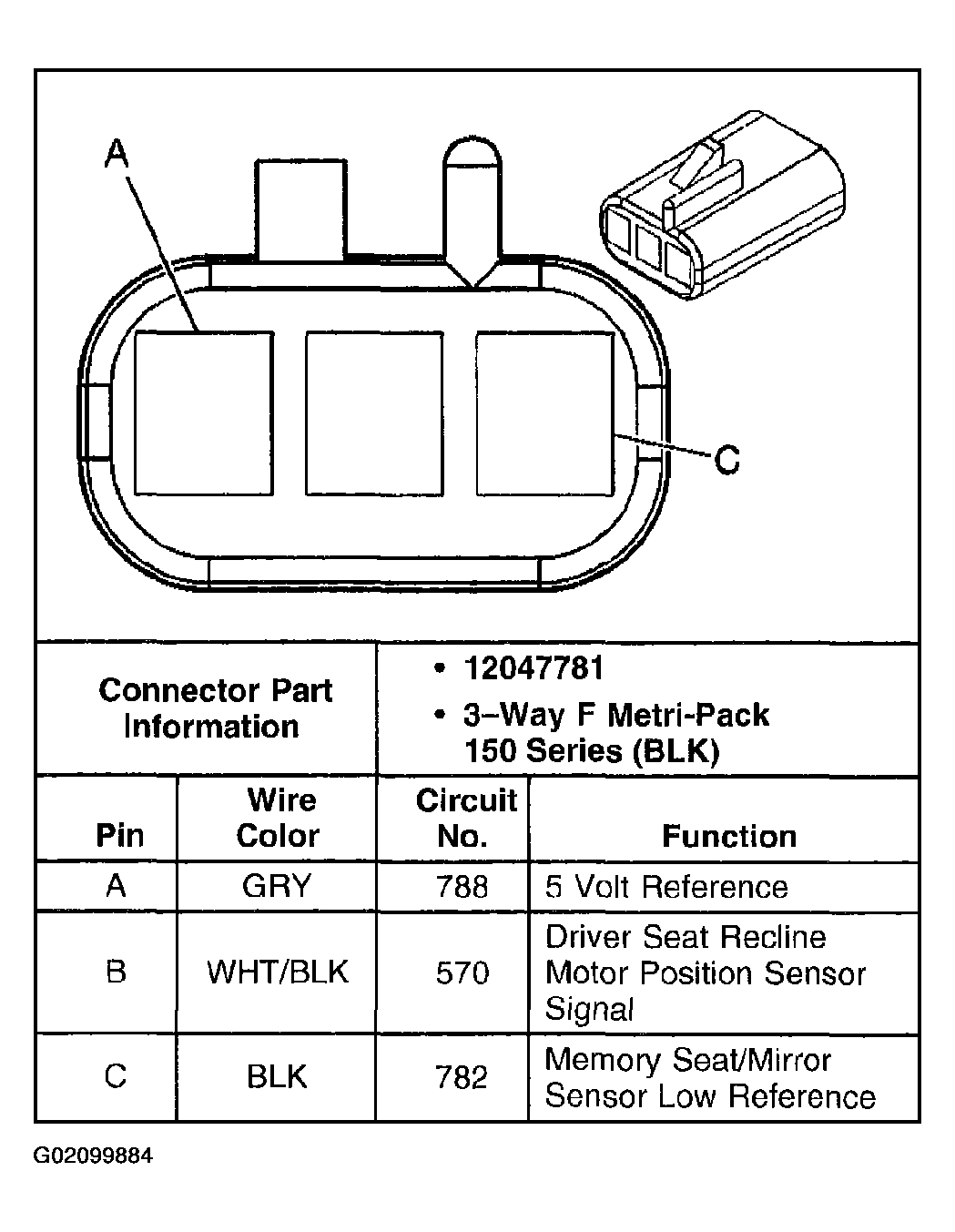

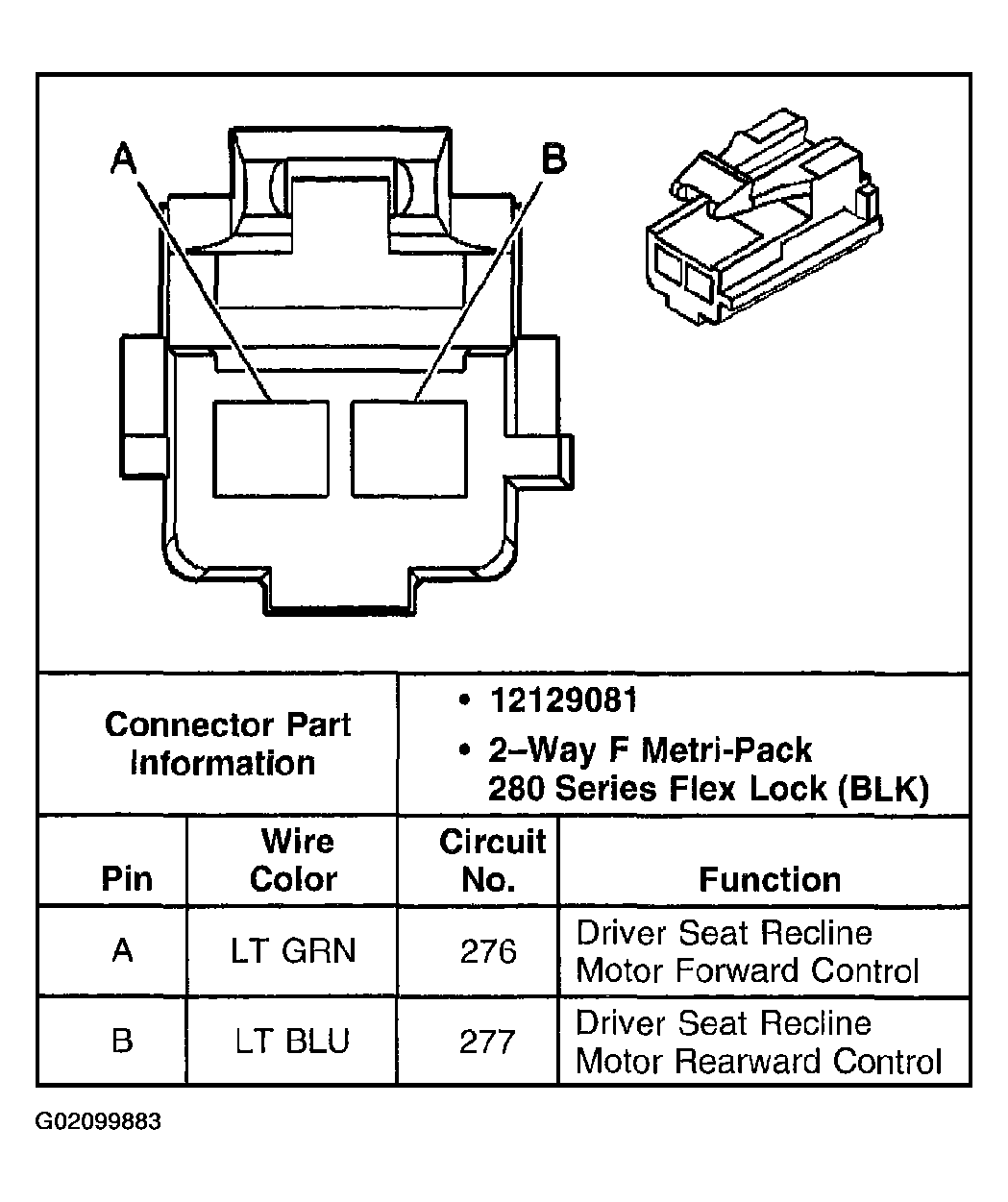

Fig 72: Identifying Seat Recline Motor - Driver Connector
Courtesy of GENERAL MOTORS CORP.
Fig 73: Identifying Seat Recline Position Sensor - Driver Connector
Courtesy of GENERAL MOTORS CORP.

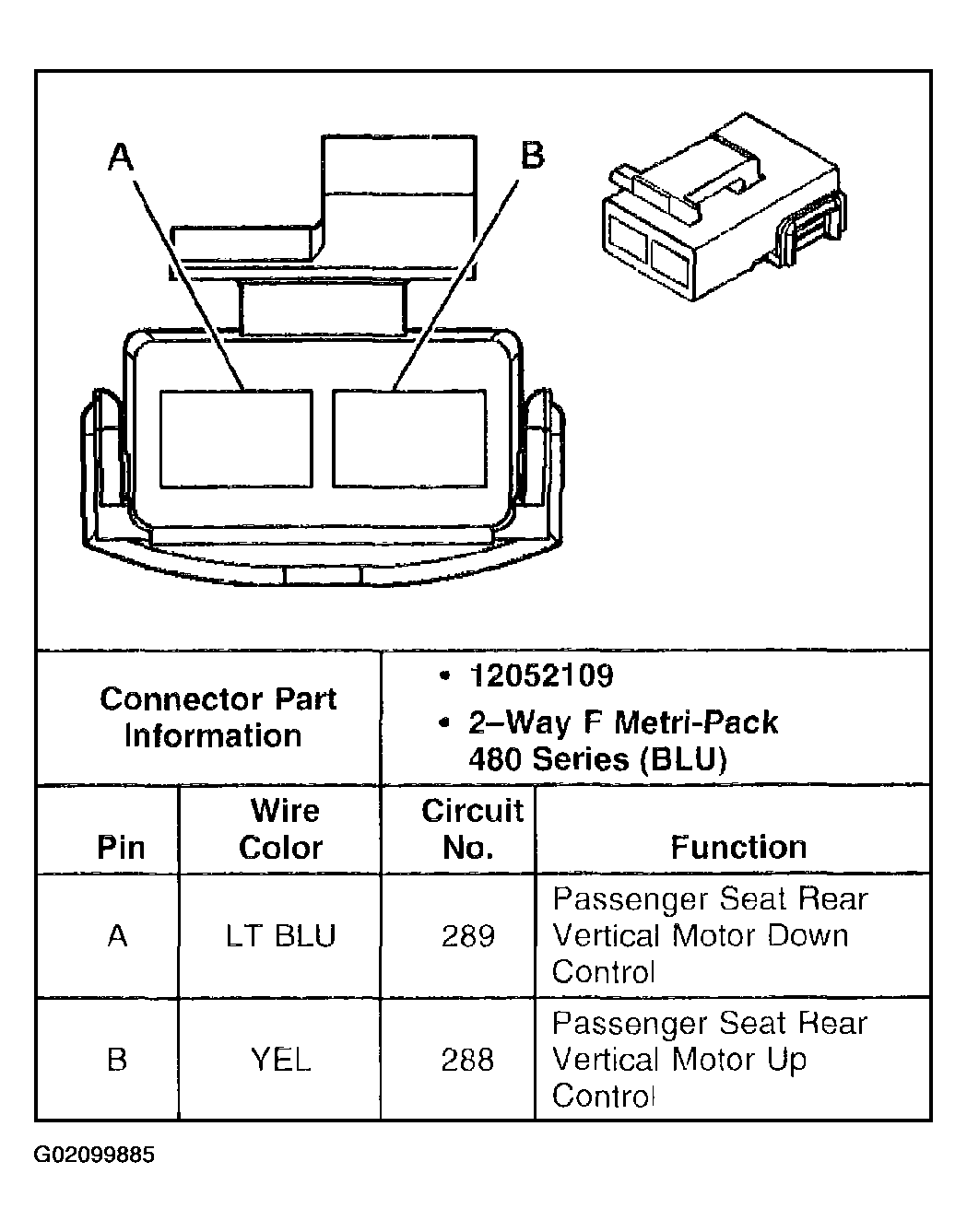

Fig 74: Identifying Seat Rear Vertical Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.

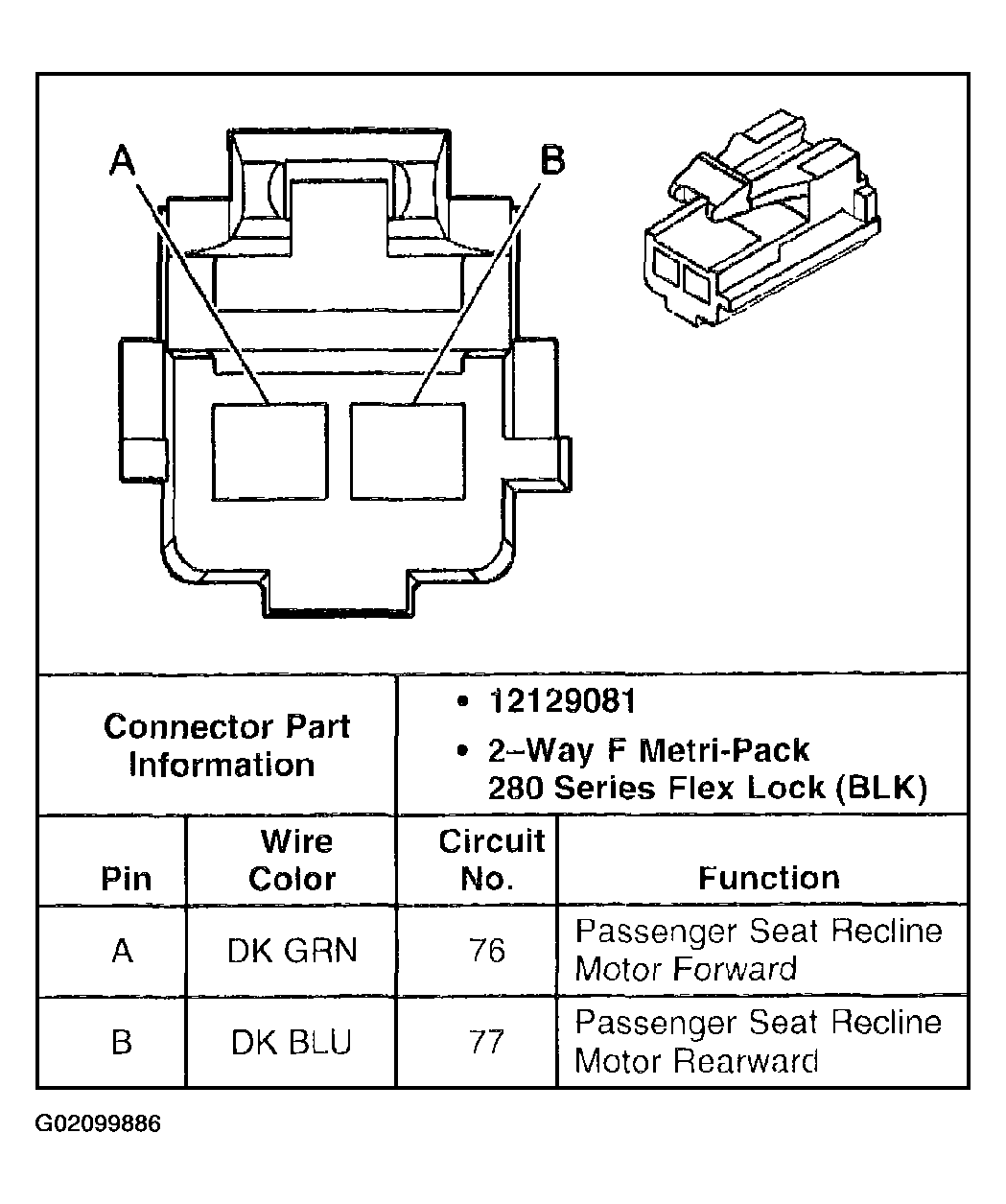

Fig 75: Identifying Seat Recline Motor - Front Passenger Connector
Courtesy of GENERAL MOTORS CORP.
Fig 76: Identifying Seat Rear Vertical Position Sensor - LR Connector
Courtesy of GENERAL MOTORS CORP.
