Scan Tool Output Controls

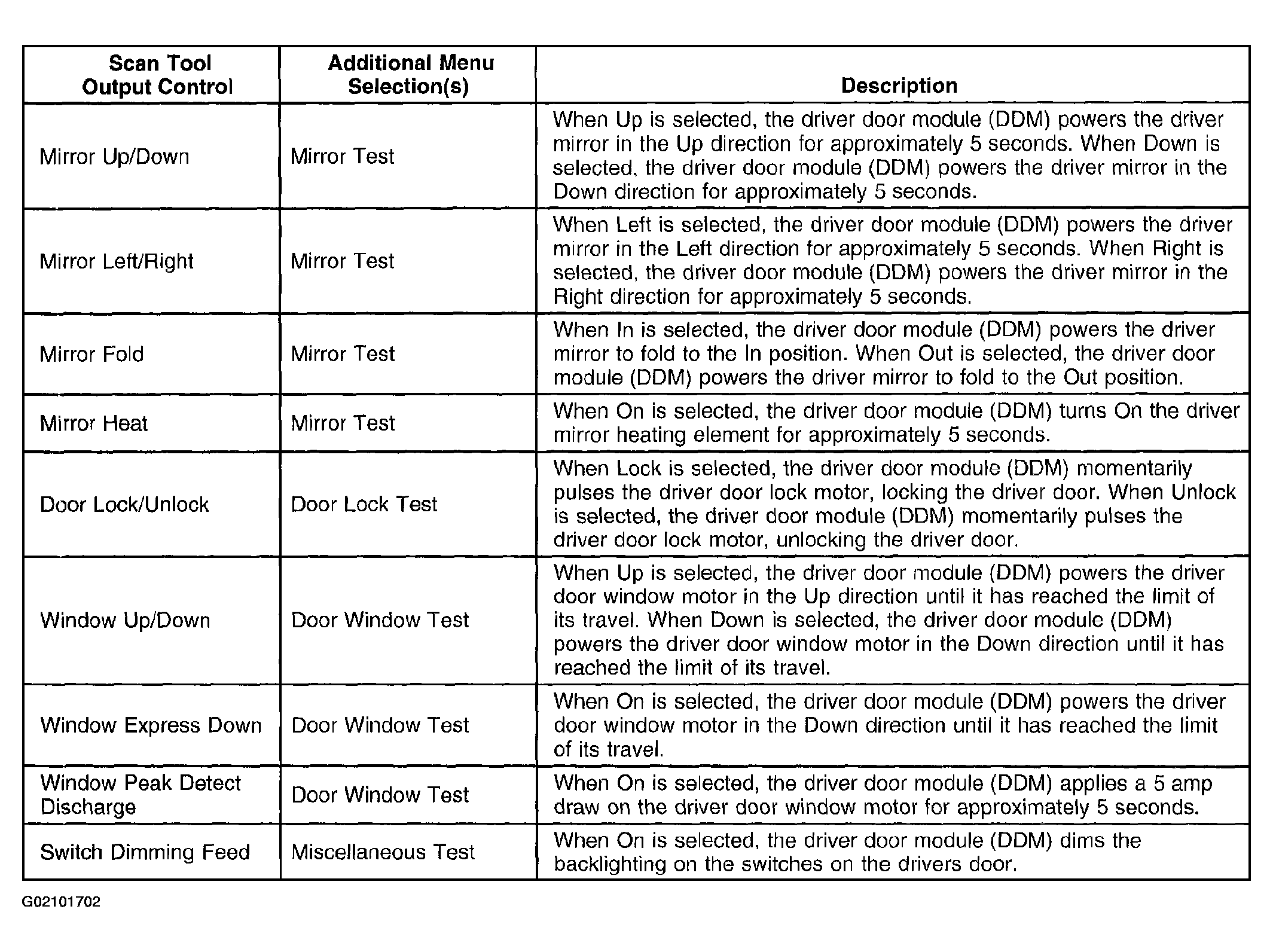

Fig 1: DDM Scan Tool Output Control Specifications

Courtesy of GENERAL MOTORS CORP.

Fig 2: LRDM Scan Tool Output Control Specifications

Courtesy of GENERAL MOTORS CORP.

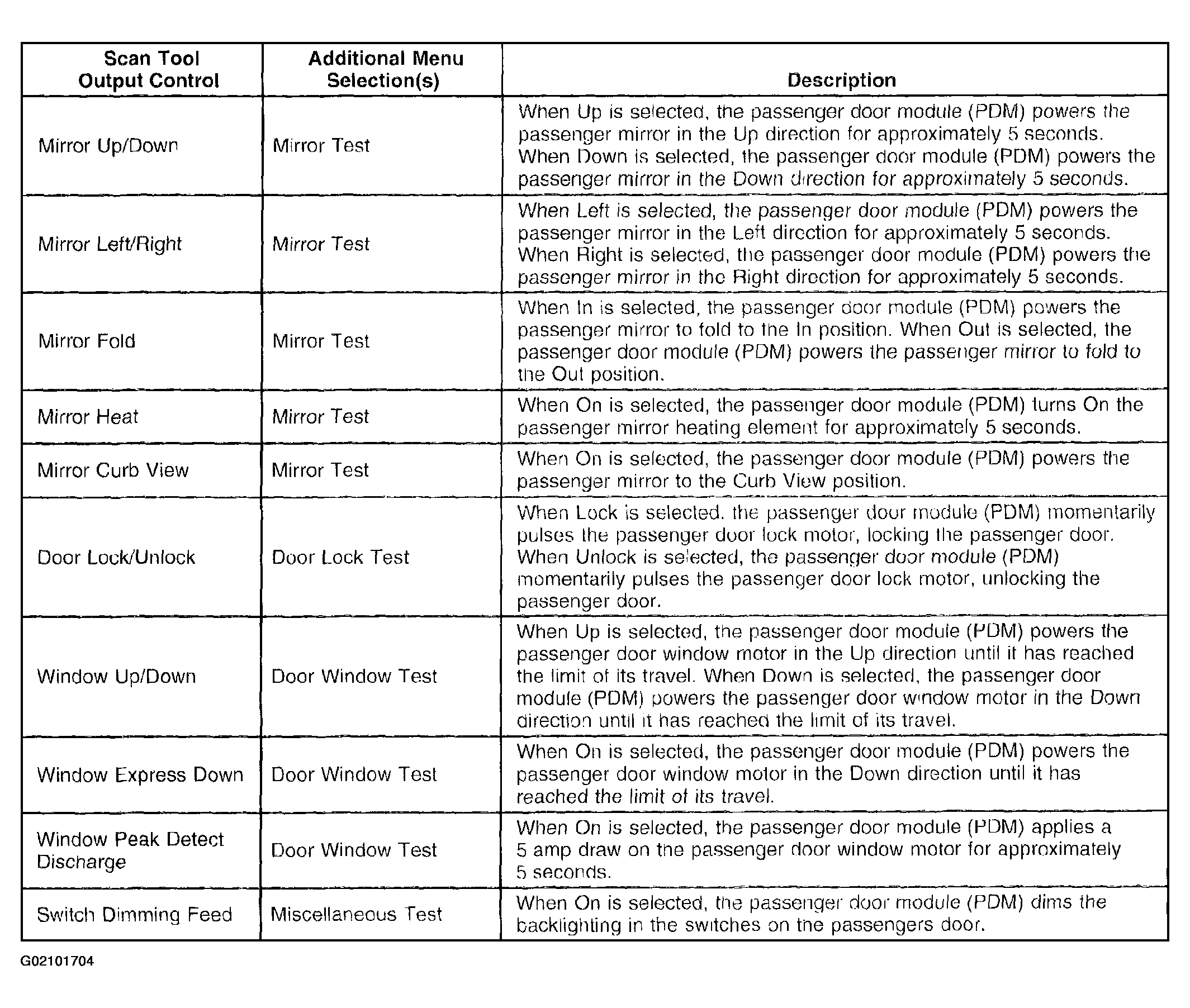

Fig 3: PDM Scan Tool Output Control Specifications

Courtesy of GENERAL MOTORS CORP.

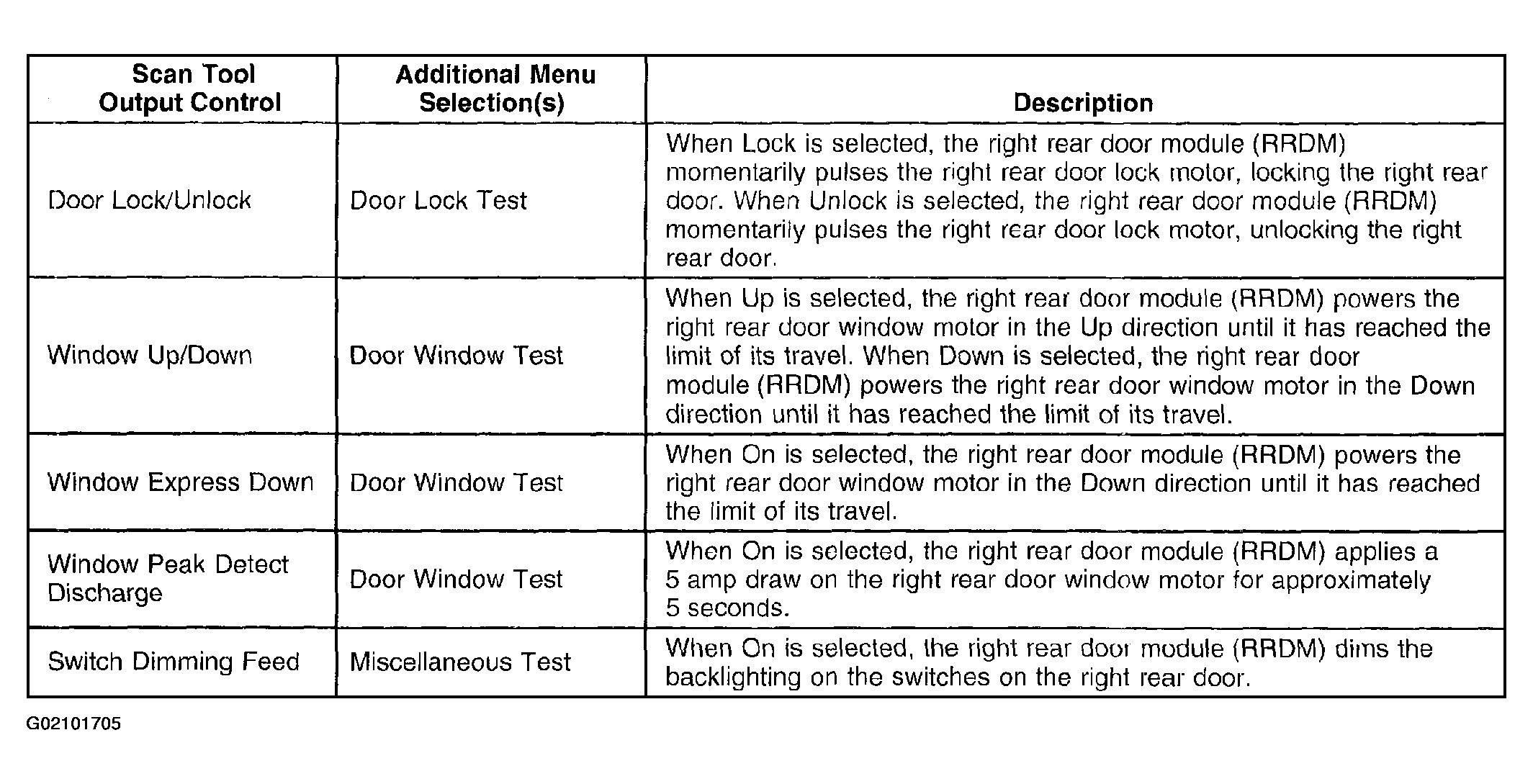

Fig 4: RRDM Scan Tool Output Control Specifications

Courtesy of GENERAL MOTORS CORP.
