Removal Procedure

Insert a flat bladed tool under the rear edge of the front door switch plate.

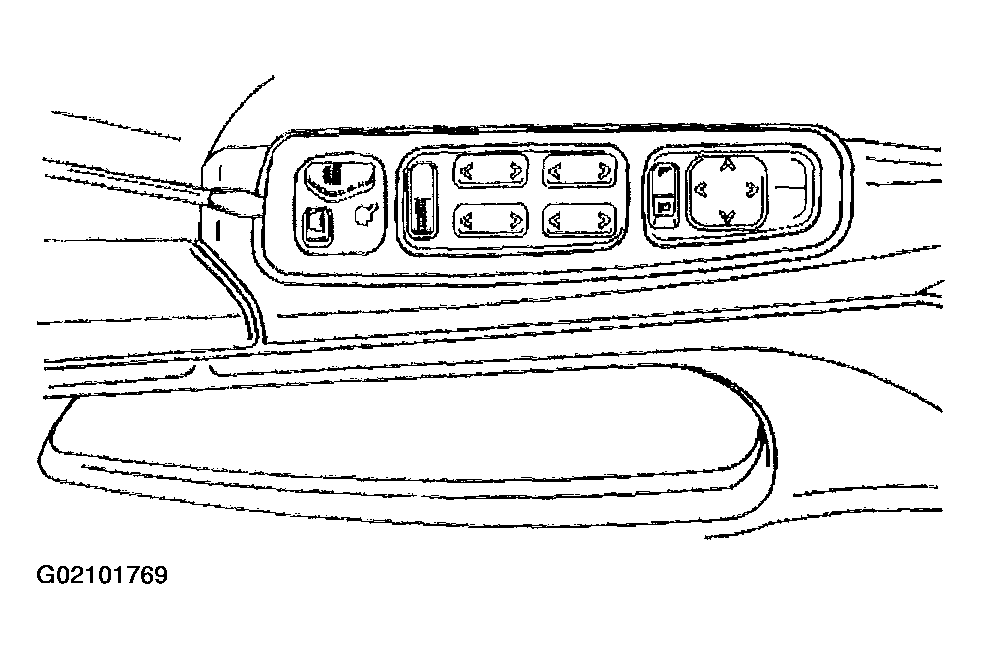

Fig 1: Inserting Flat Bladed Tool Under Front Door Switch Plate
Courtesy of GENERAL MOTORS CORP.

NOTE: The retainer clip must be fully disengaged before the switch plate is removed. Otherwise, damage to the switch plate could result.
Push the tool firmly towards the switch plate in order to disengage the retainer.

Fig 2: Removing Front Door Switch Retainer
Courtesy of GENERAL MOTORS CORP.
Lift up on the rear of the switch plate in order to remove it from the door trim panel.
Disconnect electrical connectors.
Remove the appropriate switch from the switch plate by disengaging the side snap walls with small flat bladed tool.

Fig 3: Removing Switch From Switch Plate
Courtesy of GENERAL MOTORS CORP.
