Stationary Windows Component Views

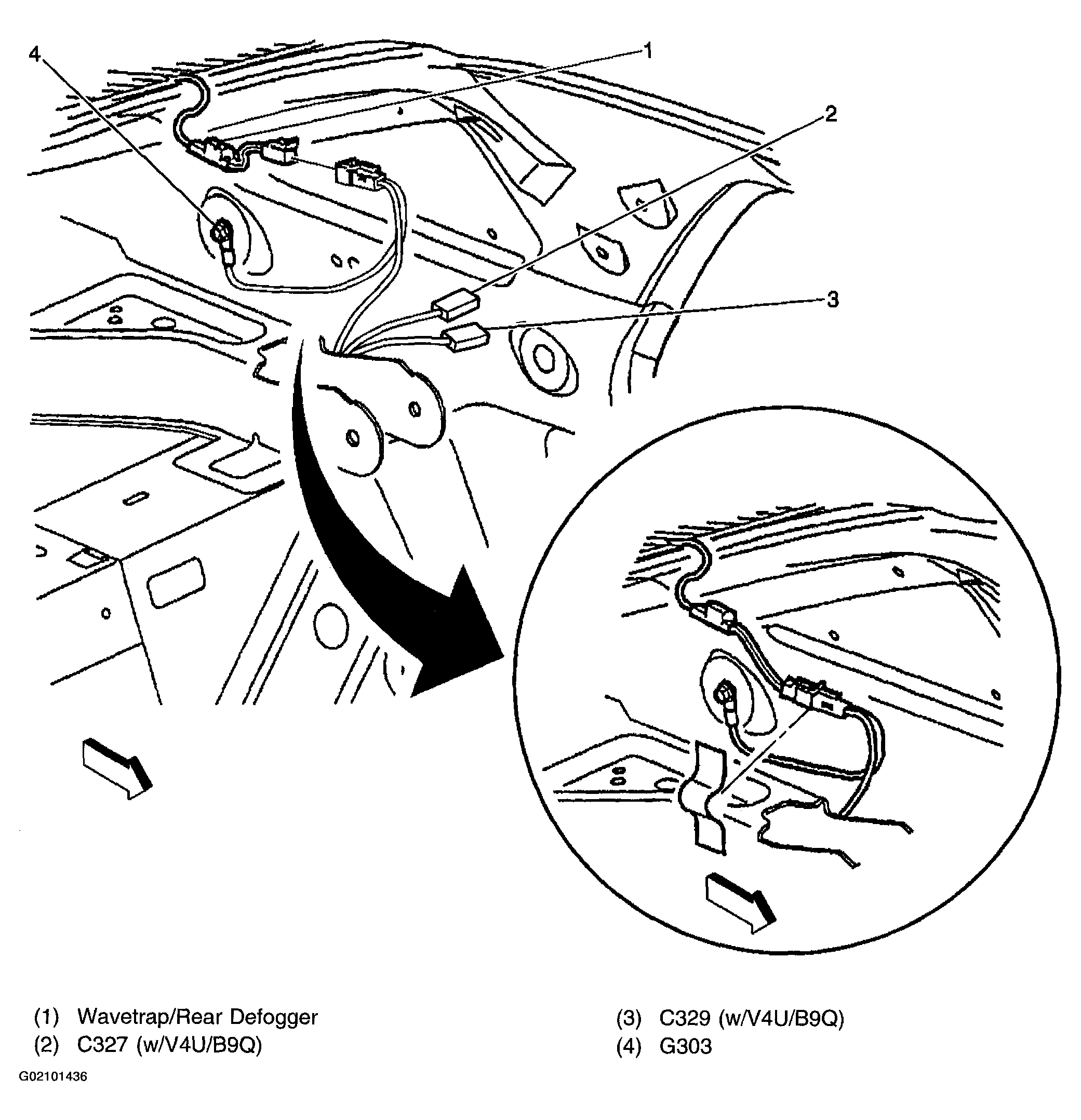

Fig 1: Identifying Left Rear Of Passenger Compartment, Above Rear Shelf Panel Components
G02101436Courtesy of GENERAL MOTORS CORP.

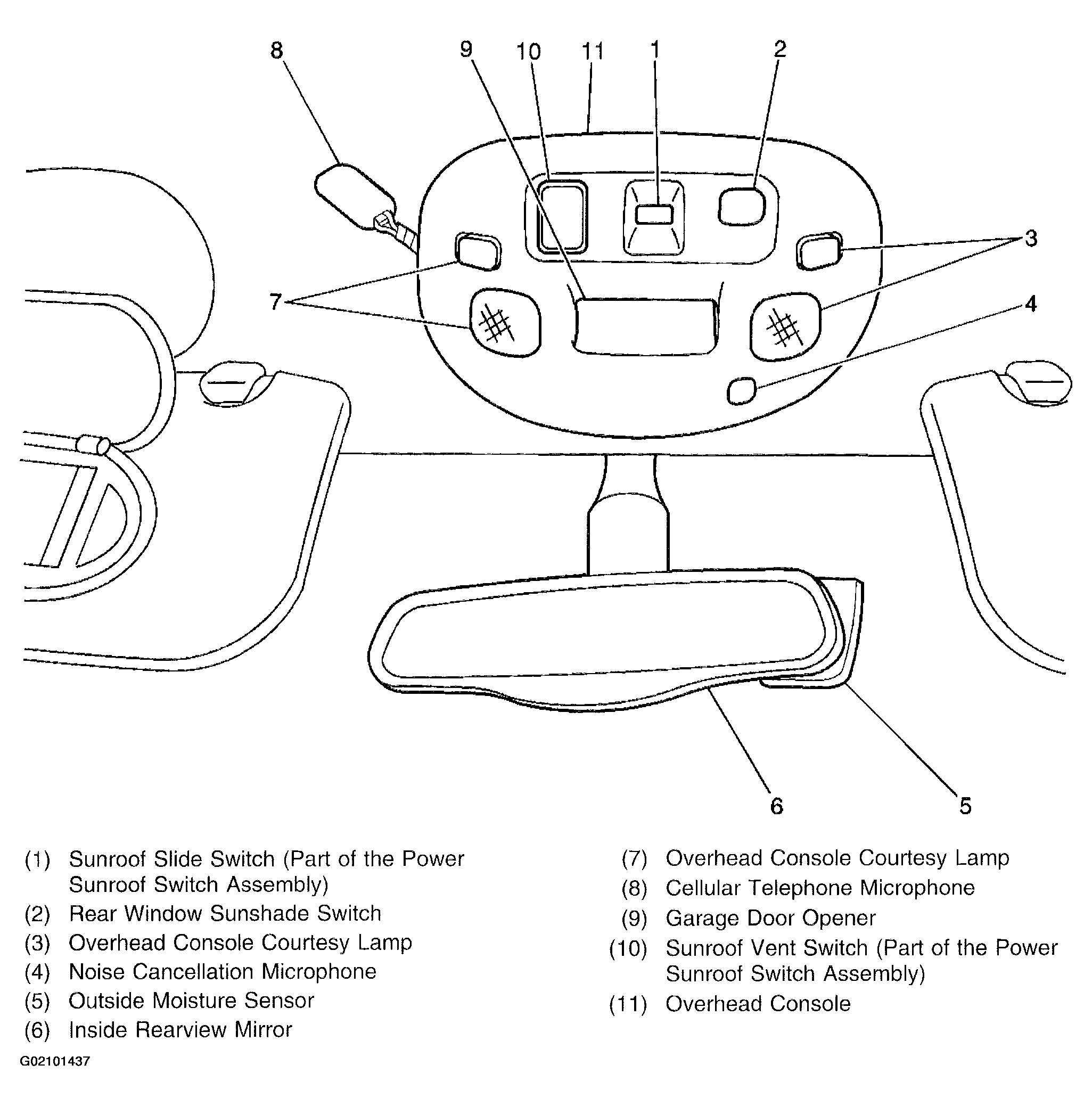

Fig 2: Identifying Passenger Compartment, Center Front Of Headliner Components
G02101437Courtesy of GENERAL MOTORS CORP.
