Stationary Windows Connector End Views

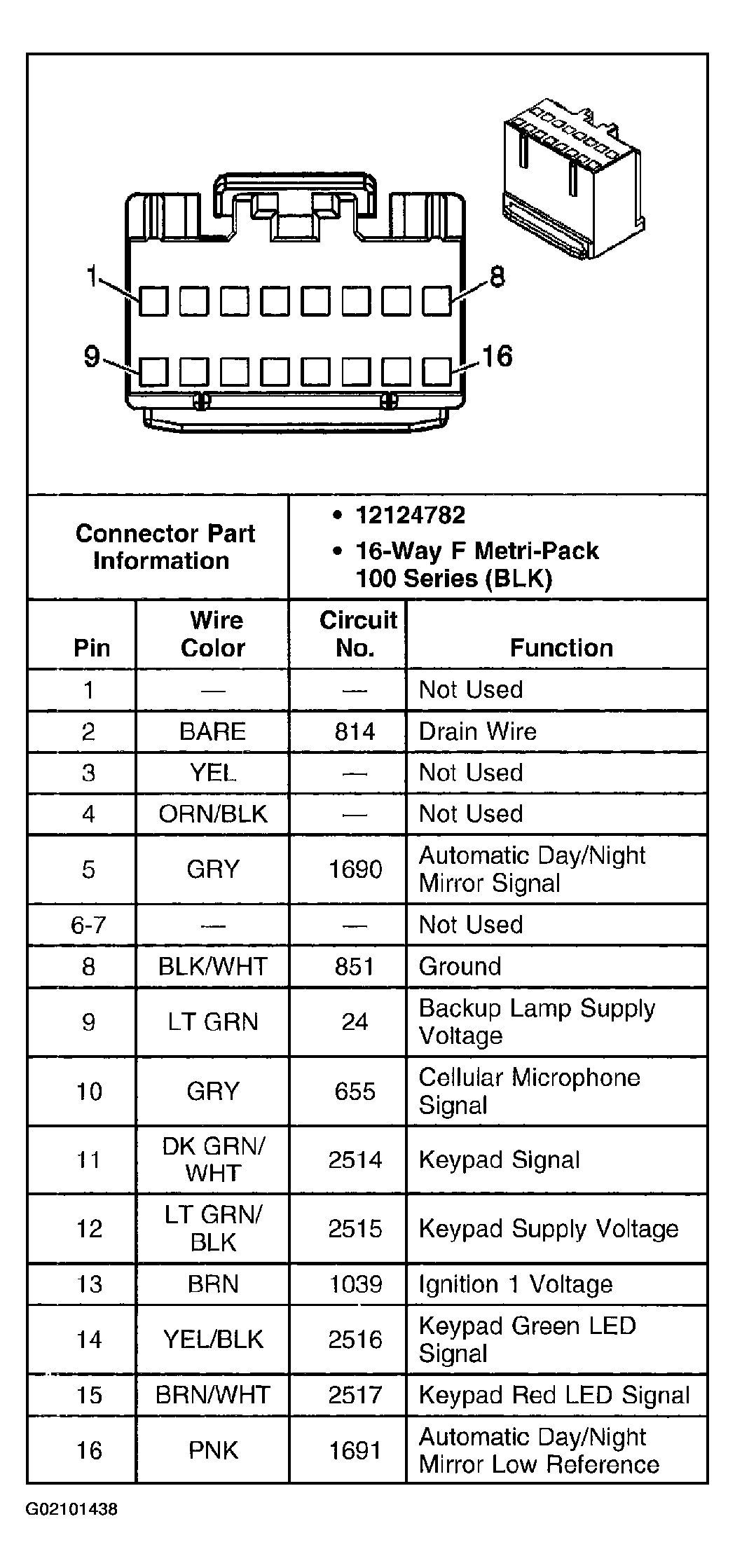

Fig 1: Identifying Inside Rearview Mirror Connectors
G02101438Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Radio TV Antenna Signal Module Connectors
G02101439Courtesy of GENERAL MOTORS CORP.

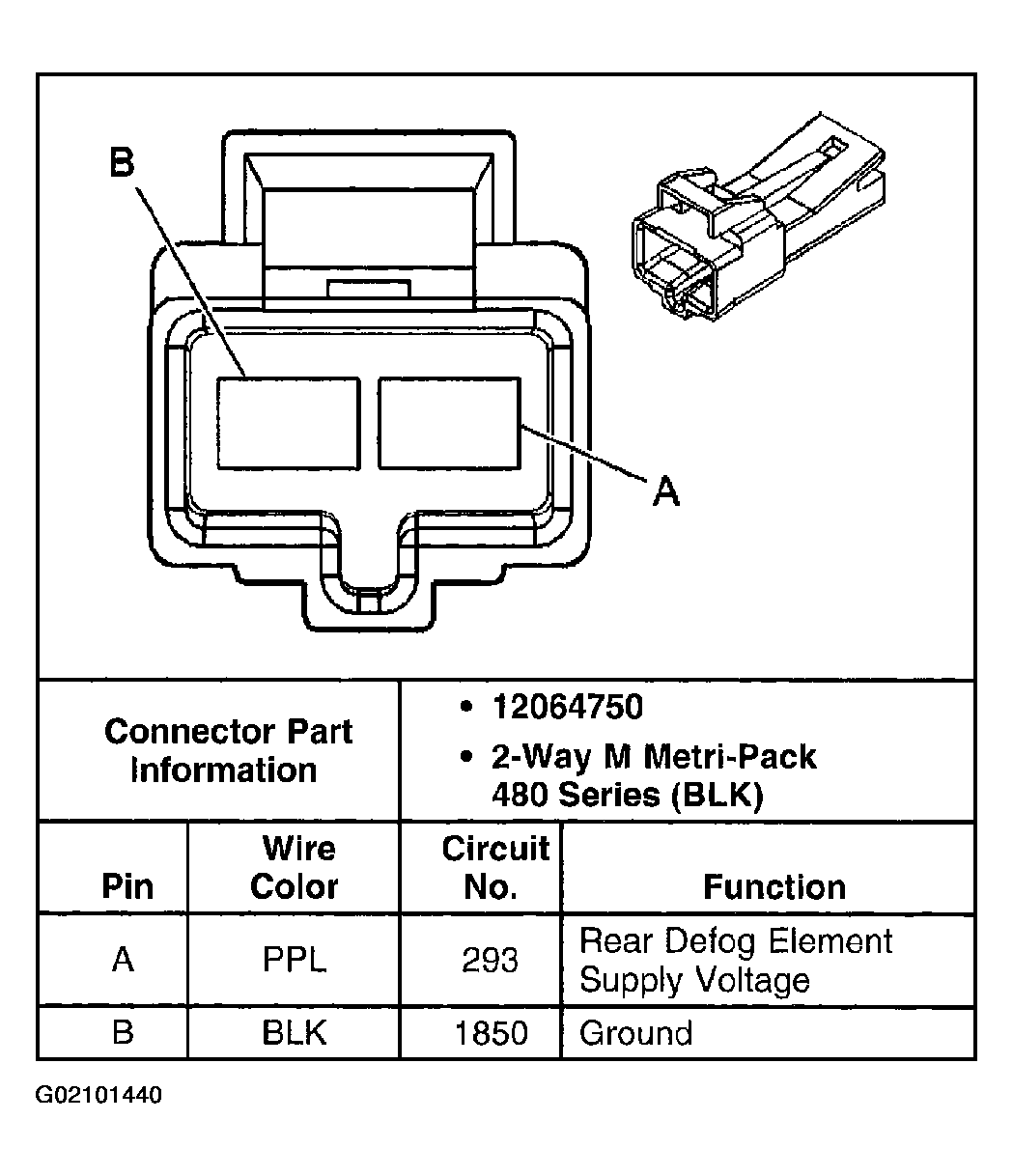

Fig 3: Identifying Rear Window Defogger Connectors
G02101440Courtesy of GENERAL MOTORS CORP.
