Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (POWER TILT)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL TILT)  .
  3. Remove the retaining screws from the multifunction switch.
  4. Disconnect the multifunction switch electrical connections.
  5. Remove the multifunction switch.

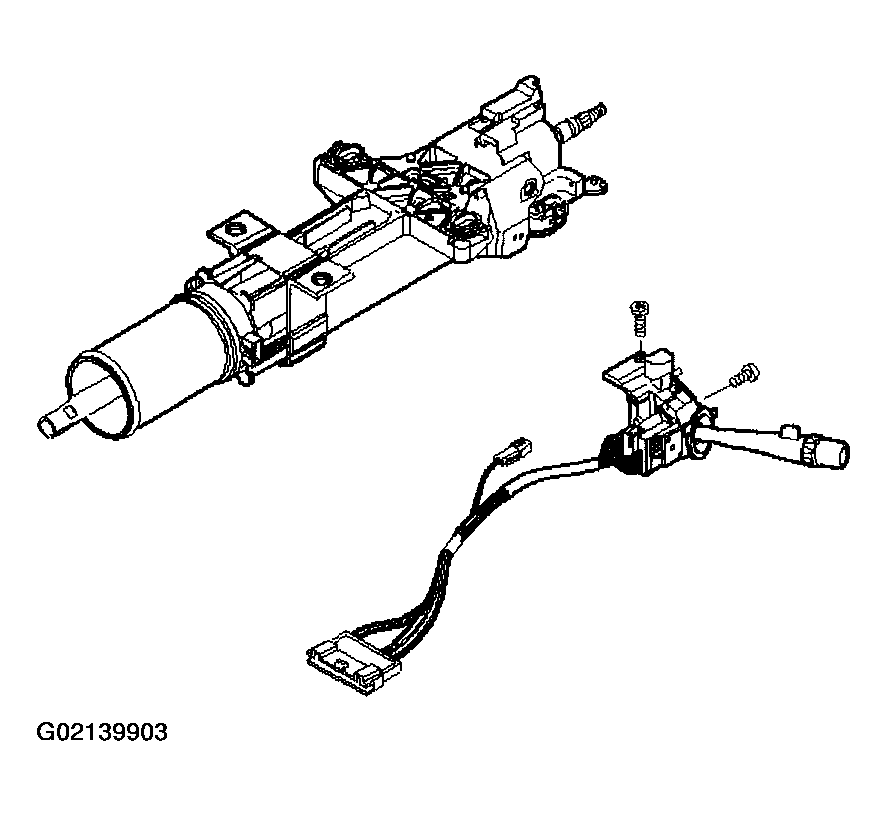

    Fig 1: Removing Retaining Screws From Multifunction Switch
    G02139903Courtesy of GENERAL MOTORS CORP.
