Range Reference

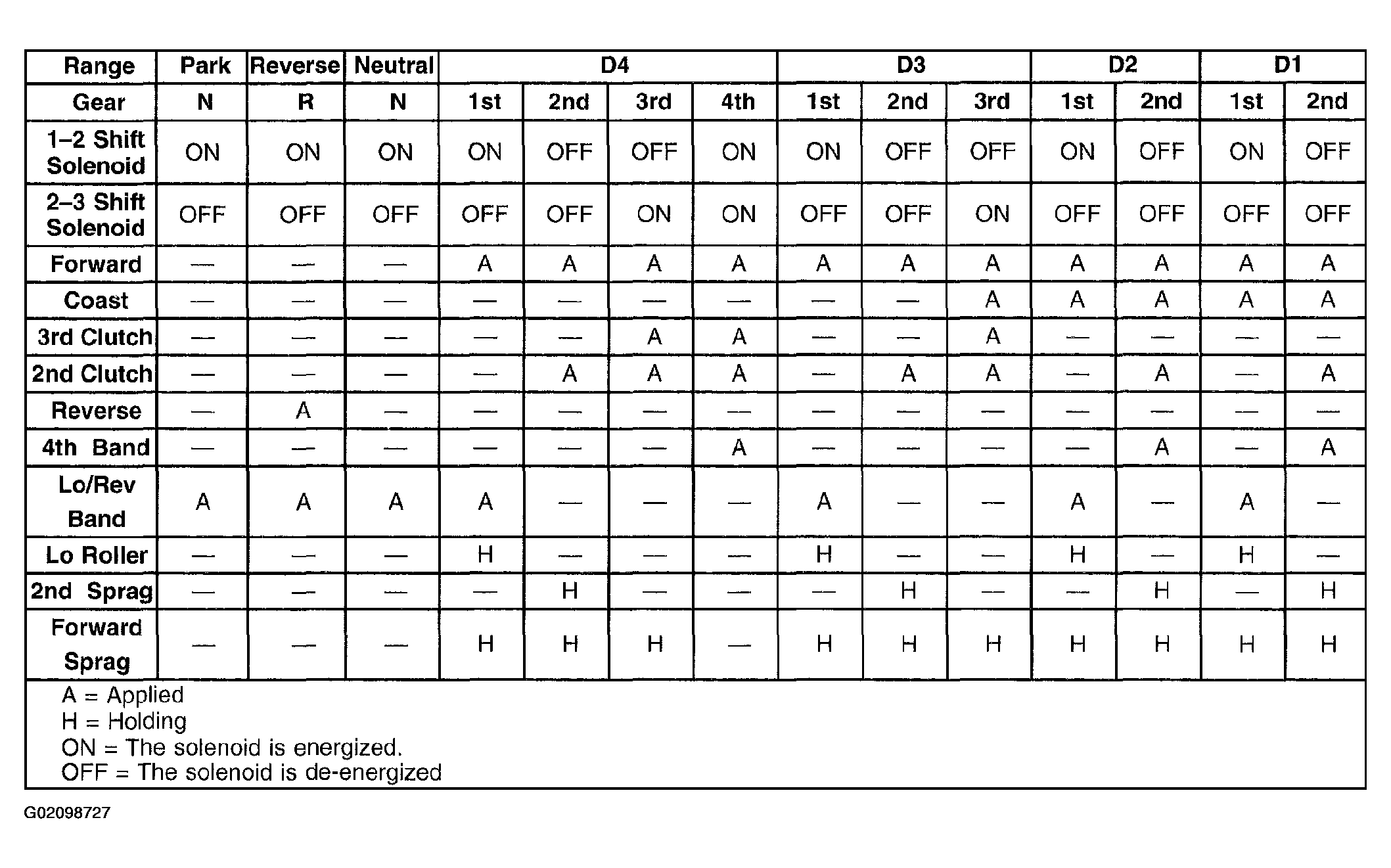

Fig 1: Automatic Transaxle Range Reference
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
