Shift Speed

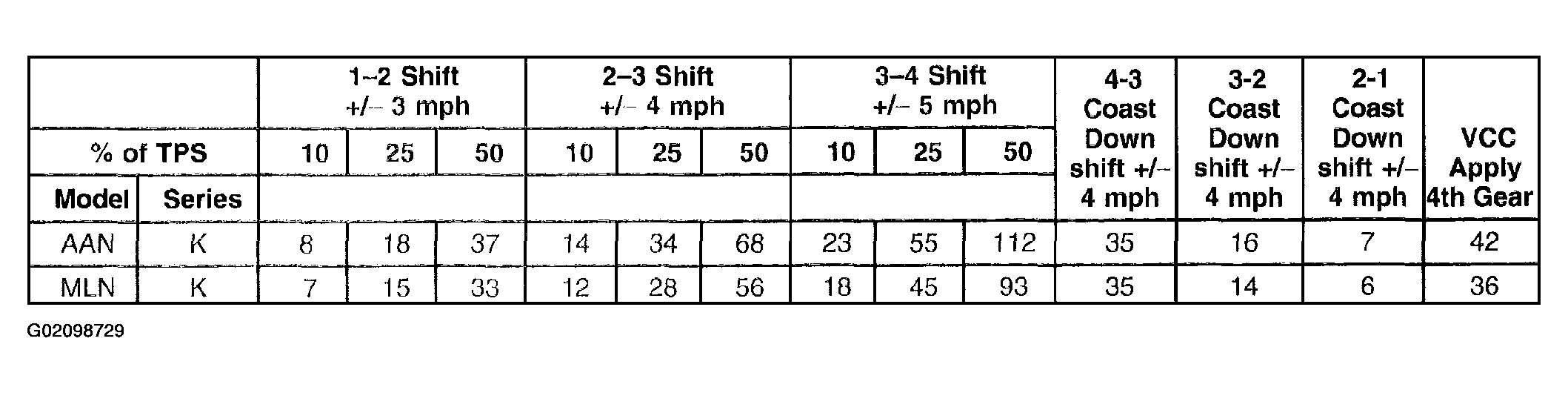

Fig 1: Automatic Transaxle Shift Speed
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
