Cellular Communication Component Views

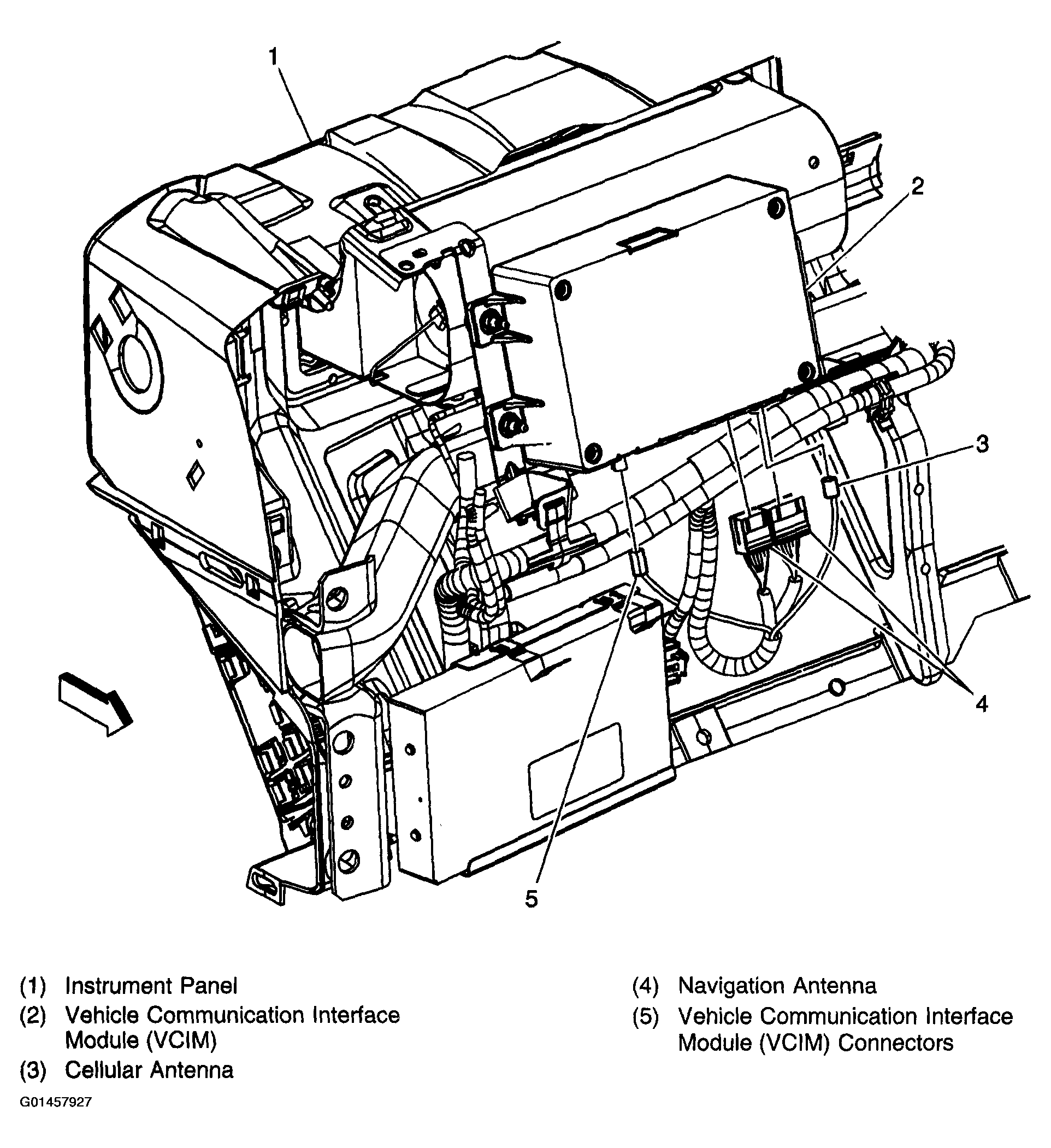

Fig 1: Identifying Instrument Panel - Right Rear Components
G01457927Courtesy of GENERAL MOTORS CORP.

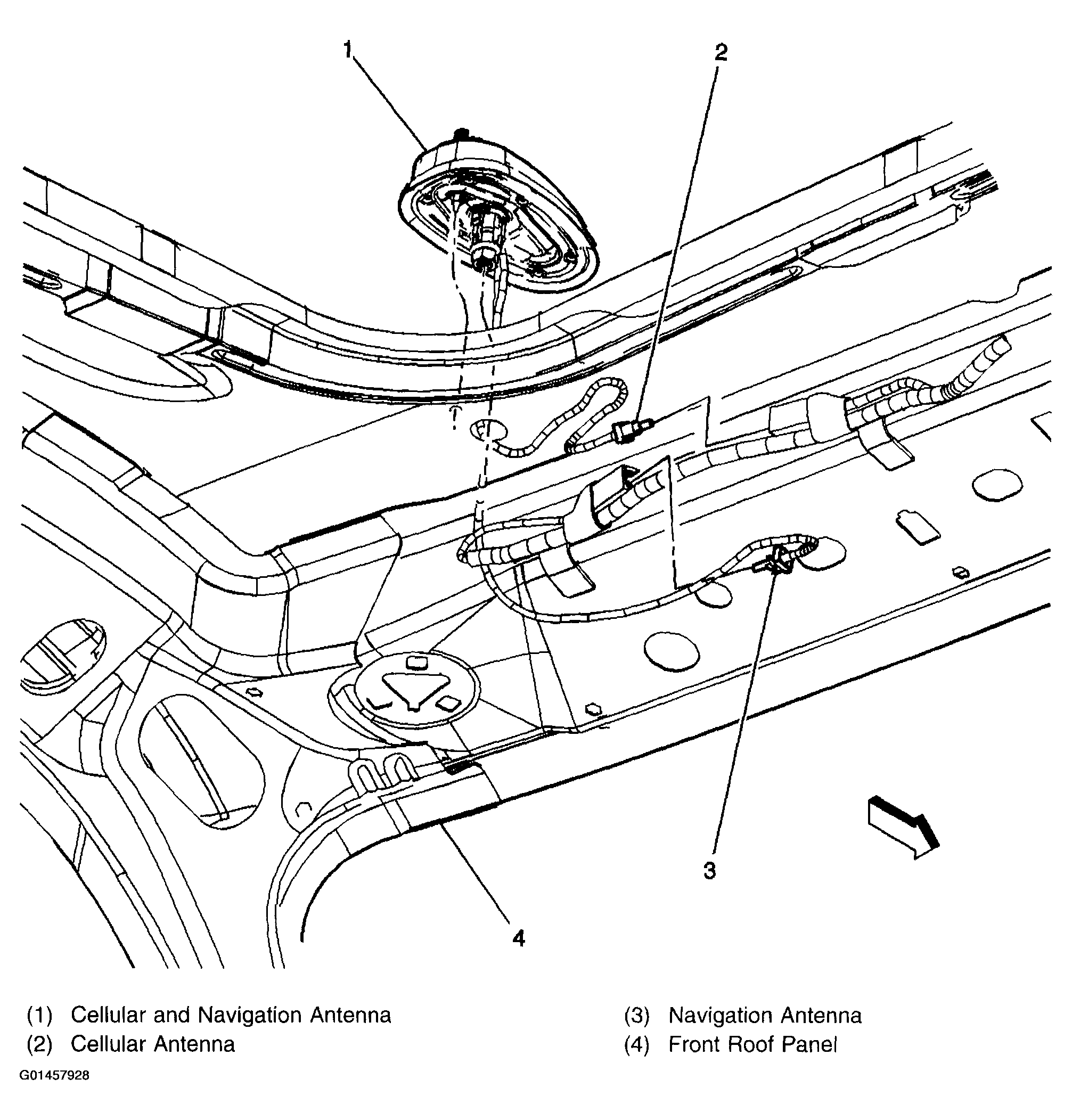

Fig 2: Locating Cellular Communication System Antennas
G01457928Courtesy of GENERAL MOTORS CORP.

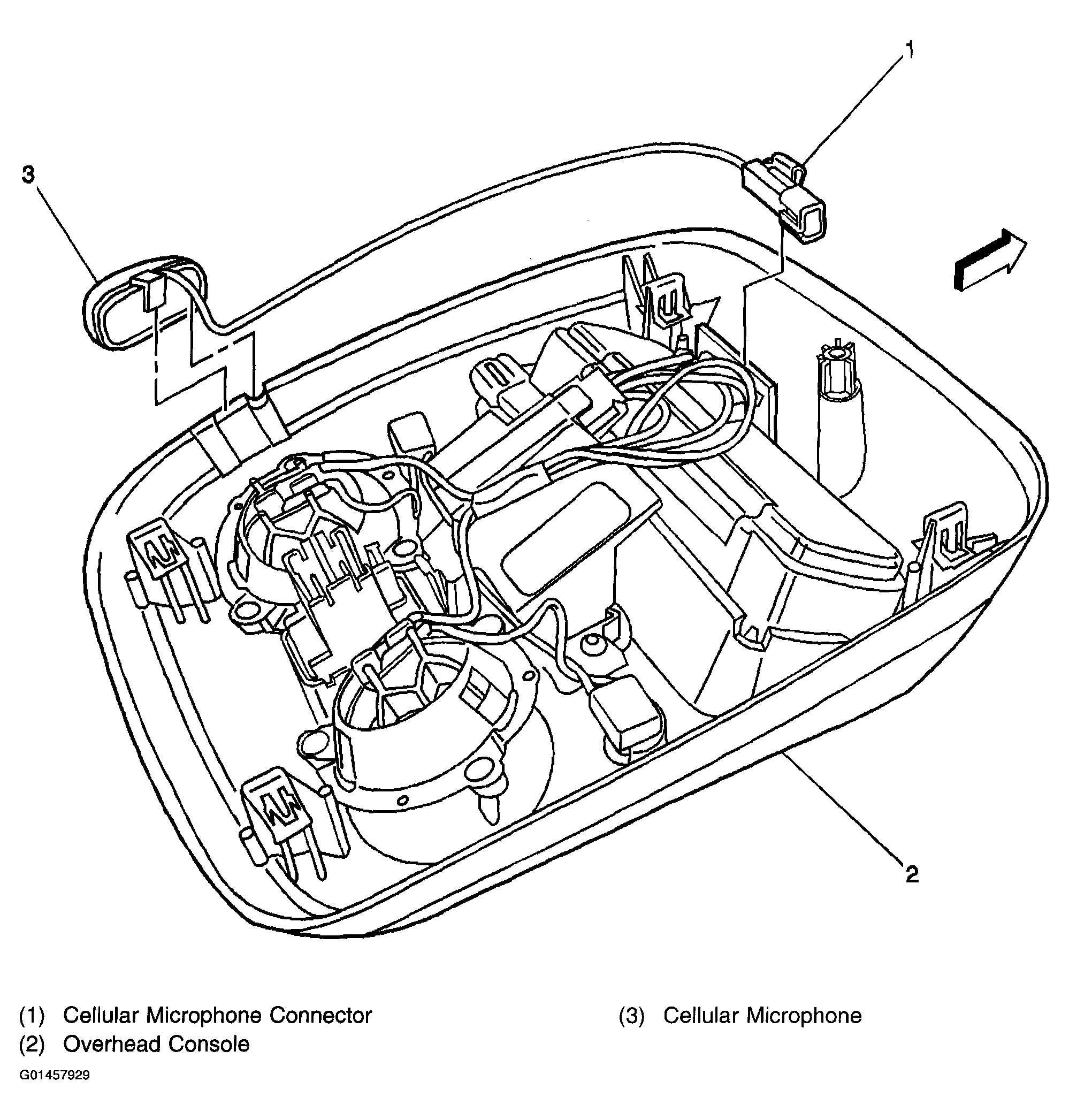

Fig 3: Identifying Cellular Microphone Components
G01457929Courtesy of GENERAL MOTORS CORP.
