Wiper/Washer System Component Views

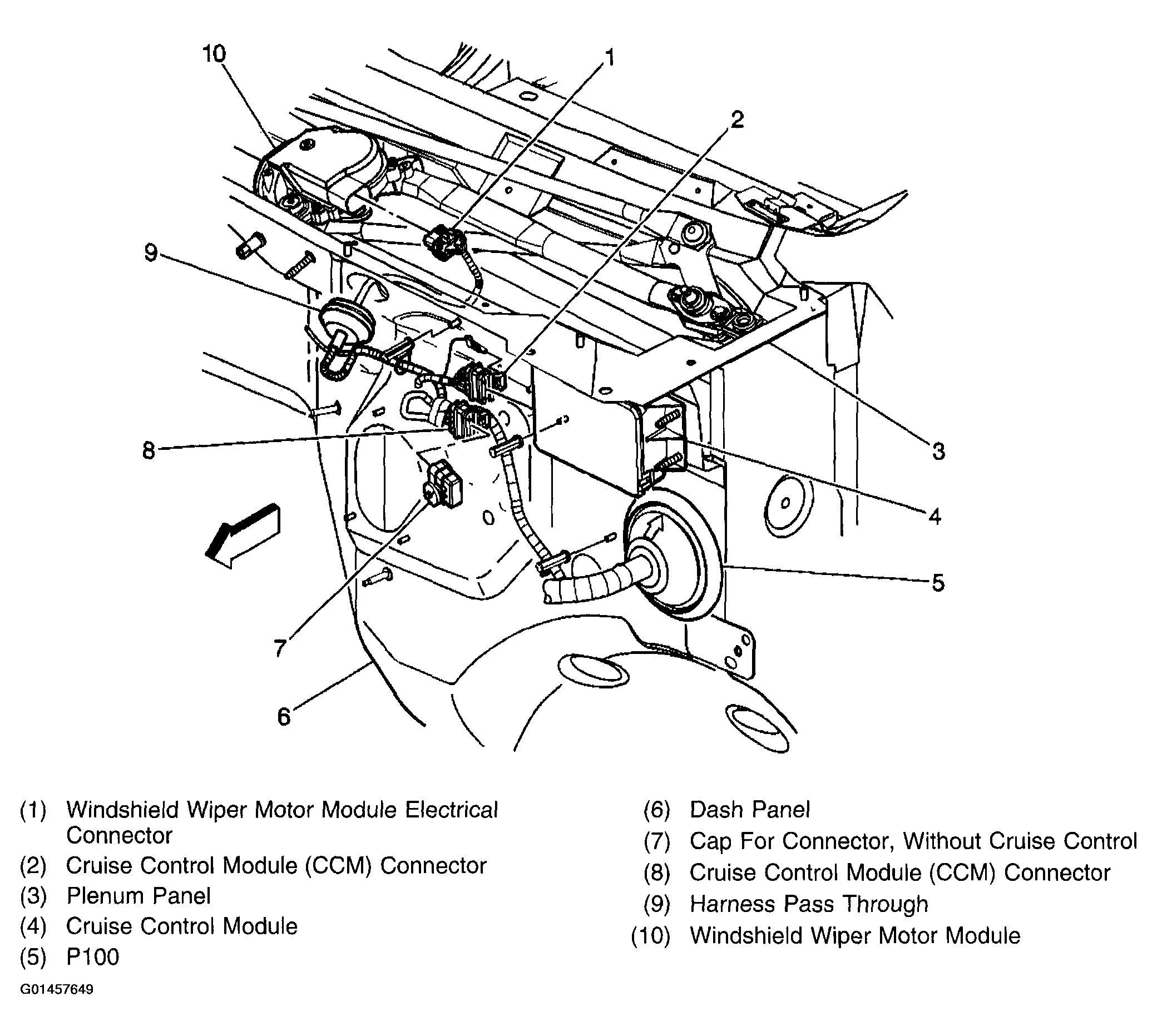

Fig 1: Locating Wiper/Washer Components (Left Rear Underhood - Front Of Dash)

Courtesy of GENERAL MOTORS CORP.

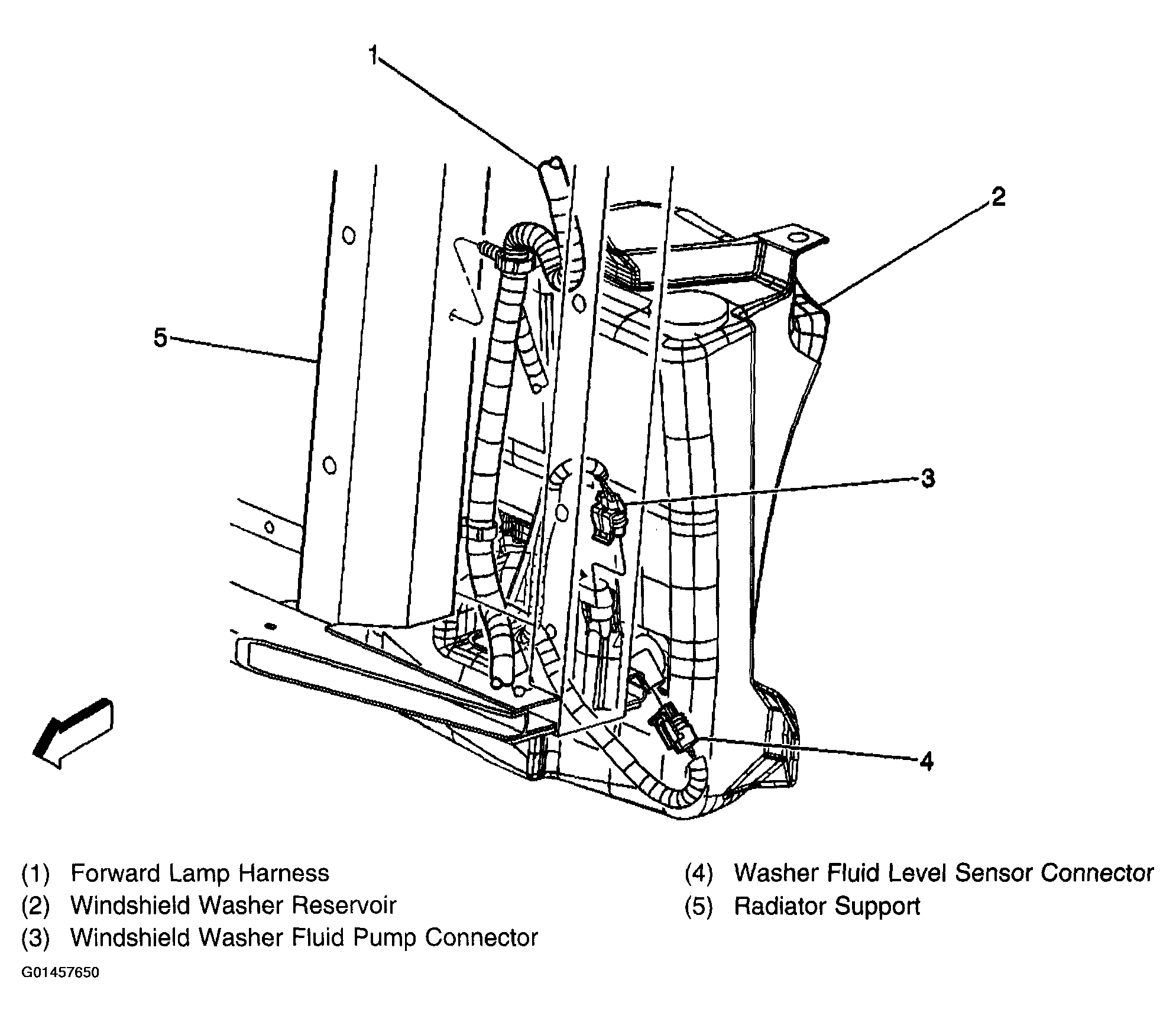

Fig 2: Locating Wiper/Washer Components (LF Corner Of Vehicle)

Courtesy of GENERAL MOTORS CORP.

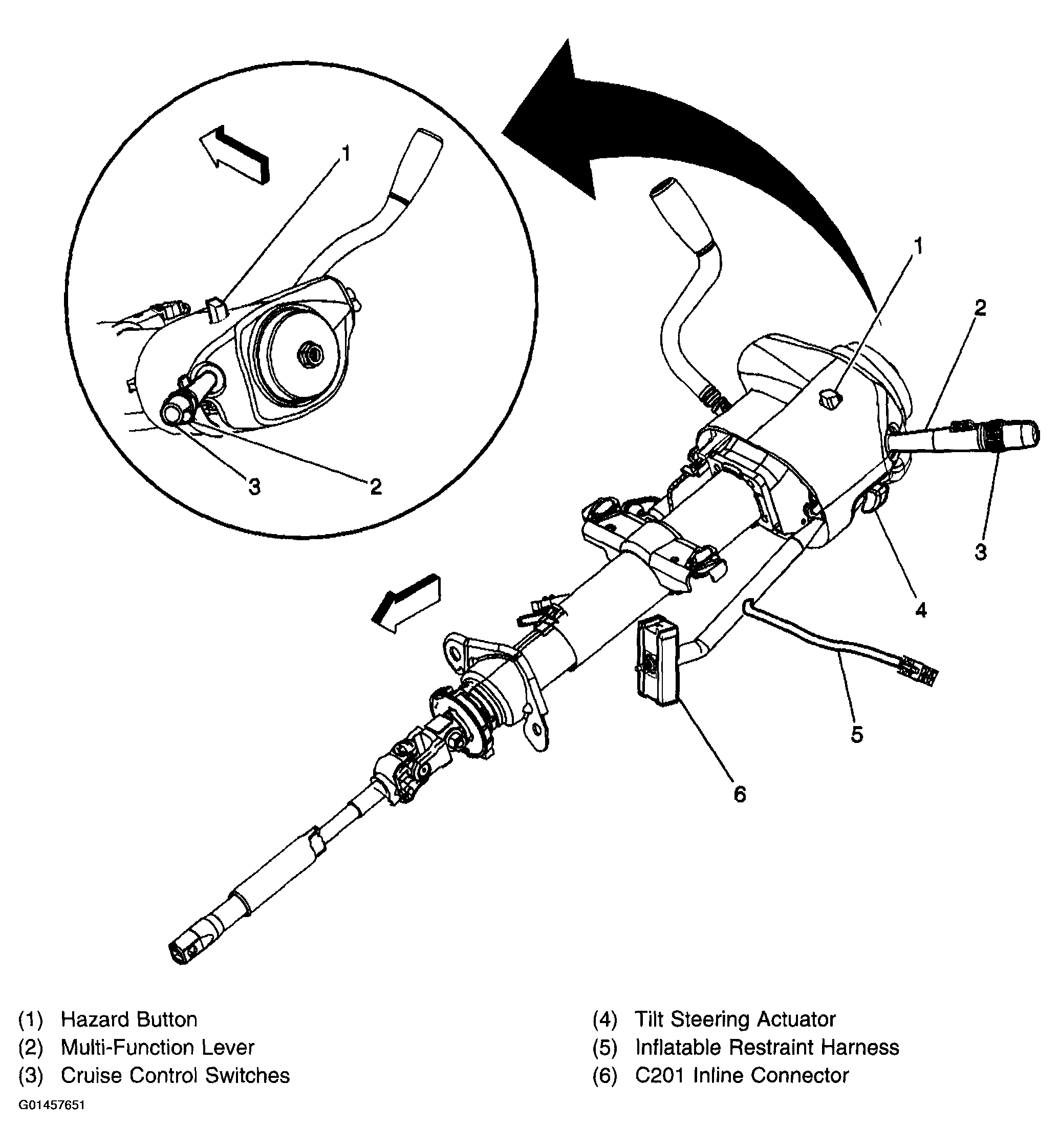

Fig 3: Locating Steering Column Component

Courtesy of GENERAL MOTORS CORP.

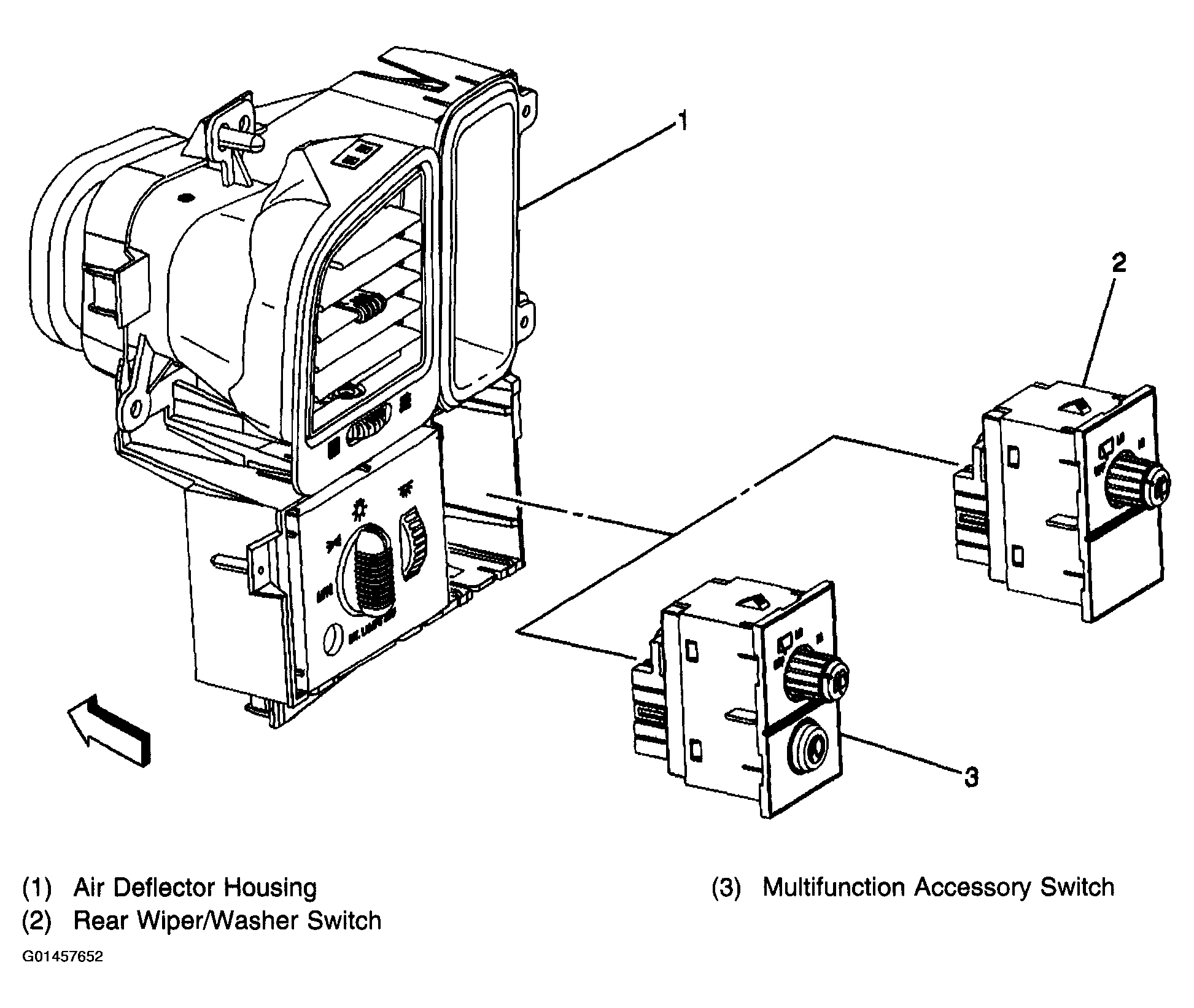

Fig 4: Locating Rear Window Wiper Switch

Courtesy of GENERAL MOTORS CORP.

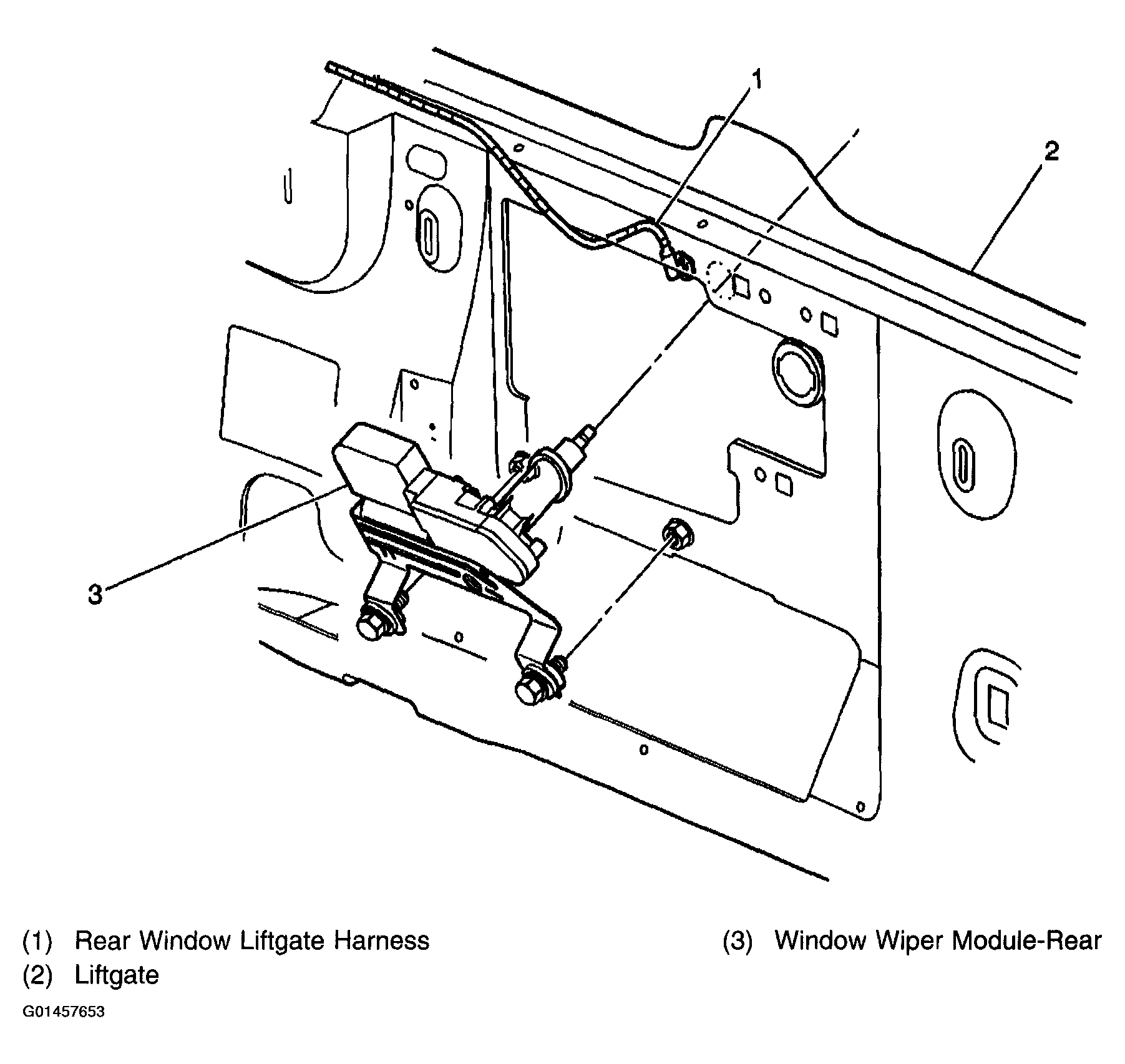

Fig 5: Locating Rear Window Wiper Motor

Courtesy of GENERAL MOTORS CORP.
