Wiper/Washer System Connector End Views

Fig 1: Locating Connector End Views Of Multifunction Accessory Switch

Courtesy of GENERAL MOTORS CORP.

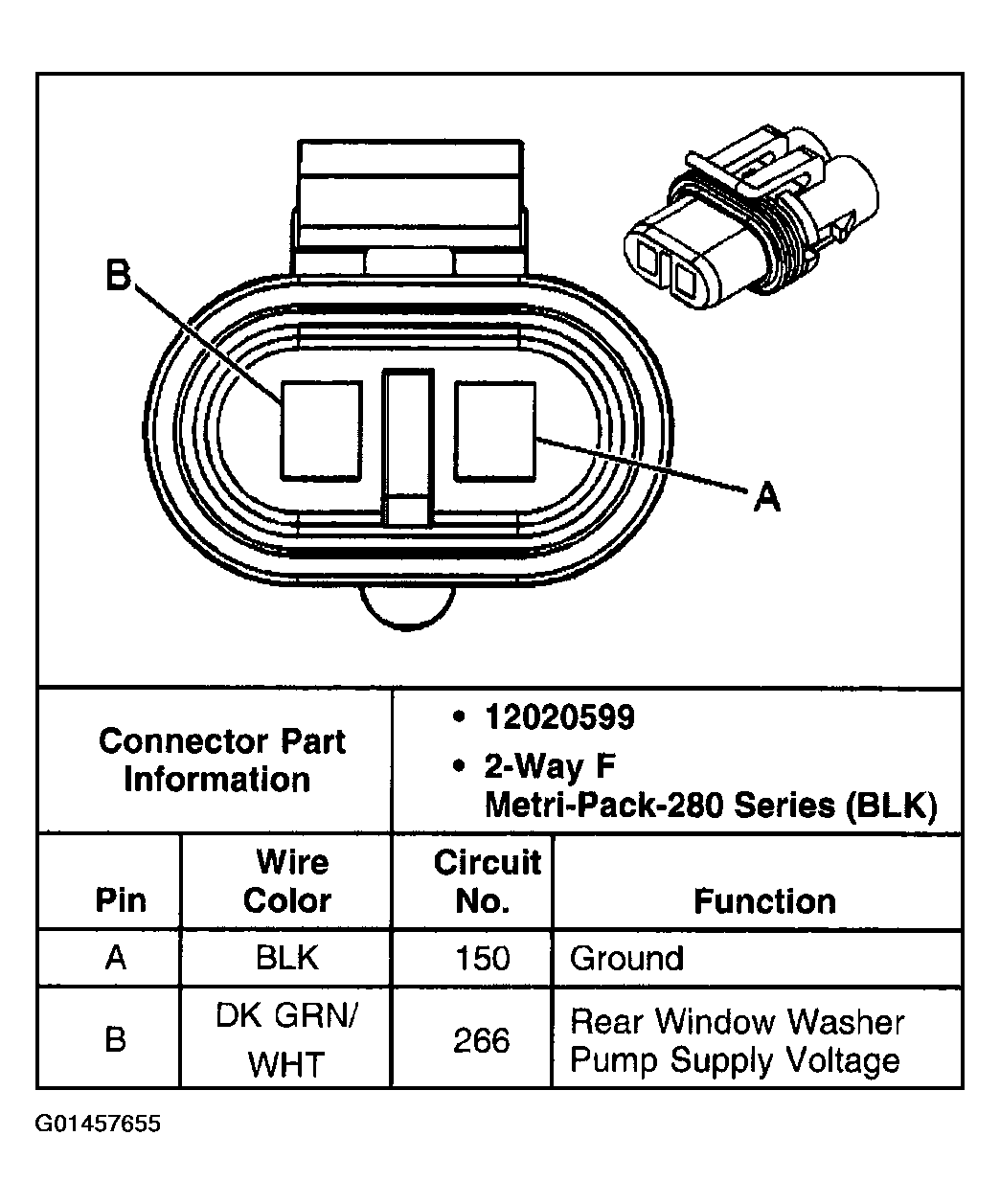

Fig 2: Locating Connector End Views Of Rear Window Washer Pump

Courtesy of GENERAL MOTORS CORP.

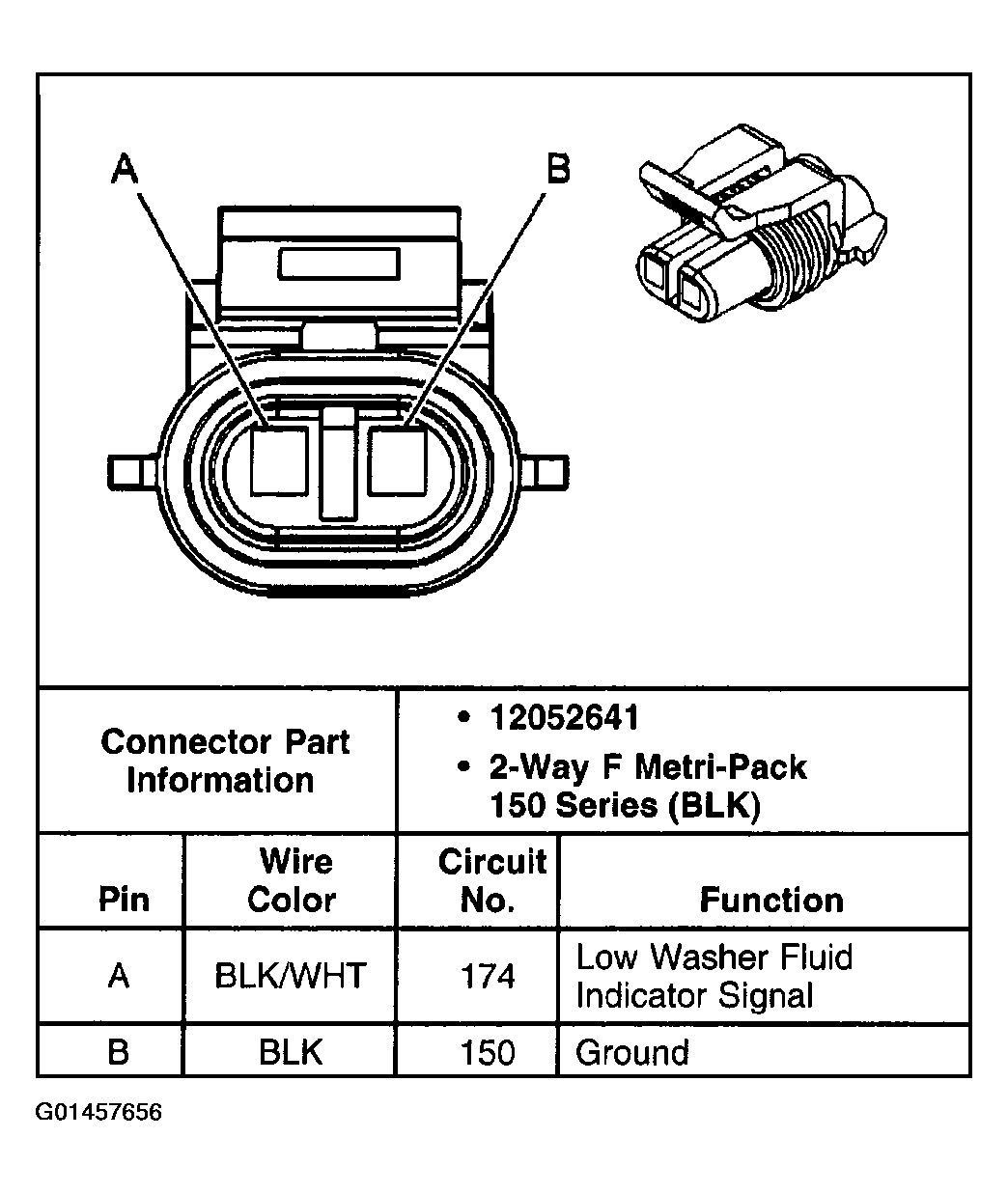

Fig 3: Locating Connector End Views Of Washer Fluid Level Sensors

Courtesy of GENERAL MOTORS CORP.

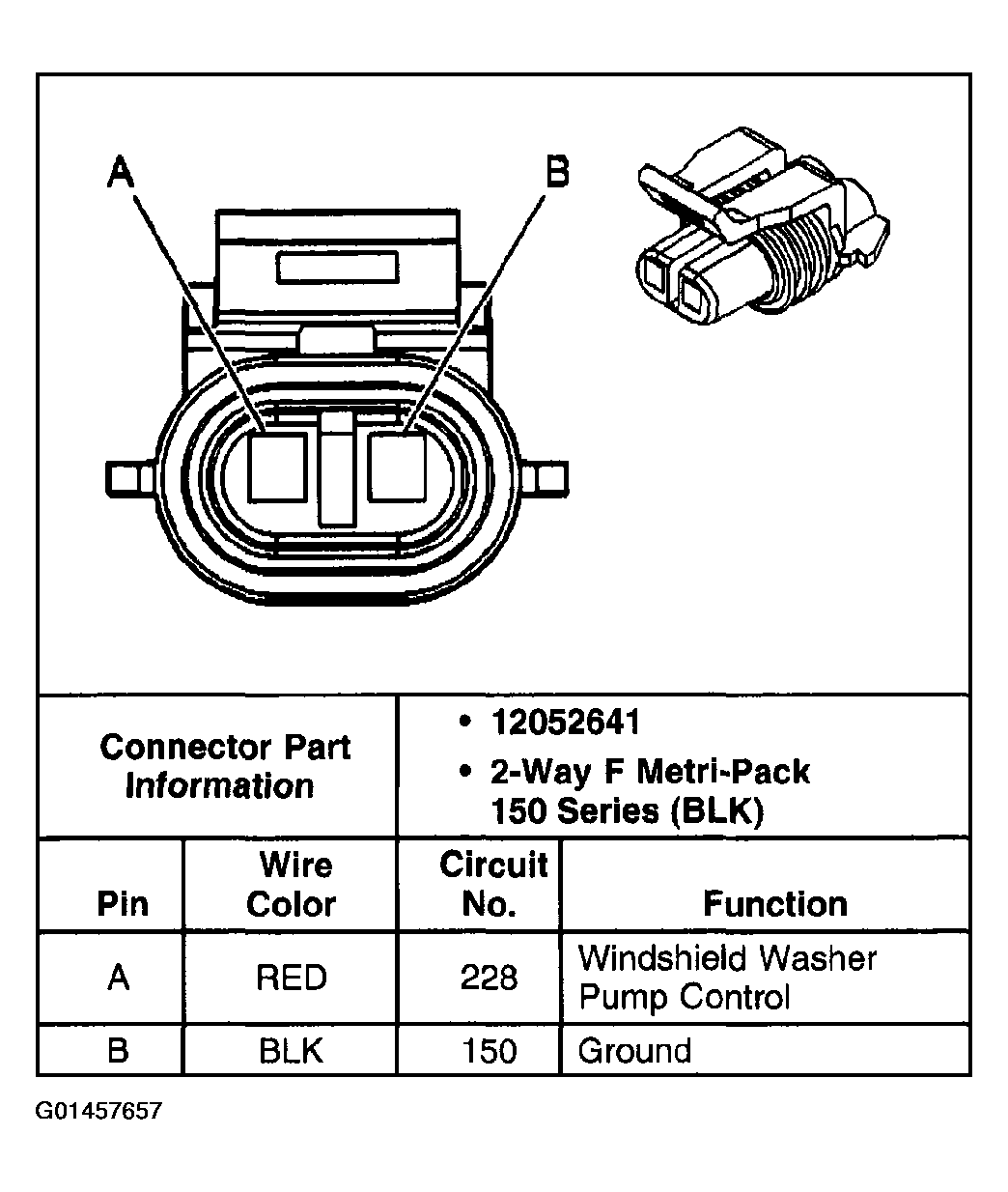

Fig 4: Locating Connector End Views Of Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Connector End Views Of Windshield Wiper Motor Module

Courtesy of GENERAL MOTORS CORP.

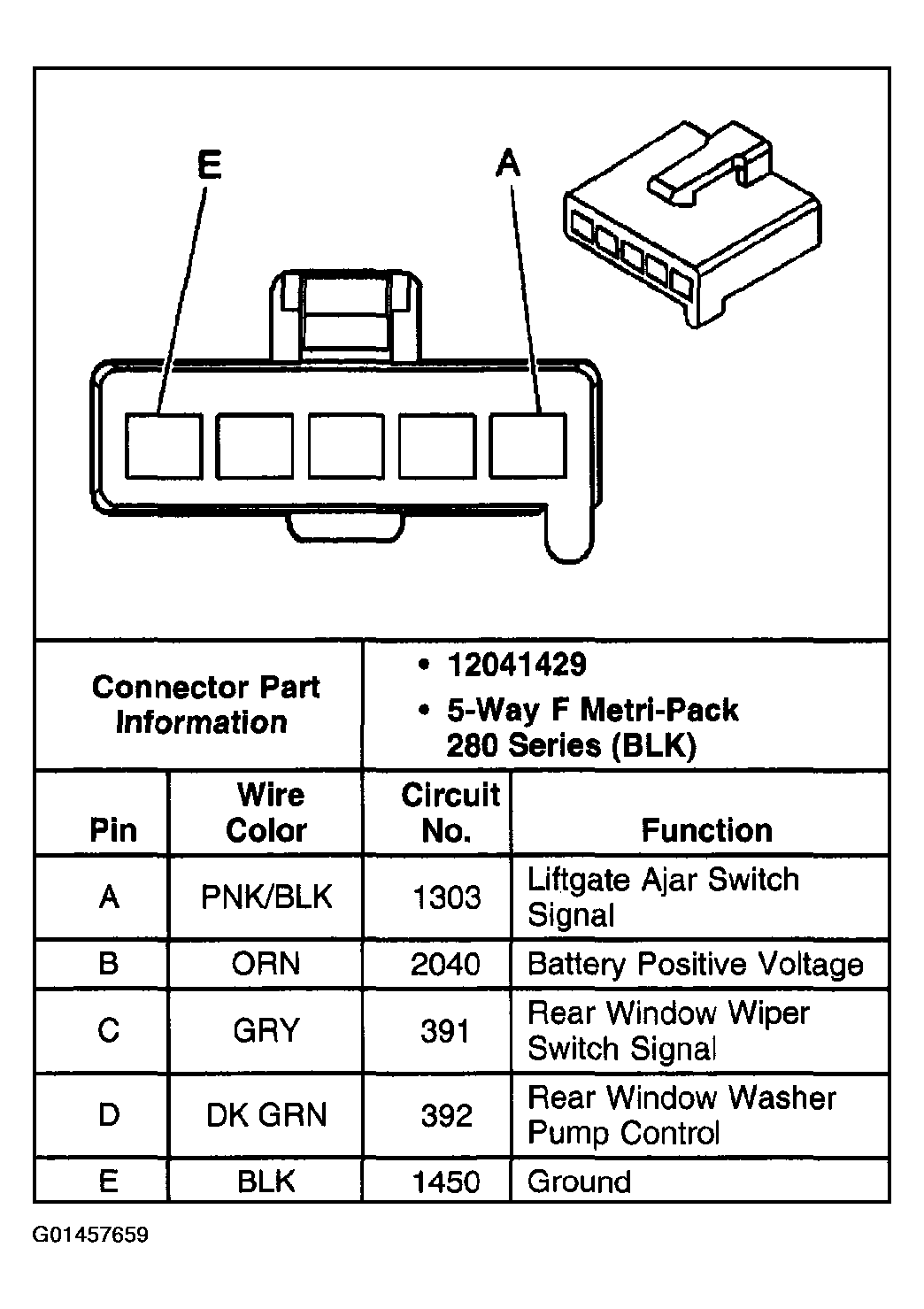

Fig 6: Locating Connector End Views Of Window Wiper Module - Rear

Courtesy of GENERAL MOTORS CORP.
