Scan Tool Output Controls

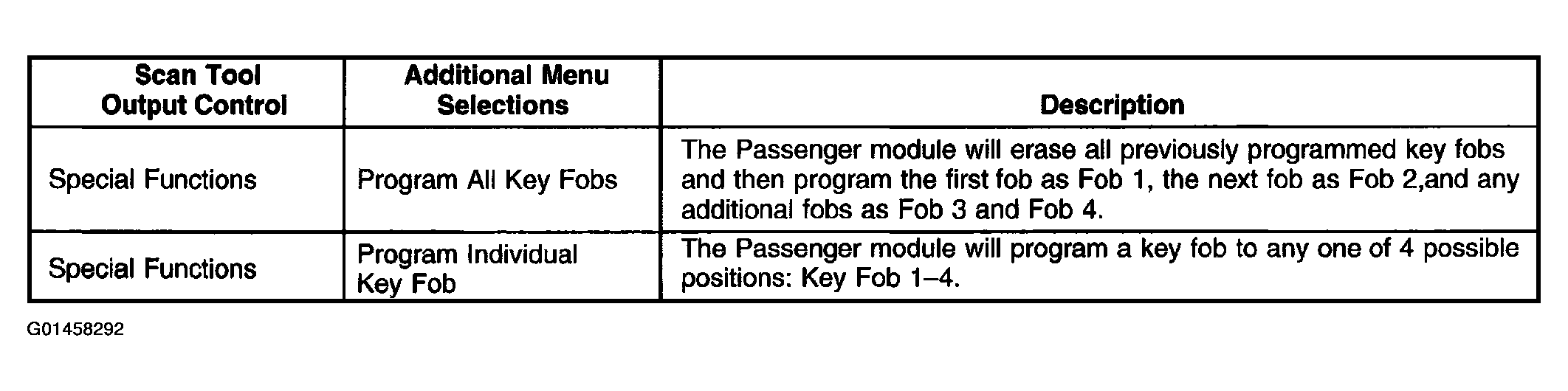

Fig 1: Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
