Test Description

The number below refers to the step number on the diagnostic table.

  1. Tests for the proper operation of the circuit in the normal voltage range.

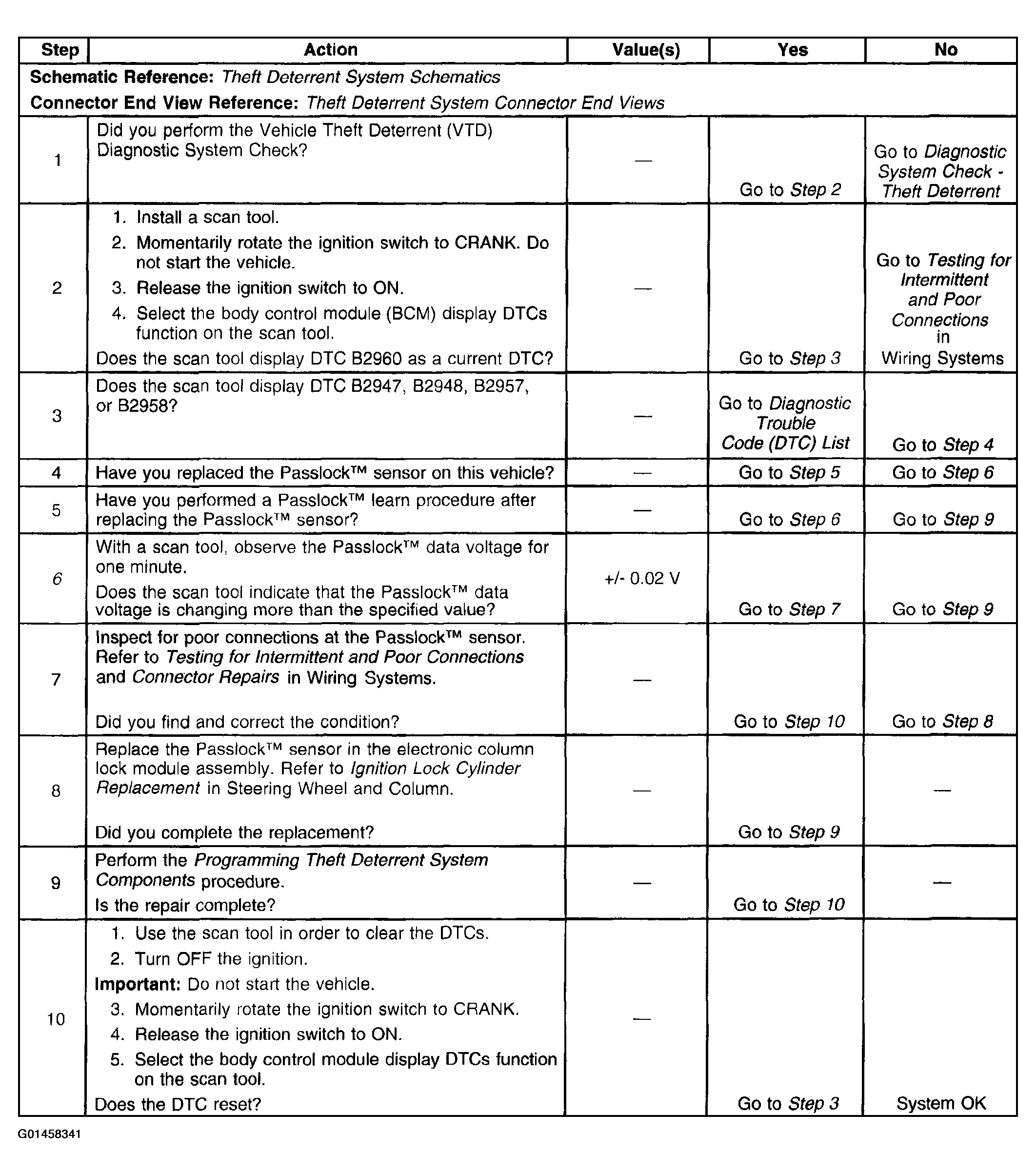

Fig 1: Diagnostic System Check - DTC B2960
G01458341Courtesy of GENERAL MOTORS CORP.
