Steering Column Disassembled View (Column Shift Lean Shaft)

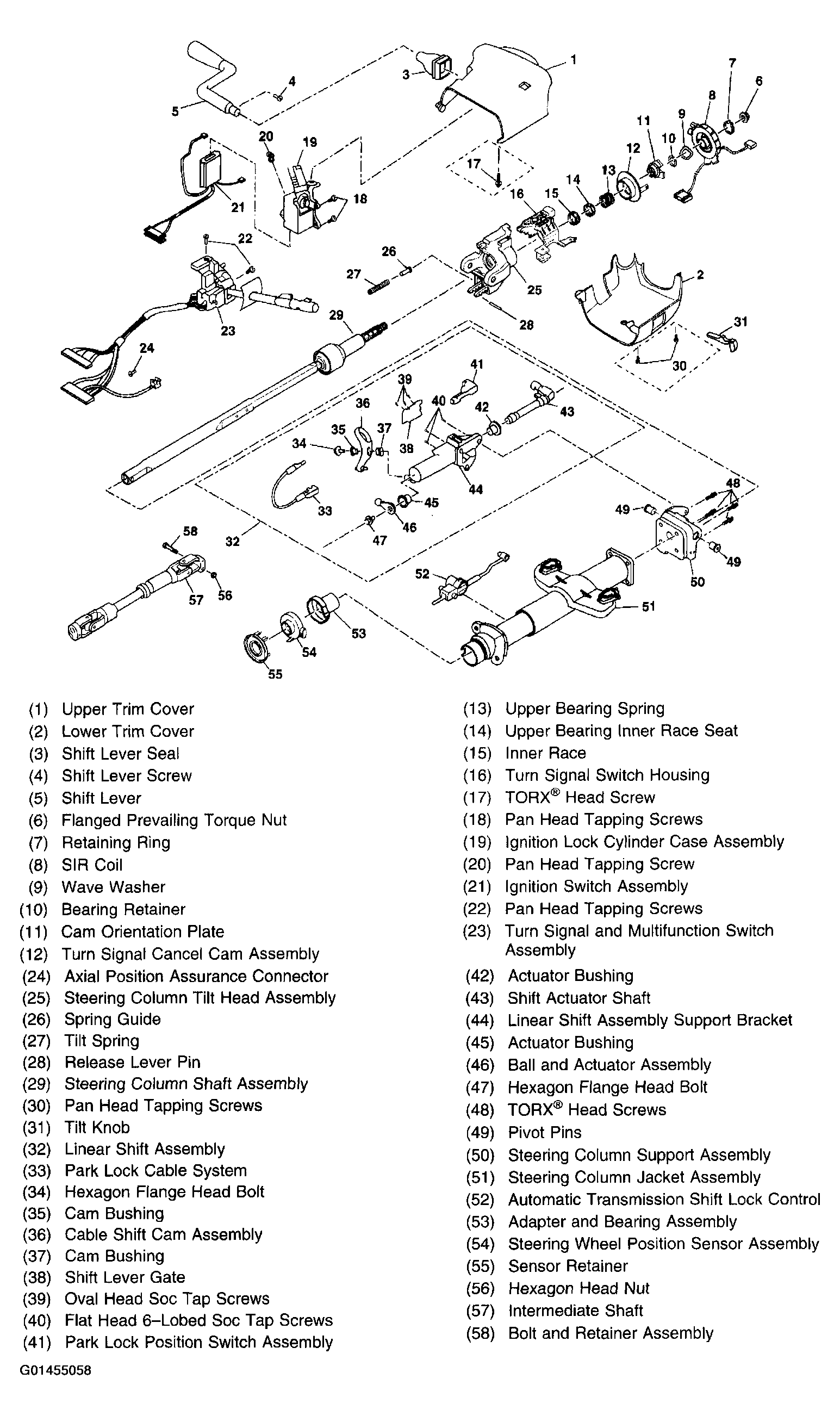

Fig 1: Identifying Tilt Steering Column Components
G01455058Courtesy of GENERAL MOTORS CORP.
