Steering Column Disassembled View (Column Shift Standard)

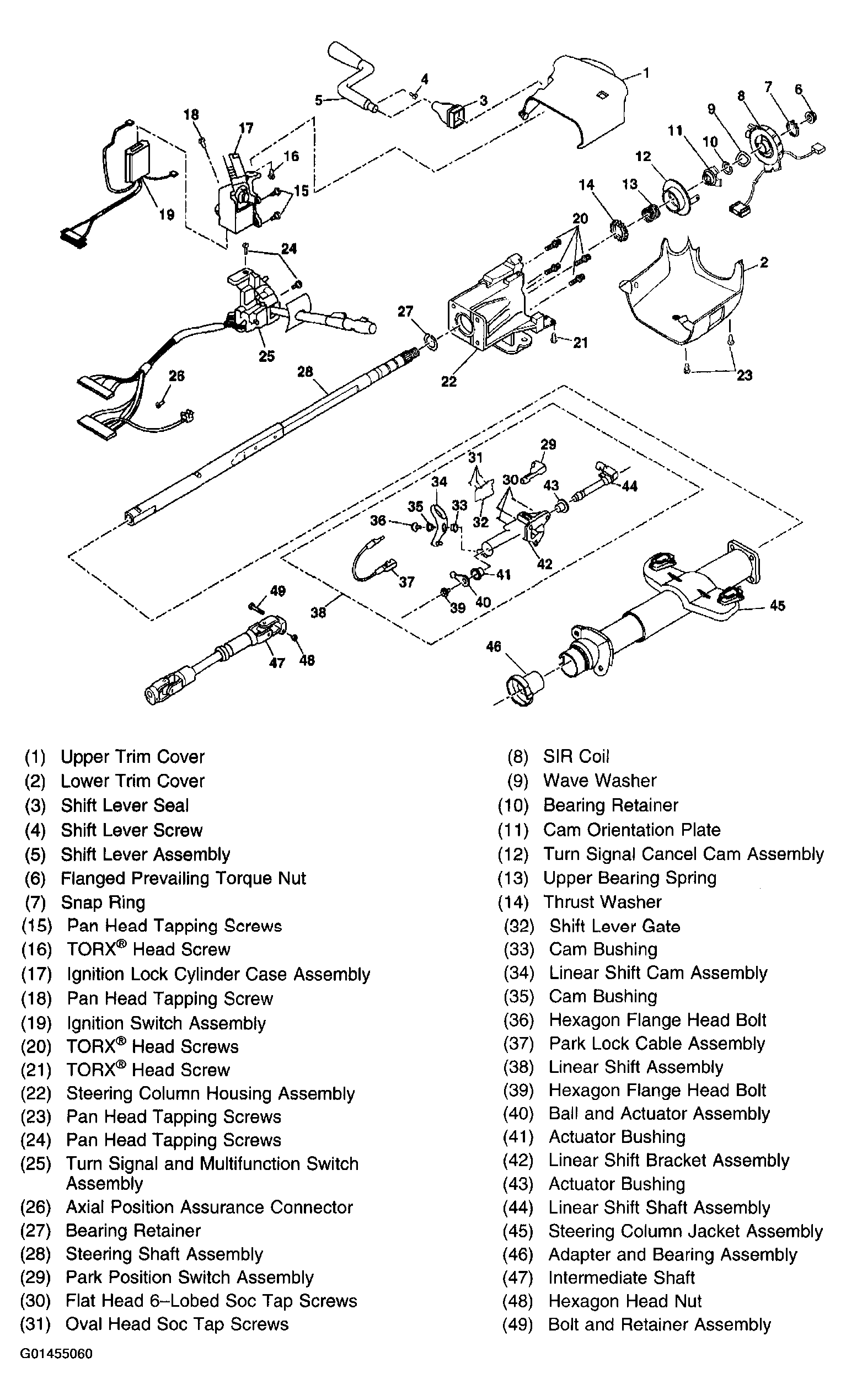

Fig 1: Exploded View Of Standard Steering Column
G01455060Courtesy of GENERAL MOTORS CORP.
