Power Door Systems Connector End Views

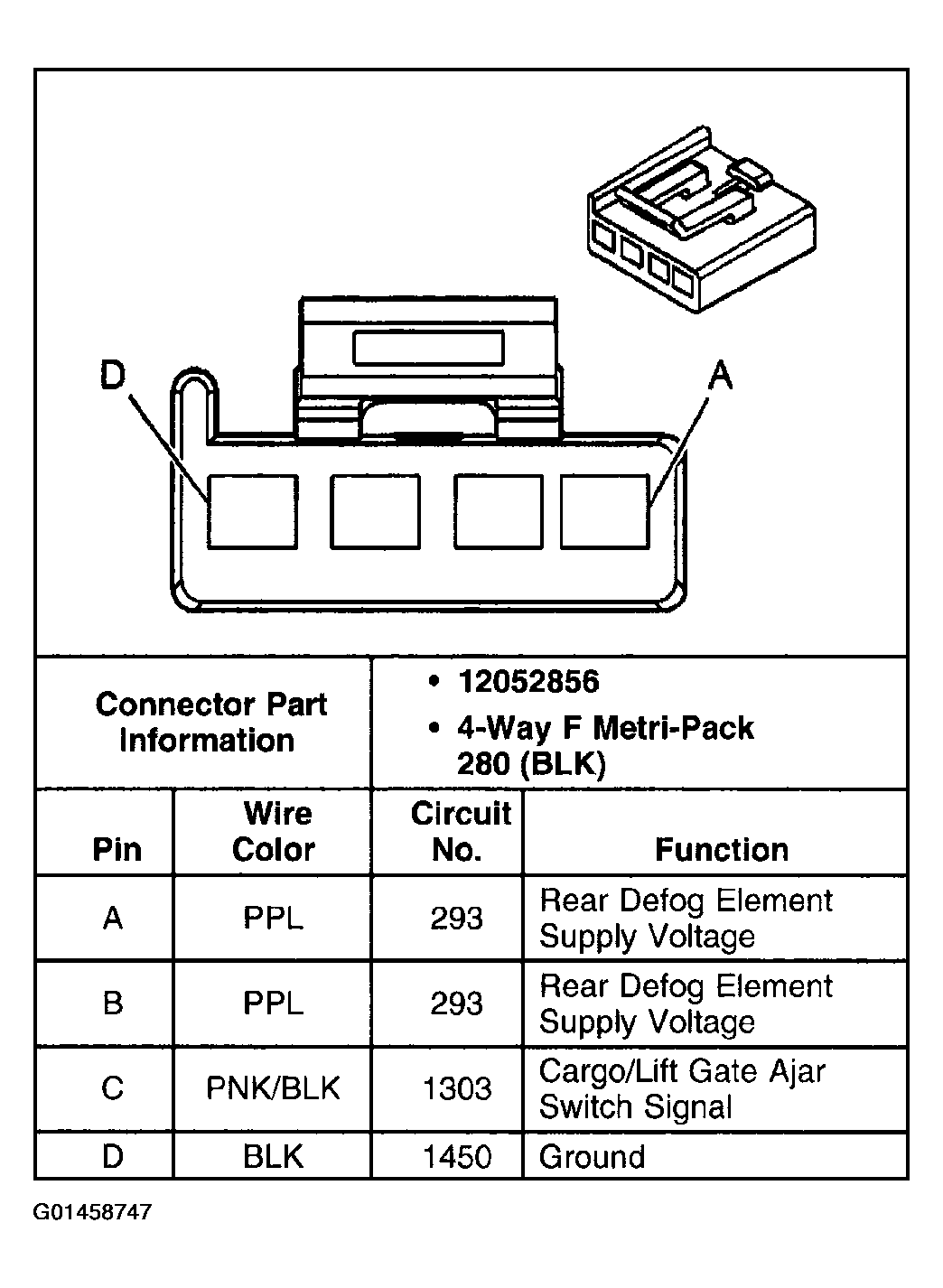

Fig 1: Identifying Door Contact Plate - Left Connector
G01458747Courtesy of GENERAL MOTORS CORP.

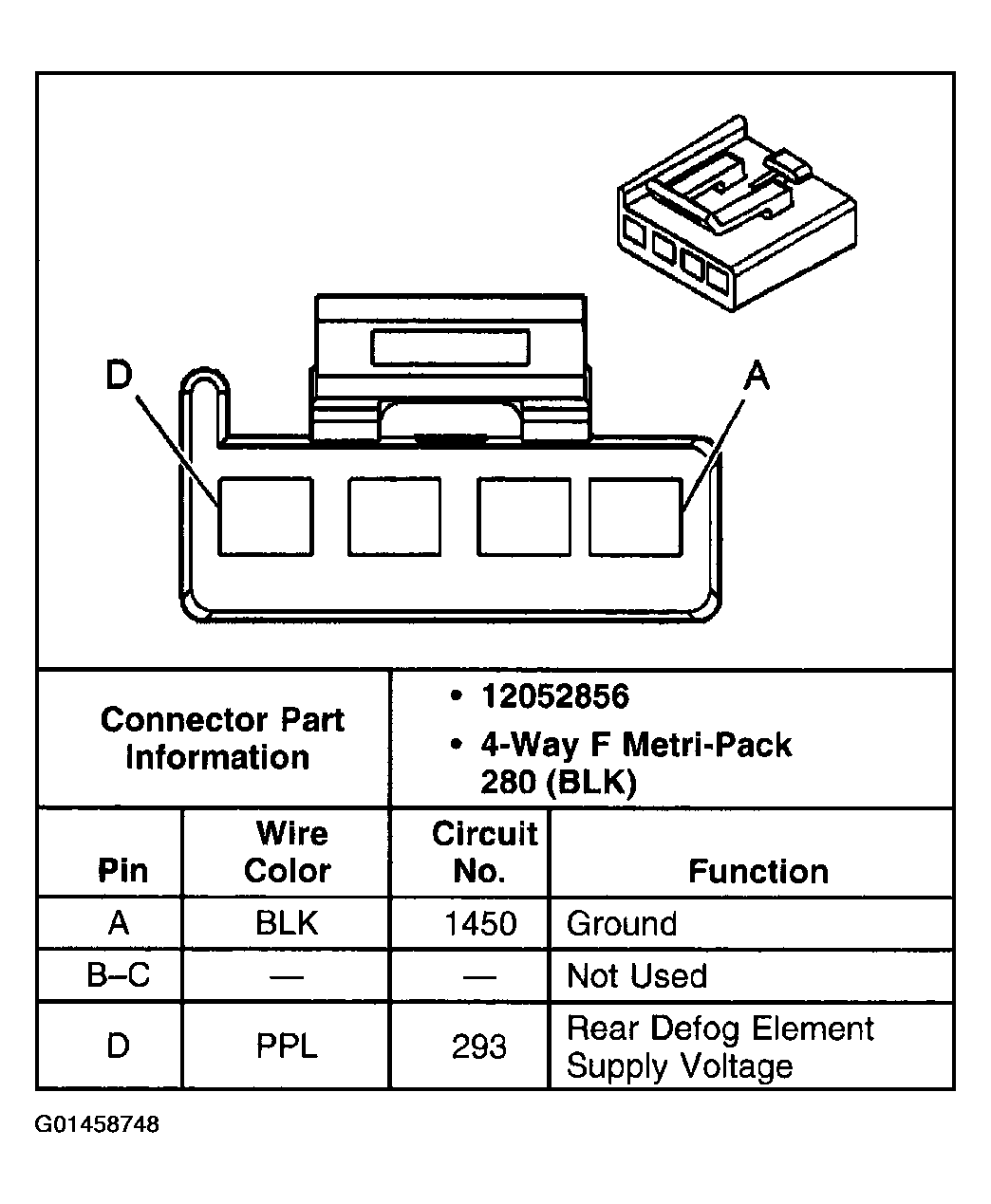

Fig 2: Identifying Door Contact Plate - Left Connector
G01458748Courtesy of GENERAL MOTORS CORP.

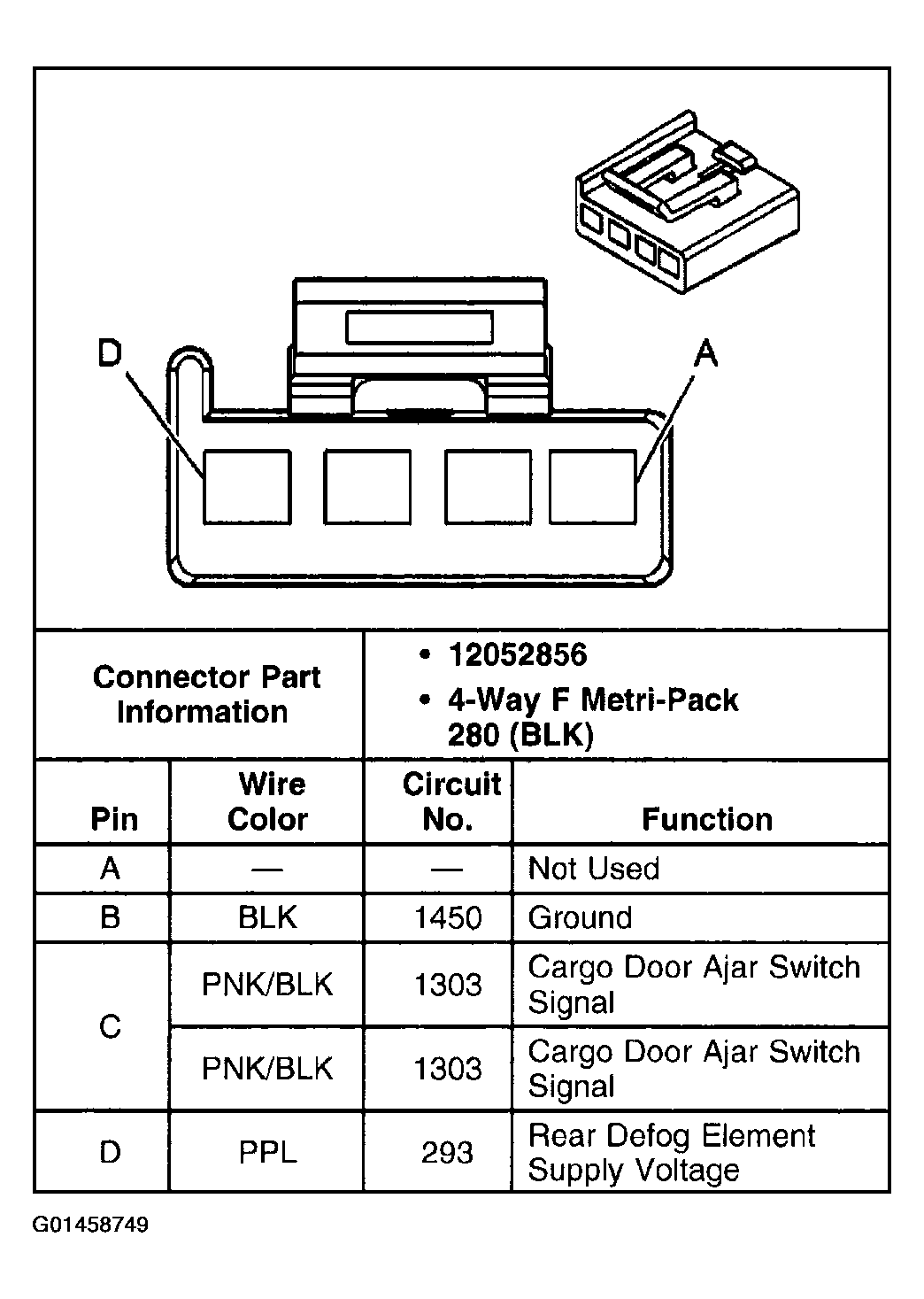

Fig 3: Identifying Door Contact Plate - Right Connector
G01458749Courtesy of GENERAL MOTORS CORP.

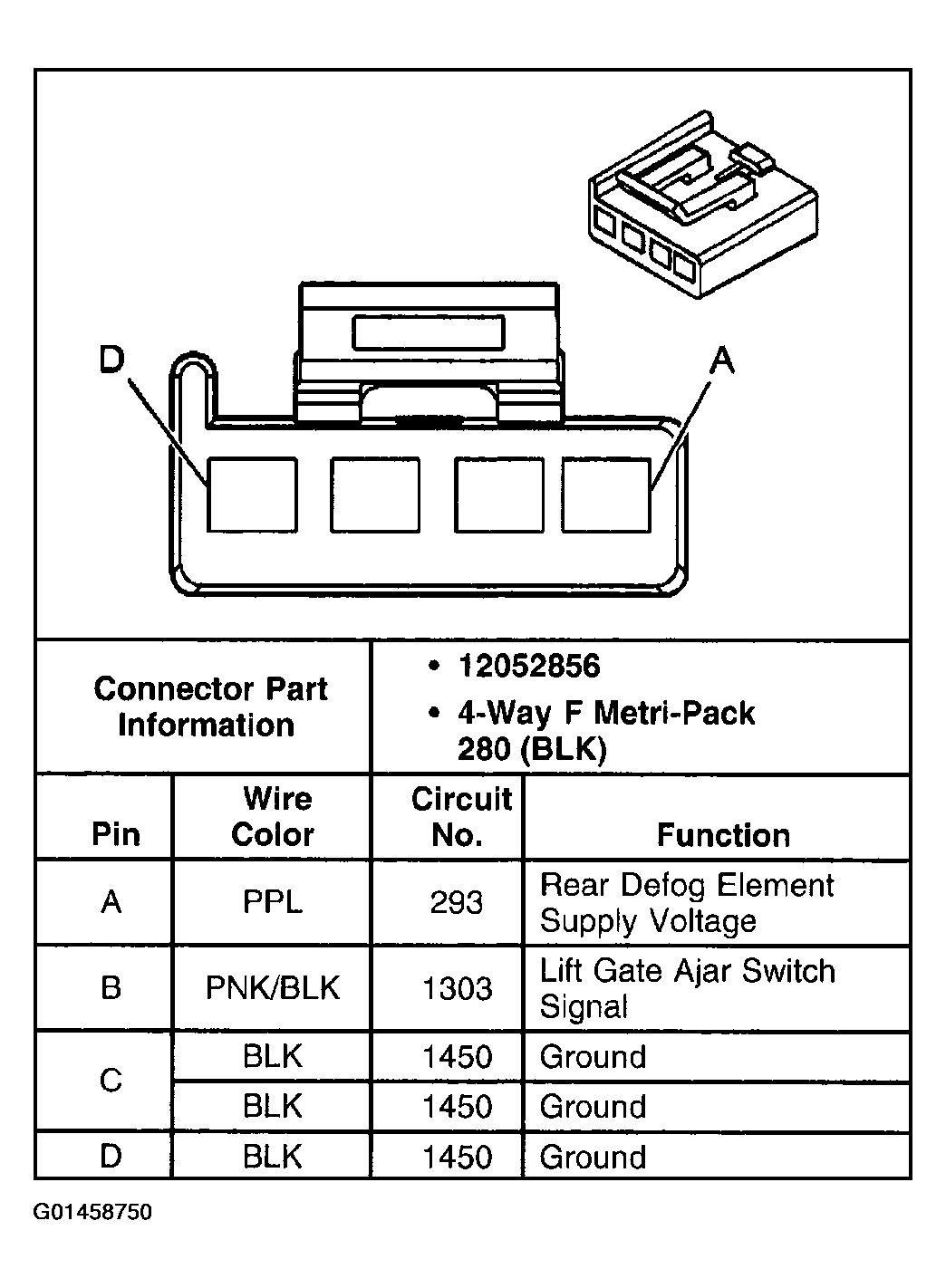

Fig 4: Identifying Door Contact Plate - Right Connector
G01458750Courtesy of GENERAL MOTORS CORP.

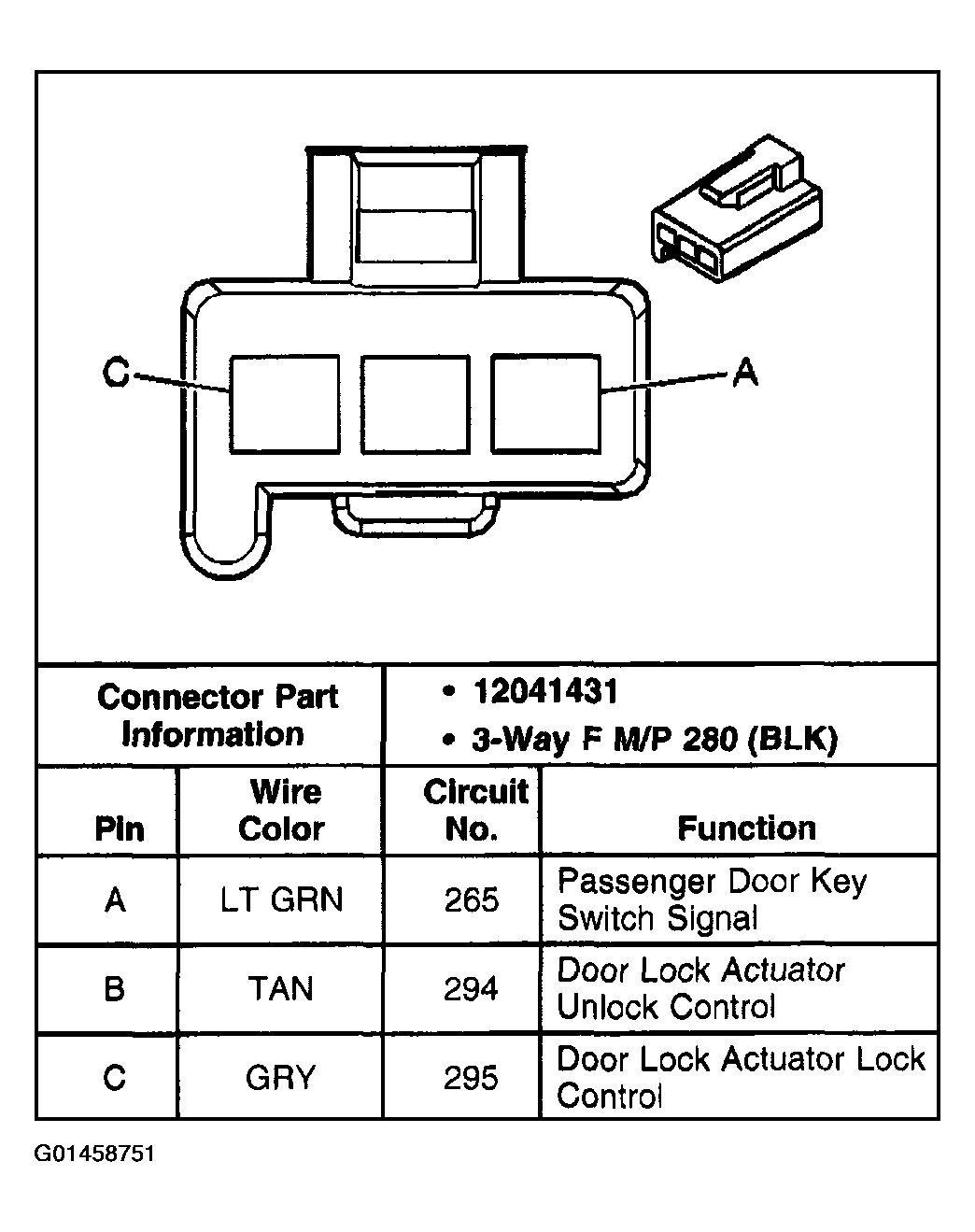

Fig 5: Identifying Door Contact Plate - Right C2 (Body Side) Connector
G01458751Courtesy of GENERAL MOTORS CORP.

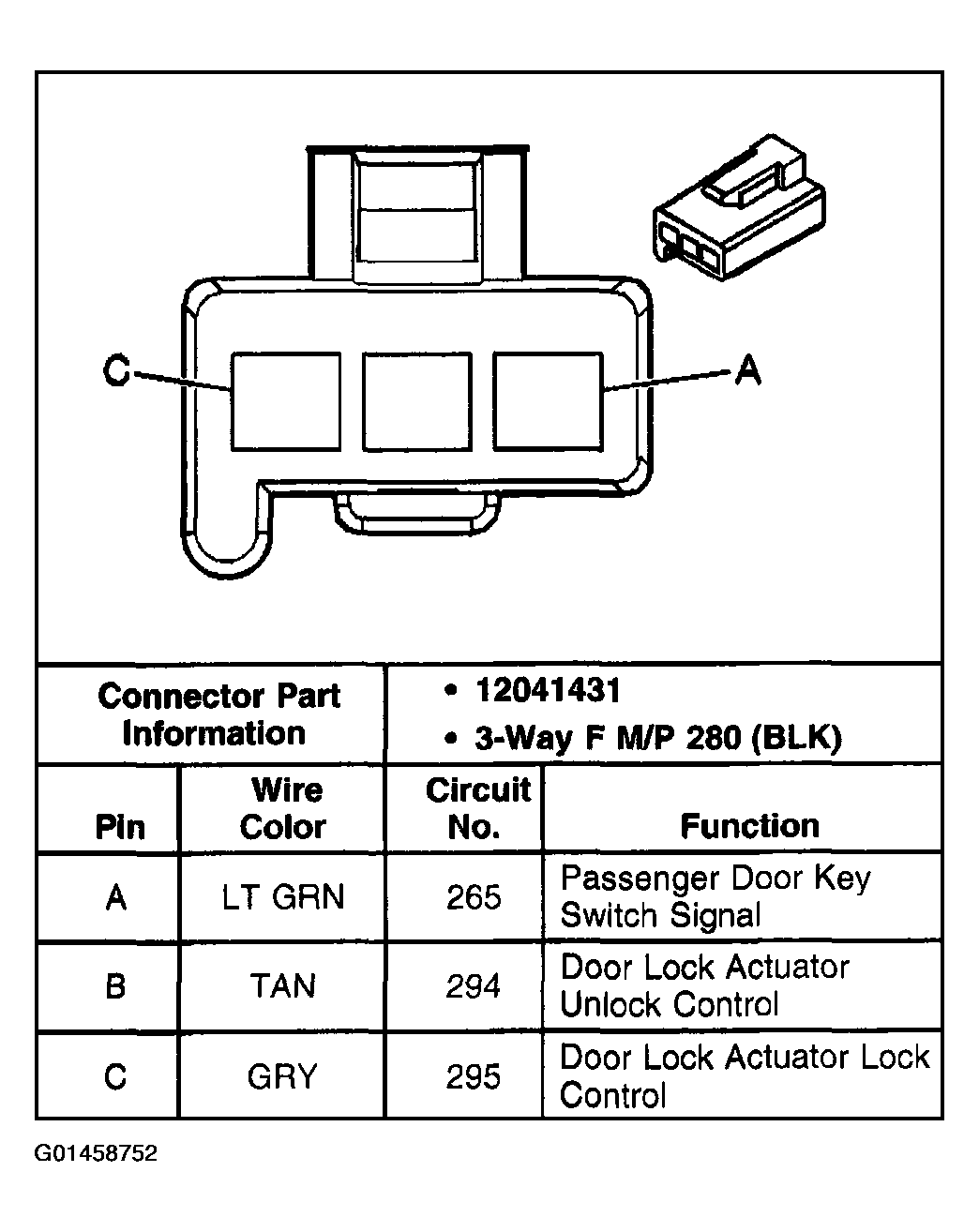

Fig 6: Identifying Door Contact Plate - Right C2 (Door Side) Connector
G01458752Courtesy of GENERAL MOTORS CORP.

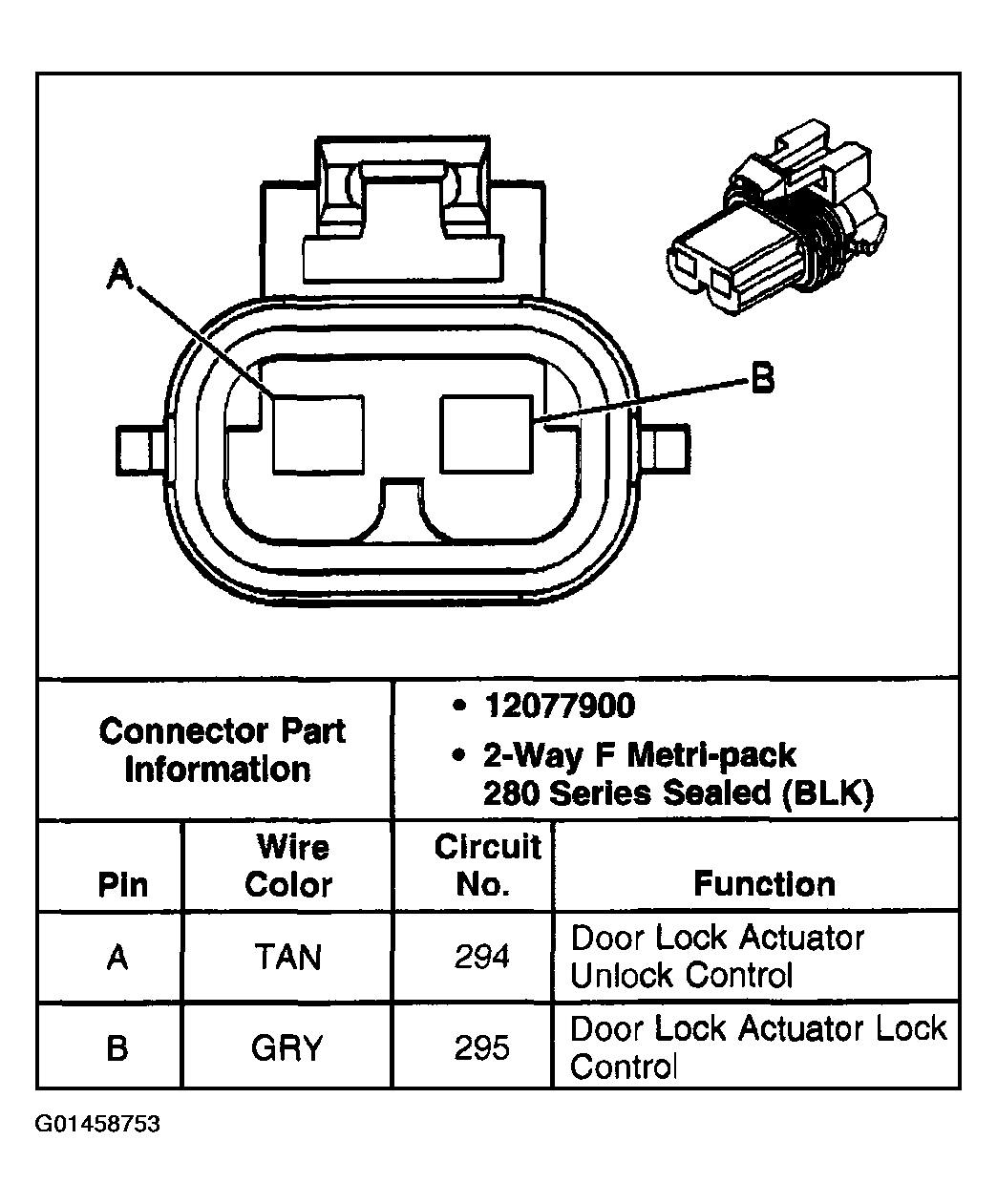

Fig 7: Identifying Door Lock Actuator - Cargo/Lift Gate, Connector
G01458753Courtesy of GENERAL MOTORS CORP.

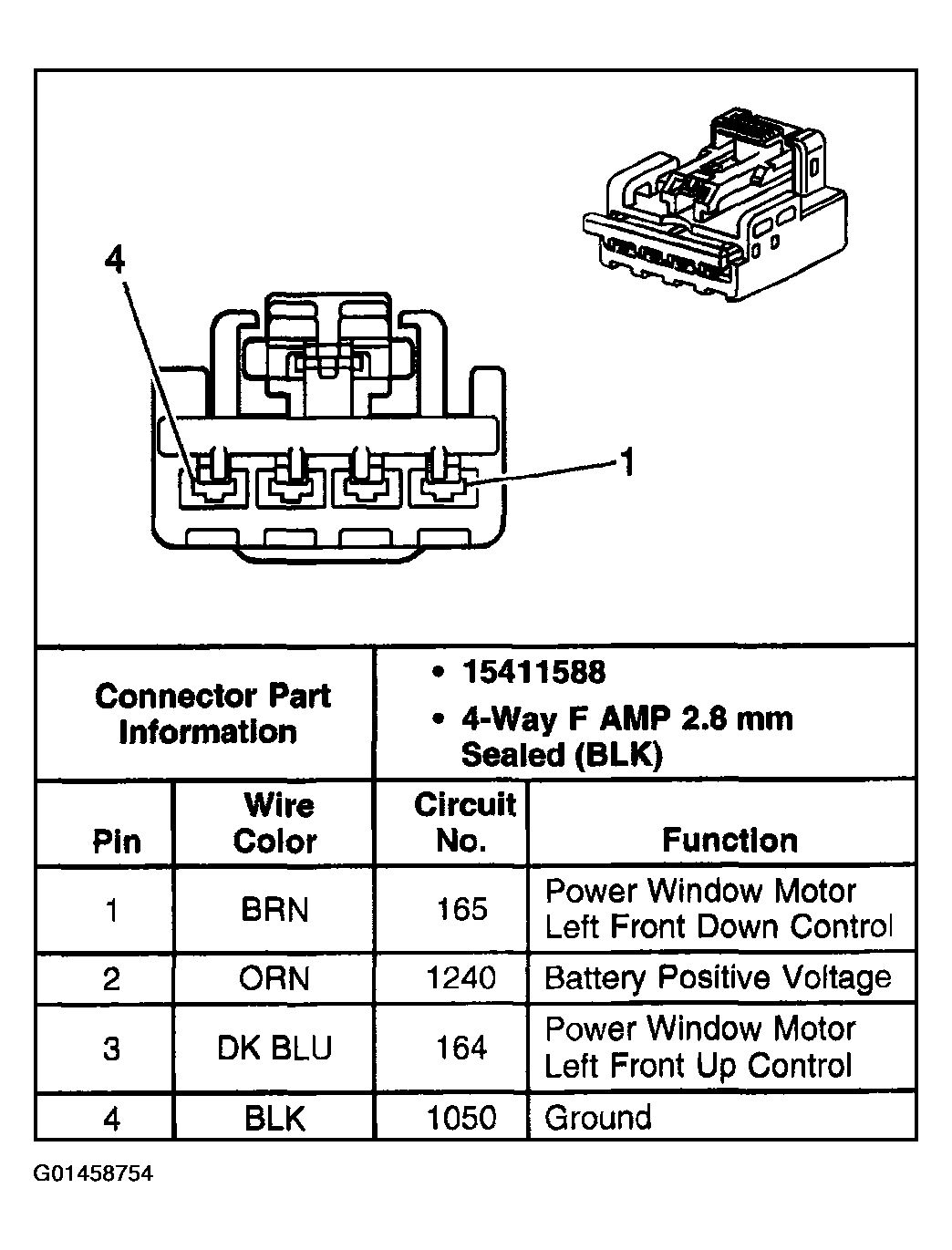

Fig 8: Identifying Driver Door Module (DDM) C1 Connector
G01458754Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Driver Door Module (DDM) C2 Connector
G01458755Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Driver Door Module (DDM) C3 Connector
G01458756Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Driver Door Module (DDM) C4 Connector
G01458757Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Driver Door Module (DDM) C5 Connector
G01458758Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Front Passenger Door Module (FPDM) C1 Connector
G01458759Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Front Passenger Door Module (FPDM) C2 Connector
G01458760Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Front Passenger Door Module (FPDM) C3 Connector
G01458761Courtesy of GENERAL MOTORS CORP.

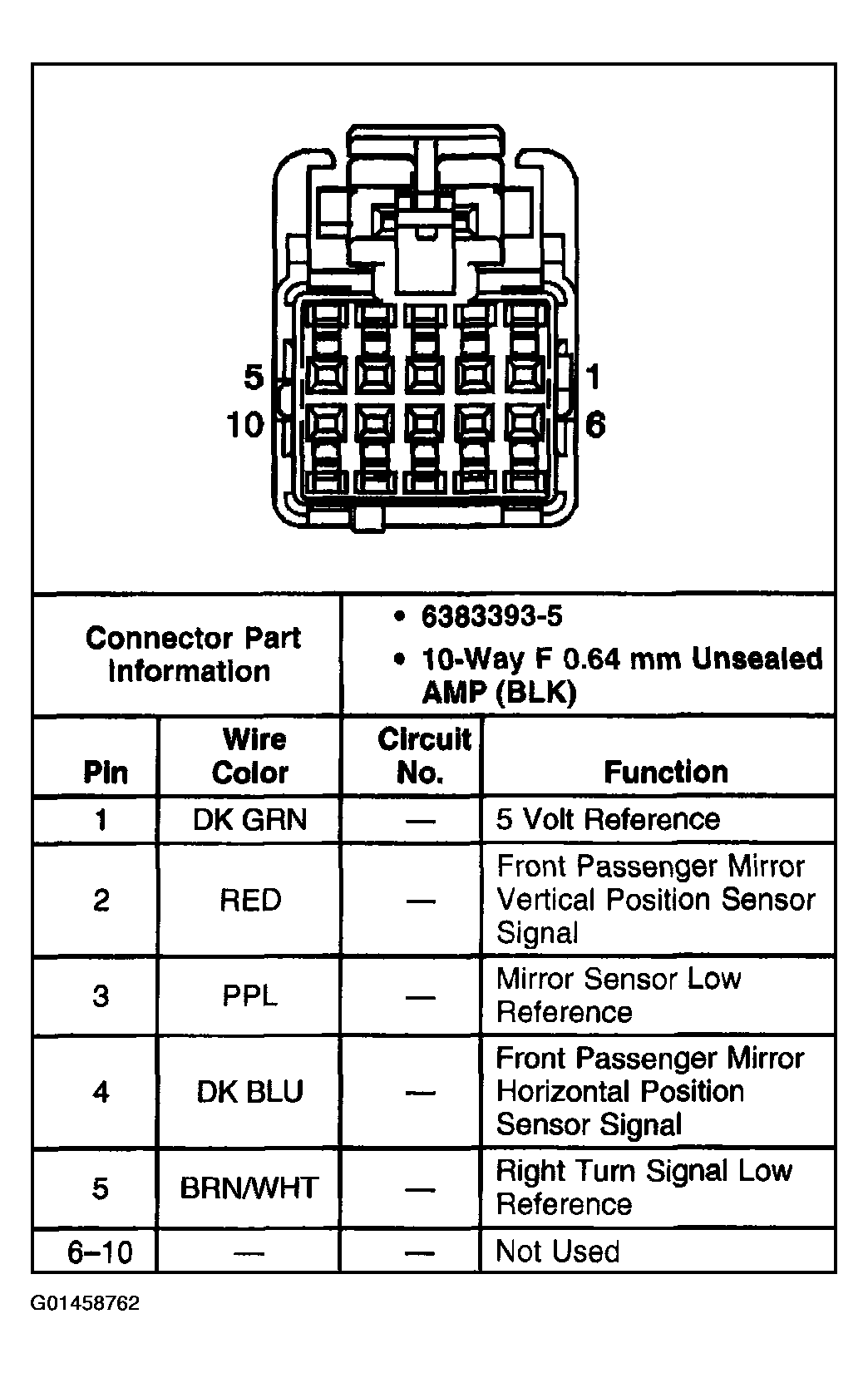

Fig 16: Identifying Front Passenger Door Module (FPDM) C4 Connector
G01458762Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Front Passenger Door Module (FPDM) Connector
G01458763Courtesy of GENERAL MOTORS CORP.

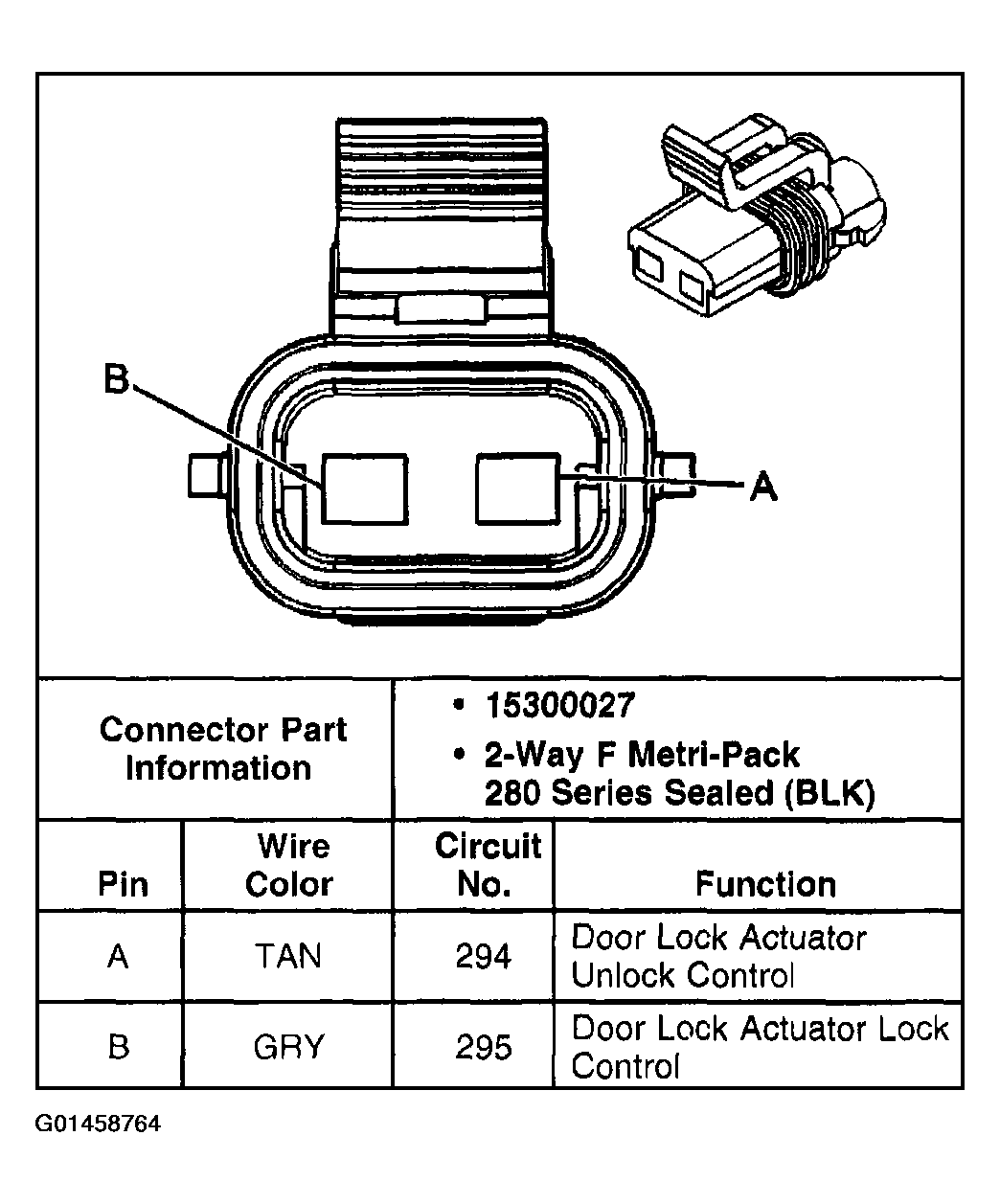

Fig 18: Identifying Mini Wedge (Door Jamb Switch) - Driver C1 Connector
G01458764Courtesy of GENERAL MOTORS CORP.

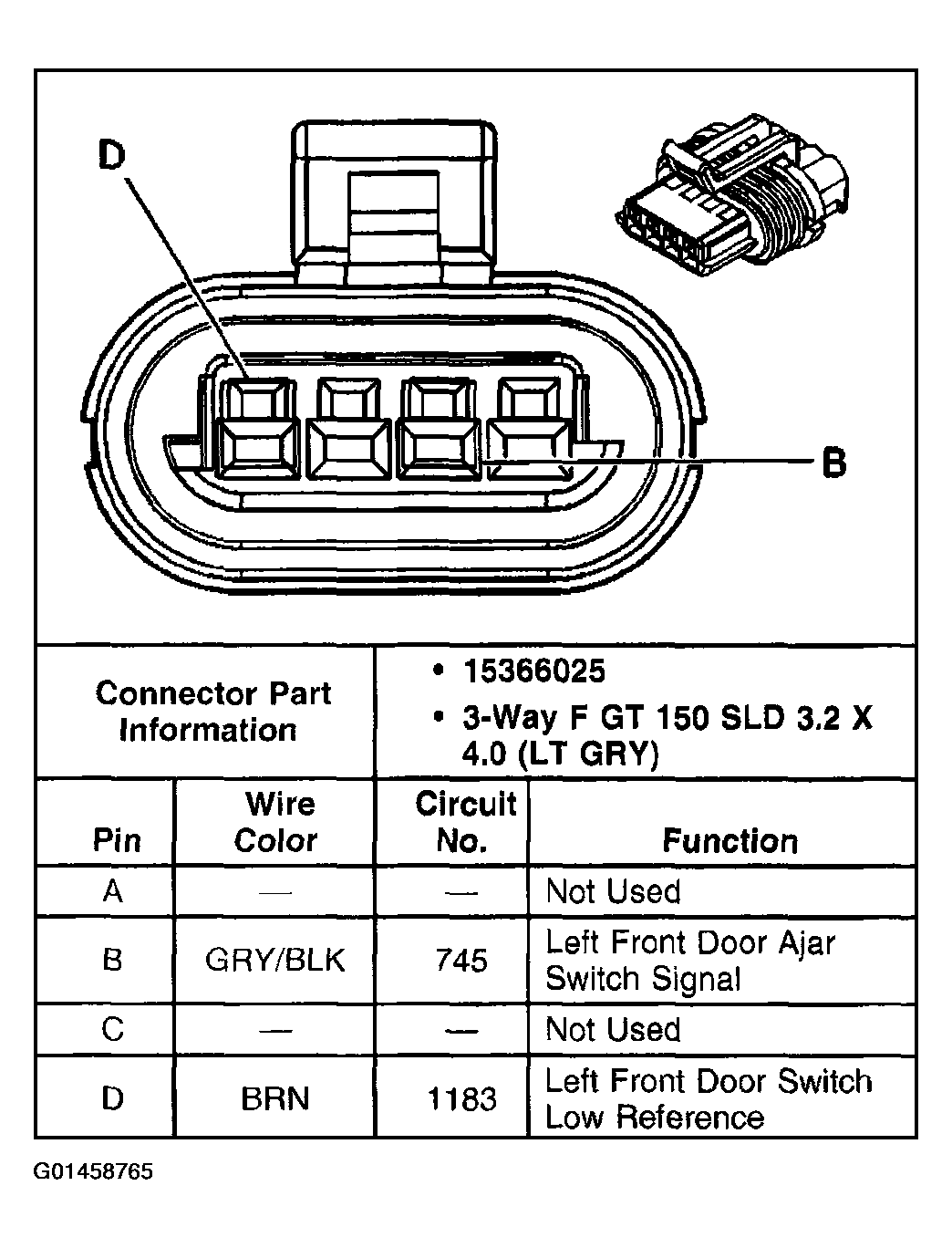

Fig 19: Identifying Mini Wedge (Door Jamb Switch) - Driver C2 Connector
G01458765Courtesy of GENERAL MOTORS CORP.

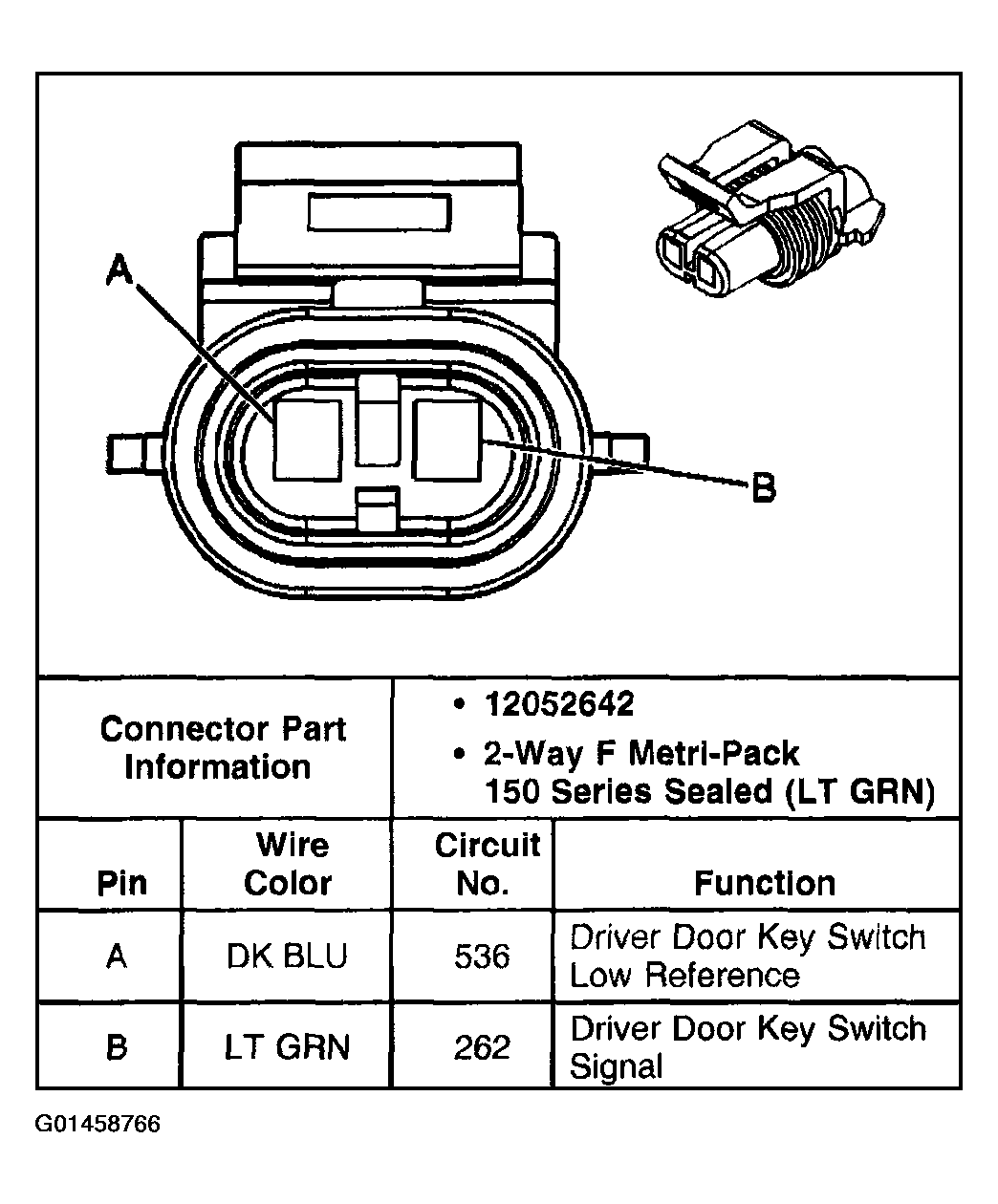

Fig 20: Identifying Mini Wedge (Door Jamb Switch) - Driver C3 Connector
G01458766Courtesy of GENERAL MOTORS CORP.

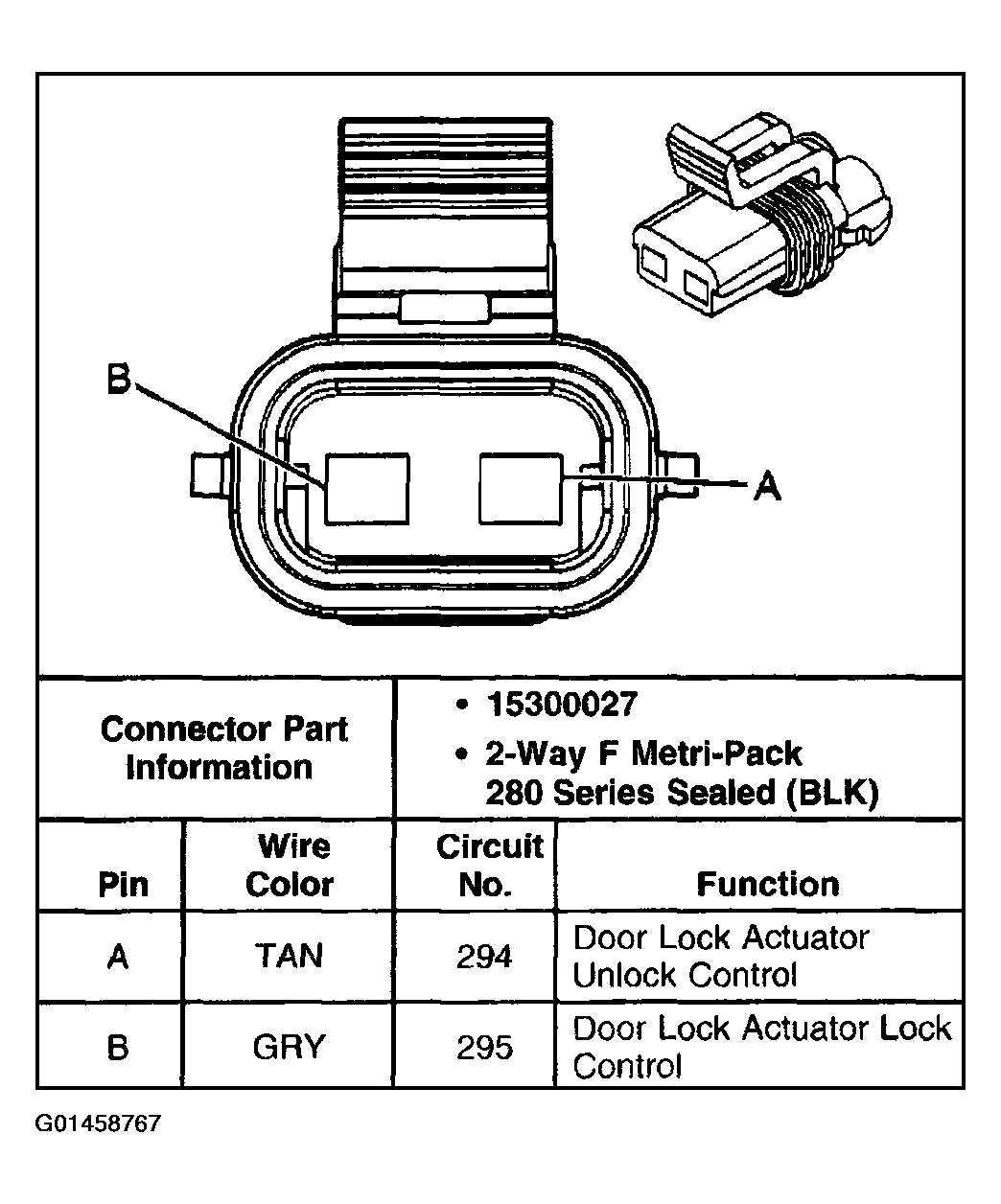

Fig 21: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger C1 Connector
G01458767Courtesy of GENERAL MOTORS CORP.

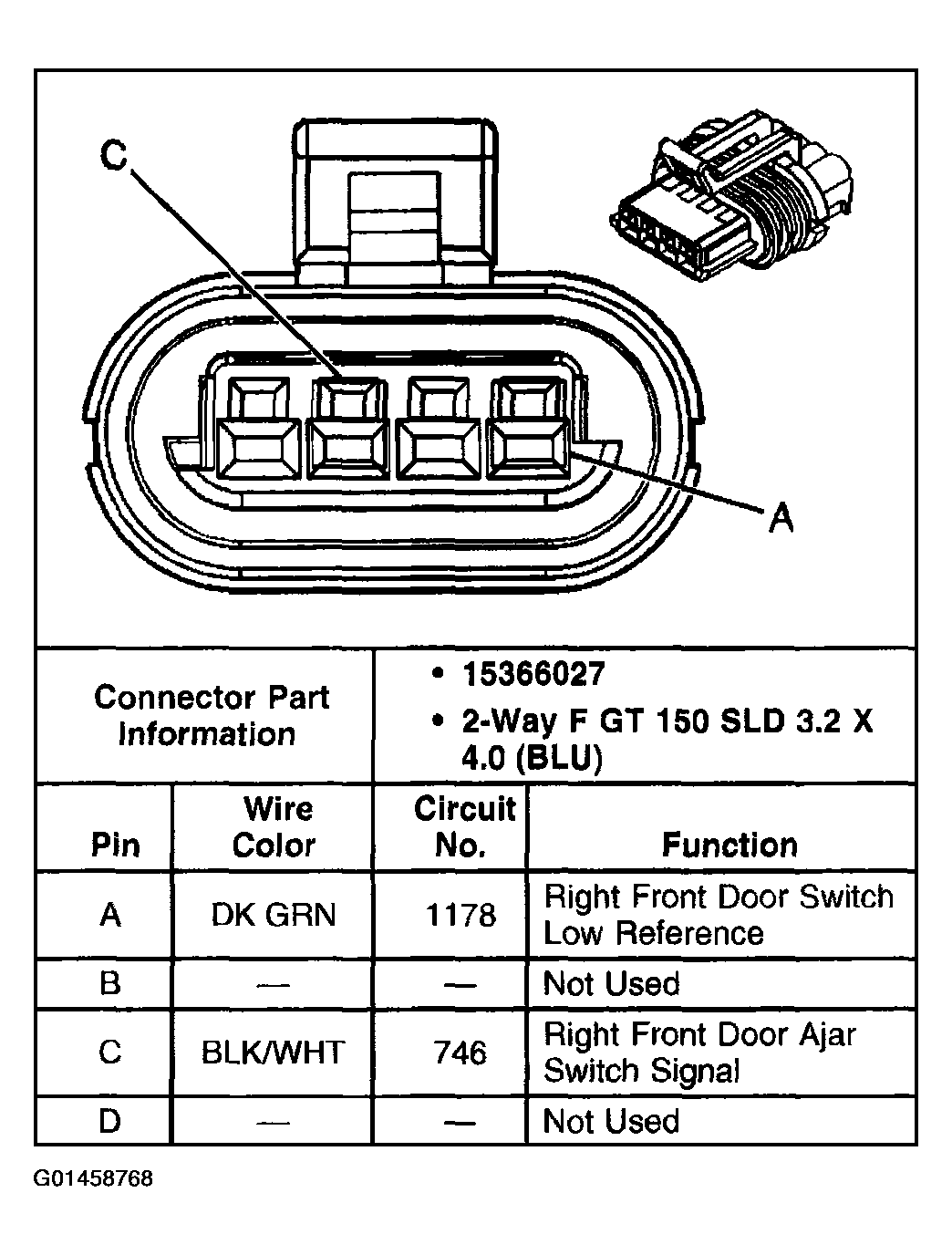

Fig 22: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger C2 Connector
G01458768Courtesy of GENERAL MOTORS CORP.

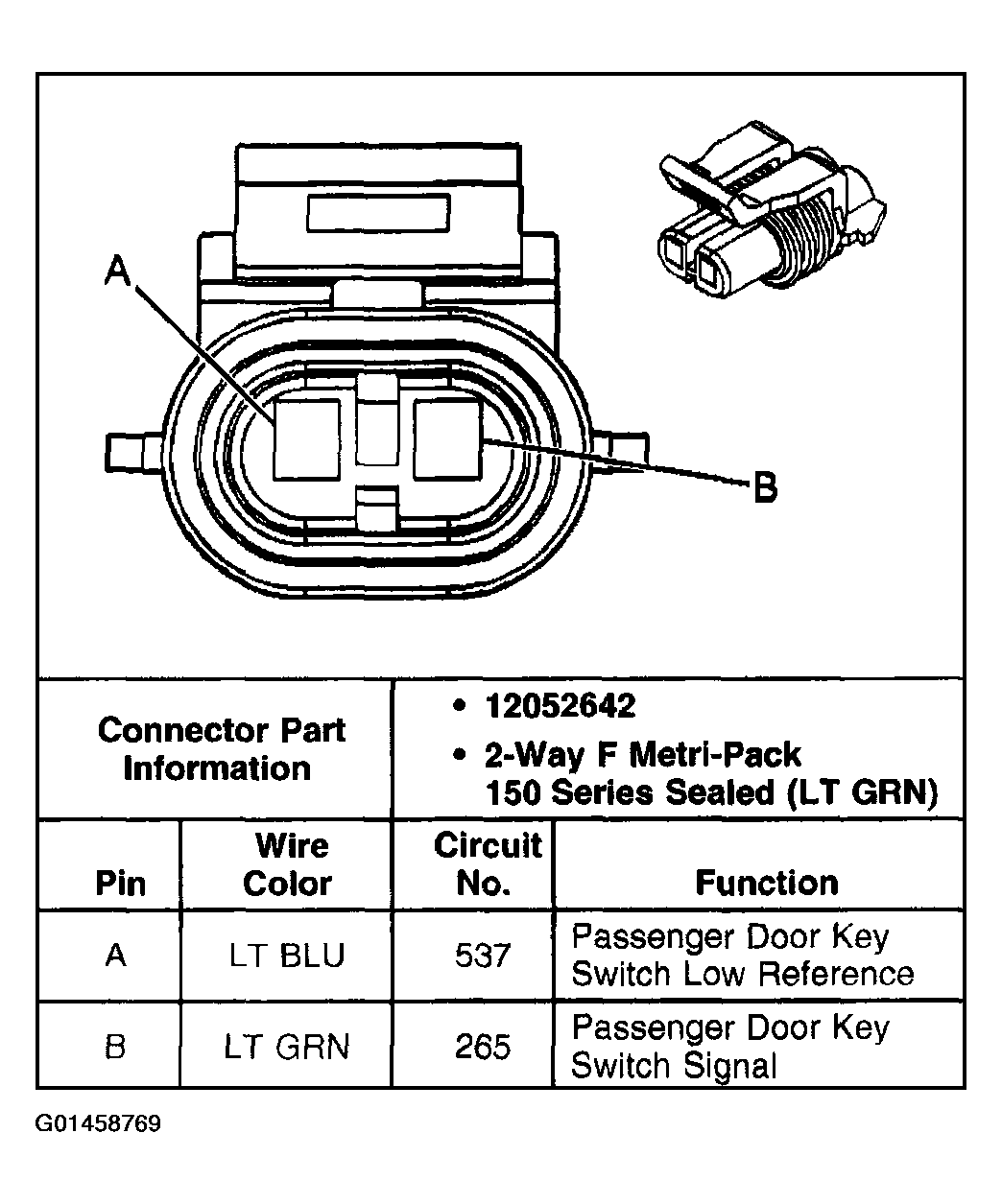

Fig 23: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger C3 Connector
G01458769Courtesy of GENERAL MOTORS CORP.

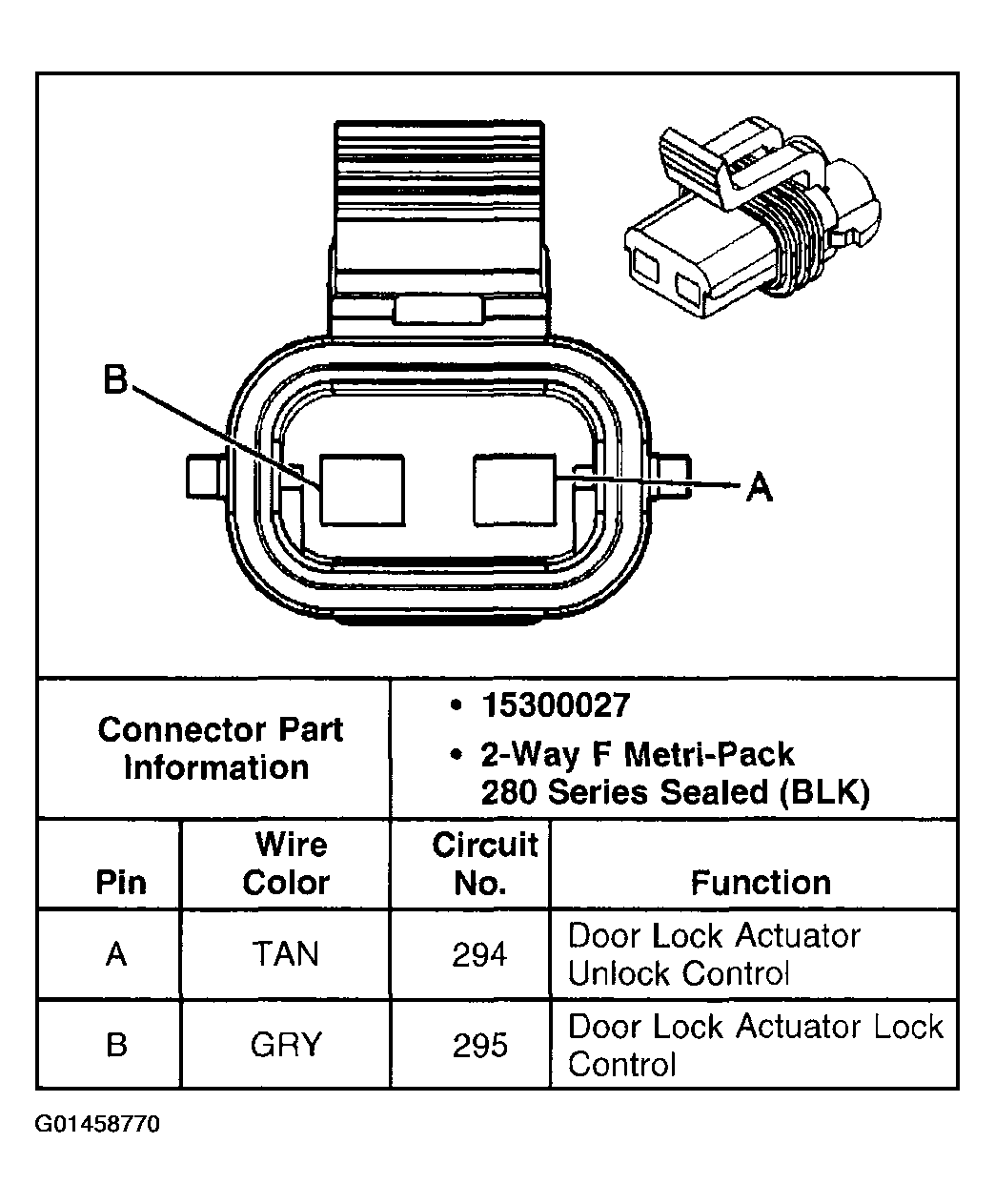

Fig 24: Identifying Mini Wedge (Door Jamb Switch) - LR C1 Connector
G01458770Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Mini Wedge (Door Jamb Switch) - LR C2 Connector
G01458771Courtesy of GENERAL MOTORS CORP.

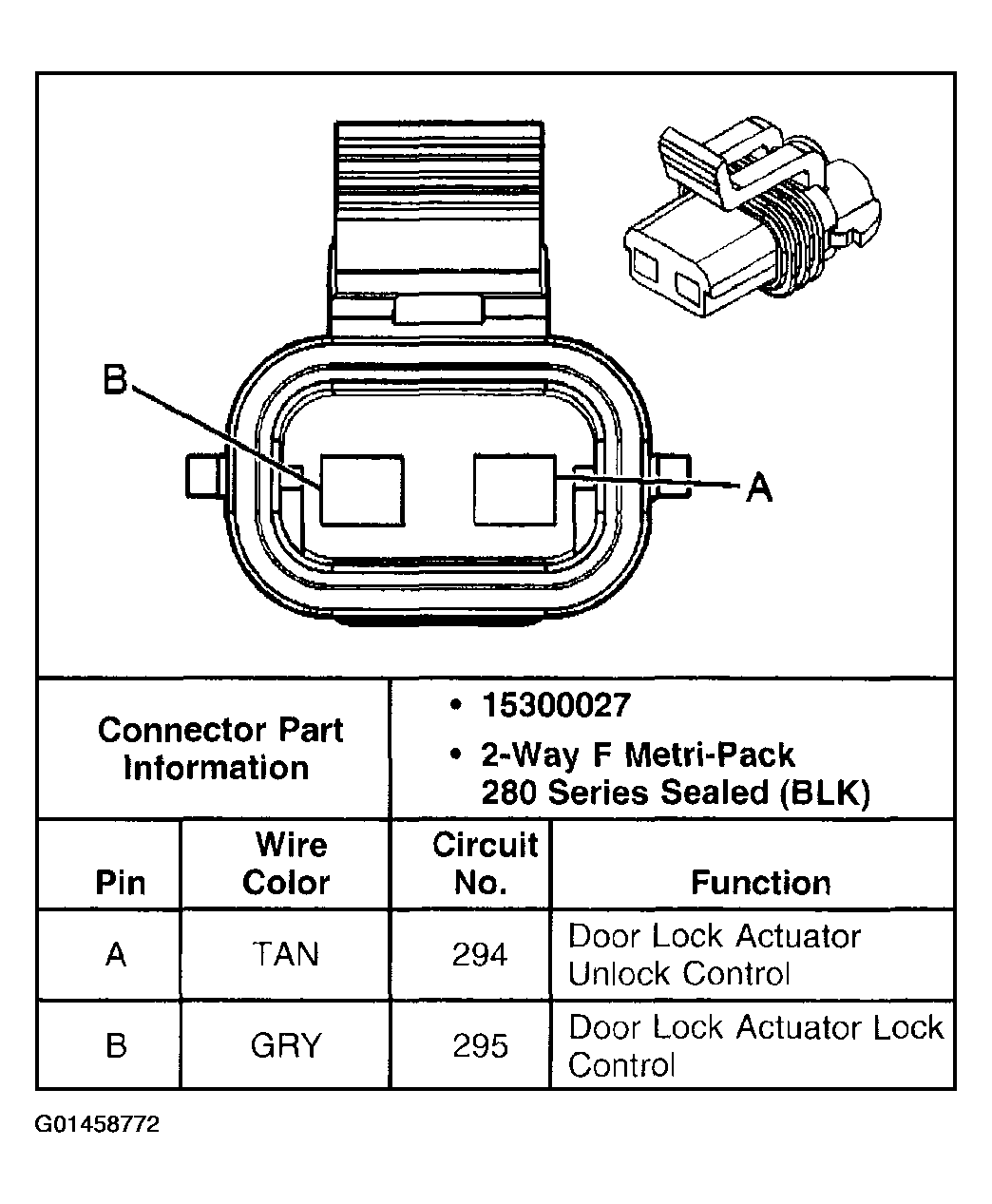

Fig 26: Identifying Mini Wedge (Door Jamb Switch) - RR C1 Connector
G01458772Courtesy of GENERAL MOTORS CORP.

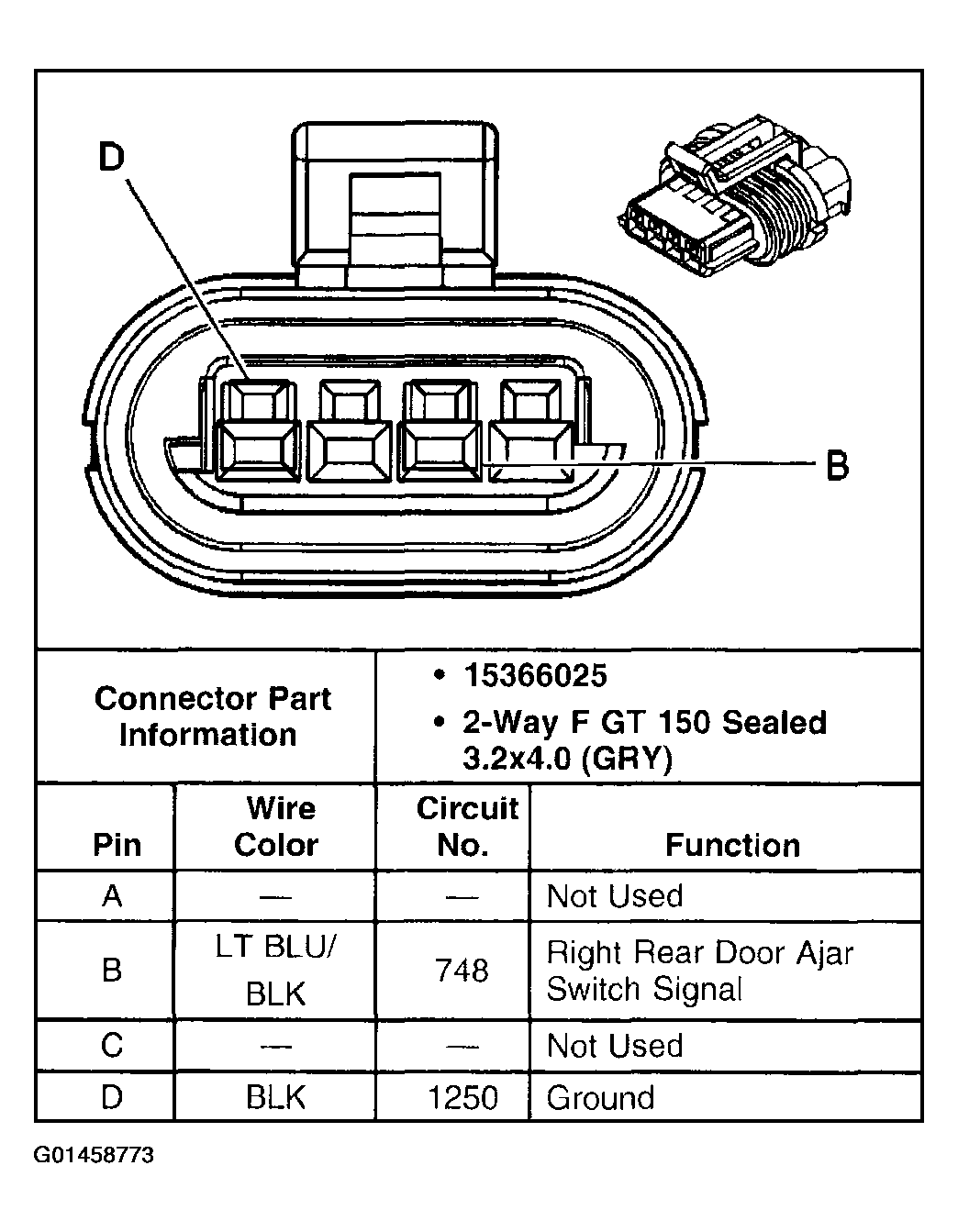

Fig 27: Identifying Mini Wedge (Door Jamb Switch) - RR C2 Connector
G01458773Courtesy of GENERAL MOTORS CORP.

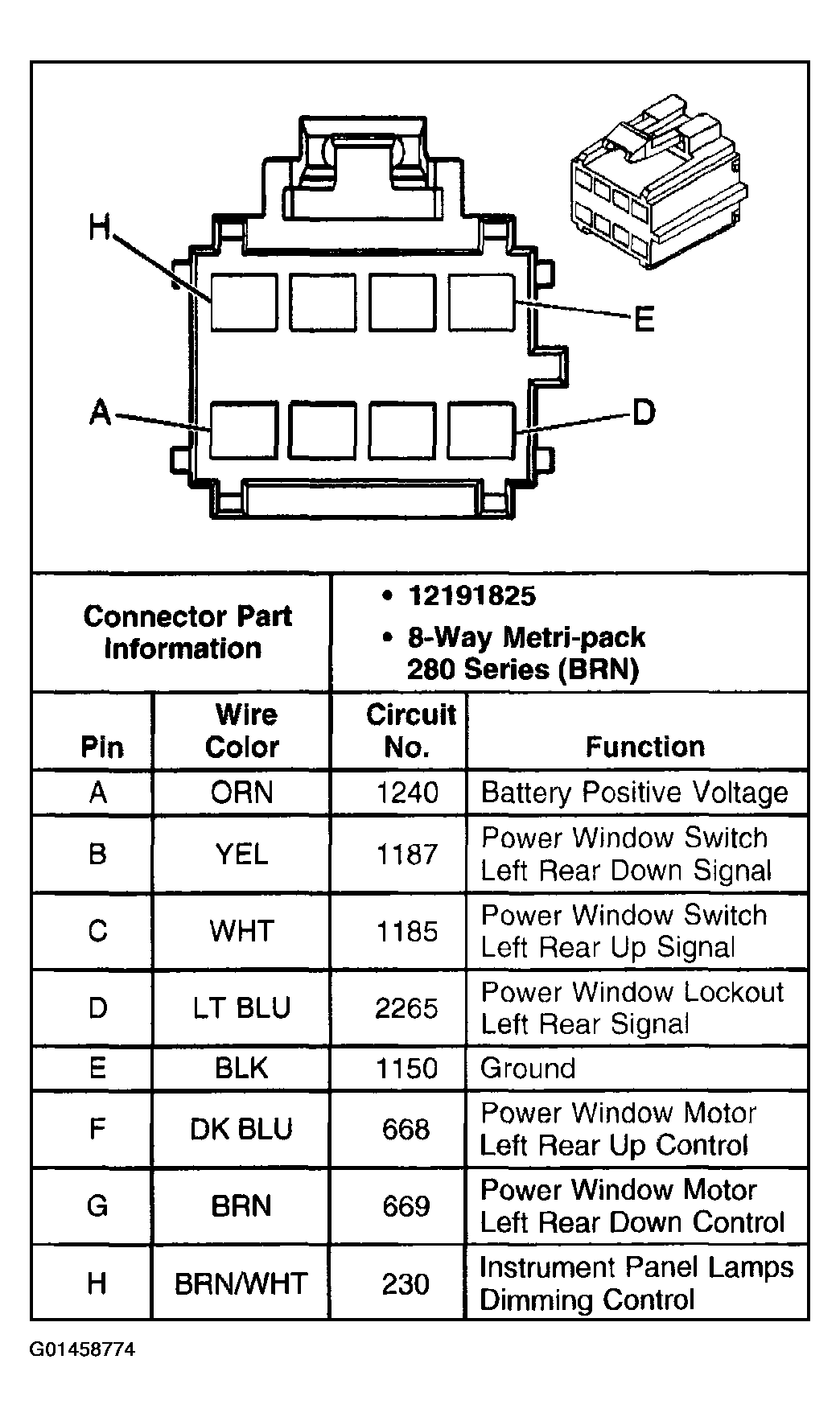

Fig 28: Identifying Window Switch - LR Connector
G01458774Courtesy of GENERAL MOTORS CORP.

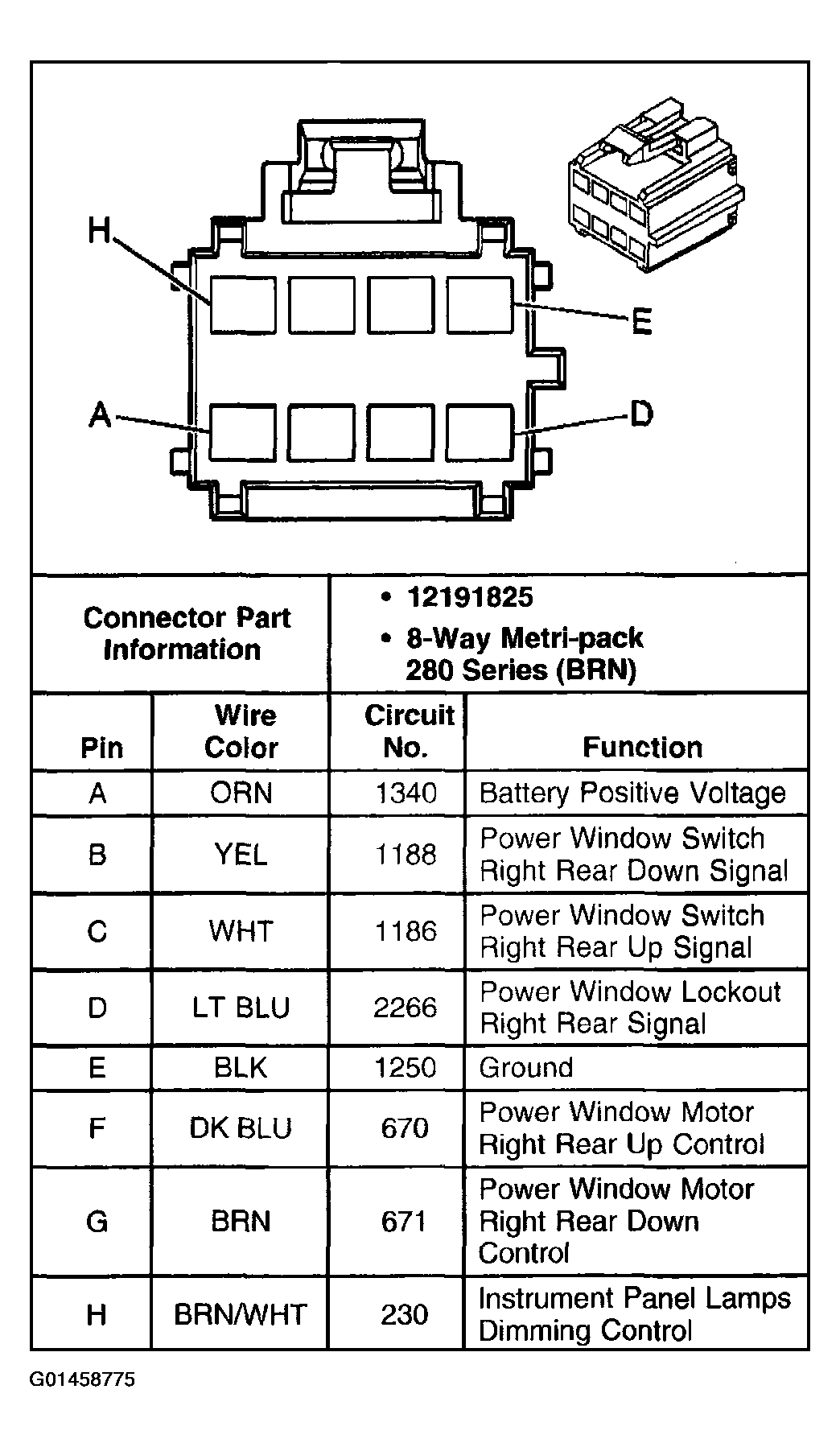

Fig 29: Identifying Window Switch - RR Connector
G01458775Courtesy of GENERAL MOTORS CORP.

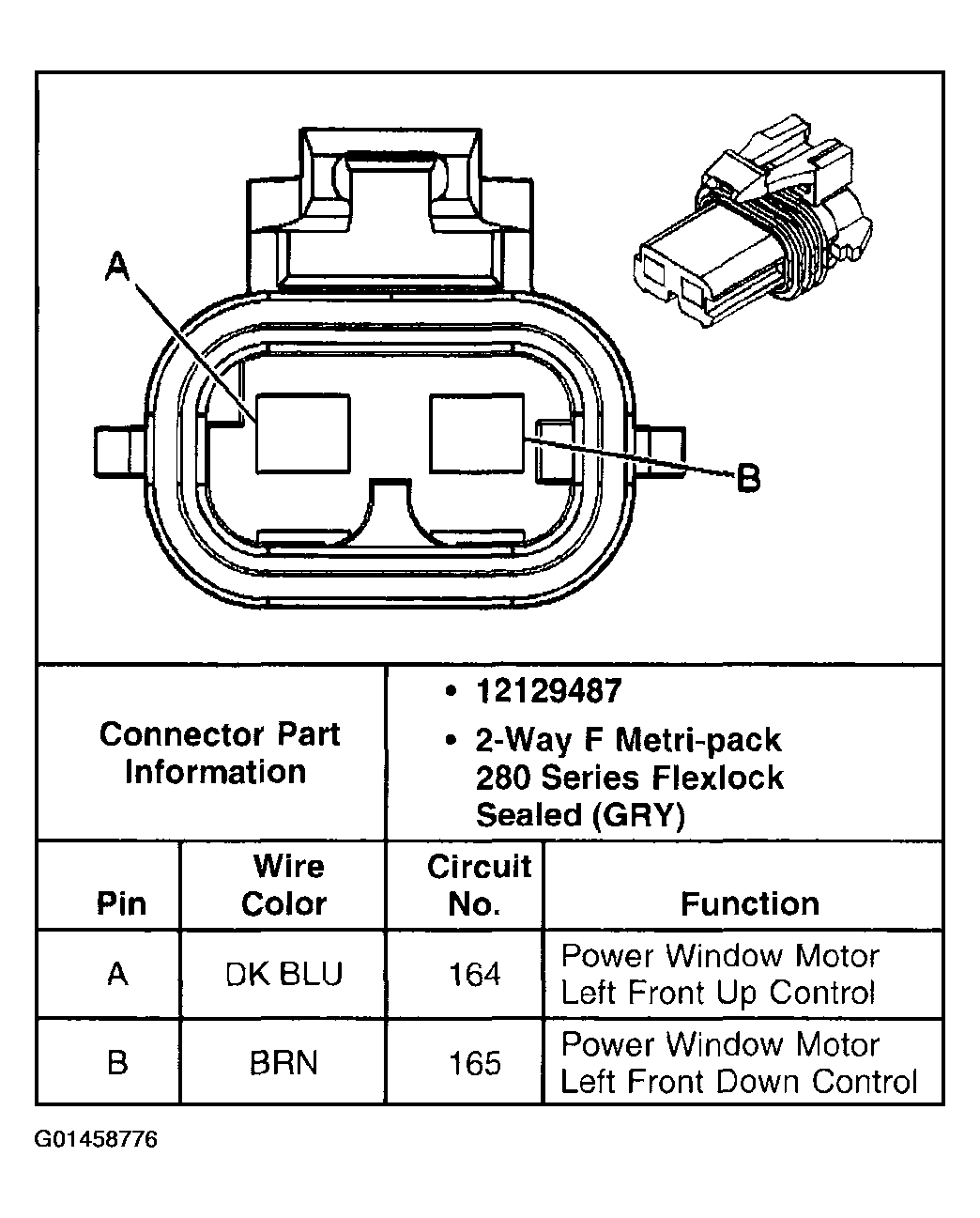

Fig 30: Identifying Window Motor - Driver Connector
G01458776Courtesy of GENERAL MOTORS CORP.

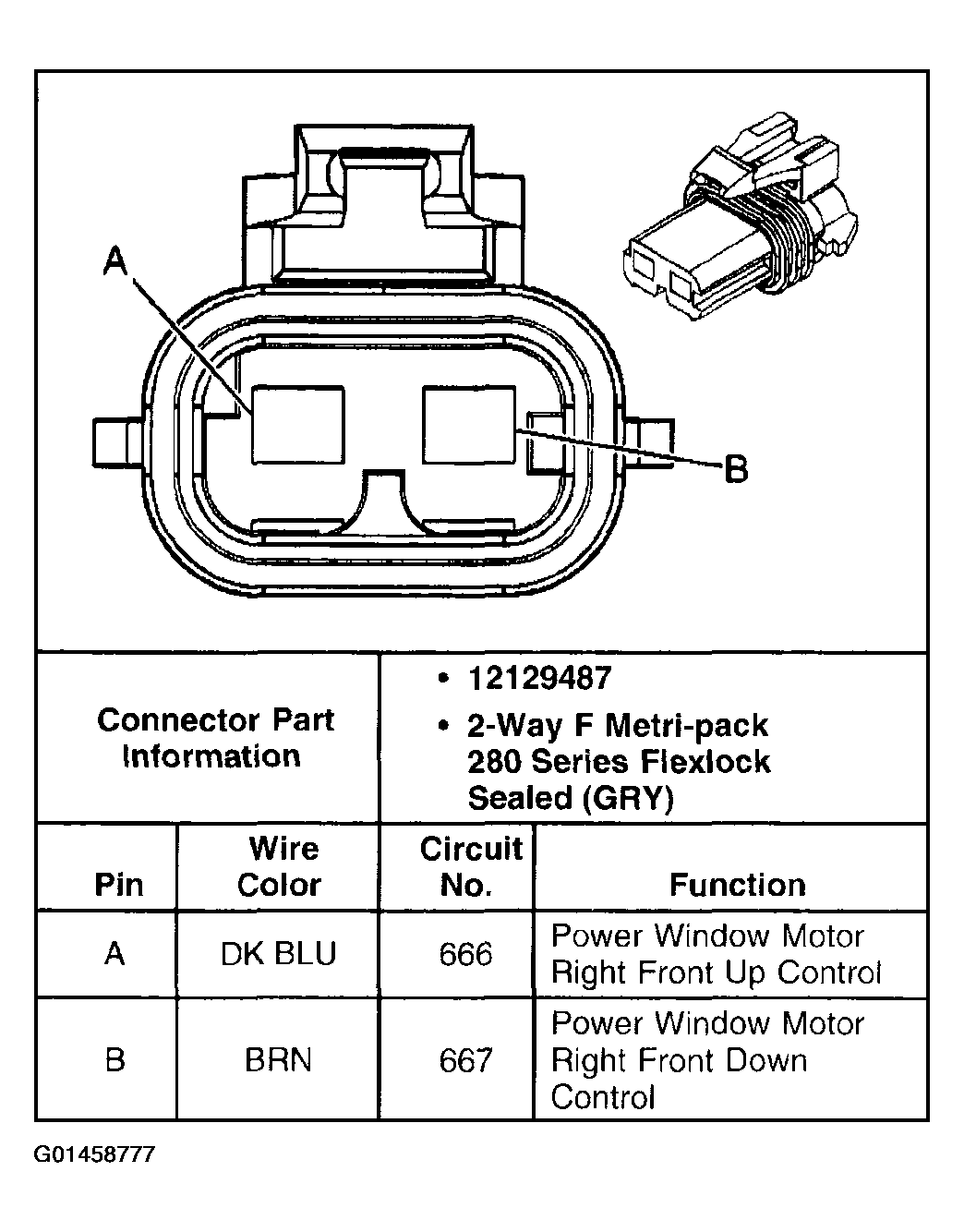

Fig 31: Identifying Window Motor - Front Passenger Connector
G01458777Courtesy of GENERAL MOTORS CORP.

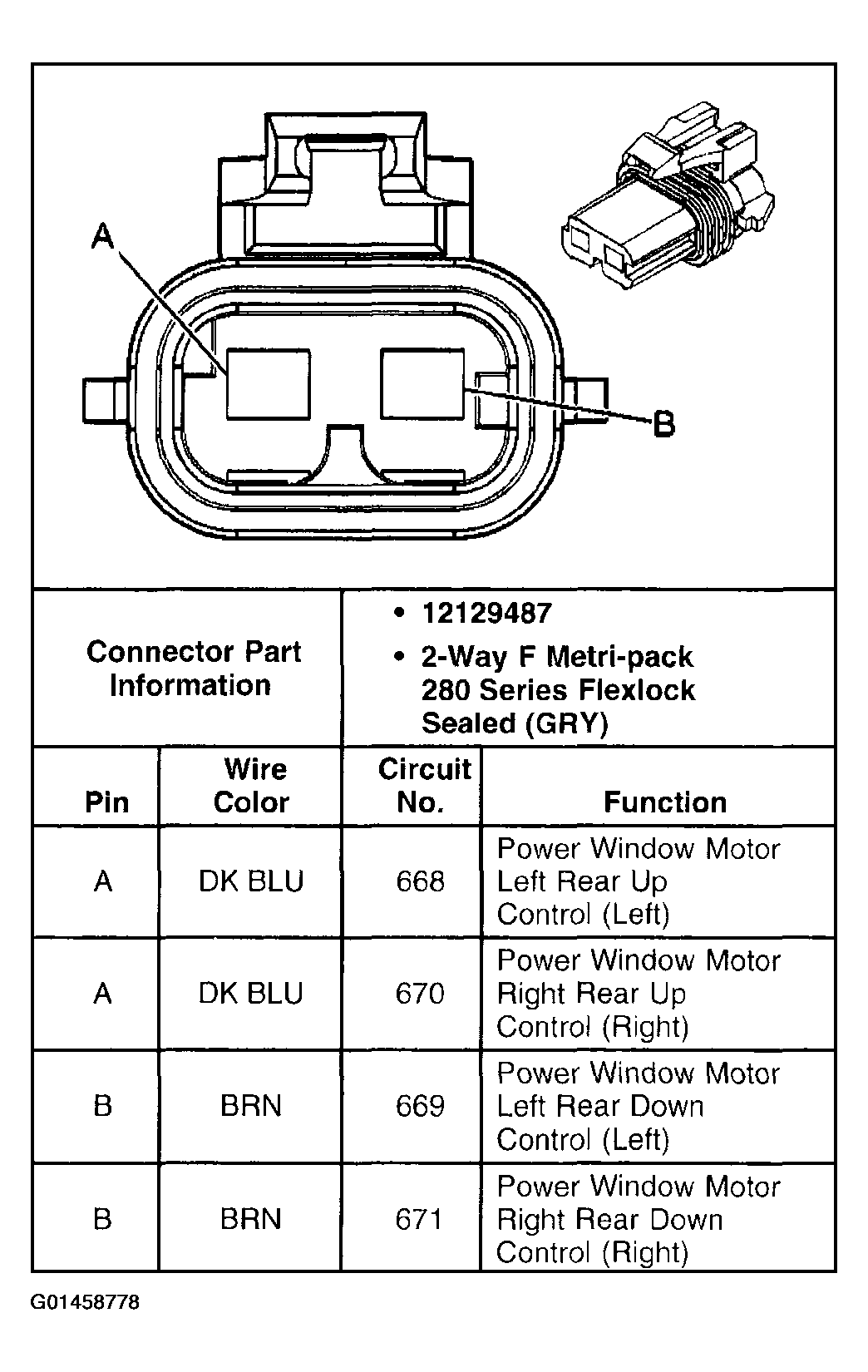

Fig 32: Identifying Window Motor - LR/RR Connector
G01458778Courtesy of GENERAL MOTORS CORP.
