Door Control Module Wiring Schematics (Power, Ground, and Class 2)

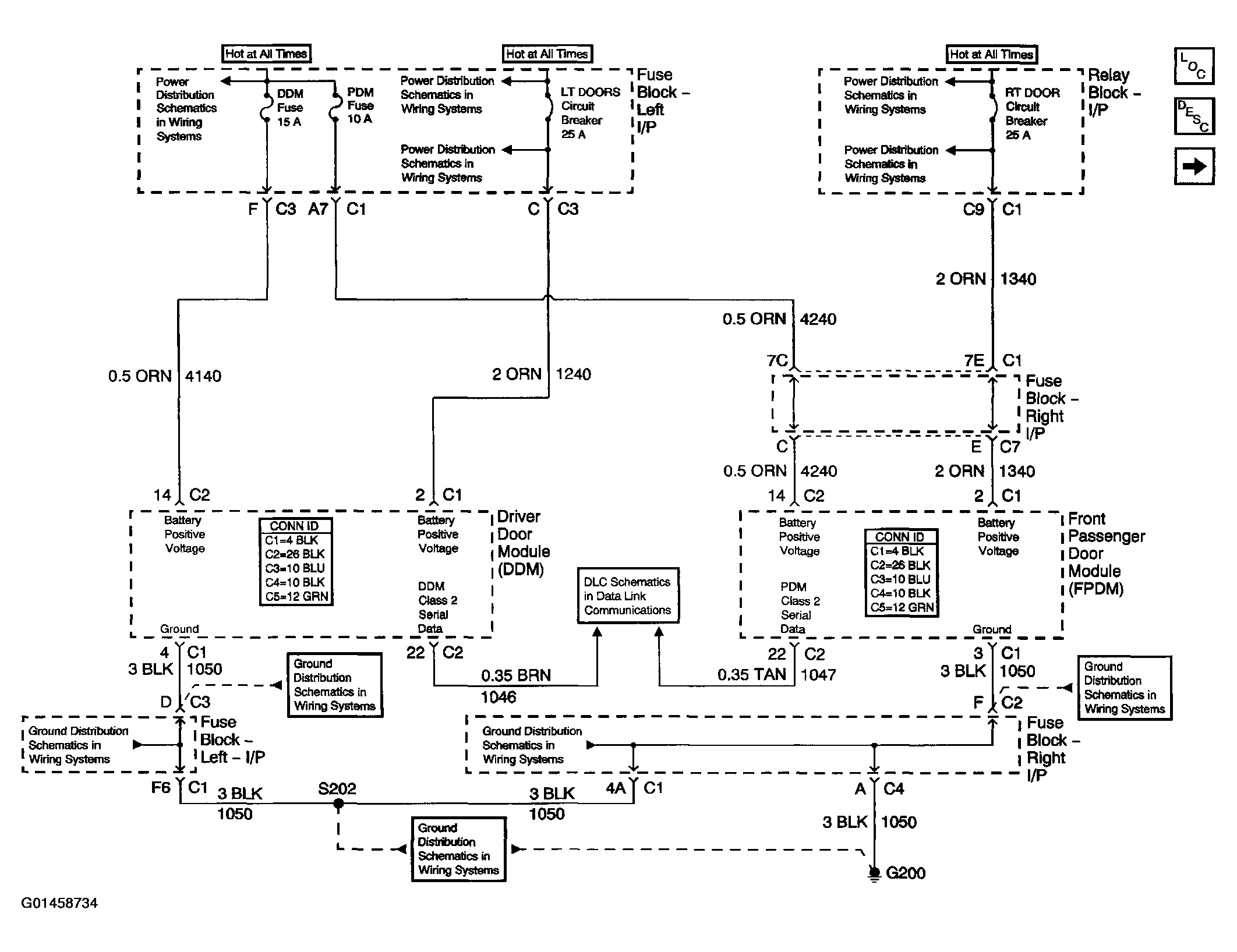

Fig 1: Door Control Module Schematics (Power, Ground, And Class 2)

Courtesy of GENERAL MOTORS CORP.

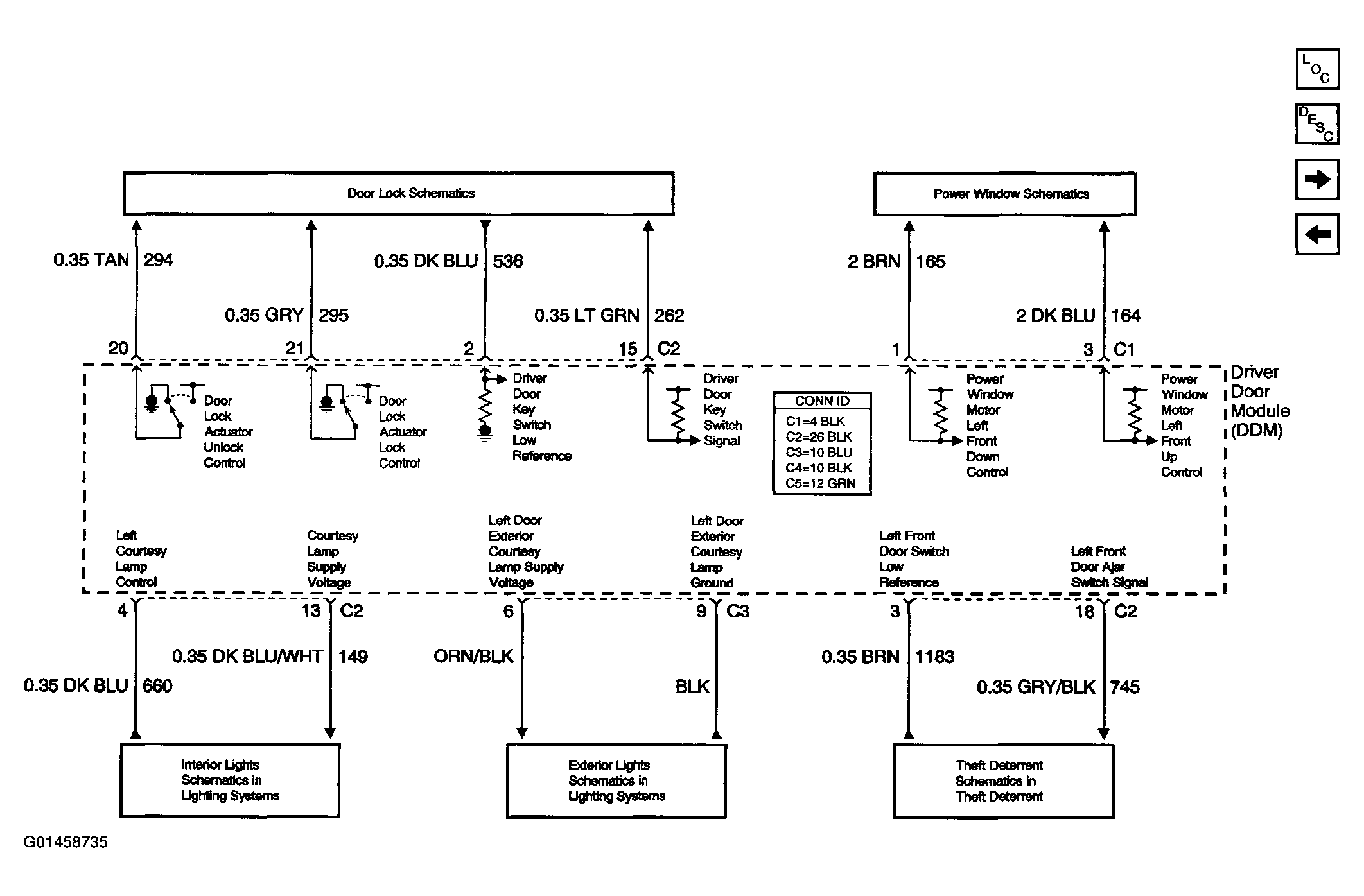

Fig 2: Door Control Module Schematics (Driver Door Module (DDM) References - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

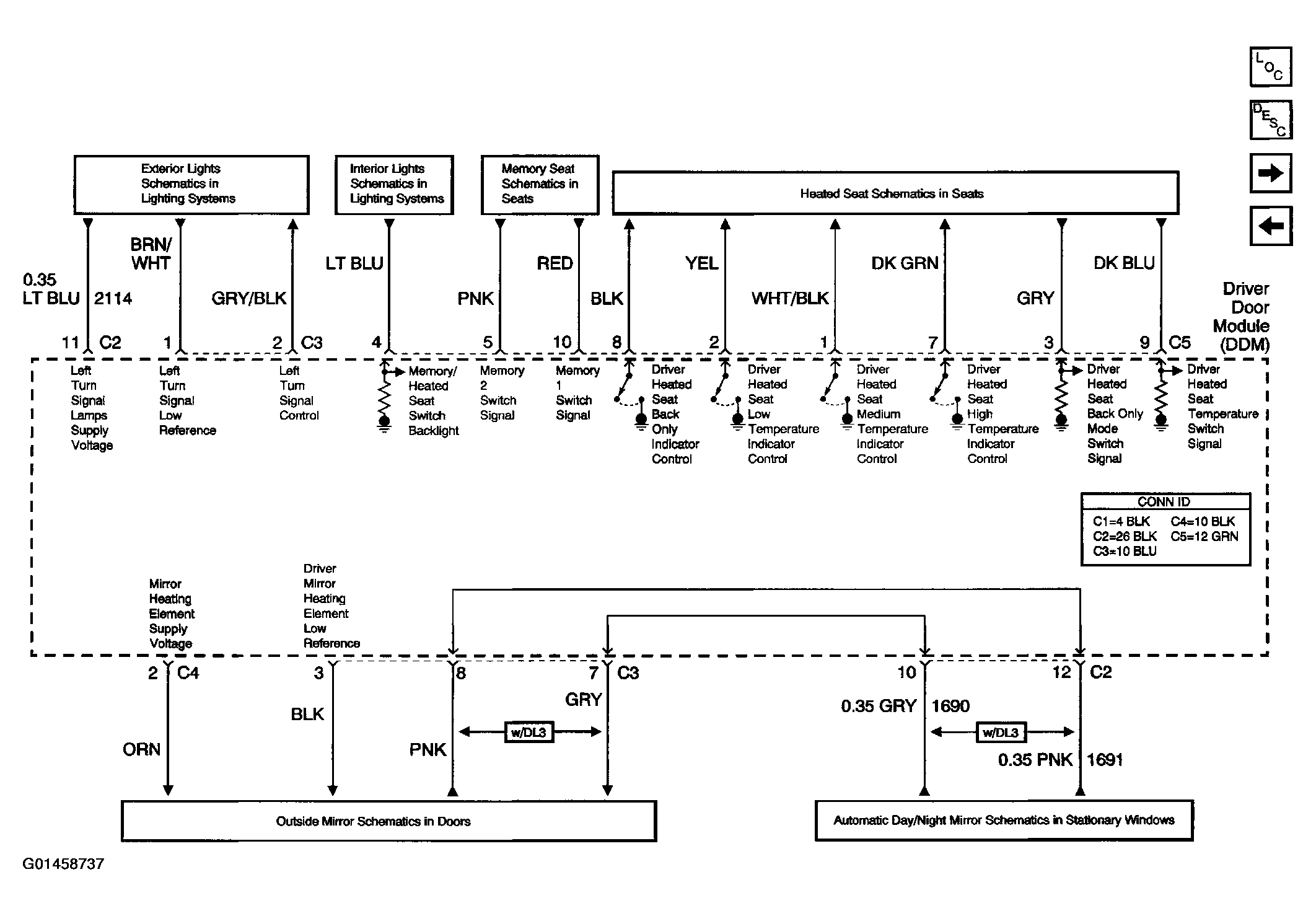

Fig 3: Door Control Module Schematics (Driver Door Module (DDM) References - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

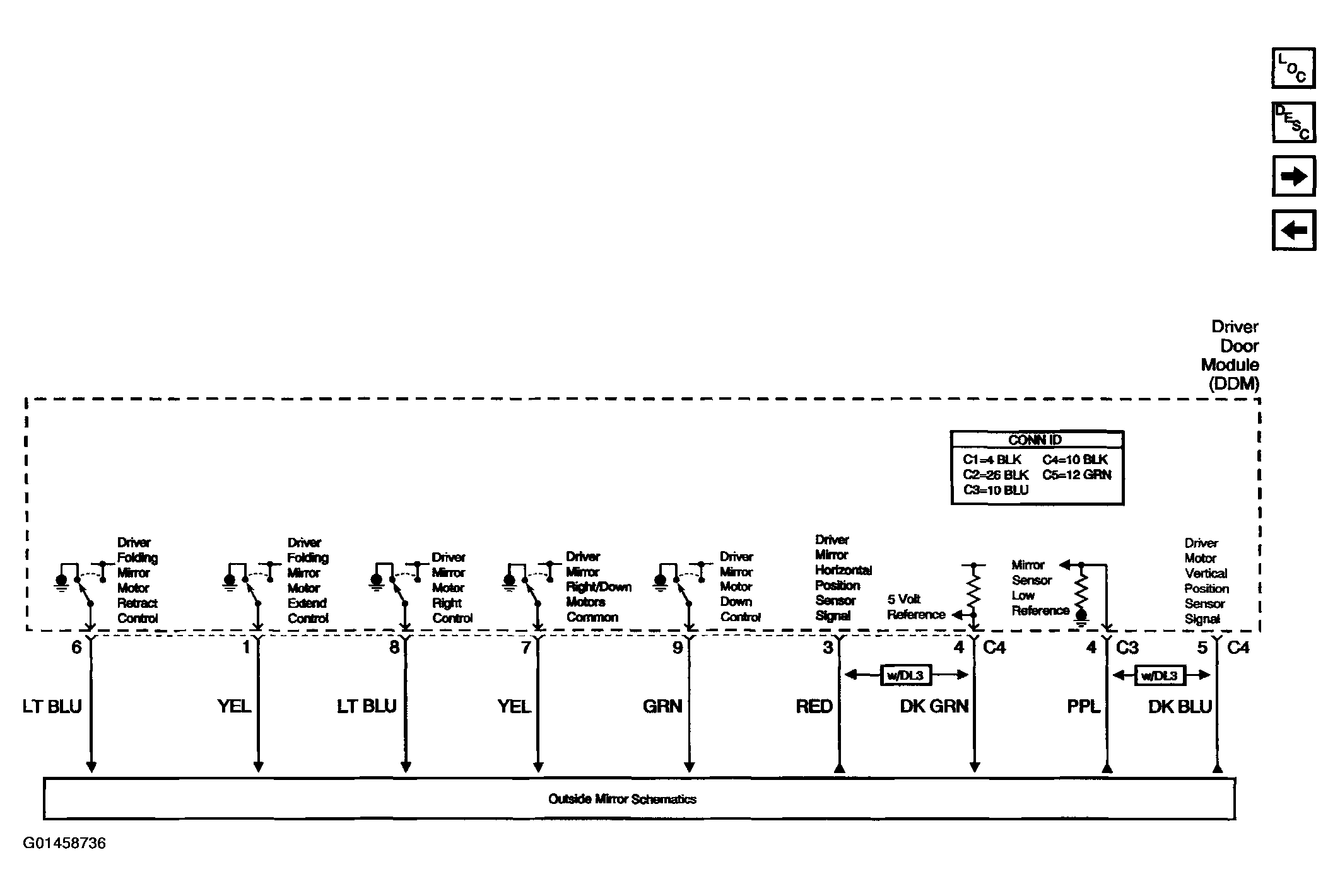

Fig 4: Door Control Module Schematics (Driver Door Module (DDM) References - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

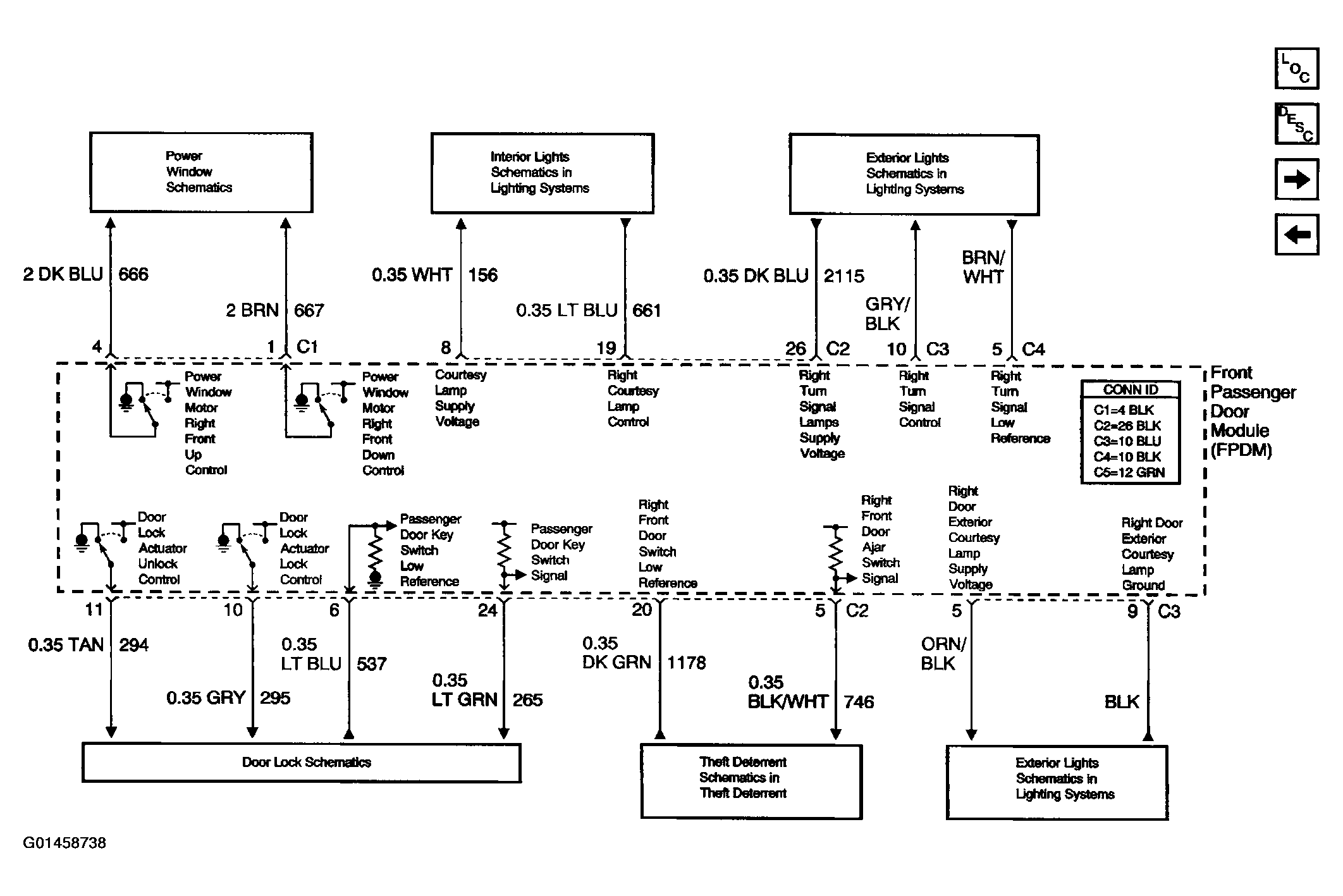

Fig 5: Door Control Module Schematics (Front Passenger Door Module (FPDM) References - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

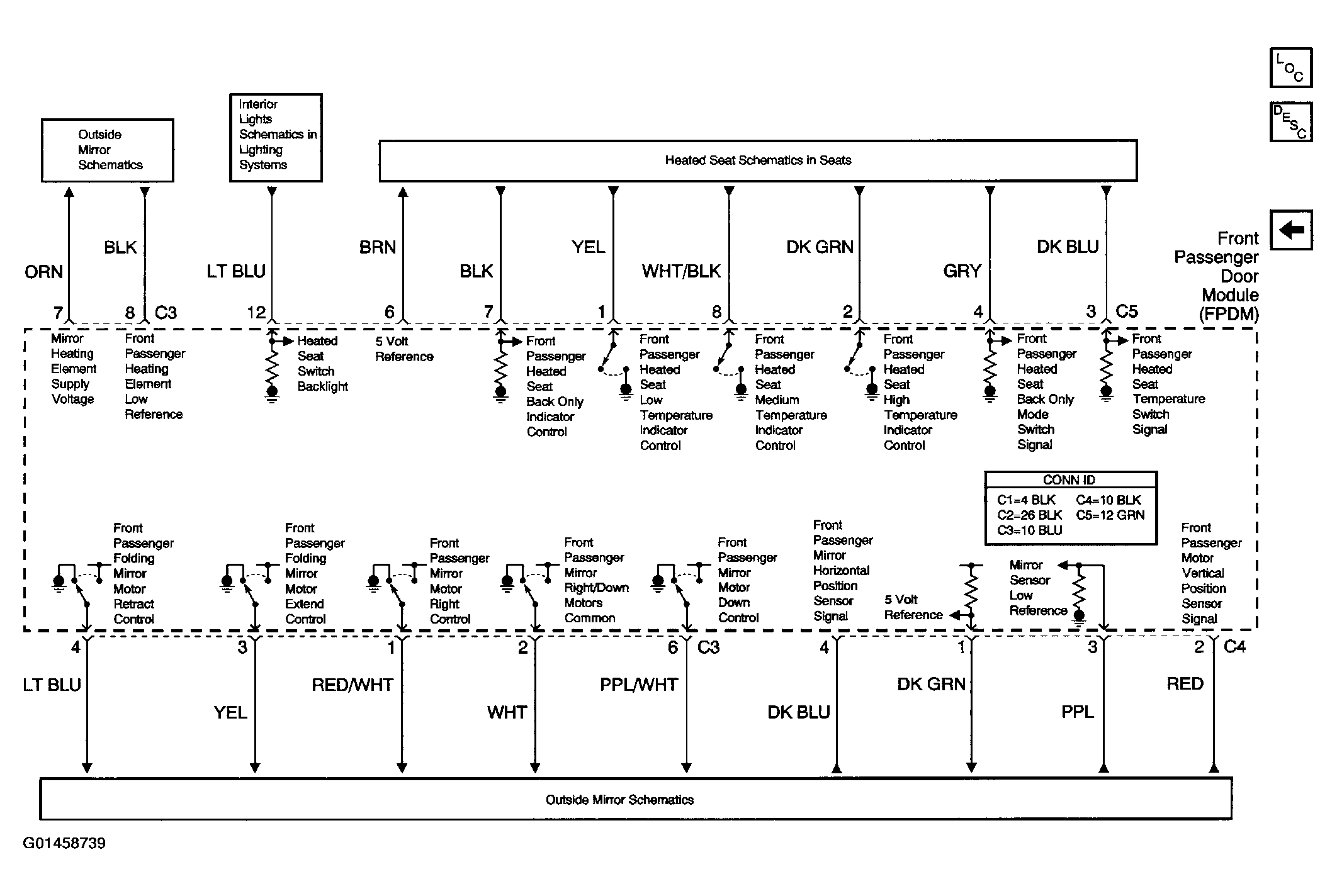

Fig 6: Door Control Module Schematics (Front Passenger Door Module (FPDM) References - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.
