Memory Seat Module - Driver C3 Connector End View (2 Of 2)

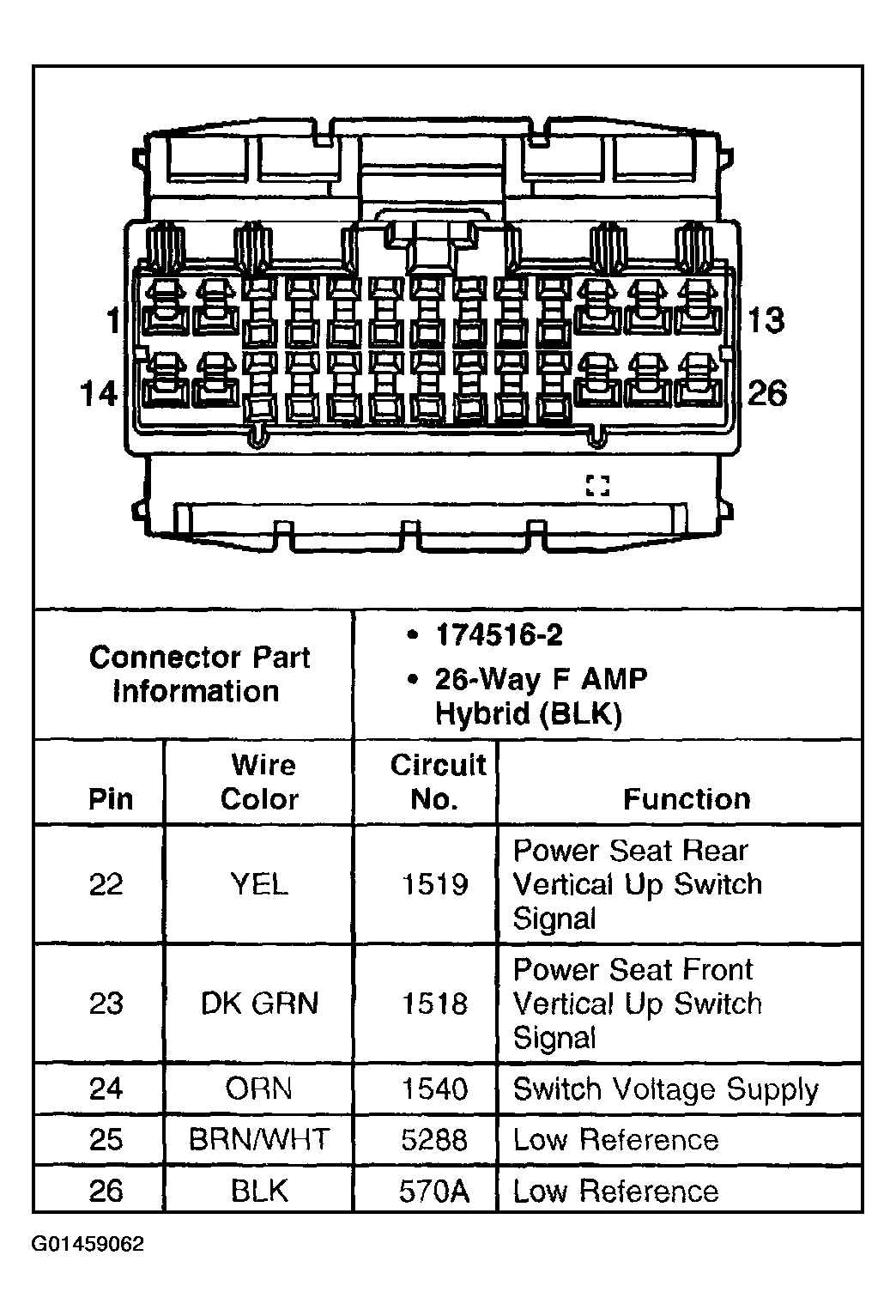

Fig 1: Memory Seat Module - Driver C3 Connector End View (2 Of 2)
G01459062Courtesy of GENERAL MOTORS CORP.
