Cooling System Component Views

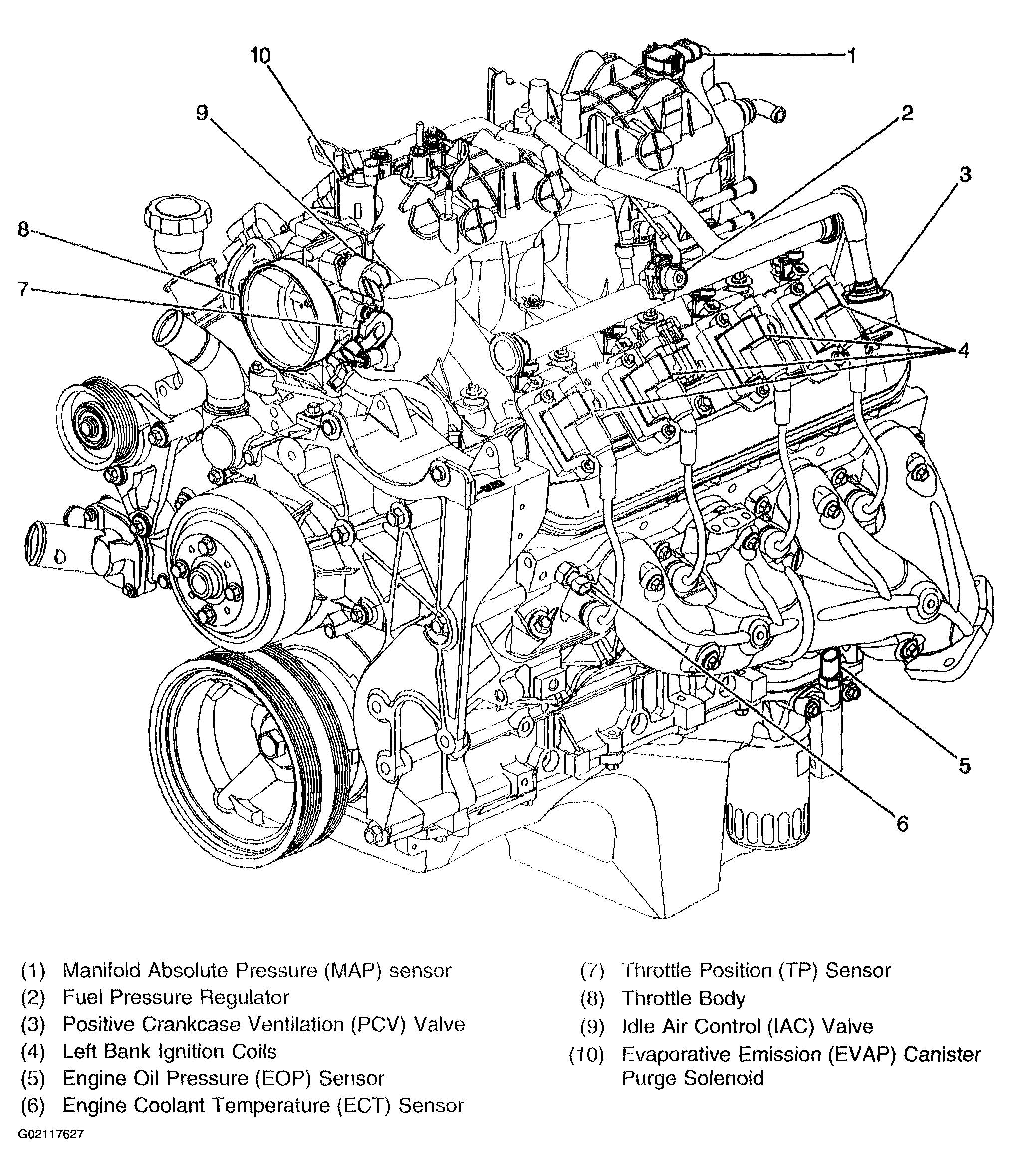

Fig 1: Locating Engine Components (4.8L/5.3L/6.0L) (Left Side)
G02117627Courtesy of GENERAL MOTORS CORP.

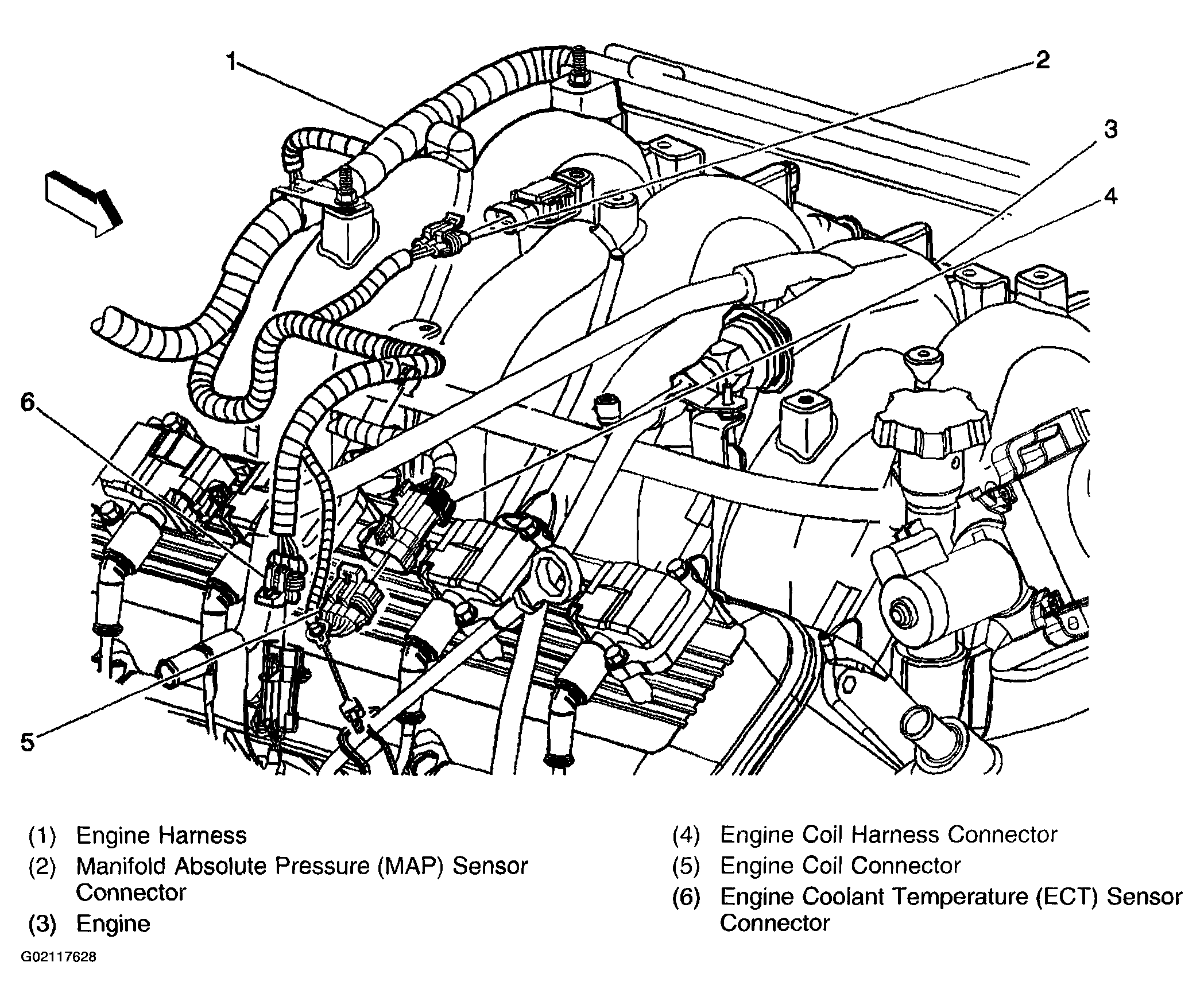

Fig 2: Locating Engine Components (8.1L) (Upper Right)
G02117628Courtesy of GENERAL MOTORS CORP.
