Air Temperature Sensor Assembly Connector End View - Inside

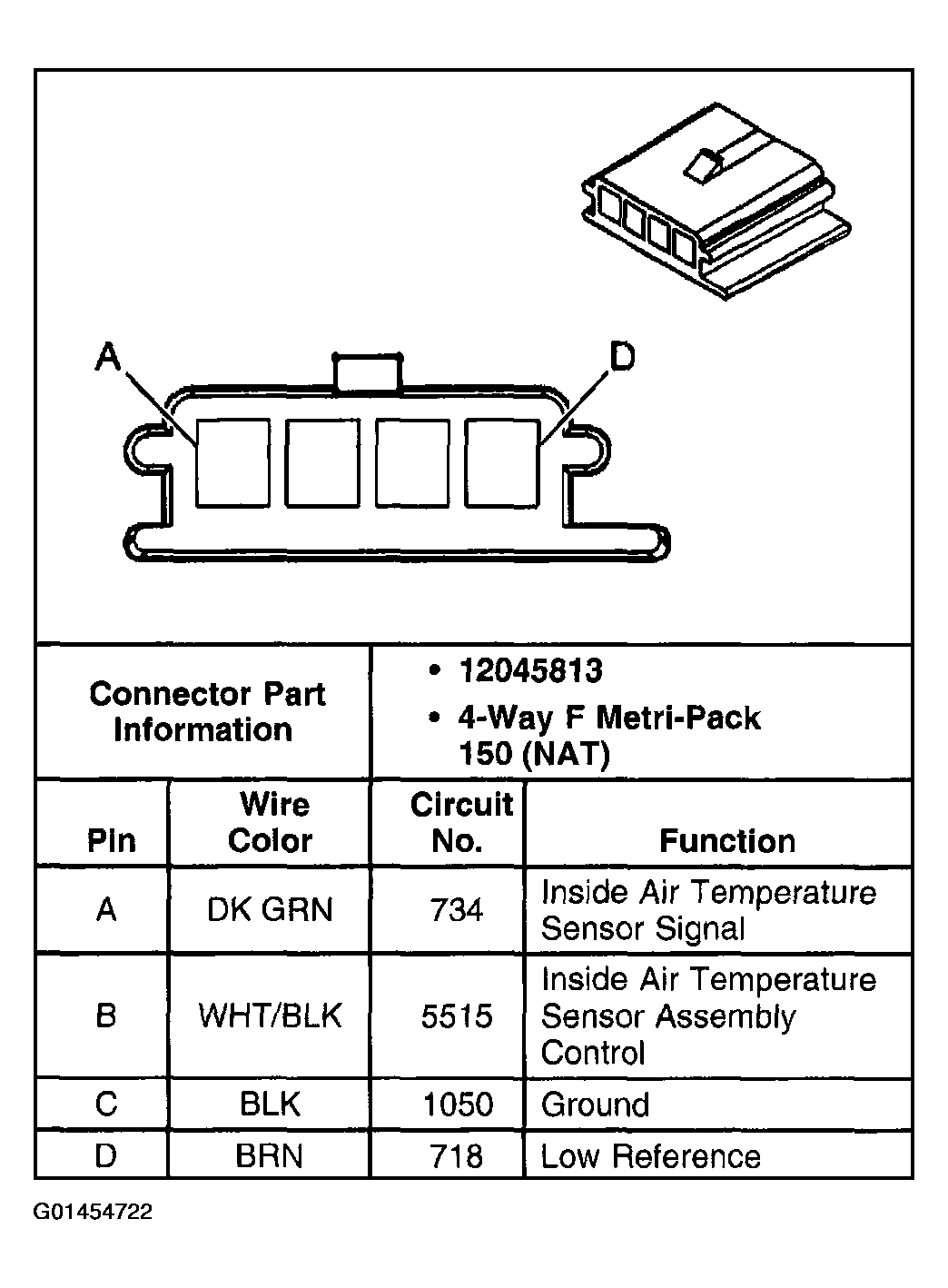

Fig 1: Air Temperature Sensor Assembly Connector End View - Inside
G01454722Courtesy of GENERAL MOTORS CORP.
