Body Control Module (BCM) - C2 Connector End View (2 Of 2)

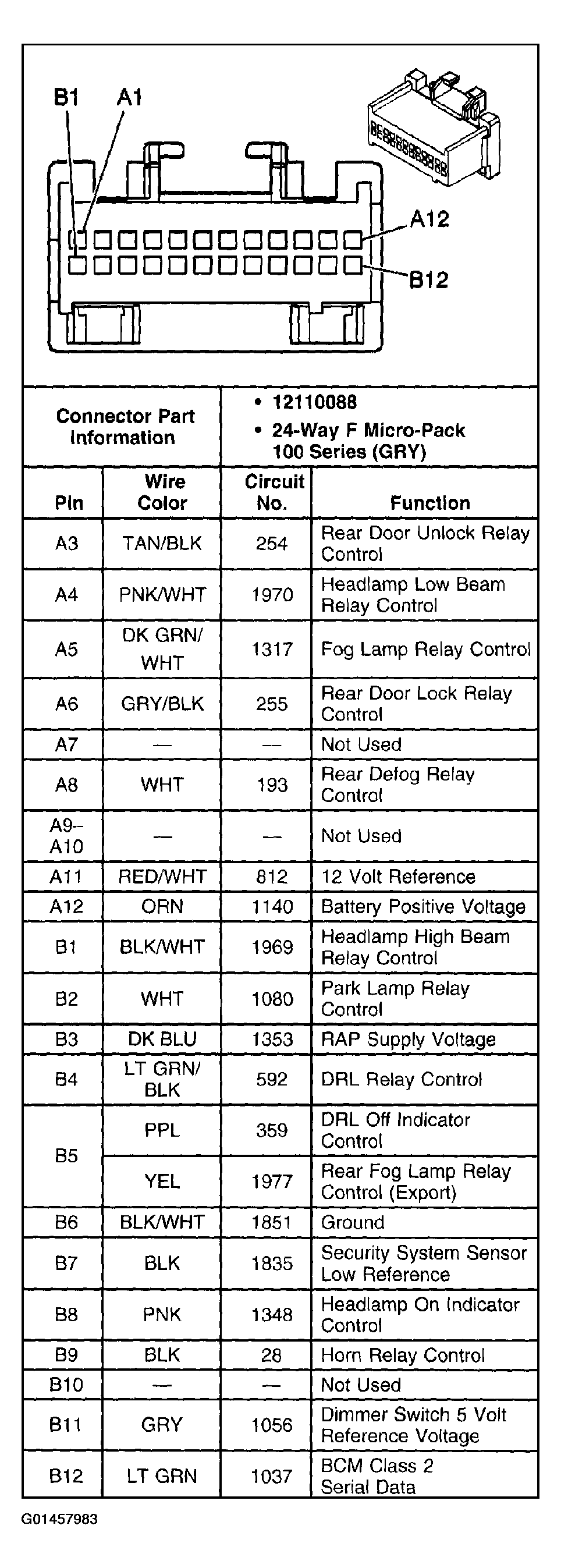

Fig 1: Body Control Module (BCM) - C2 Connector End View (2 Of 2)
G01457983Courtesy of GENERAL MOTORS CORP.
