Electronic Brake Control Module (EBCM) (w/JL4) Connector End View (2 Of 2)

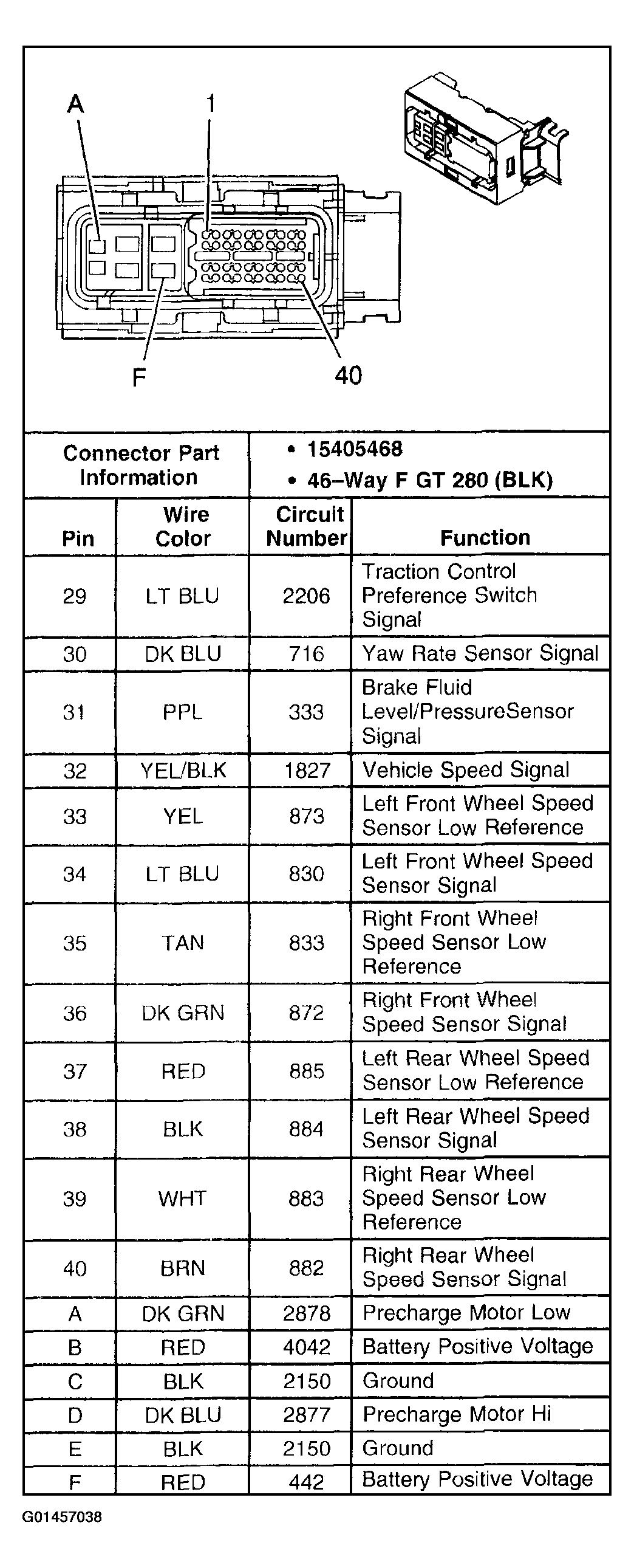

Fig 1: Electronic Brake Control Module (EBCM) (w/JL4) Connector End View (2 Of 2)
G01457038Courtesy of GENERAL MOTORS CORP.
