Engine Oil Level Switch Connector End View & Functions - 8.1L

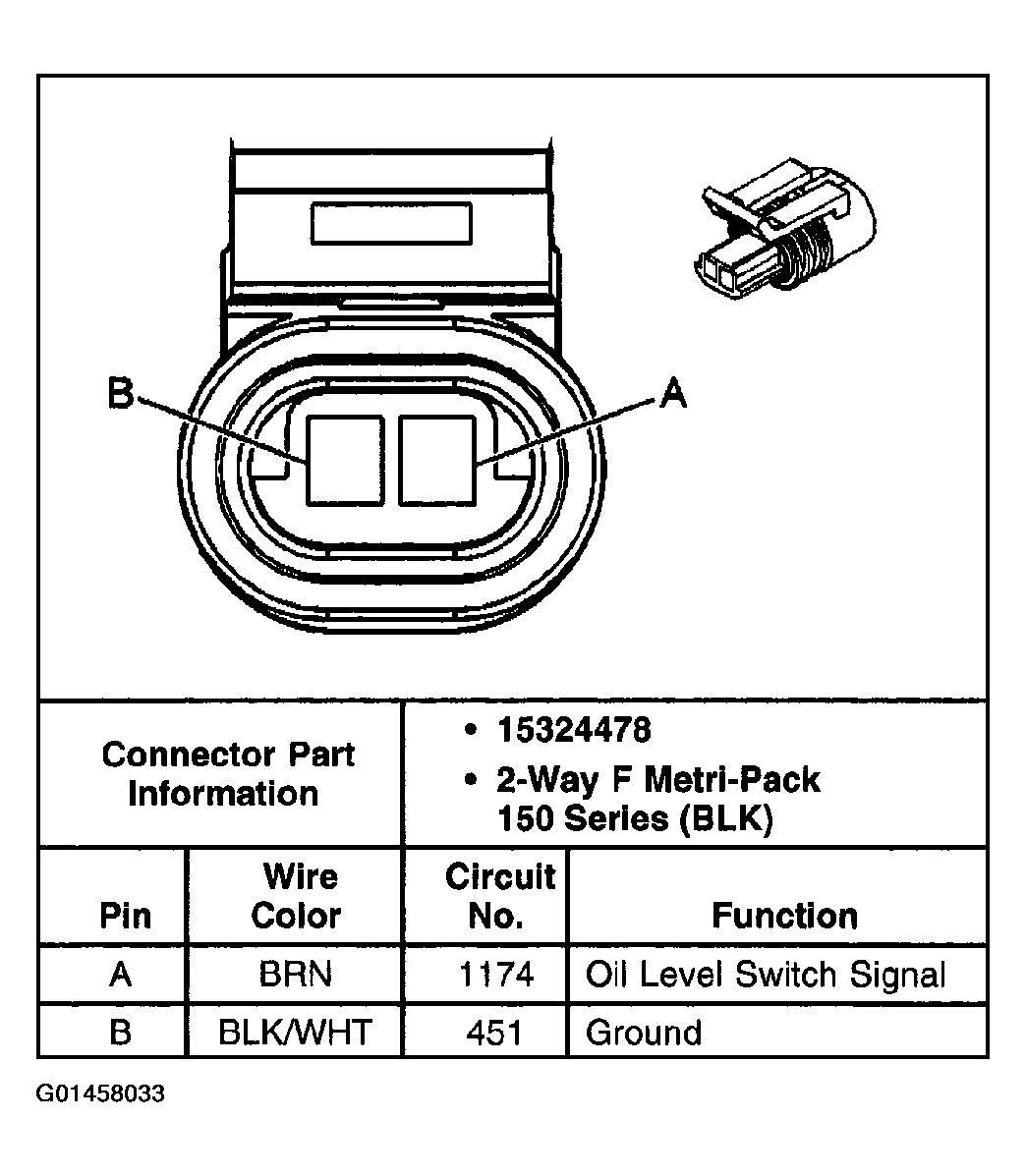

Fig 1: Engine Oil Level Switch Connector End View & Functions - 8.1L
G01458033Courtesy of GENERAL MOTORS CORP.
