Engine Oil Pressure Sensor Connector End View & Functions

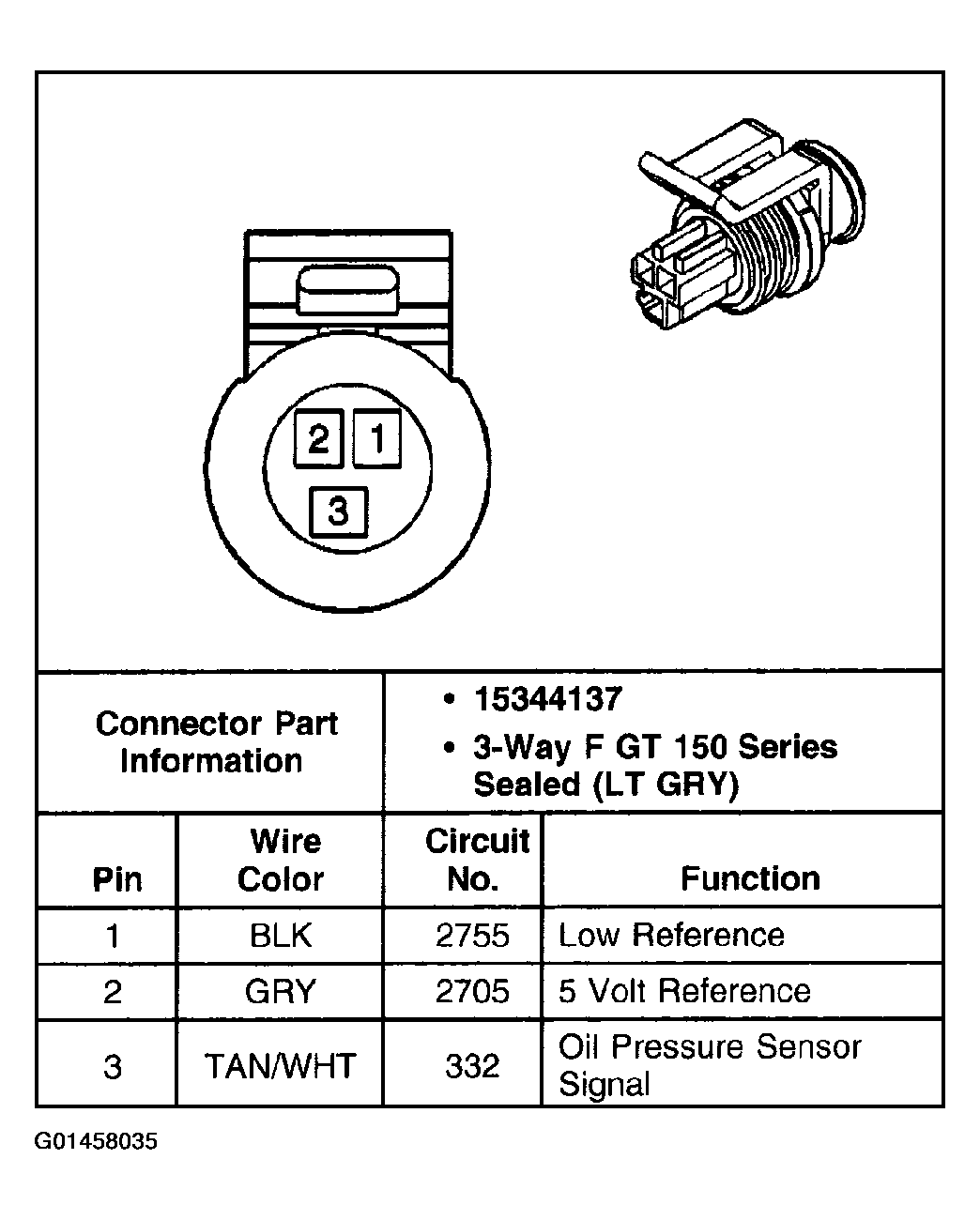

Fig 1: Engine Oil Pressure Sensor Connector End View & Functions
G01458035Courtesy of GENERAL MOTORS CORP.
