Fuel Pump/Sender Assembly (Primary) Connector End View & Functions - Suburban/Yukon Xl/Avalanche/Escalade EXT

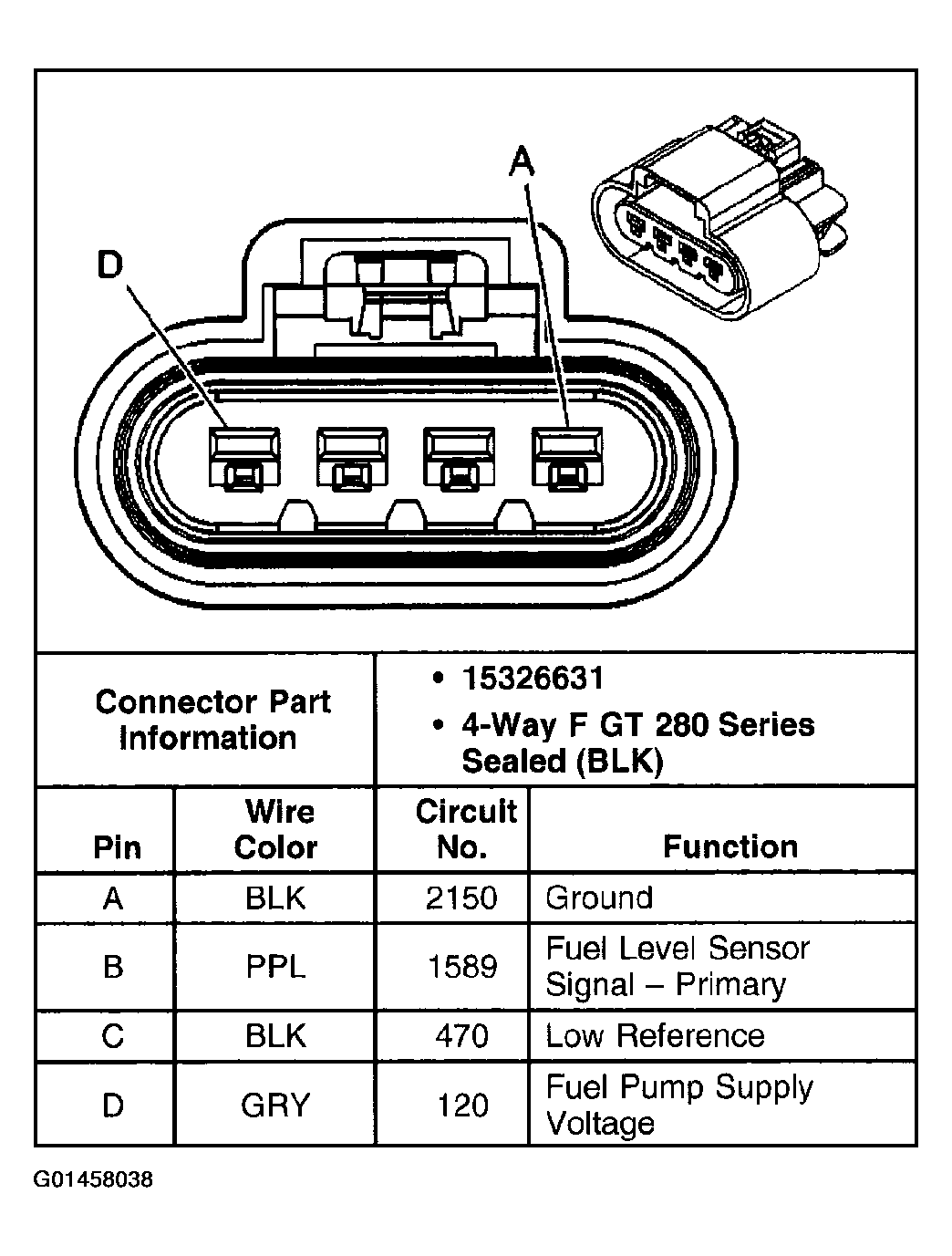

Fig 1: Fuel Pump/Sender Assembly (Primary) Connector End View & Functions - Suburban/Yukon Xl/Avalanche/Escalade EXT
G01458038Courtesy of GENERAL MOTORS CORP.
