Passlock Sensor Connector End View

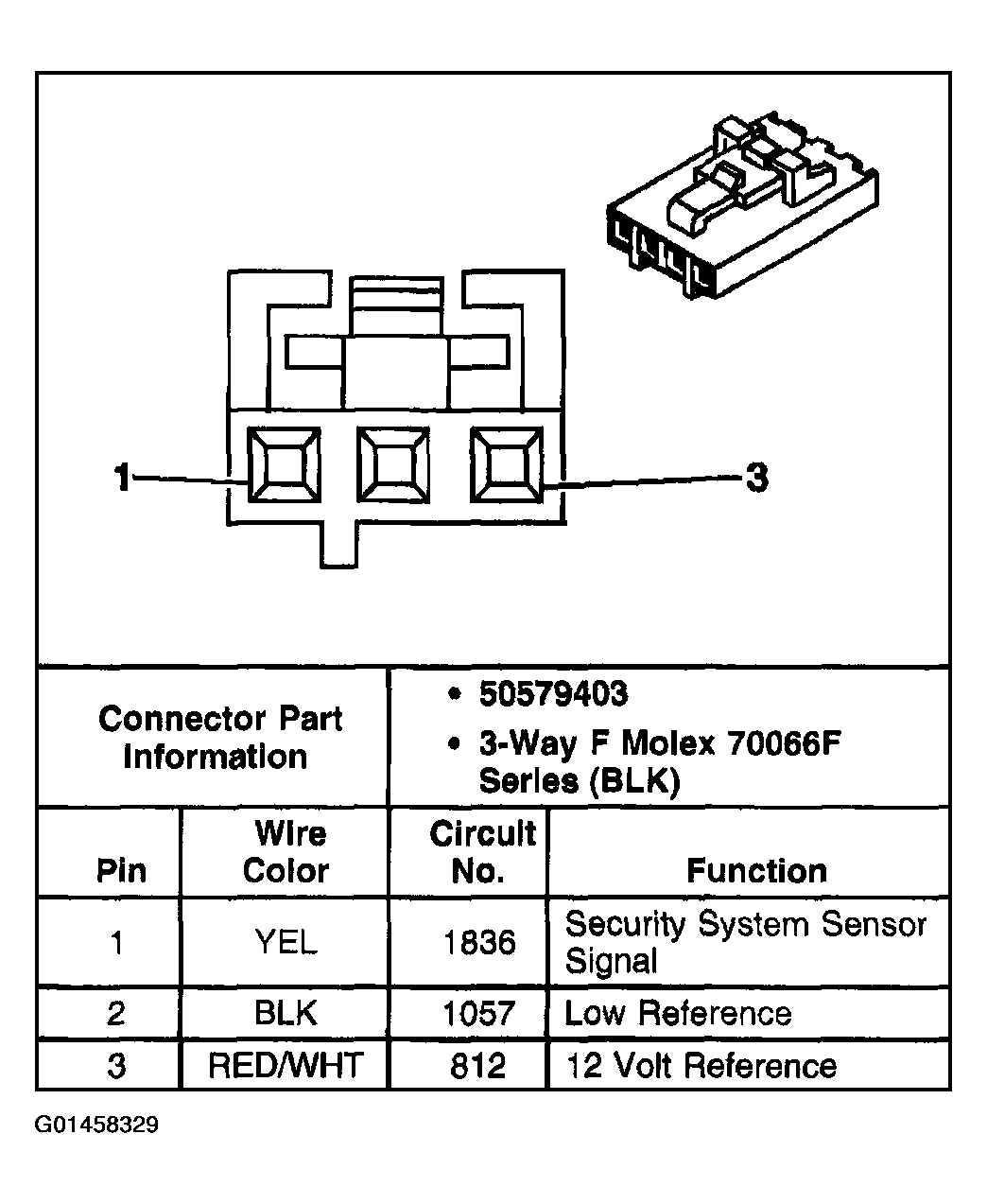

Fig 1: Passlock Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
