Installation Procedure

  1. Position the steering wheel control switch to the steering wheel.
  2. Connect the electrical connector to the steering wheel control switch.
  3. Install the steering wheel control switch into the steering wheel, ensuring the retaining tabs are fully seated.

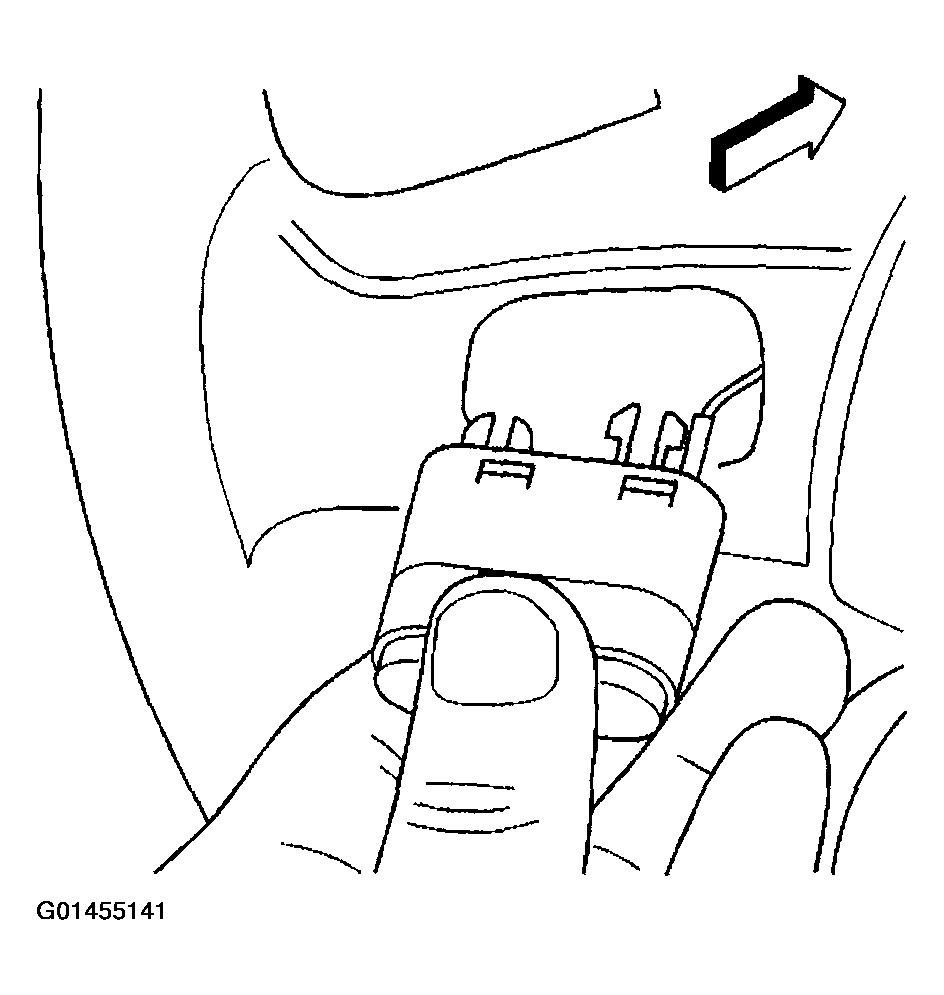

    Fig 1: Connecting Electrical Connector To Steering Wheel Control Switch.
    G01455141Courtesy of GENERAL MOTORS CORP.
  4. Install the shroud to the steering wheel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the shroud retaining screws to the steering wheel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .

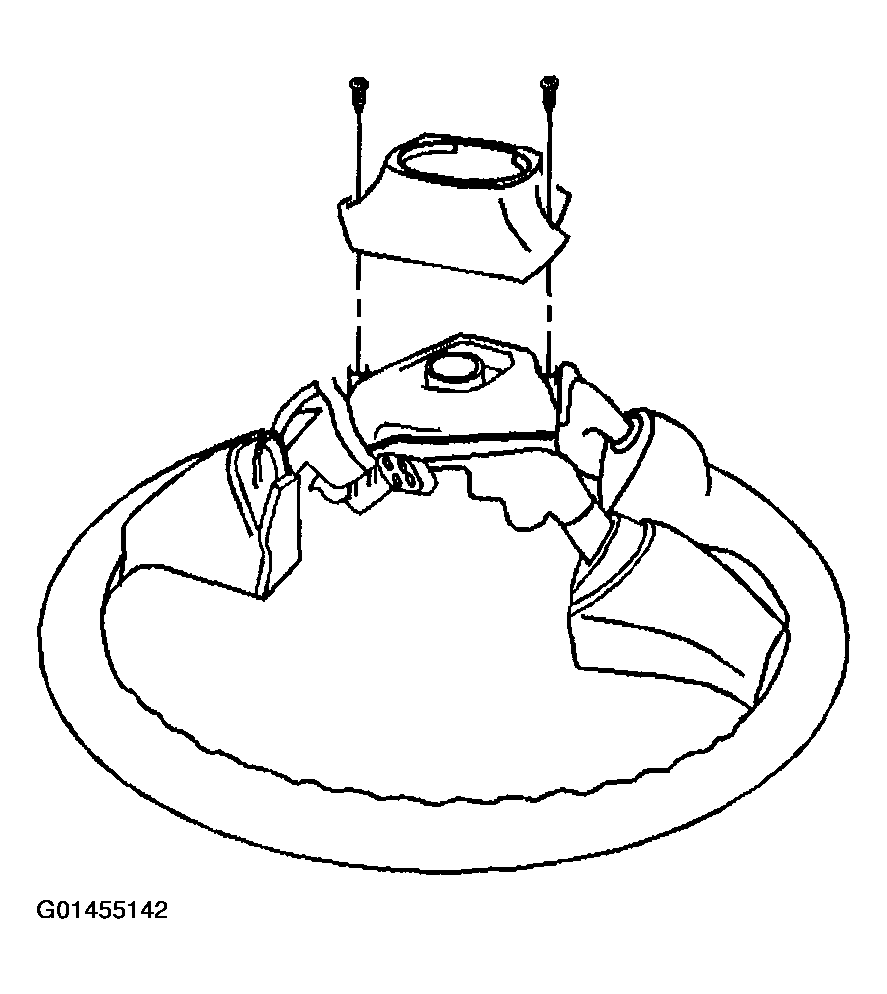

    Fig 2: Installing Shroud Retaining Screws To Back Of Steering Wheel
    G01455142Courtesy of GENERAL MOTORS CORP.
