Repair and Diagnosis (Single Page)
>>
Transmission
>>
Transfer Case
>>
Transfer Case - NVG 149-NP (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Transfer Case Disassembled View

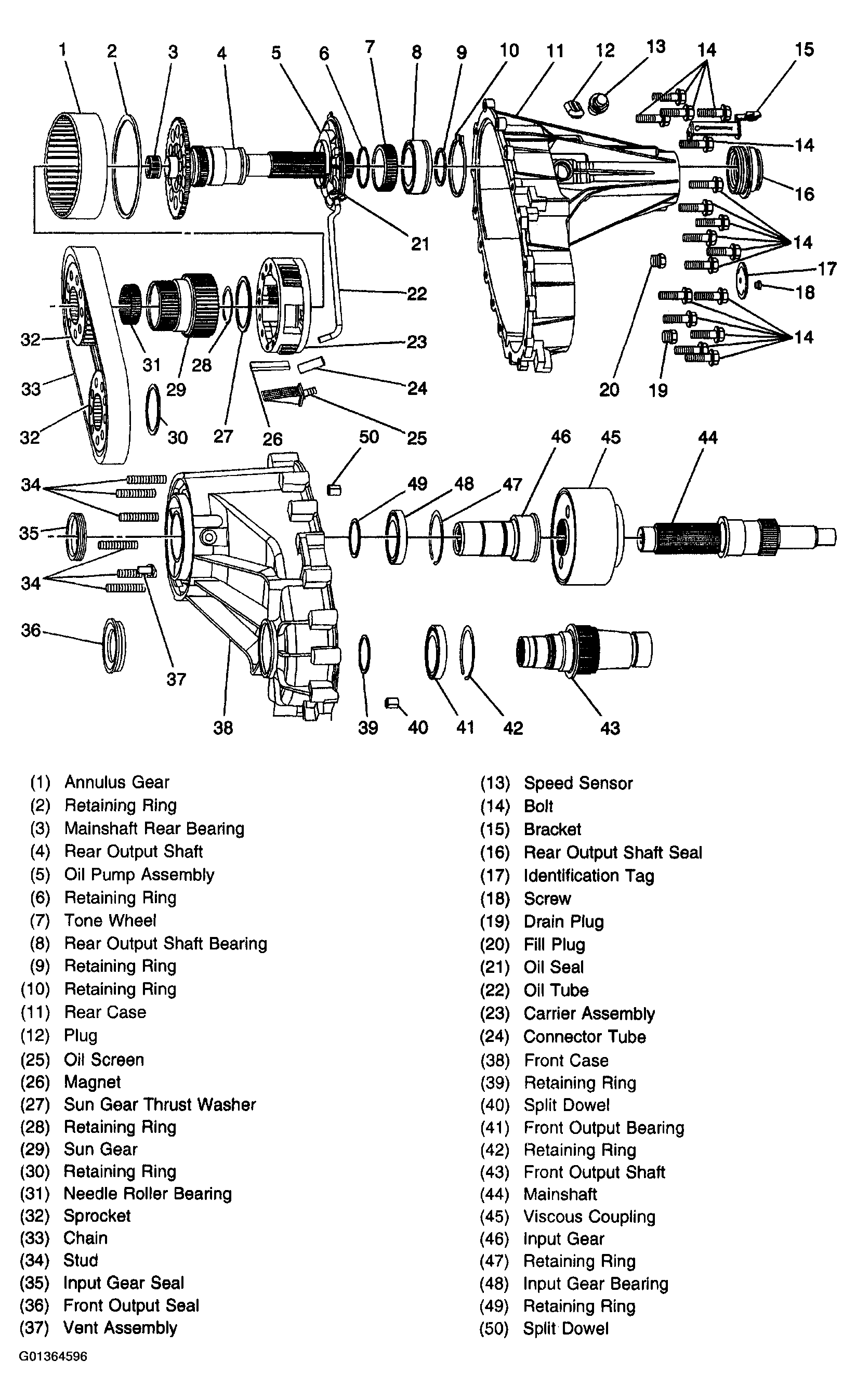

Fig 1: Exploded View Of Transfer Case Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
