Transfer Case Control Component Views

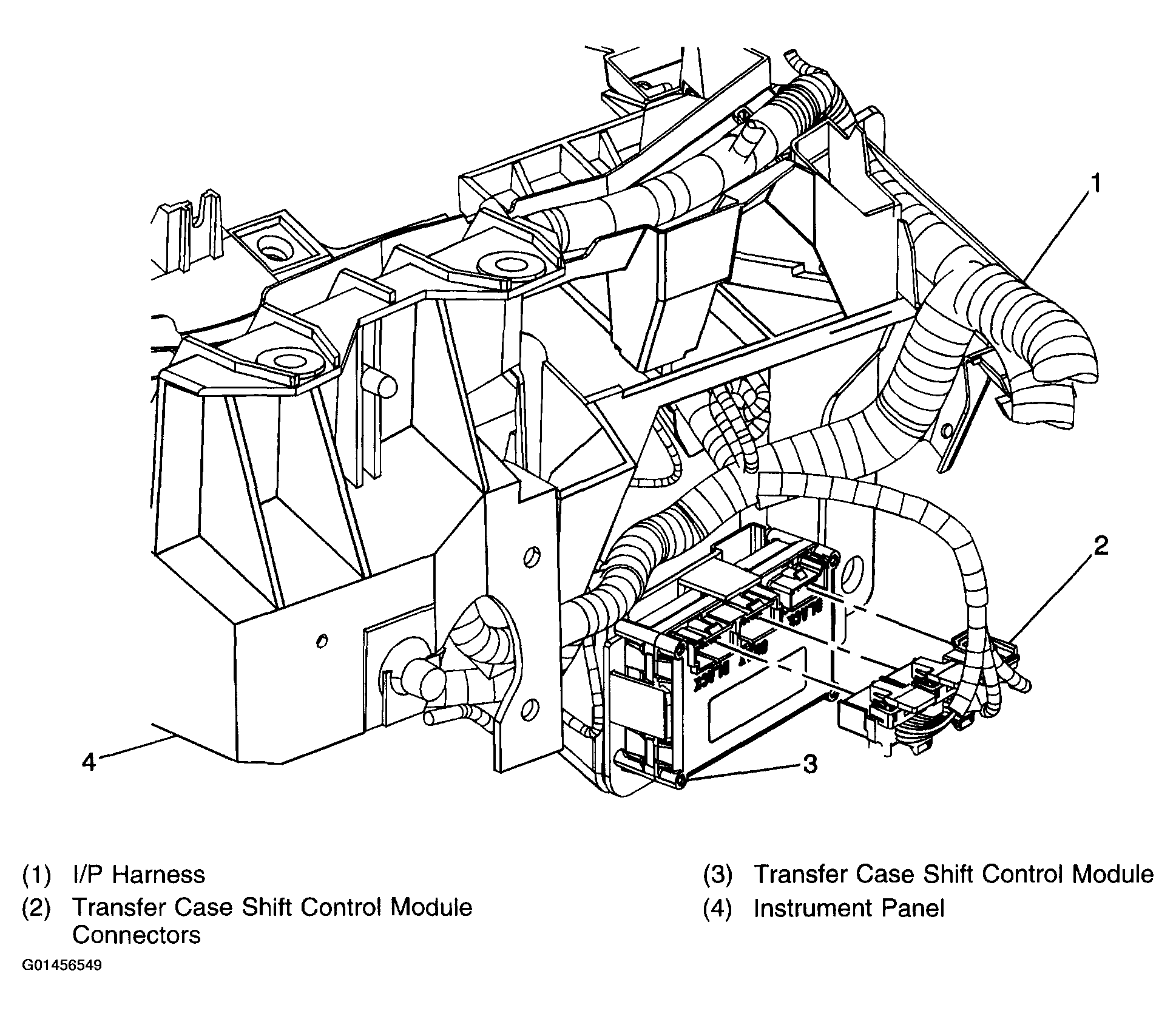

Fig 1: Transfer Case Control Component Views - Transfer Case Shift Control Module
Courtesy of GENERAL MOTORS CORP.

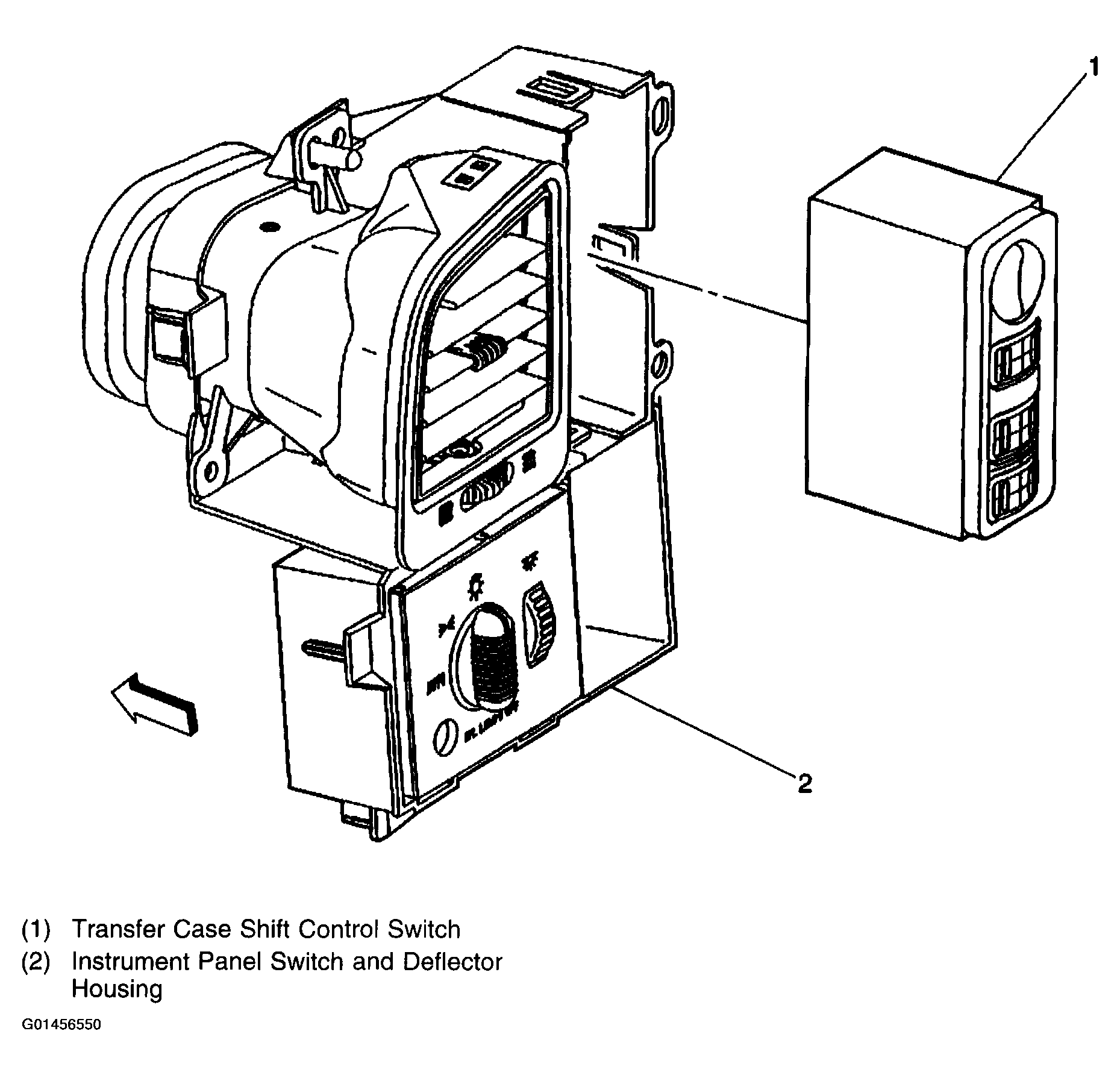

Fig 2: Transfer Case Control Component Views - Transfer Case Shift Control Switch
Courtesy of GENERAL MOTORS CORP.

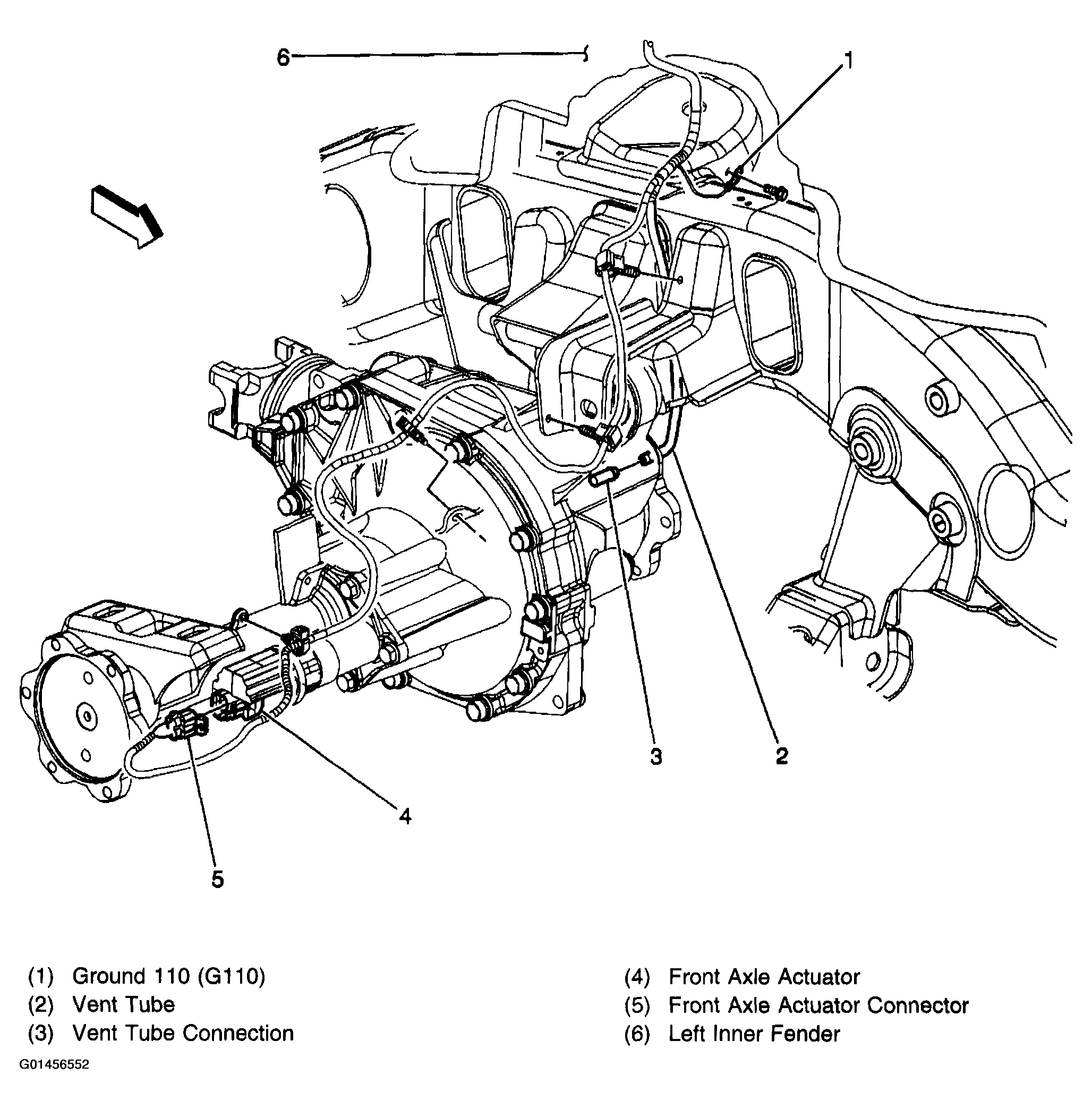

Fig 3: Transfer Case Control Component Views - Transfer Case (NVG 236/246 NP8)
Courtesy of GENERAL MOTORS CORP.

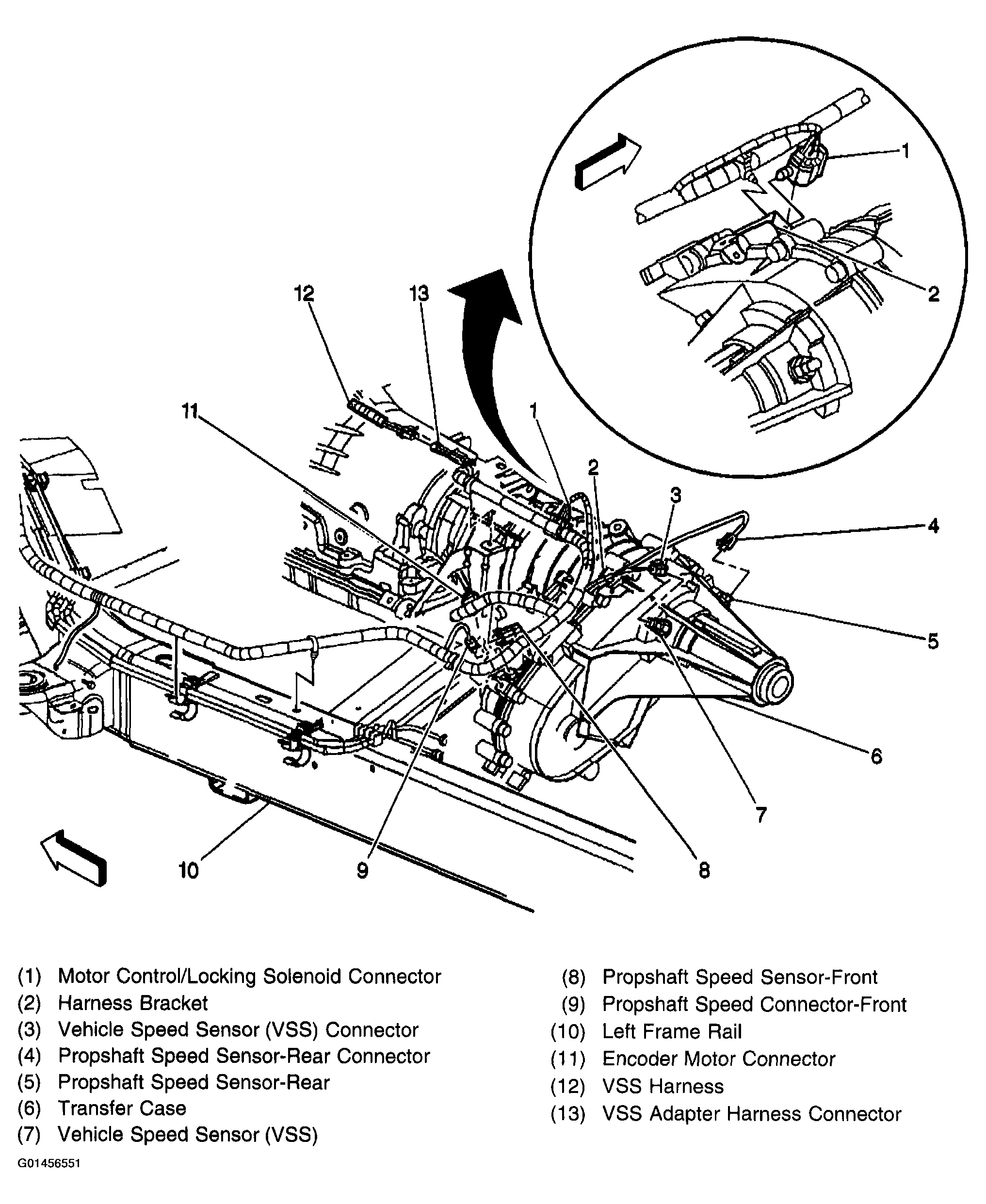

Fig 4: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K25 Series)
Courtesy of GENERAL MOTORS CORP.

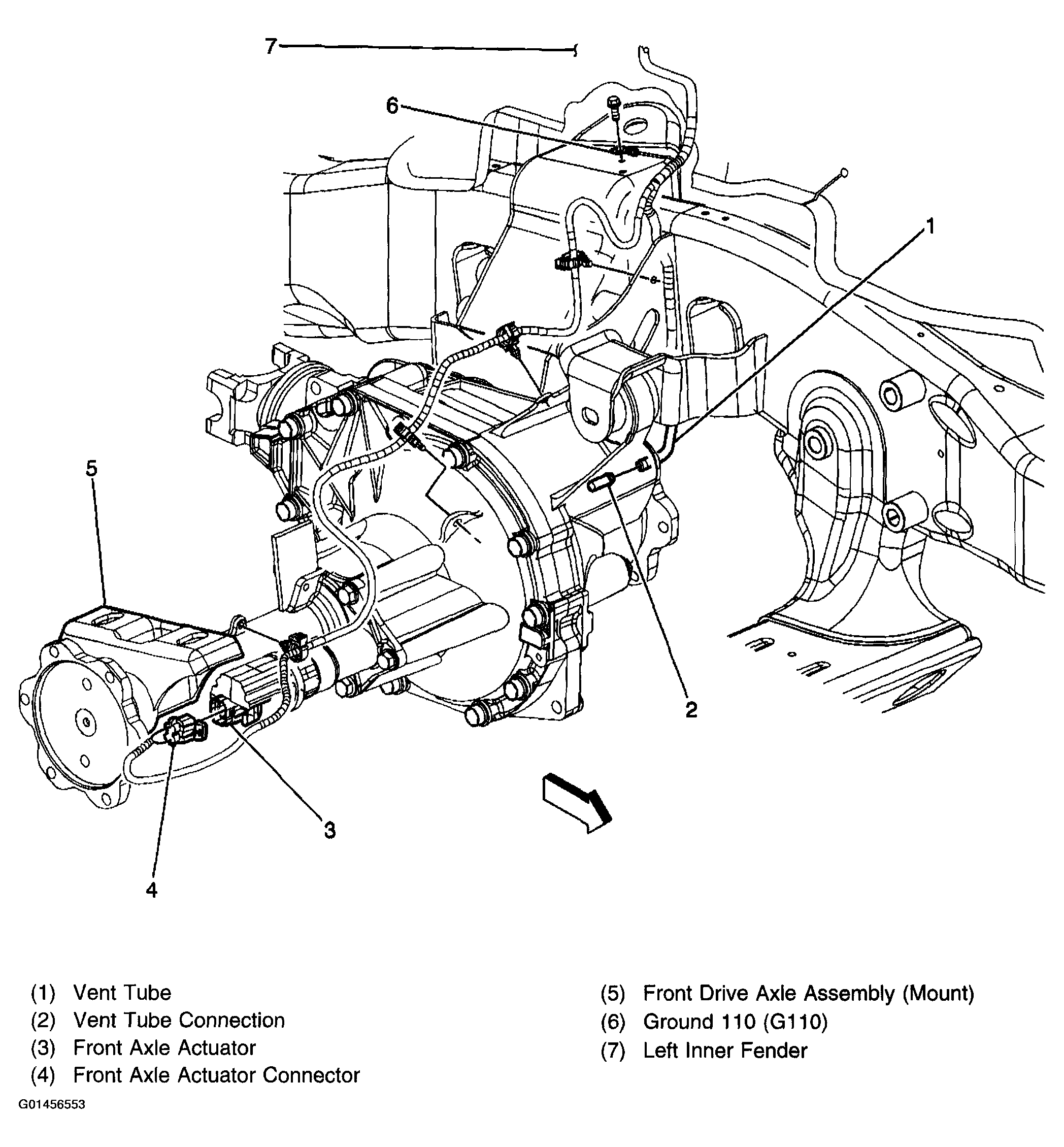

Fig 5: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K15 Series)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
