Transfer Case Control Connector End Views

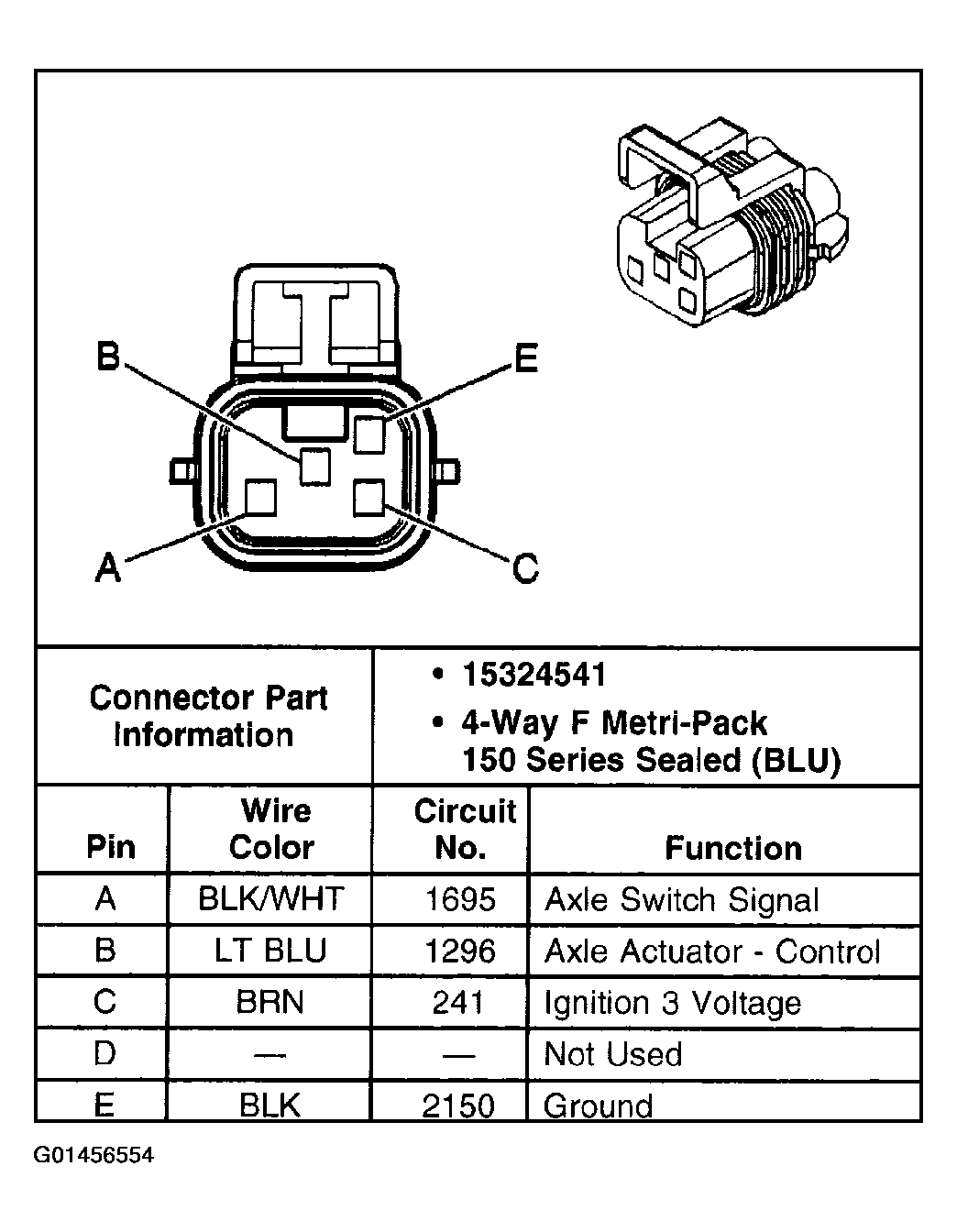

Fig 1: Identifying Front Axle Actuator Pin Terminals

Courtesy of GENERAL MOTORS CORP.

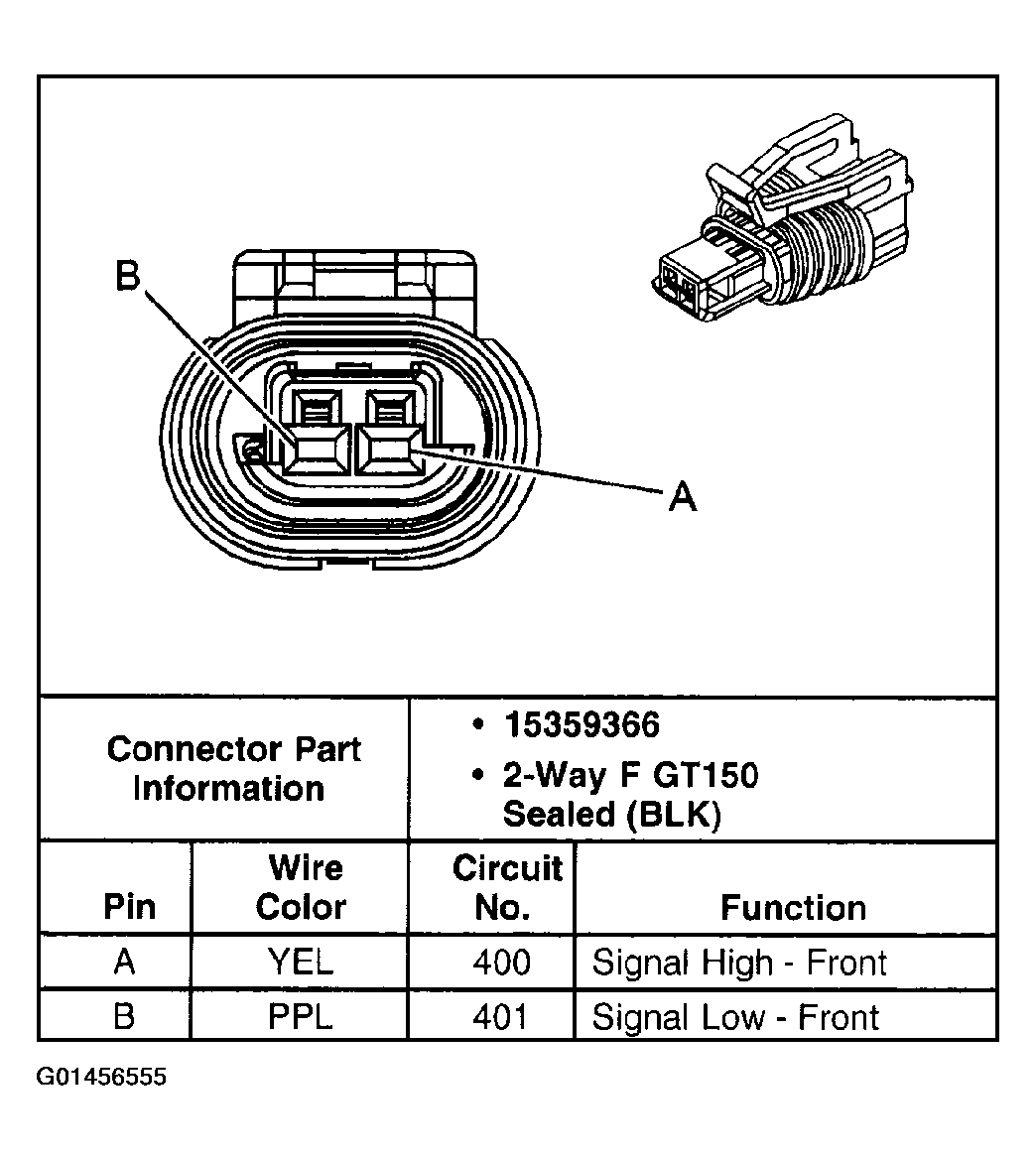

Fig 2: Identifying Propshaft Speed Sensor - Front Pin Terminals

Courtesy of GENERAL MOTORS CORP.

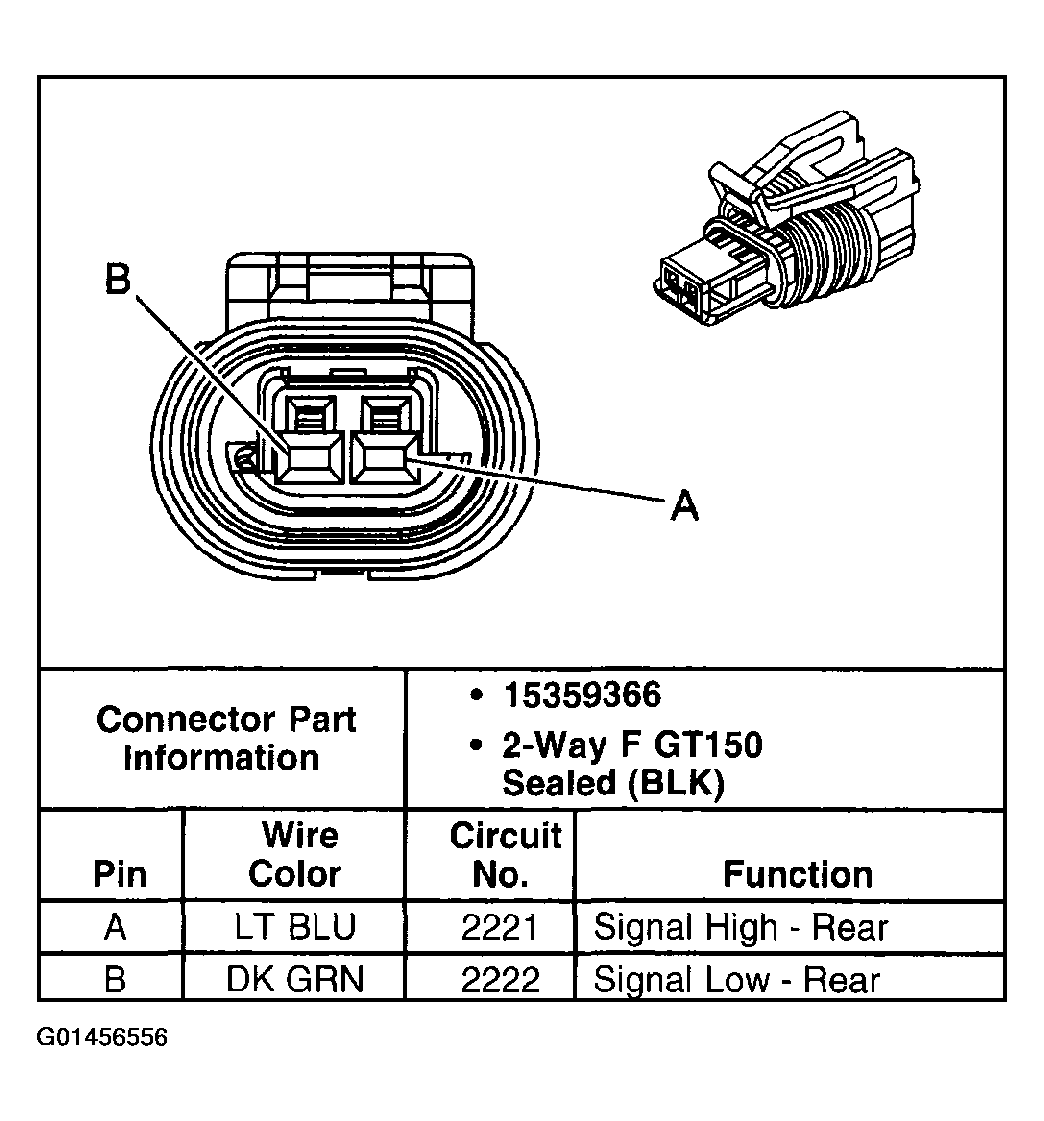

Fig 3: Identifying Propshaft Speed Sensor - Rear Pin Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Transfer Case Shift Control Module - C1 Pin Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Transfer Case Shift Control Module - C2 Pin Terminals

Courtesy of GENERAL MOTORS CORP.

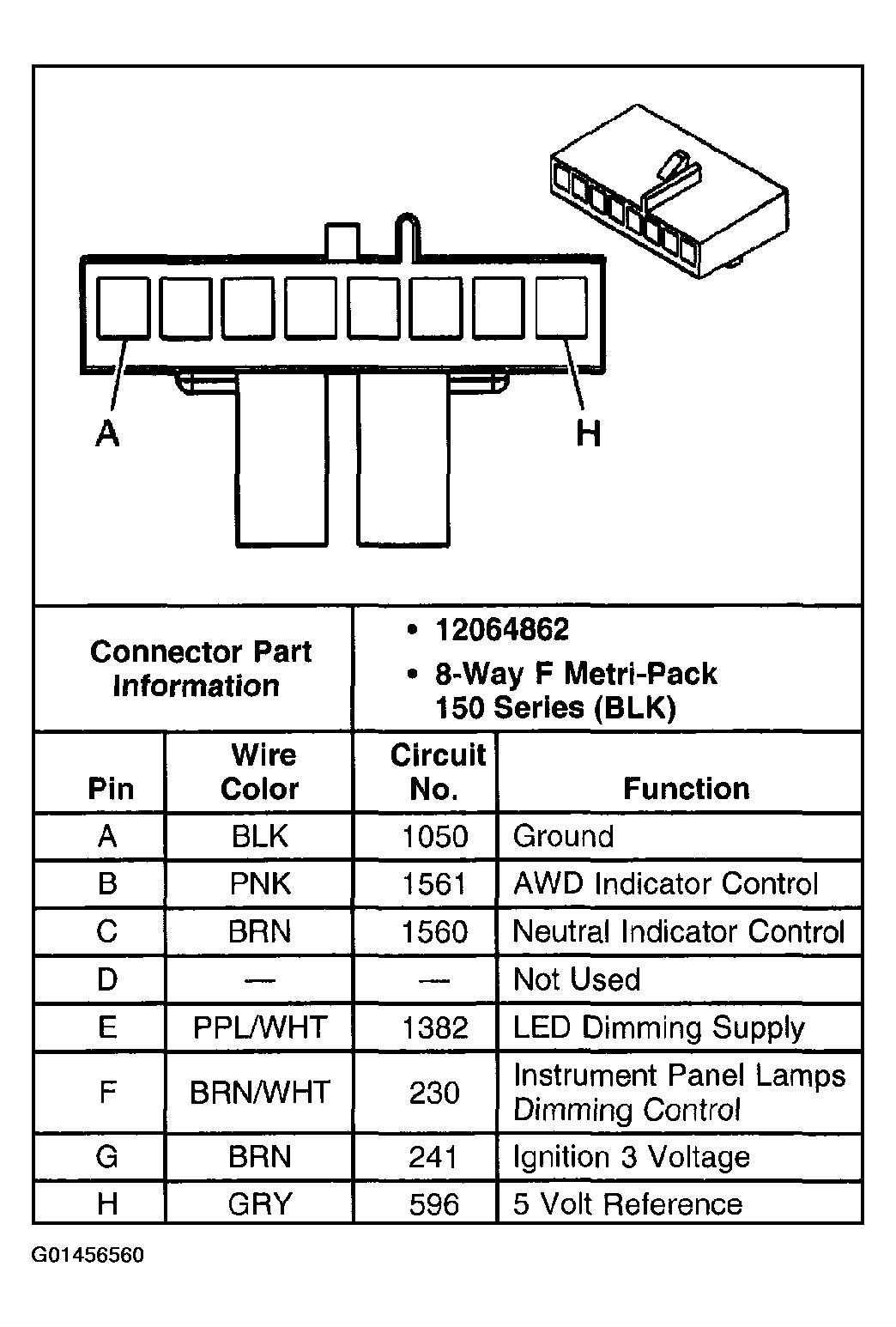

Fig 6: Identifying Transfer Case Shift Control Module - C3 Pin Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Transfer Case Shift - C1 Pin Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Transfer Case Shift Control Switch - C2 Pin Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Transfer Case - Encoder Motor Pin Terminals

Courtesy of GENERAL MOTORS CORP.
