Removal Procedure

  1. Disconnect the shift control module electrical connectors.

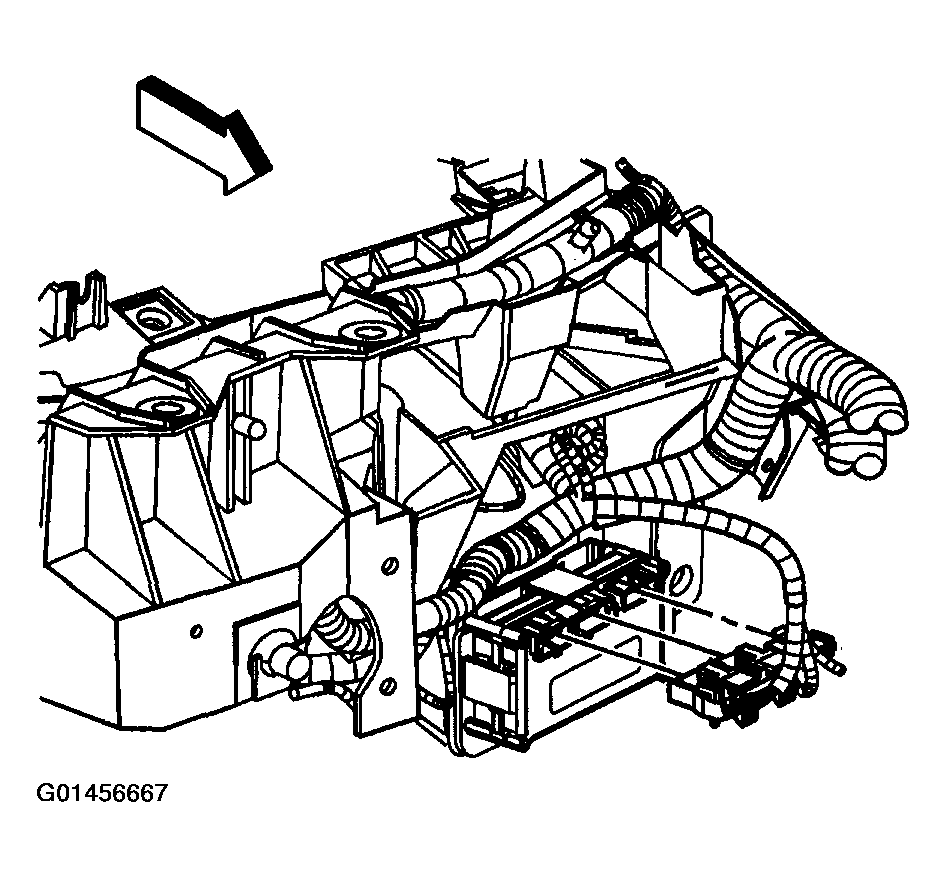

    Fig 1: Disconnecting Shift Control Module Electrical Connectors
    G01456667Courtesy of GENERAL MOTORS CORP.
  2. Unsnap and remove the shift control module from the bracket.

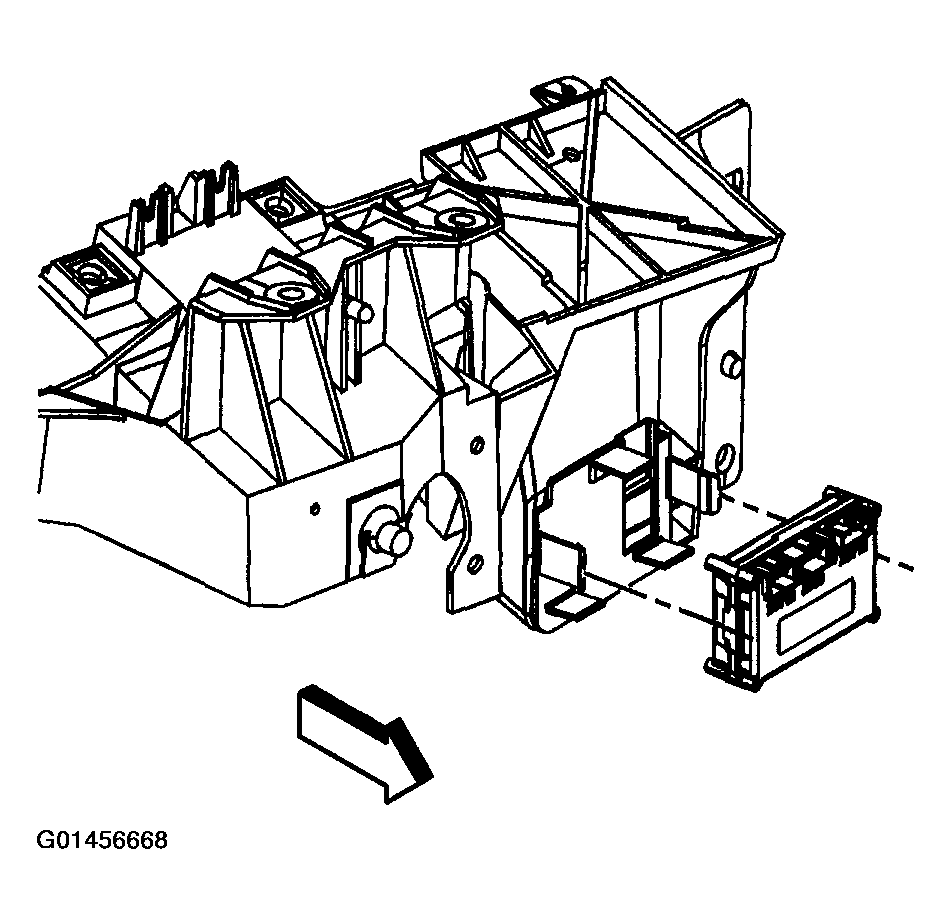

    Fig 2: Removing Shift Control Module From Bracket
    G01456668Courtesy of GENERAL MOTORS CORP.
