Navigation System Schematics

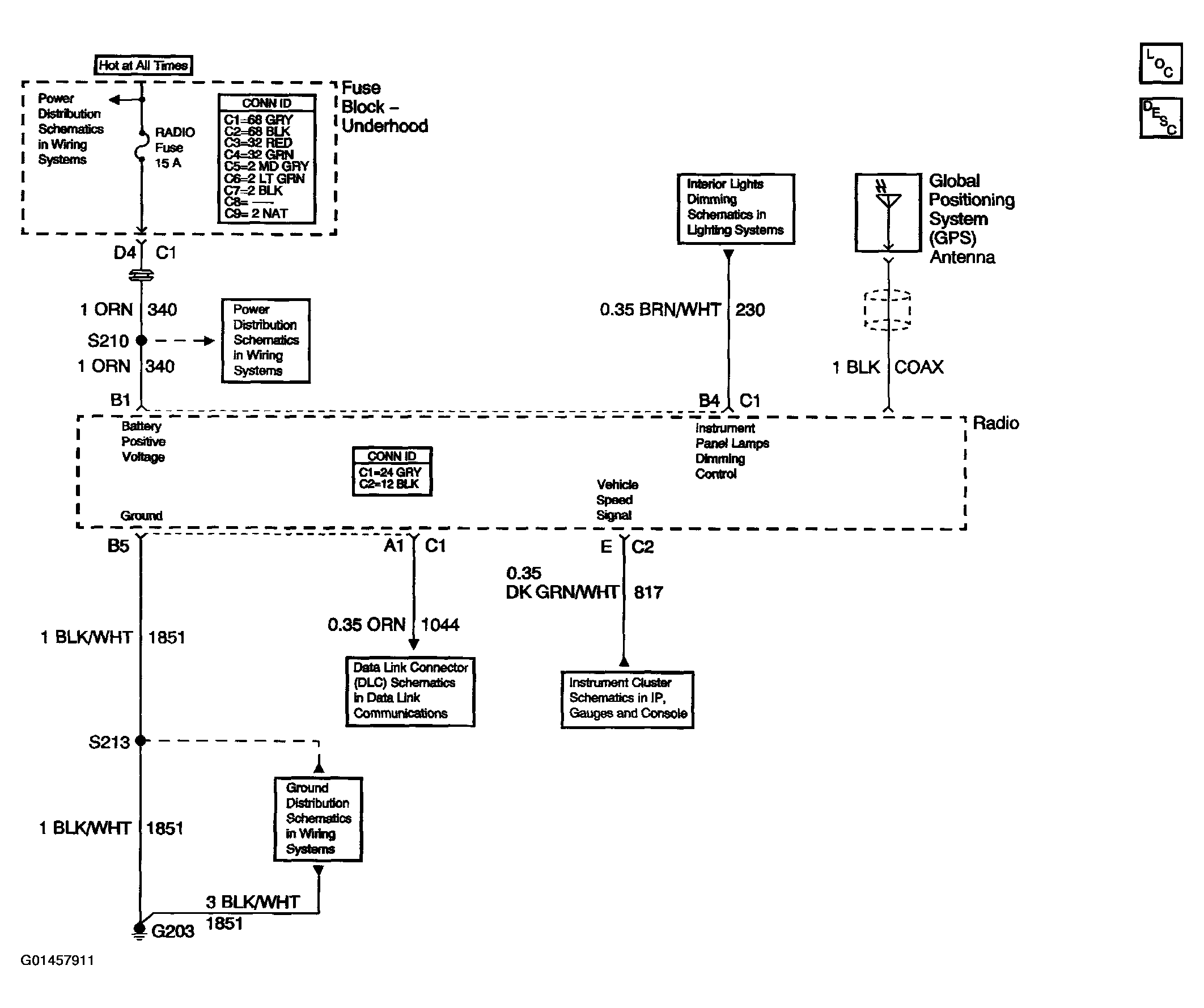

Fig 1: Navigation System Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
