Removal Procedure

  1. Remove the frame to the shield bolts.
  2. Remove the shield from the vehicle. 15 Series is shown, 25 Series is similar.

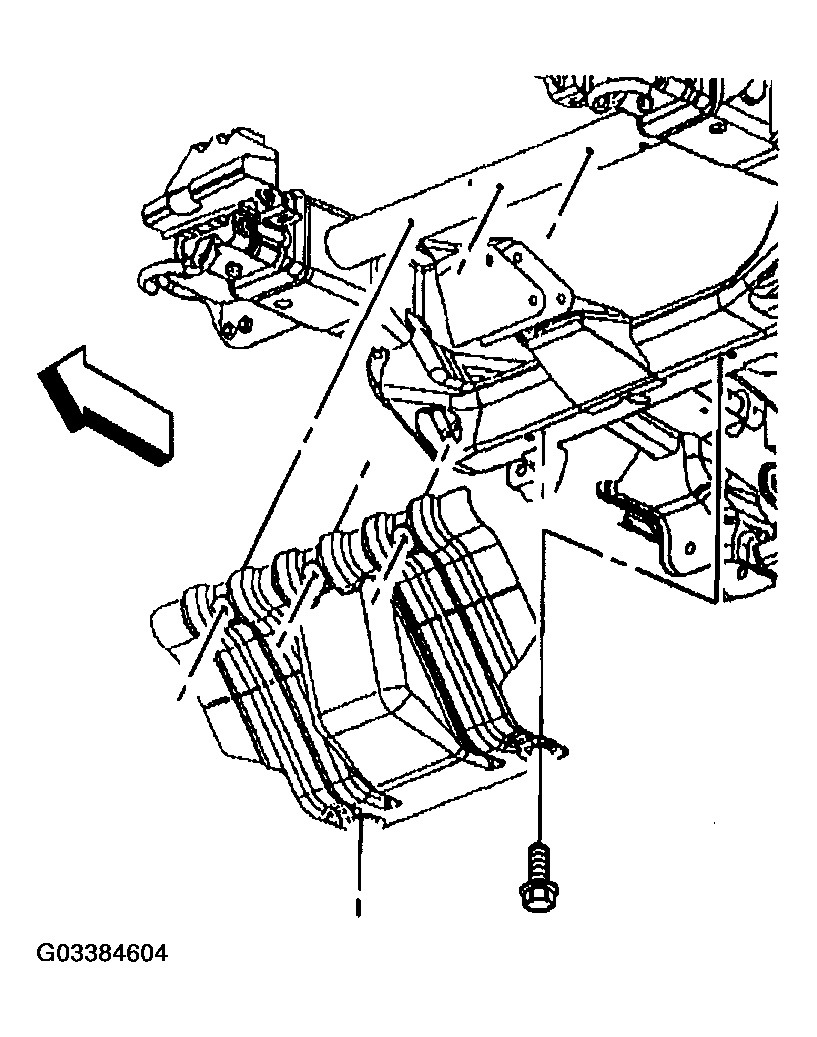

    Fig 1: Removing Frame To Shield Bolts
    G03384604Courtesy of GENERAL MOTORS CORP.
