Installation Procedure

  1. Install the transmission support to the frame. (15 series)

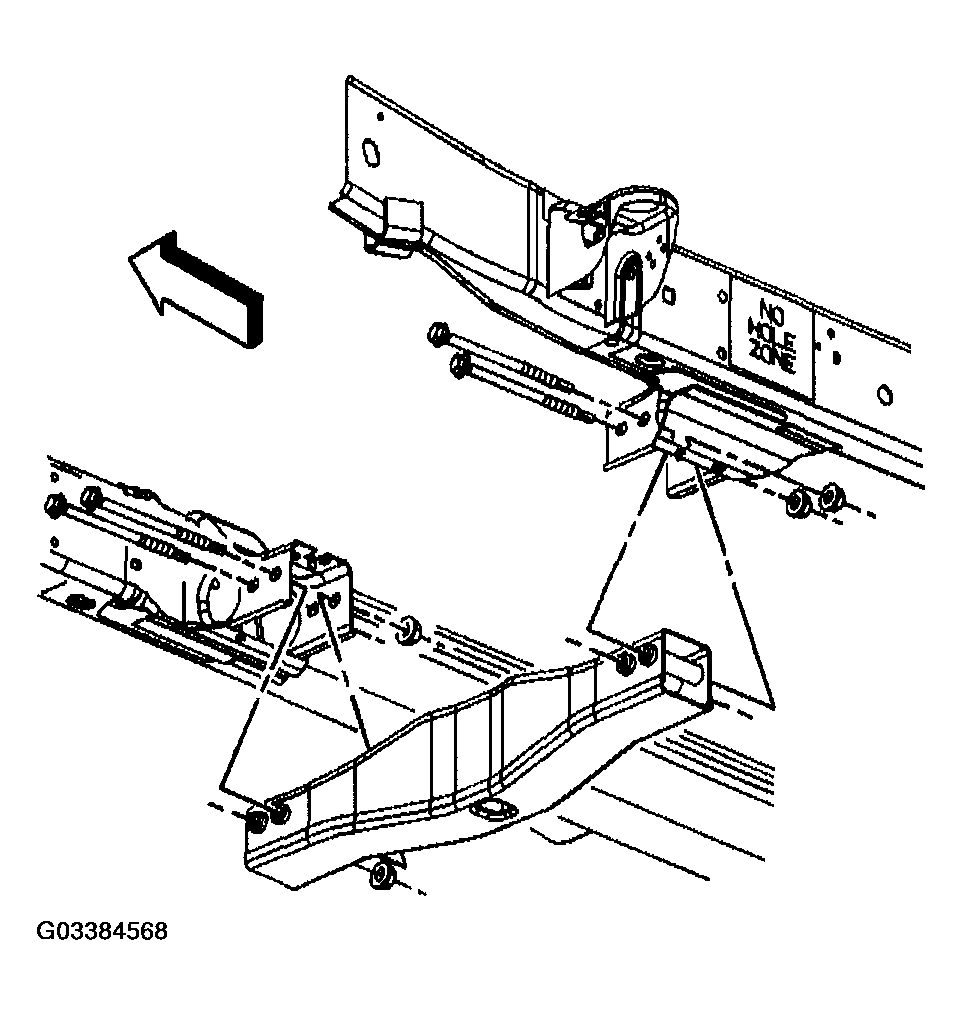

    Fig 1: Installing Transmission Support To Frame
    G03384568Courtesy of GENERAL MOTORS CORP.
  2. Install the transmission support to the frame. (25/35 series)
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES .
  3. Install the bolts and the nuts in order to retain the transmission support to the frame.

    Tighten

    Tighten the nuts to 95 N.m (70 lb ft).

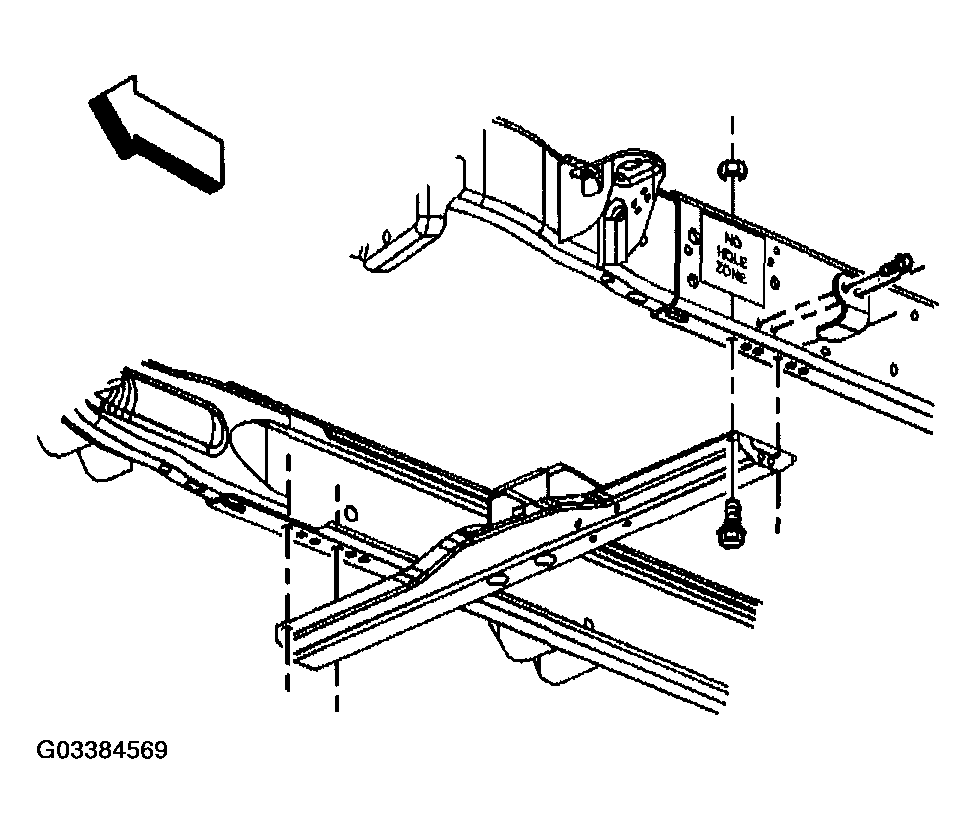

    Fig 2: Installing Bolts And Nuts To Retain Transmission Support To Frame
    G03384569Courtesy of GENERAL MOTORS CORP.
  4. Lower the rear of the transmission.
  5. Install the transmission mount to the transmission support.
  6. Install the nuts in order to retain the transmission mount to the transmission support.

    Tighten

    Tighten the nuts to 40 N.m (30 lb ft).

  7. Remove the transmission jack.
  8. Lower the vehicle.

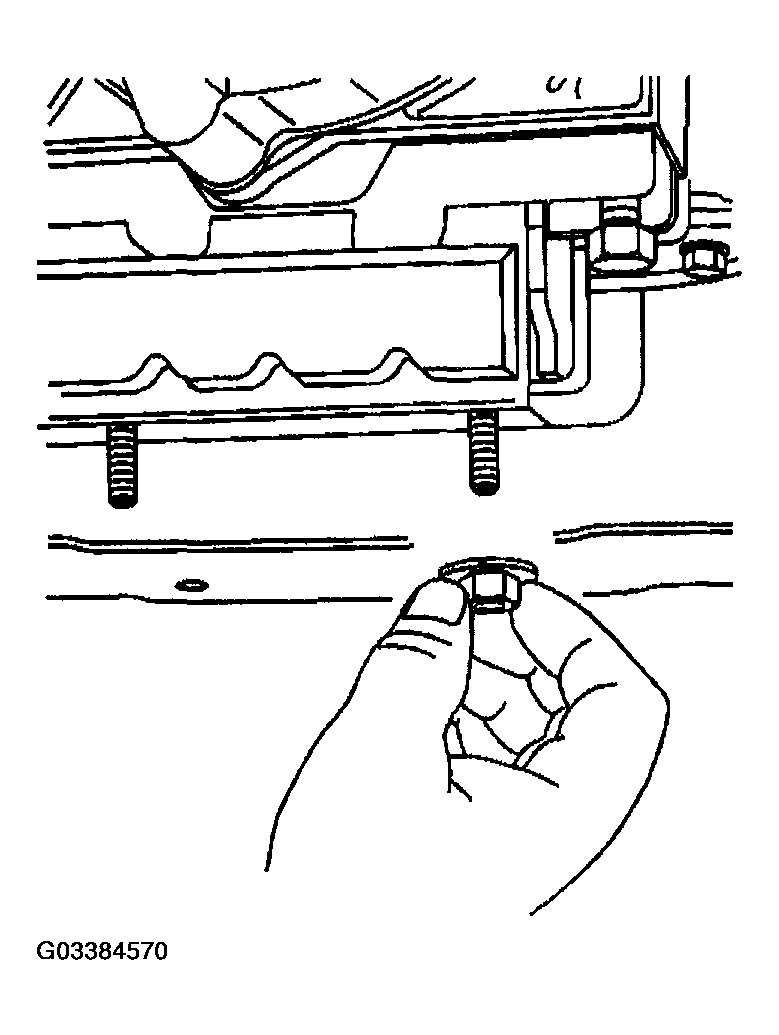

    Fig 3: Installing Transmission Mount To Transmission Support
    G03384570Courtesy of GENERAL MOTORS CORP.
