Power Seat Systems Connector End Views

Fig 1: Identifying Driver Door Module (Memory/Heated Seat Switch - Driver) Connector Terminals
G01459053Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Front Passenger Door Module (Heated Seat Switch - Front Passenger) Connector Terminals
G01459054Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Heated Seat Control Module - LR Connector Terminals
G01459055Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Heated Seat Control Module - RR Connector Terminals
G01459056Courtesy of GENERAL MOTORS CORP.

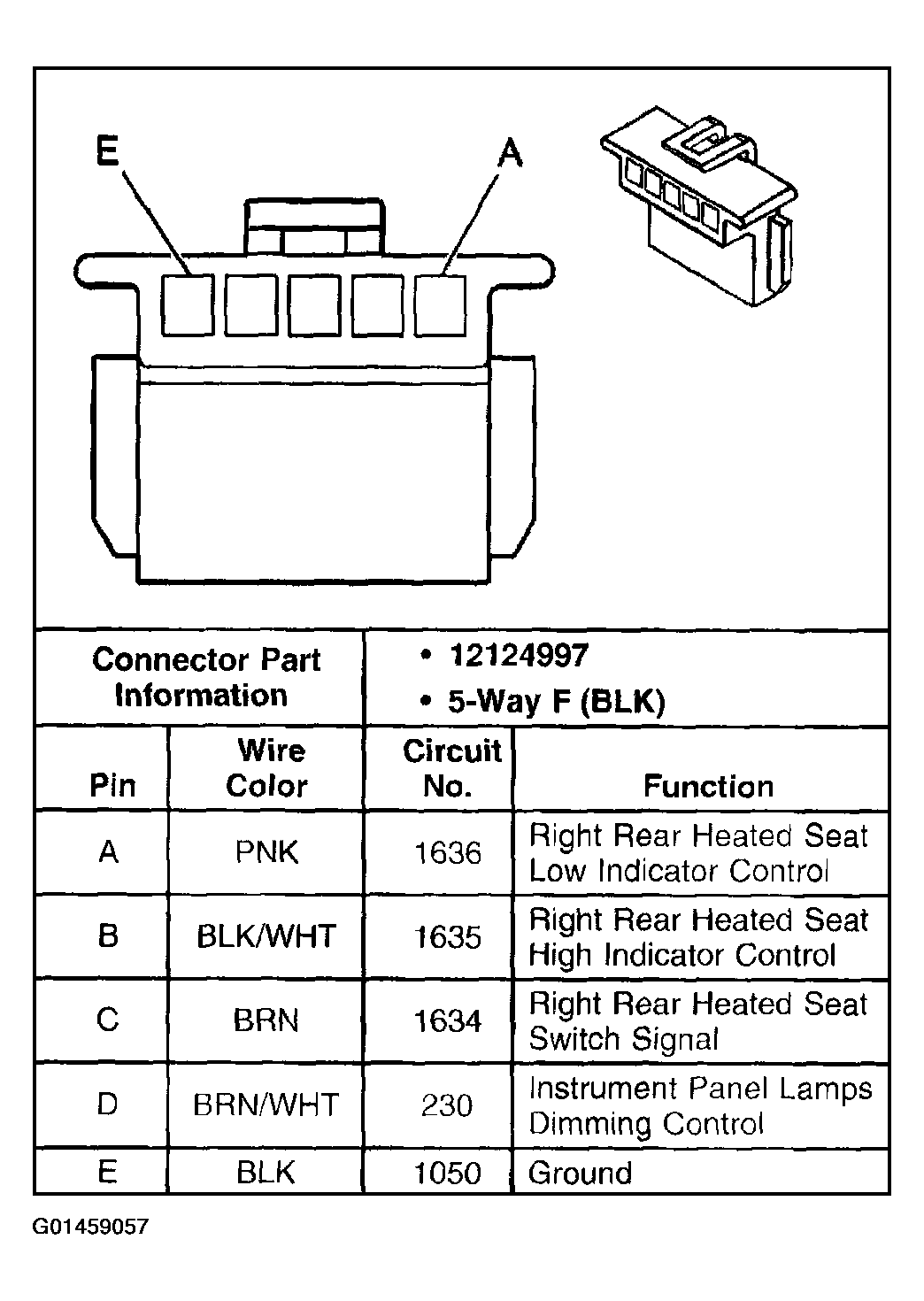

Fig 5: Identifying Heated Seat Switch - RR Connector Terminals
G01459057Courtesy of GENERAL MOTORS CORP.

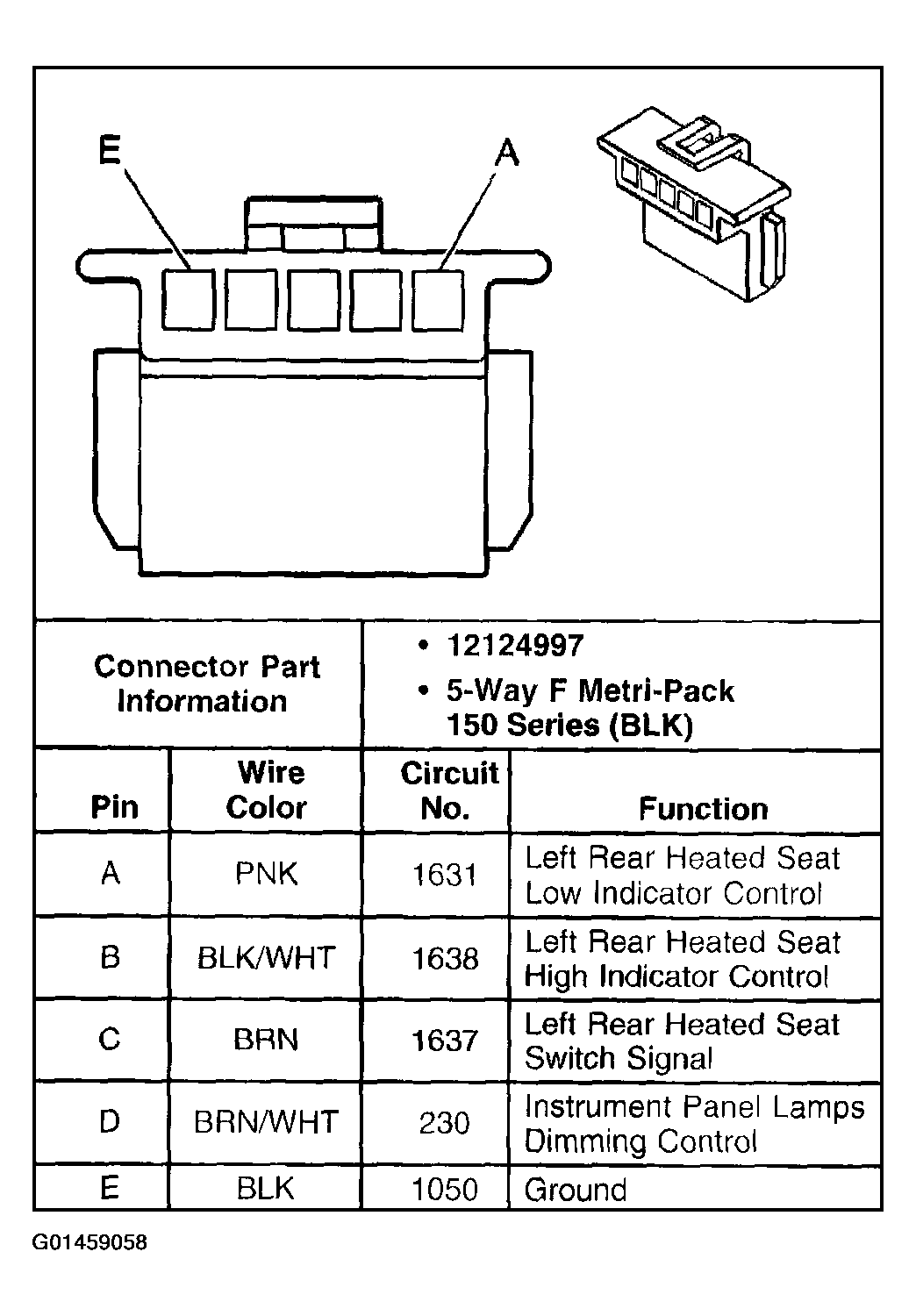

Fig 6: Identifying Heated Seat Switch - LR Connector Terminals
G01459058Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Memory Seat Module - Driver C1 Connector Terminals
G01459059Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Memory Seat Module - Driver C2 Connector Terminals
G01459060Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Memory Seat Module - Driver C3 Connector Terminals (1 Of 2)
G01459061Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Memory Seat Module - Driver C3 Connector Terminals (2 Of 2)
G01459062Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Memory Seat Module - Driver C4 Connector Terminals (1 Of 2)
G01459063Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Memory Seat Module - Driver C4 Connector Terminals (2 Of 2)
G01459064Courtesy of GENERAL MOTORS CORP.

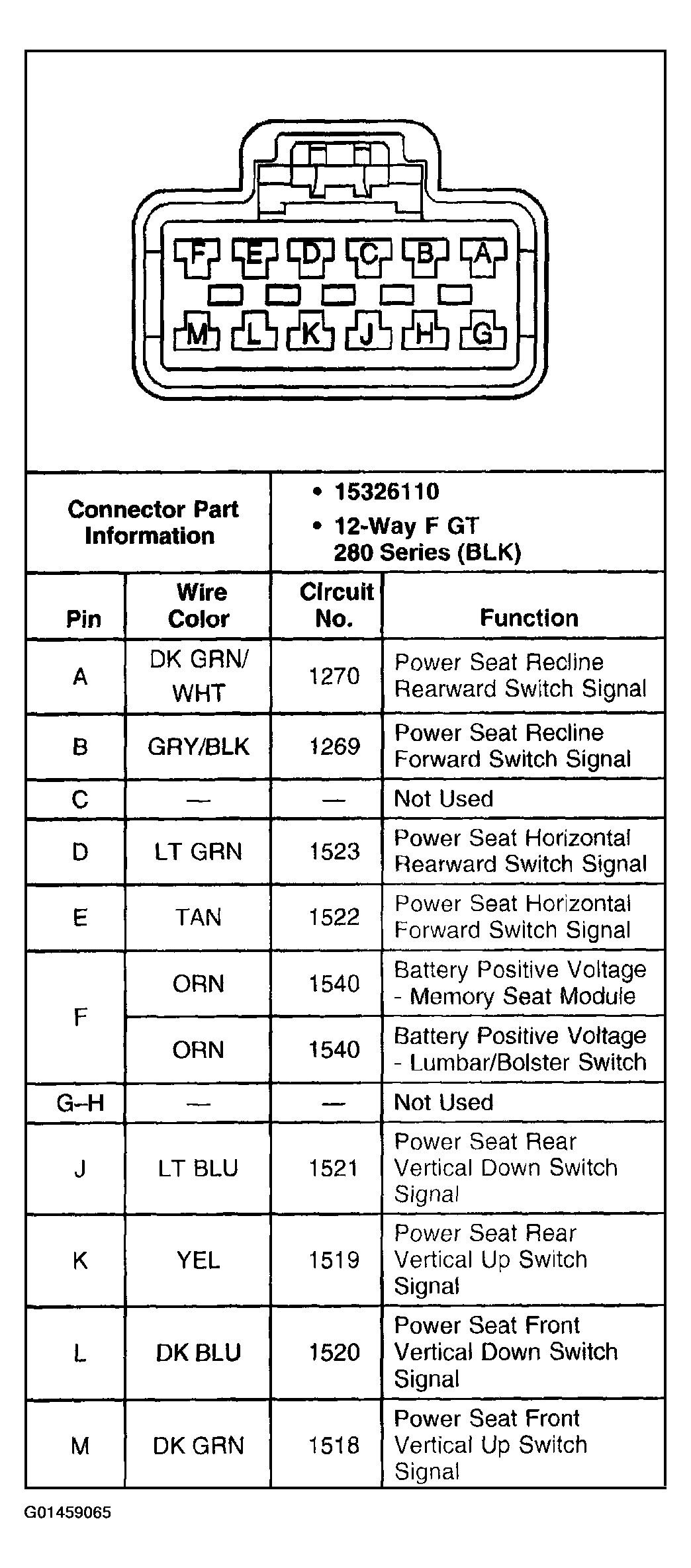

Fig 13: Identifying Seat Adjuster Switch - Driver (AN3) Connector Terminals
G01459065Courtesy of GENERAL MOTORS CORP.

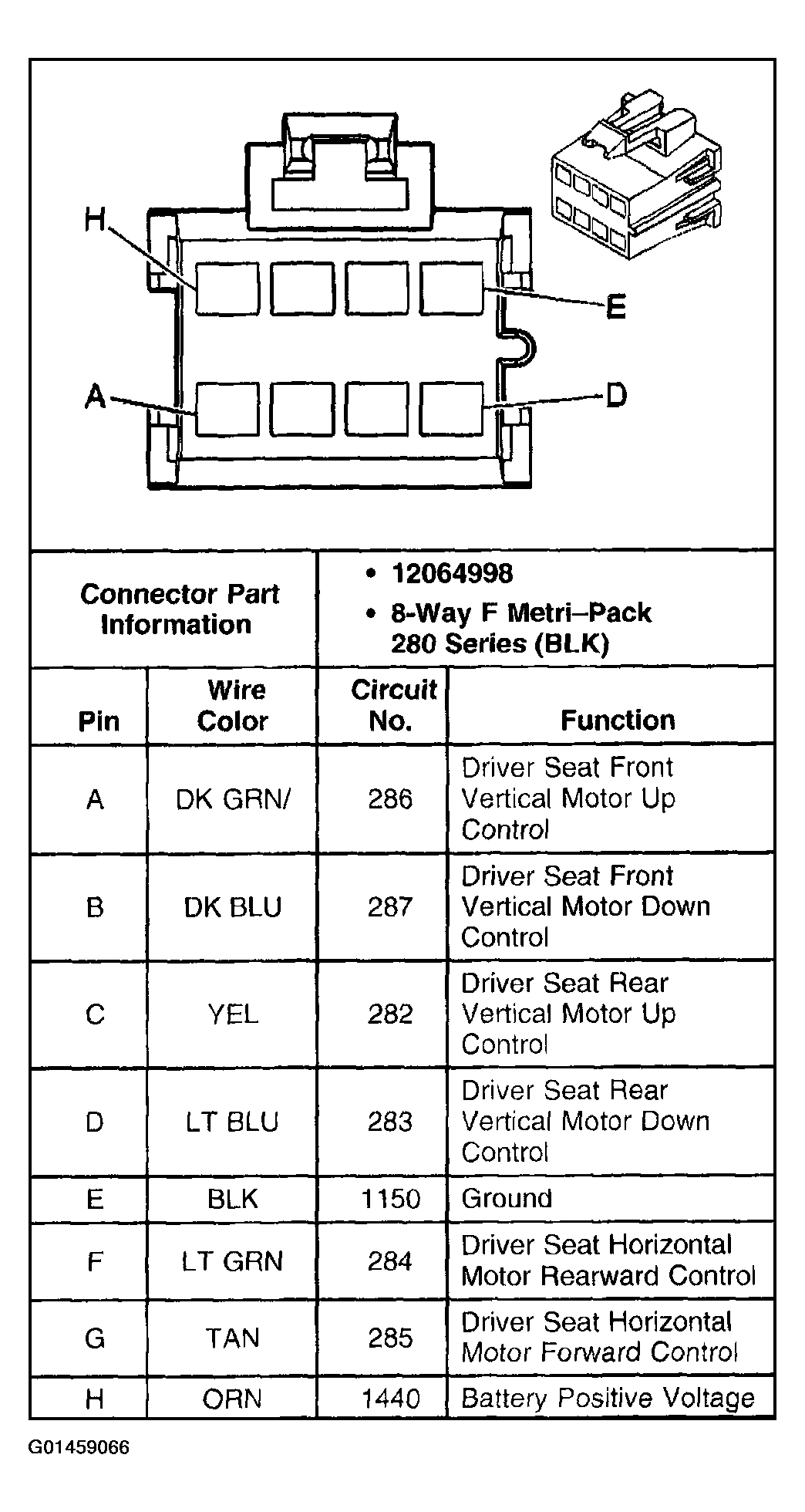

Fig 14: Identifying Seat Adjuster Switch - Driver (AG2) Connector Terminals
G01459066Courtesy of GENERAL MOTORS CORP.

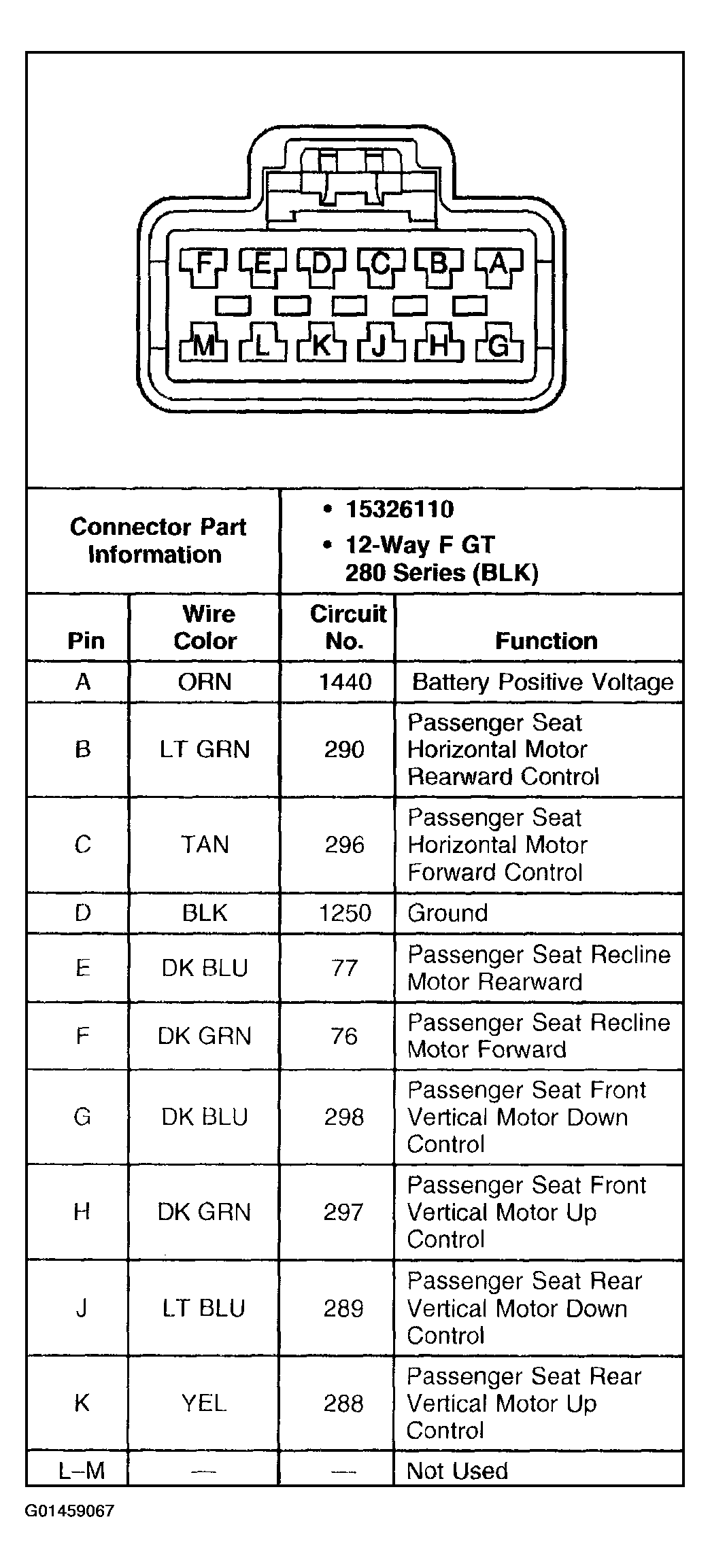

Fig 15: Identifying Seat Adjuster Switch - Front Passenger Connector Terminals
G01459067Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Lumbar/Bolster Switch - Driver Connector Terminals
G01459068Courtesy of GENERAL MOTORS CORP.

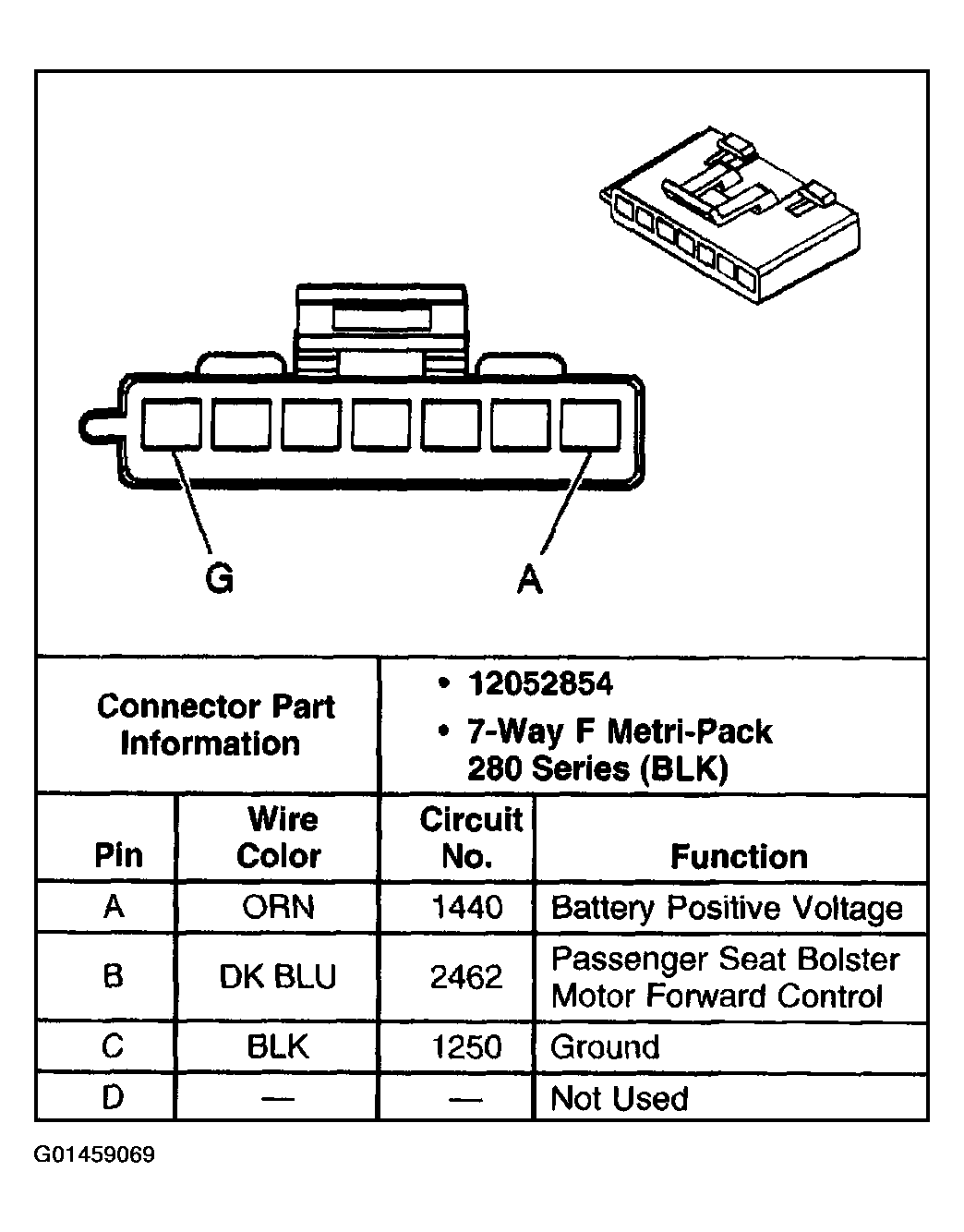

Fig 17: Identifying Lumbar/Bolster Switch - Front Passenger Connector Terminals (1 Of 2)
G01459069Courtesy of GENERAL MOTORS CORP.

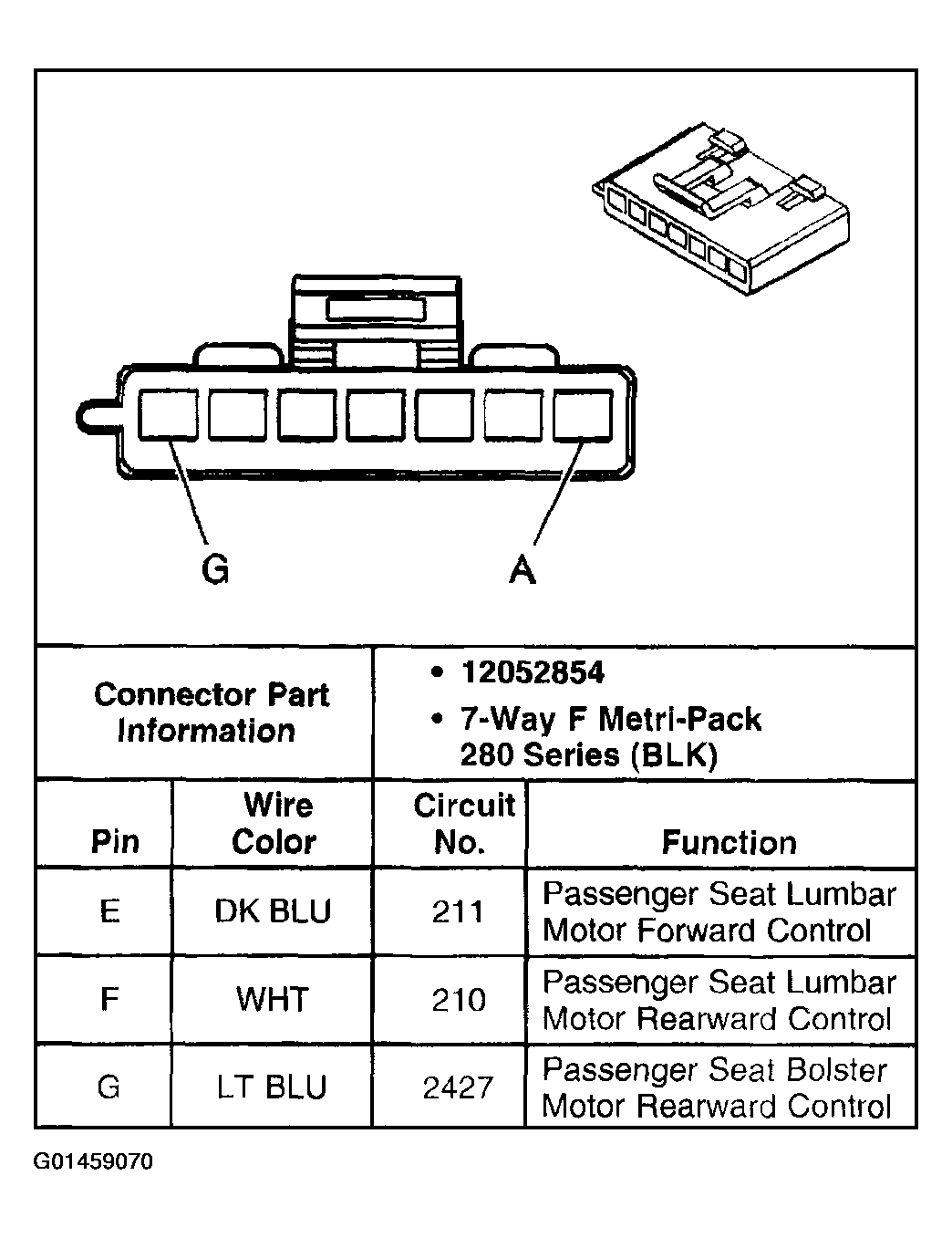

Fig 18: Identifying Lumbar/Bolster Switch - Front Passenger Connector Terminals (2 Of 2)
G01459070Courtesy of GENERAL MOTORS CORP.

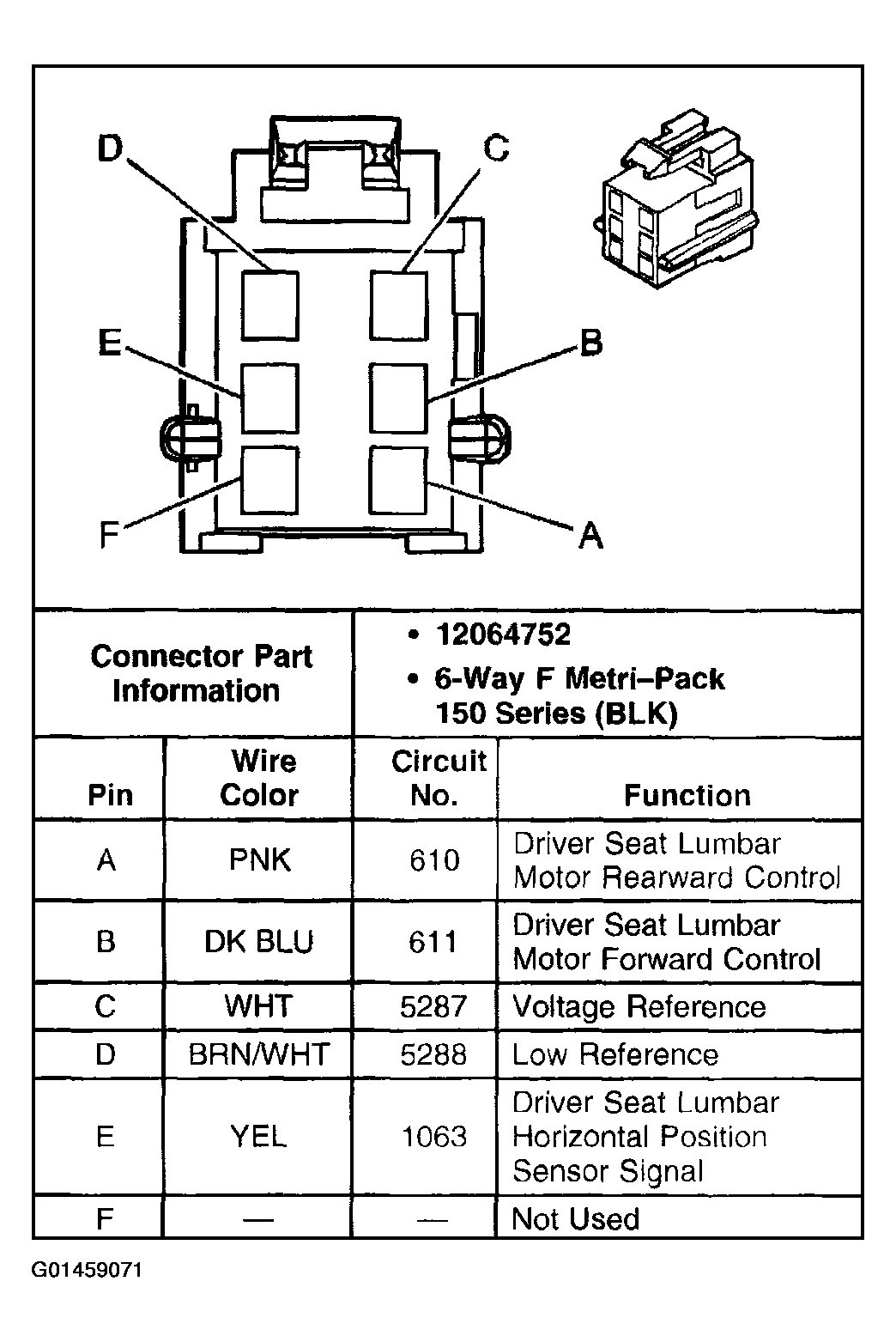

Fig 19: Identifying Seat Lumbar Motor/Position Sensor - Driver Connector Terminals
G01459071Courtesy of GENERAL MOTORS CORP.

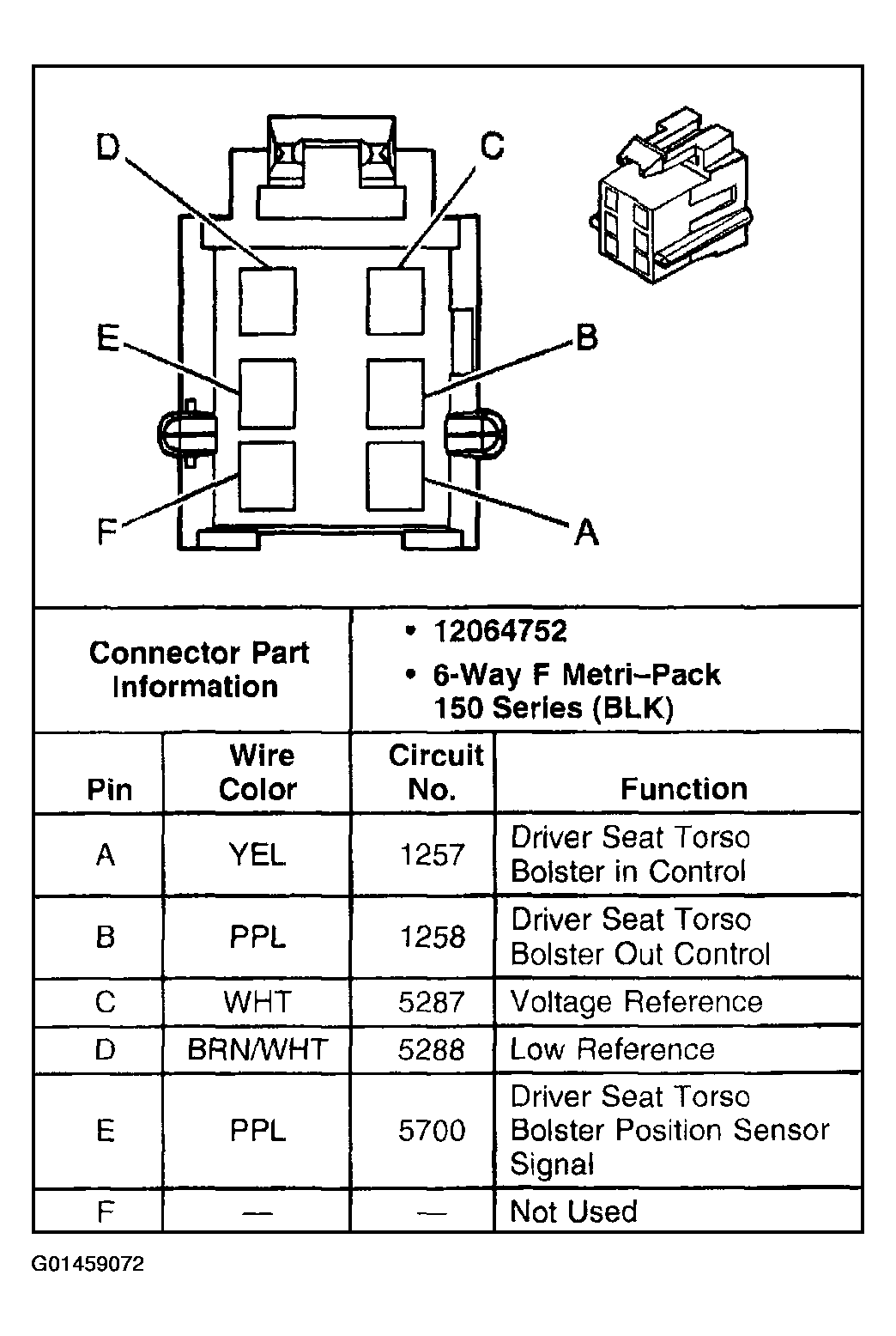

Fig 20: Identifying Seat Bolster Motor/Position Sensor - Driver Connector Terminals
G01459072Courtesy of GENERAL MOTORS CORP.

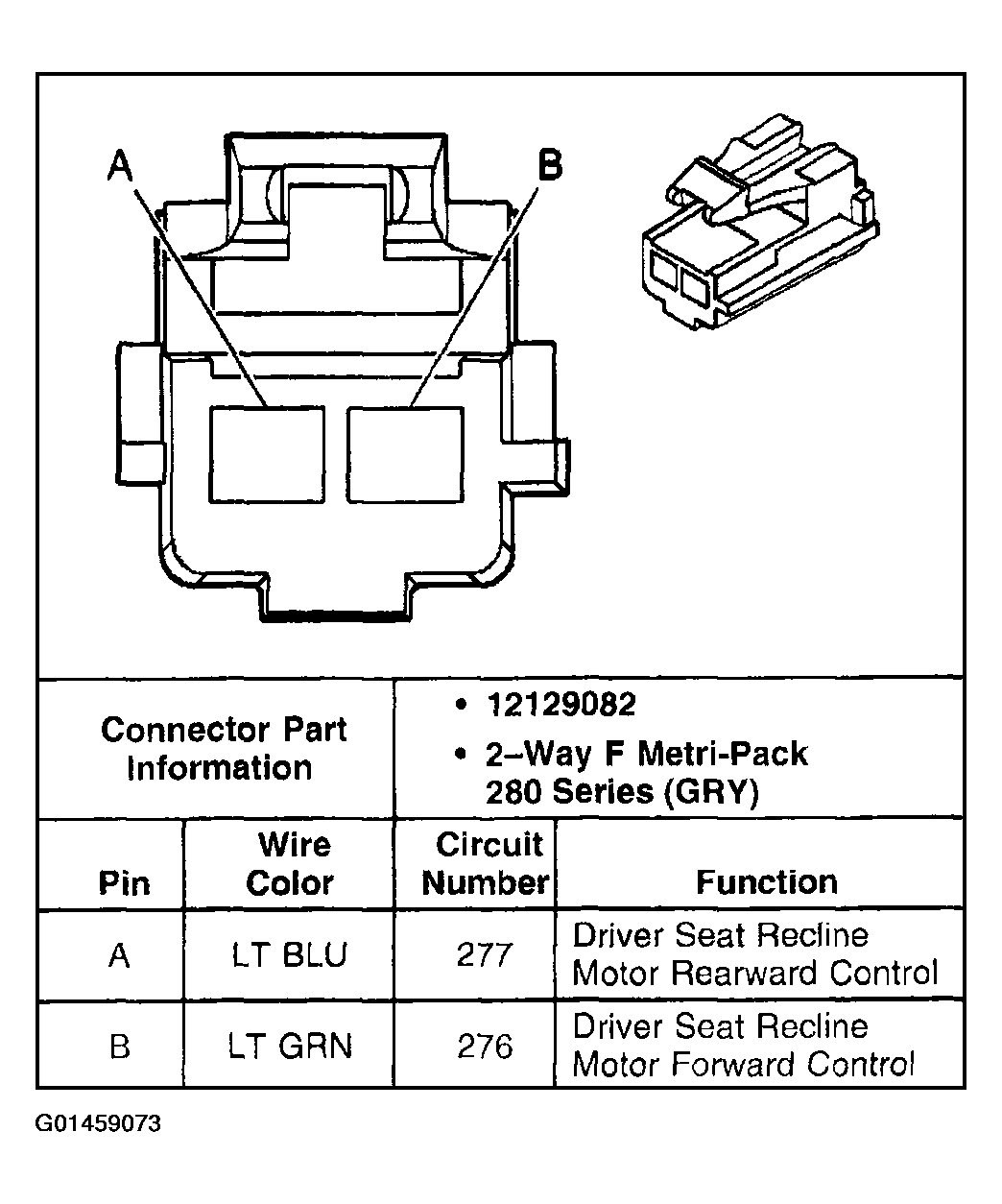

Fig 21: Identifying Seat Recliner Motor - Driver Connector Terminals
G01459073Courtesy of GENERAL MOTORS CORP.

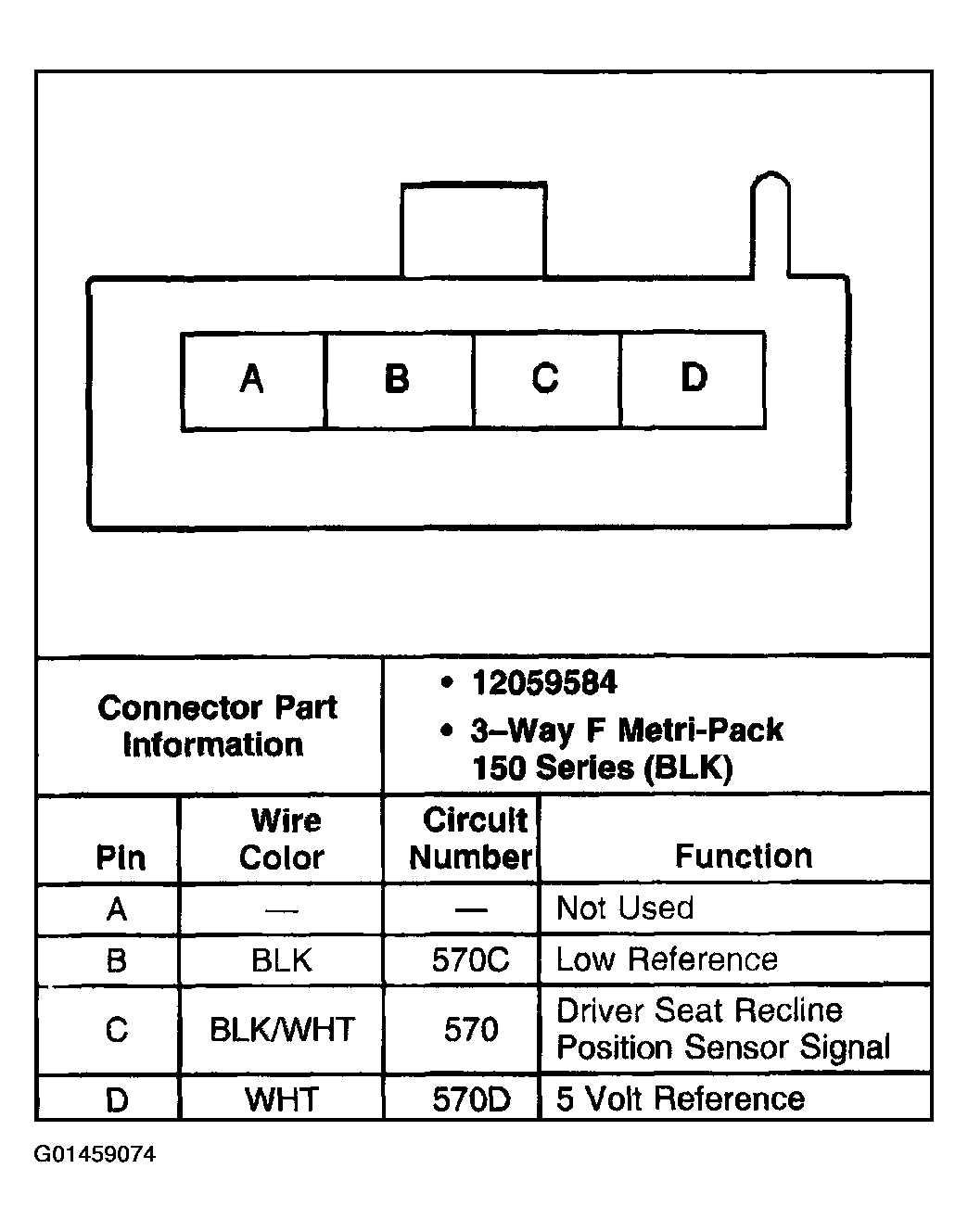

Fig 22: Identifying Seat Recliner Motor Position Sensor - Driver Connector Terminals
G01459074Courtesy of GENERAL MOTORS CORP.

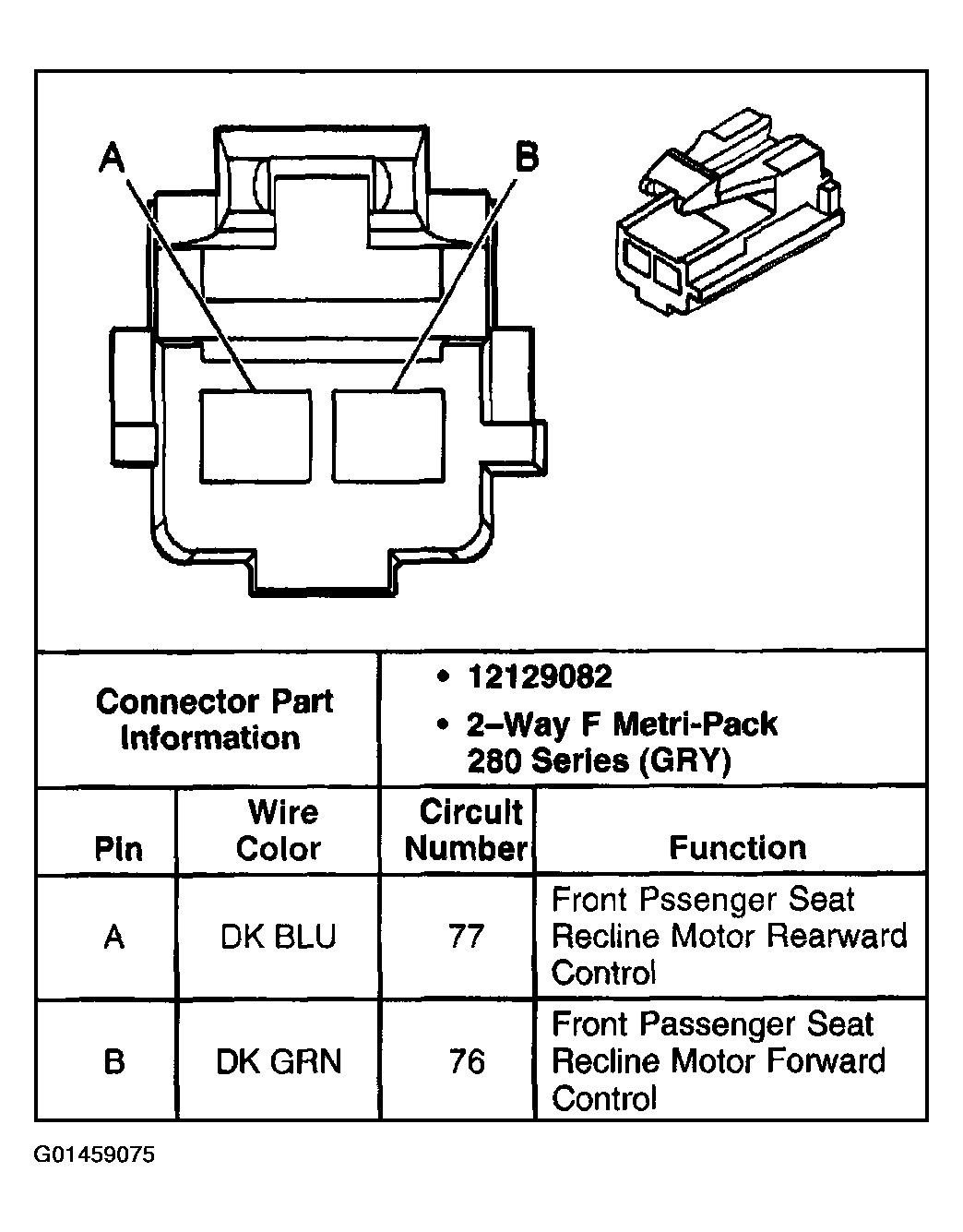

Fig 23: Identifying Seat Recliner Motor - Front Passenger Connector Terminals
G01459075Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Seat Front Vertical Motor Position Sensor - Driver Connector Terminals
G01459076Courtesy of GENERAL MOTORS CORP.

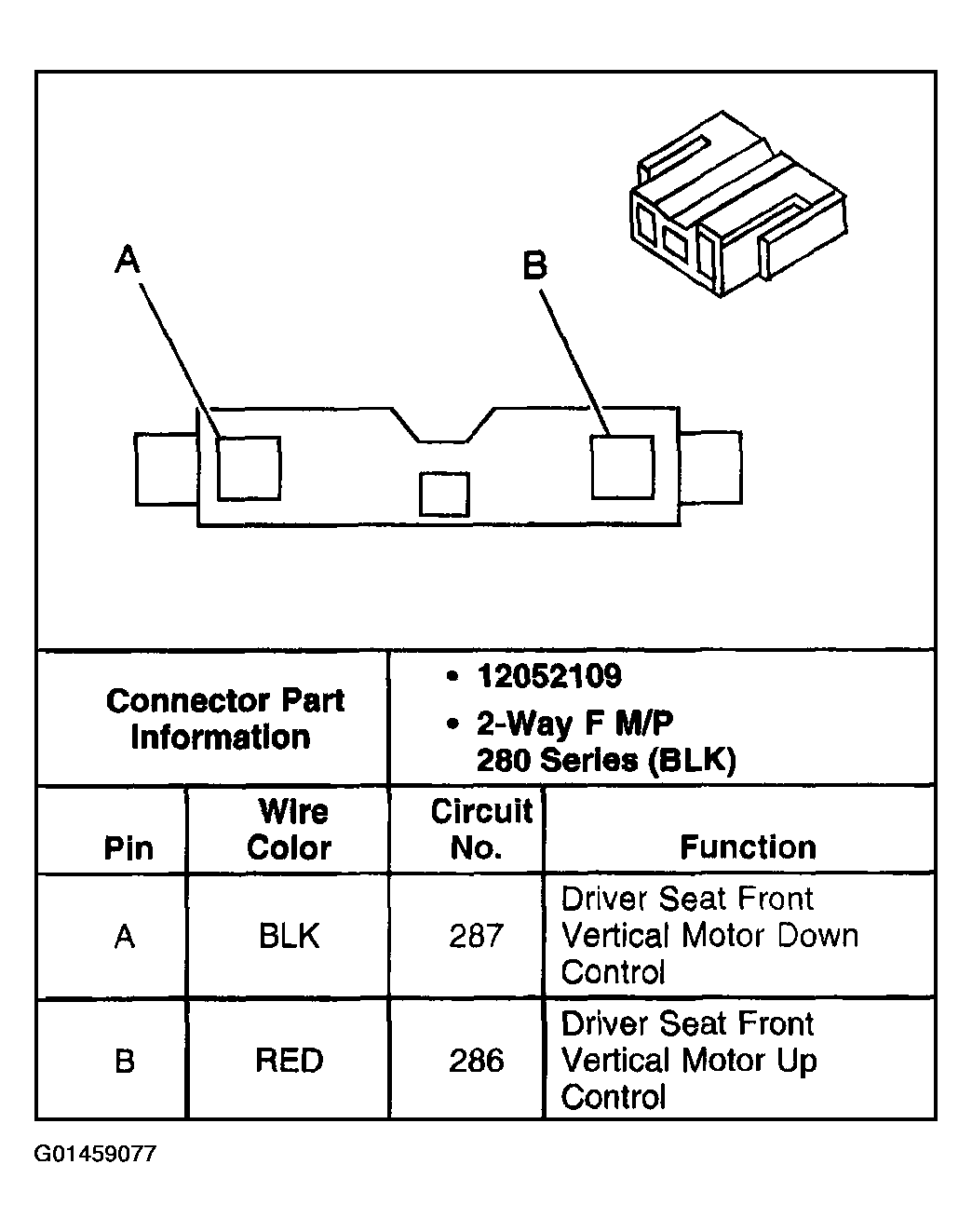

Fig 25: Identifying Seat Front Vertical Motor - Driver Connector Terminals
G01459077Courtesy of GENERAL MOTORS CORP.

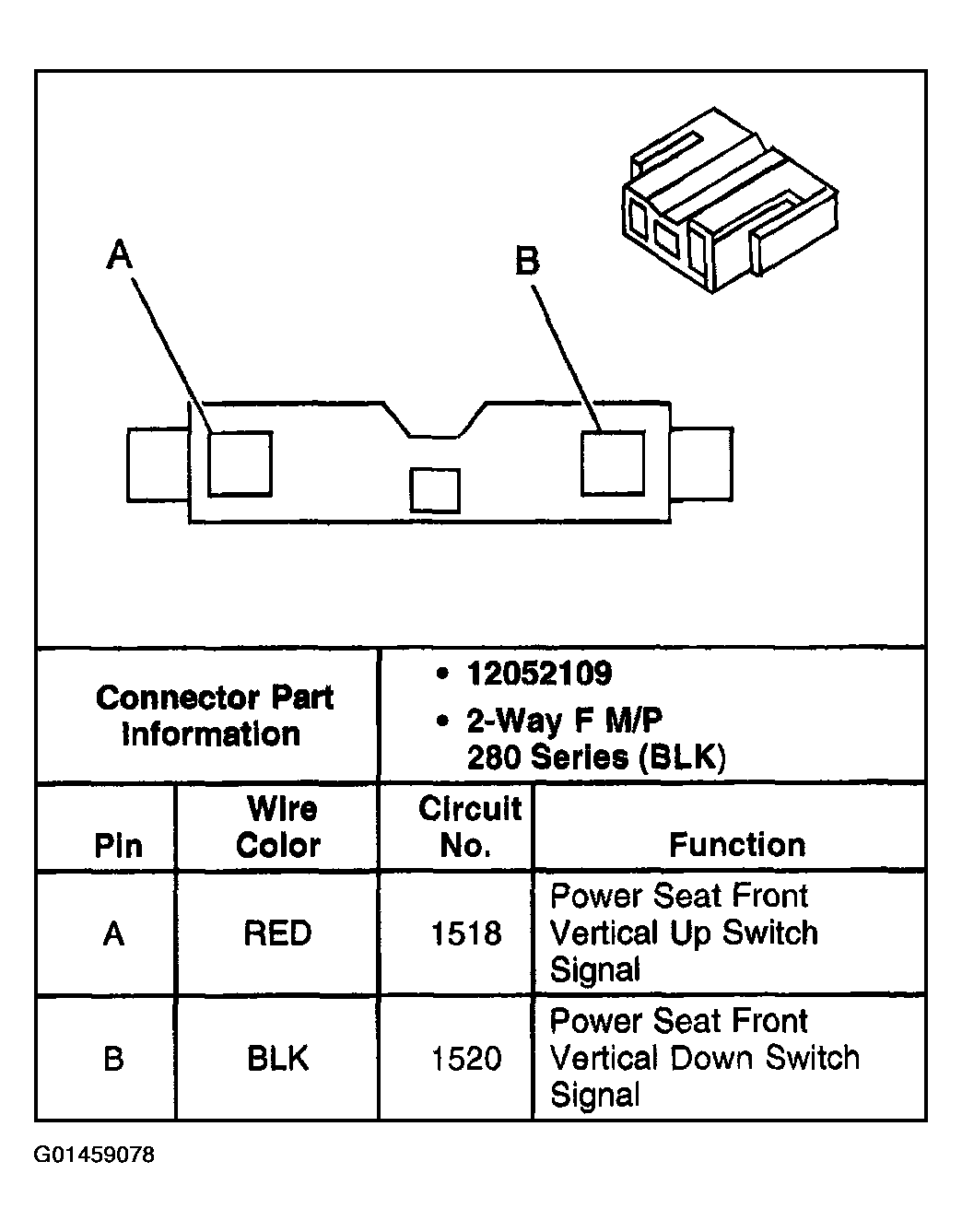

Fig 26: Identifying Seat Front Vertical Motor - Front Passenger Connector Terminals
G01459078Courtesy of GENERAL MOTORS CORP.

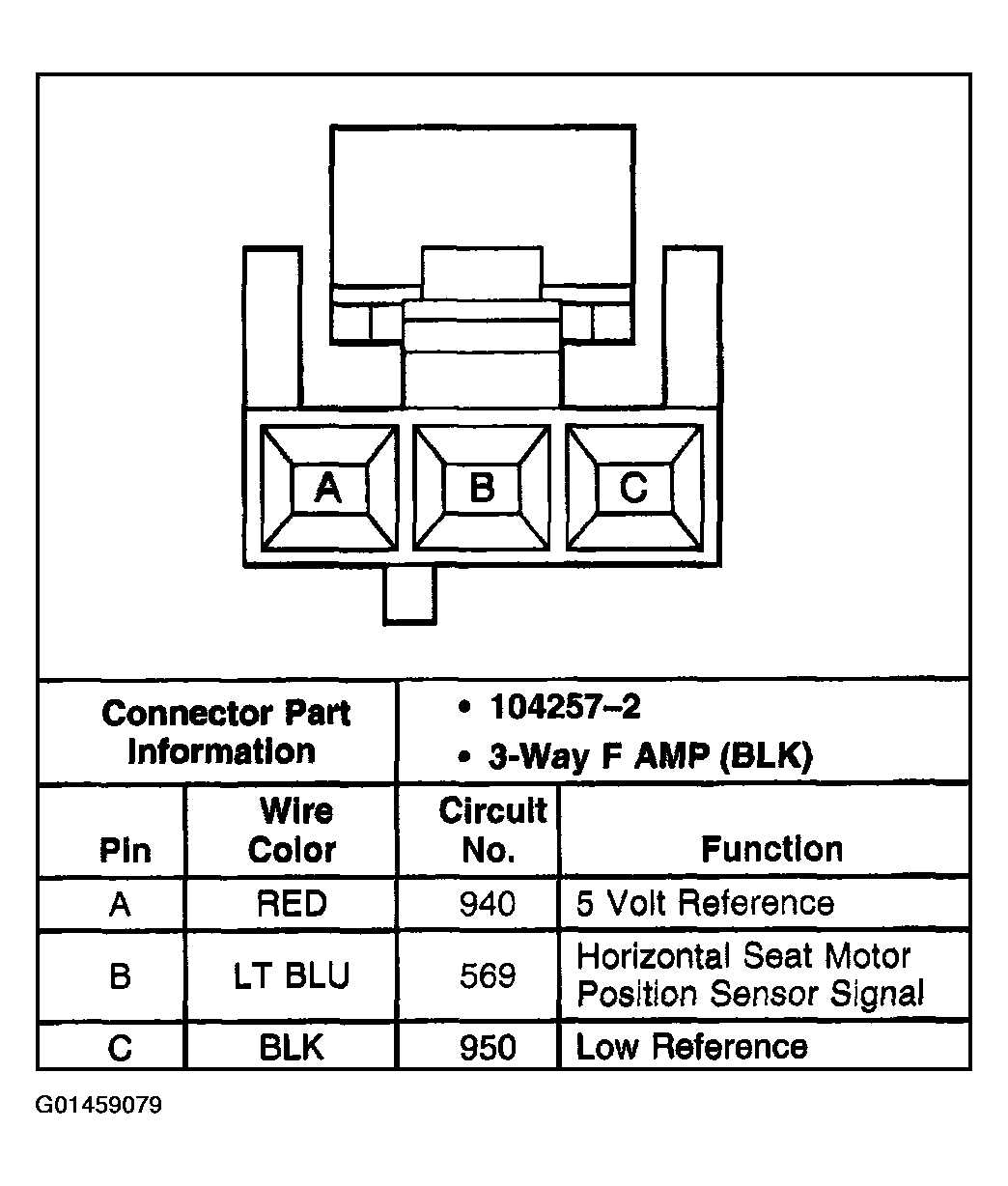

Fig 27: Identifying Seat Horizontal Motor Position Sensor - Driver Connector Terminals
G01459079Courtesy of GENERAL MOTORS CORP.

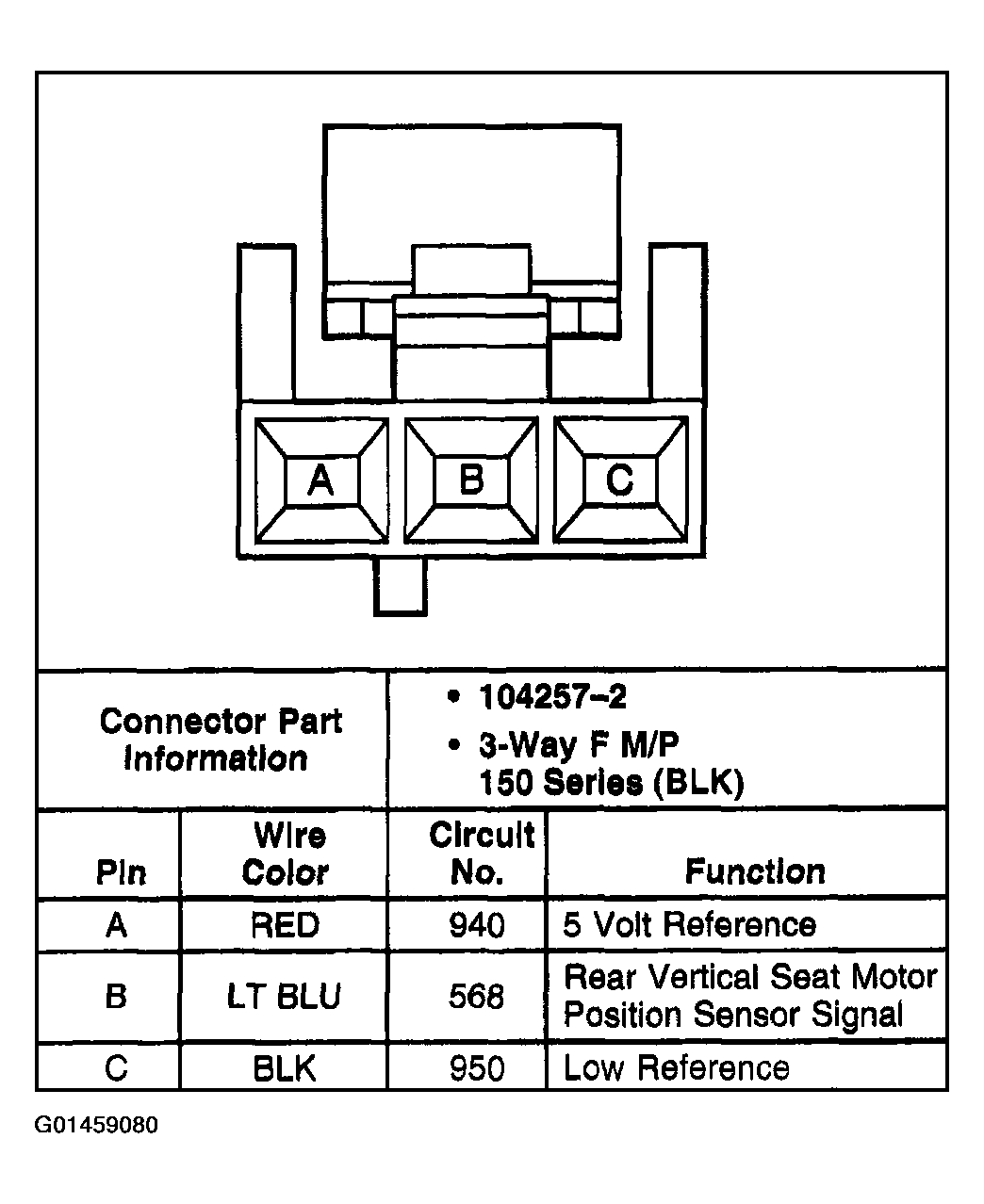

Fig 28: Identifying Seat Rear Vertical Motor Position Sensor - Driver Connector Terminals
G01459080Courtesy of GENERAL MOTORS CORP.

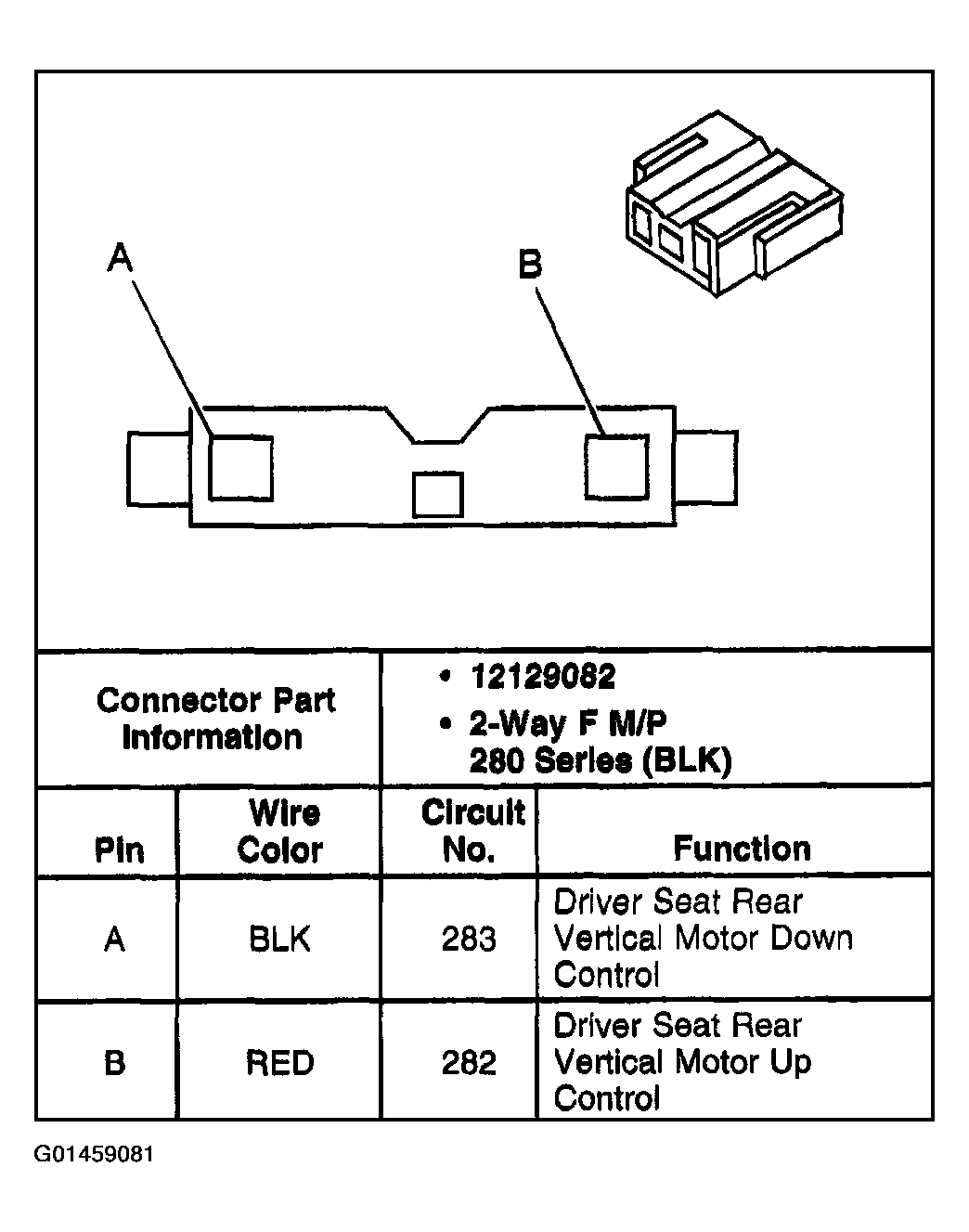

Fig 29: Identifying Seat Rear Vertical Motor - Driver Connector Terminals
G01459081Courtesy of GENERAL MOTORS CORP.

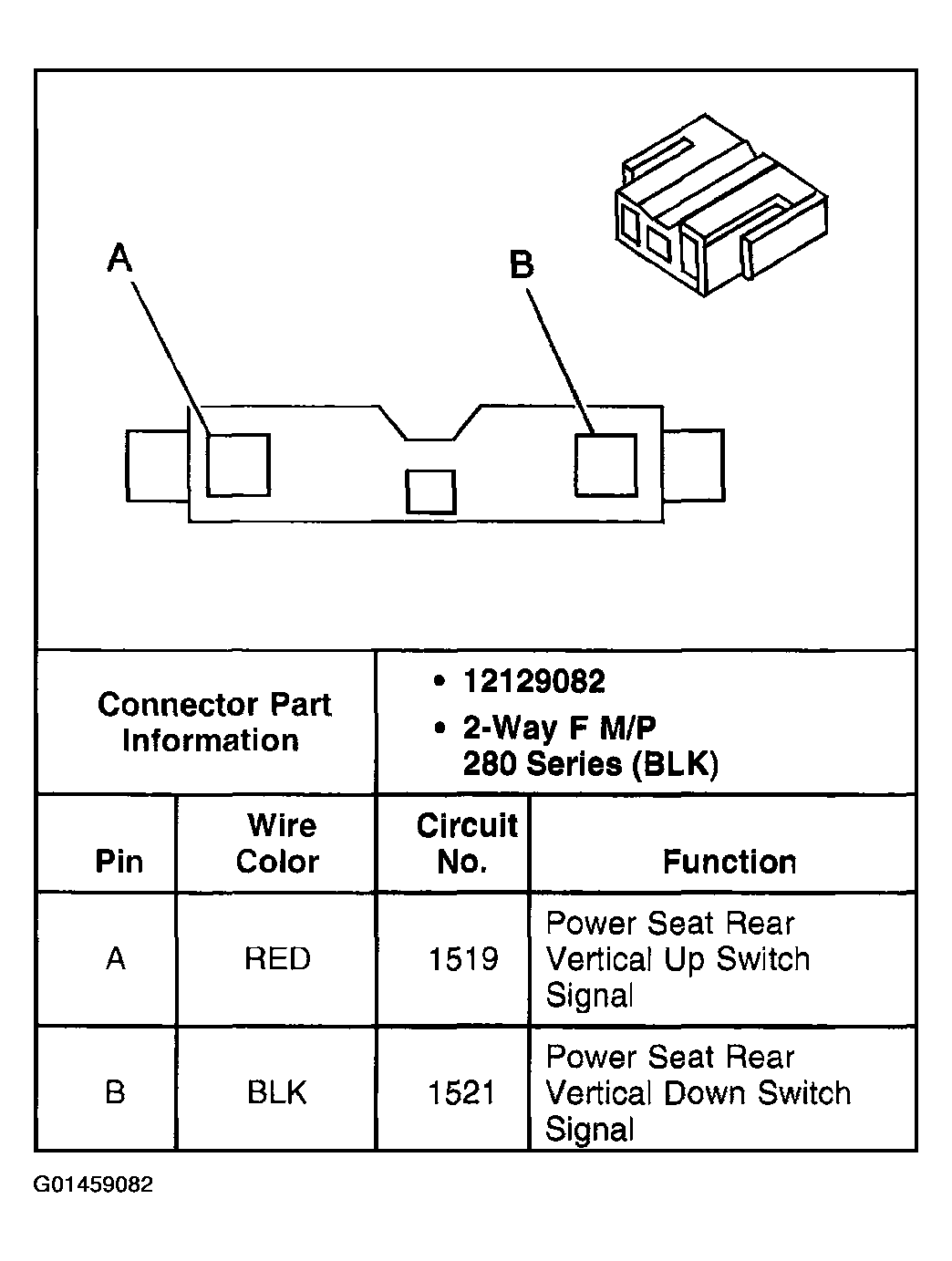

Fig 30: Identifying Seat Rear Vertical Motor - Front Passenger Connector Terminals
G01459082Courtesy of GENERAL MOTORS CORP.
