Scan Tool Data List

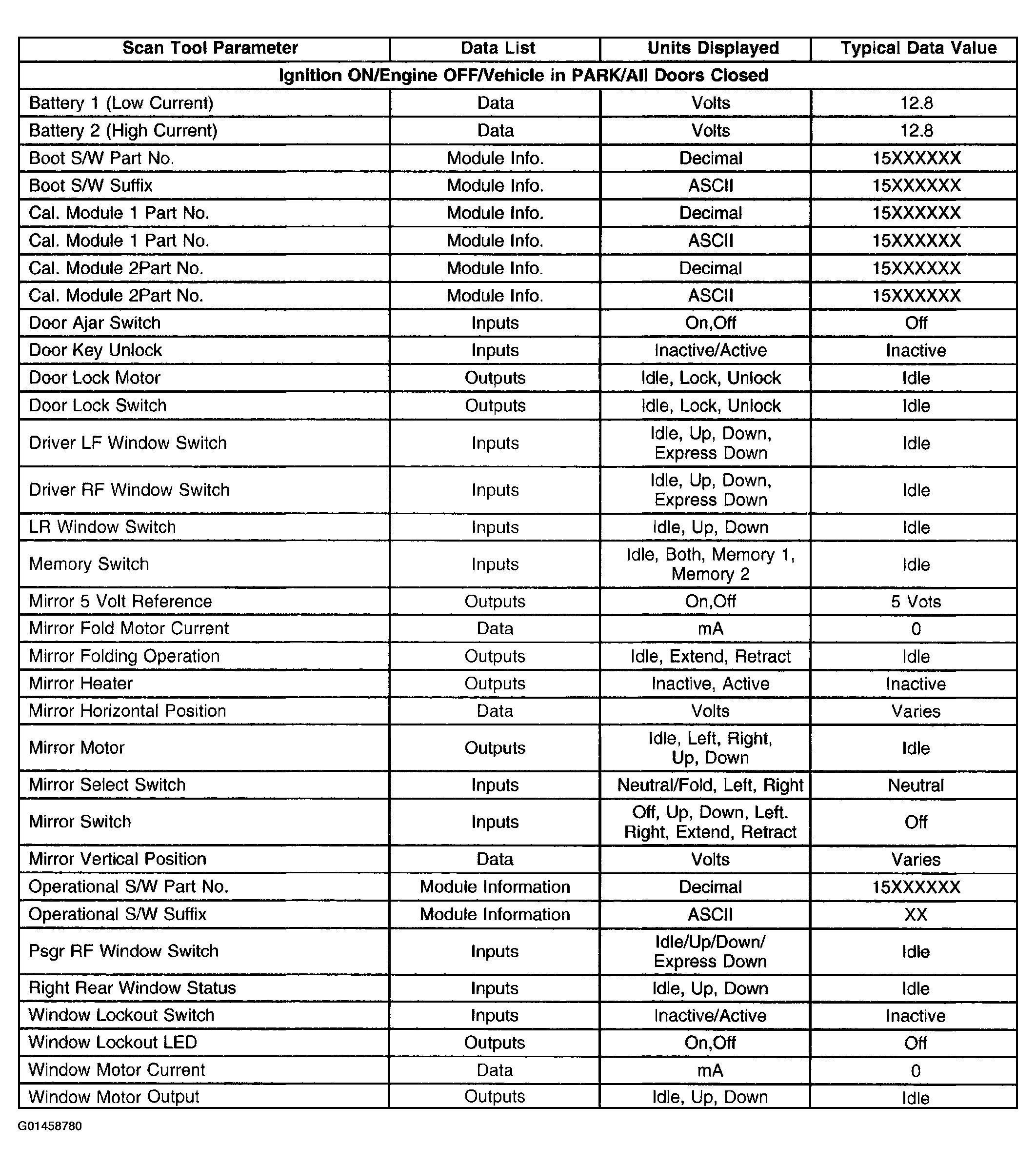

Fig 1: Driver/Passenger Door Module Scan Tool Specification Chart
G01458780Courtesy of GENERAL MOTORS CORP.

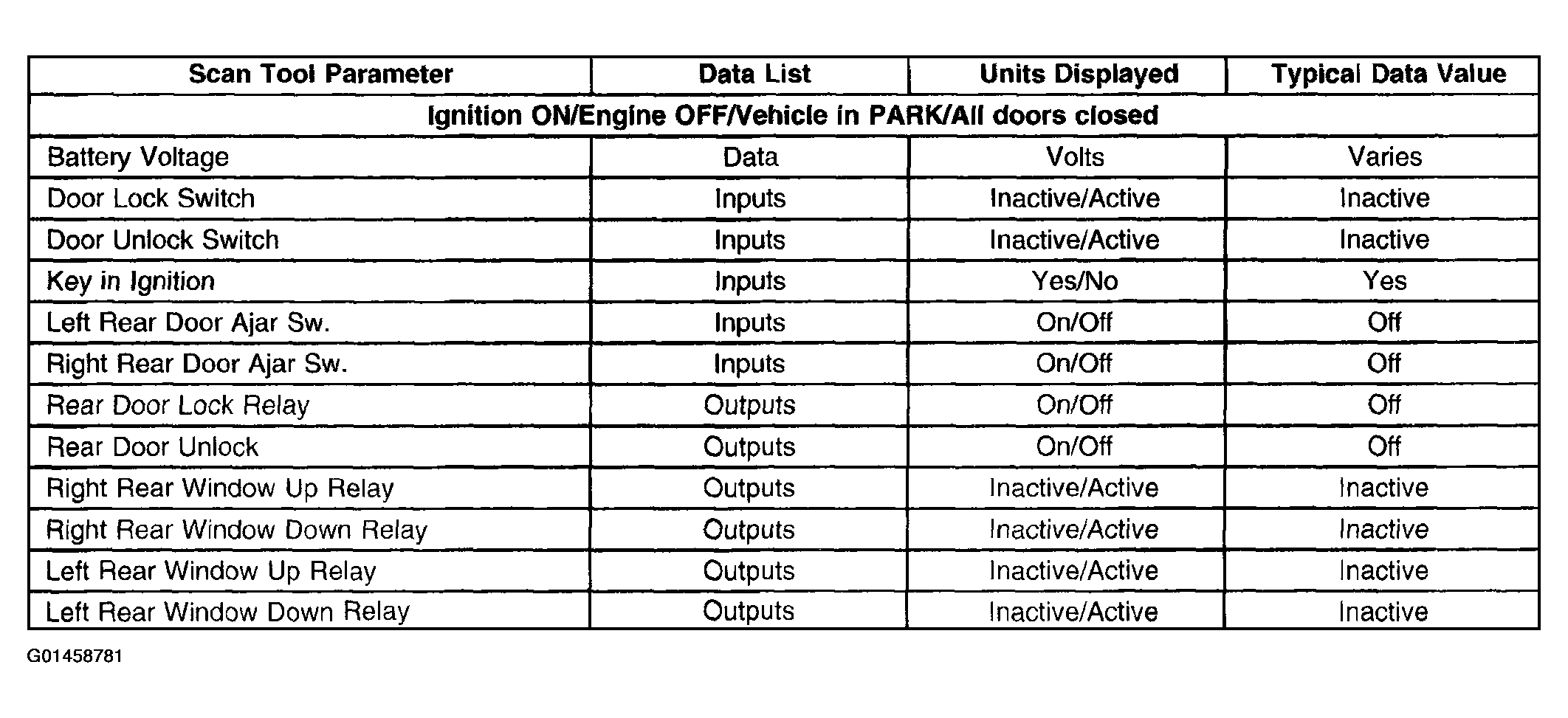

Fig 2: Driver/Passenger Door Module Scan Tool Specification Chart
G01458781Courtesy of GENERAL MOTORS CORP.
